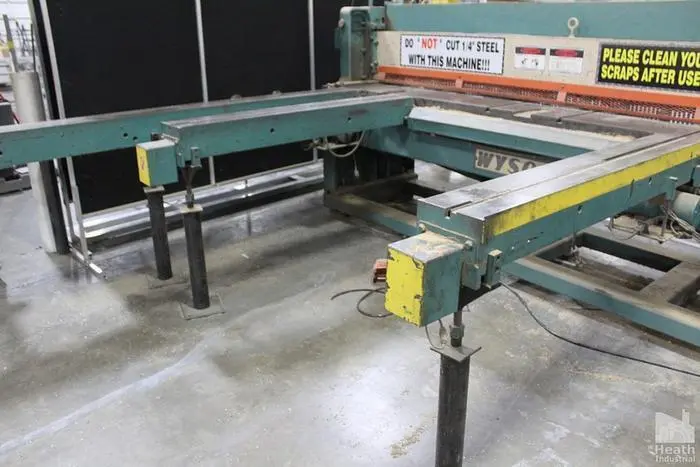

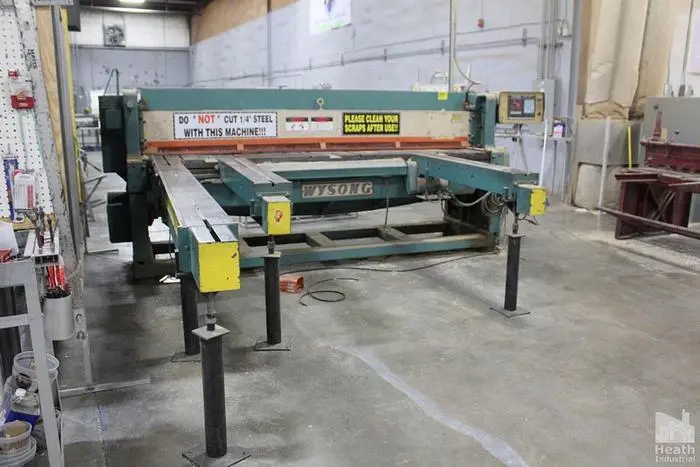

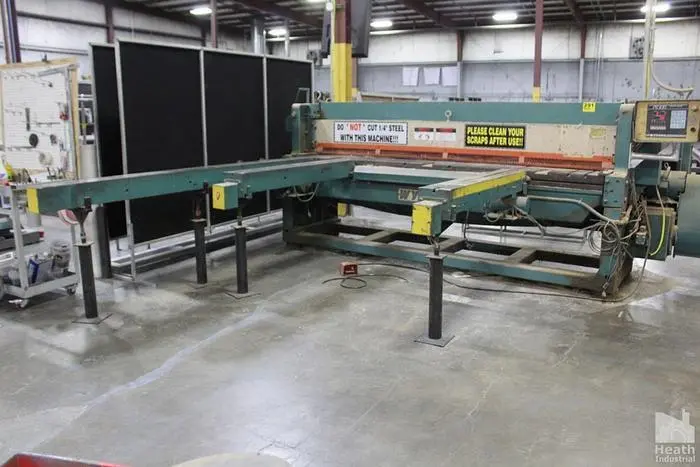

10' x 10 GA WYSONG "1010" CNC MECHANICAL POWER SQUARING SHEAR w/POWER FRONT GAUGING & SQUARING ARM
Year
Not provided
Stock #
19795
Condition
Used
Keep Scrolling To Learn More
Specifications
Equipped With
10' x 10 GA WYSONG "1010" CNC MECHANICAL POWER SQUARING SHEAR w/POWER FRONT GAUGING & SQUARING ARM
Equipped With:
|
|
36" CNC Controlled Front Operated Power Back Gauge
72" CNC Controlled Power Precision Squaring Arm
72" CNC Controlled Power Precision Front Gauging
(16) Spring-Activated Automatic Holddowns
Adjustable Rake
Bijur Lubrication System
No Pit Required
Shearing Capacity, Mild Steel 10' x 10 GA
Shearing Capacity, Stainless Steel 10' x 12 GA
Length Between Housings 10'
Rake, Taper Per Foot 3/8"
Strokes Per Minute 60 SPM
Main Motor, Horsepower/RPM 10 HP/1800 RPM
Electrical System 220-440/3/60
Overall Dimensions, L x D 168' x 103"
Overall Height 60"
Weight, Approximately 13500 LBS
Attachments
There are no files attached to this listing currently. If you Have any further questions regarding this listing, please contact us for more information.
