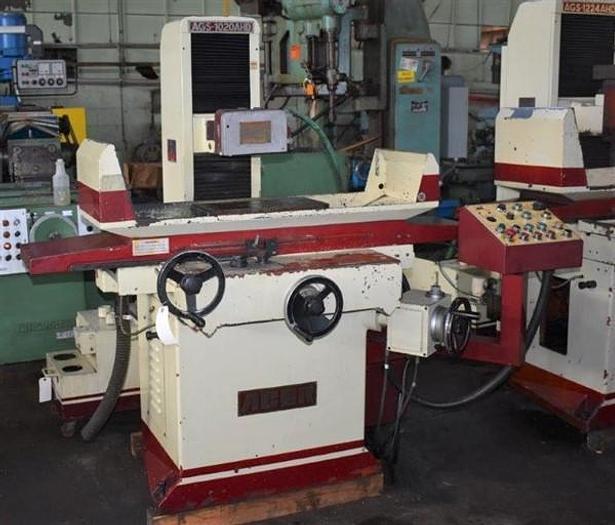

10" X 20" ACER MODEL AGS-1020AHD AUTOMATIC HYDRAULIC-FEED HORIZONTAL-SPINDLE SURFACE GRINDER

Manufacturer

ACER

Model

AGS-1020AHD

Year

2000

Stock #

17530

Condition

Very Good

Request A Quote

Keep Scrolling To Learn More

Specifications

Equipped With

10" X 20" ACER MODEL AGS-1020AHD AUTOMATIC HYDRAULIC-FEED HORIZONTAL-SPINDLE SURFACE GRINDER

New 2000

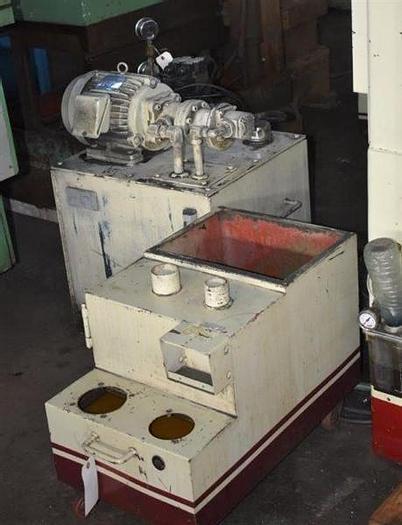

EQUIPPED WITH: ELECTRO-MAGNETIC CHUCK INCREMENTAL POWER DOWN FEED PARALLEL GRINDING WHEEL DRESSER COOLANT SYSTEM (TANK & PUMP)


SPECIFICATIONS:

Table working surface, w x l 9" X 20"
Grinding width capacity, maximum 10"
Grinding length capacity, maximum 20"
Height spindle center to table, maximum 19-1/2"
Table load capacity 1000 LBS
Table longitudinal, power 20-1/2"
Table cross travel 11"
Grinding wheel diameter, standard 8"
Grinding wheel width, standard 0.5"
Grinding wheel hole diameter 1.25"
Grinding spindle speed 3580 RPM
Table longitudinal feeds, range 16 TO 80 FPM
Crossfeed travel feeds, automatic 0 TO 1"
Spindle auto downfeed , range .0001 TO .001 IPR
Spindle horsepower 2 HP
Hydraulic motor horsepower 2 HP
Floor space required, 5'6" X 6'
Weight, approximately 3580 LBS

Attachments

There are no files attached to this listing currently. If you Have any further questions regarding this listing, please contact us for more information.
