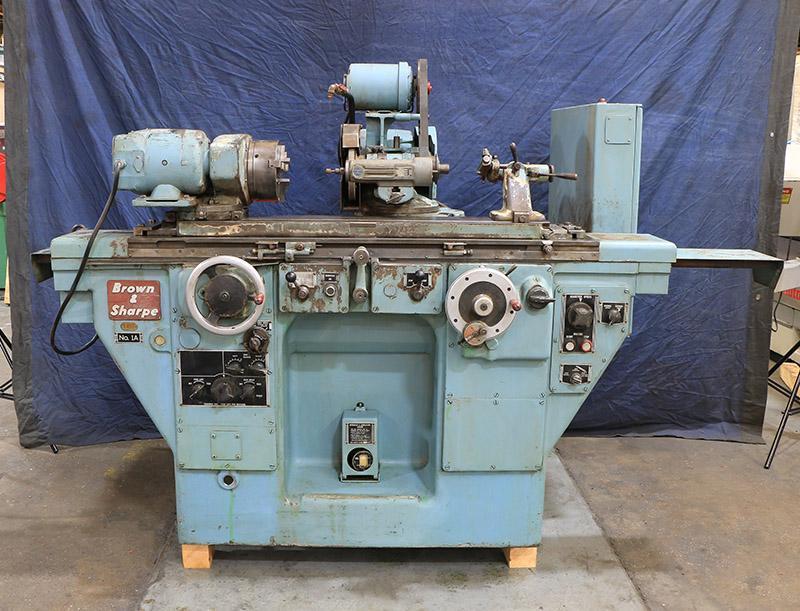

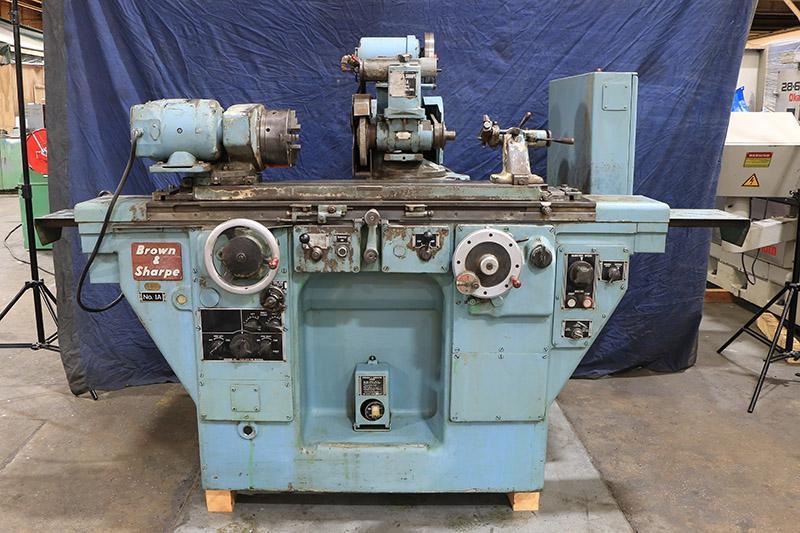

10" X 20" BROWN & SHARPE MODEL 1 UNIVERSAL I.D./O.D. CYLINDRICAL GRINDER

Year

1966

Stock #

17500

Condition

Very Good

Request A Quote

Keep Scrolling To Learn More

Specifications

Equipped With

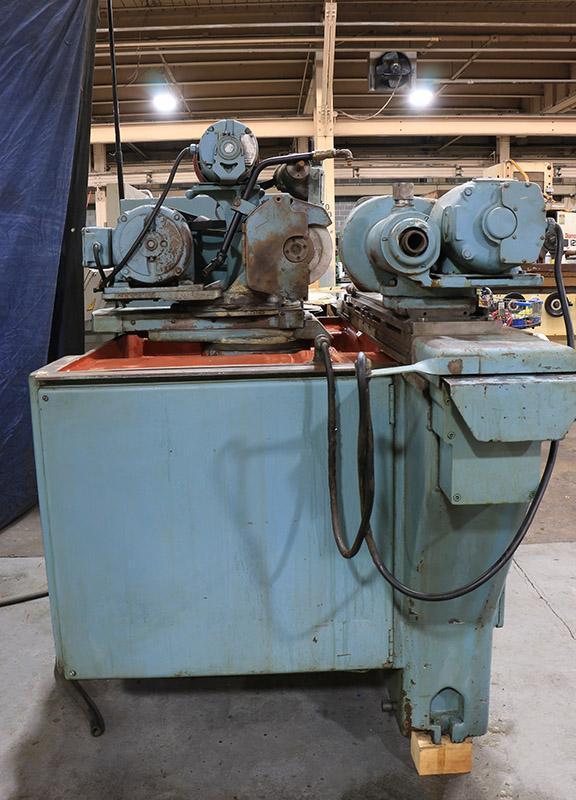

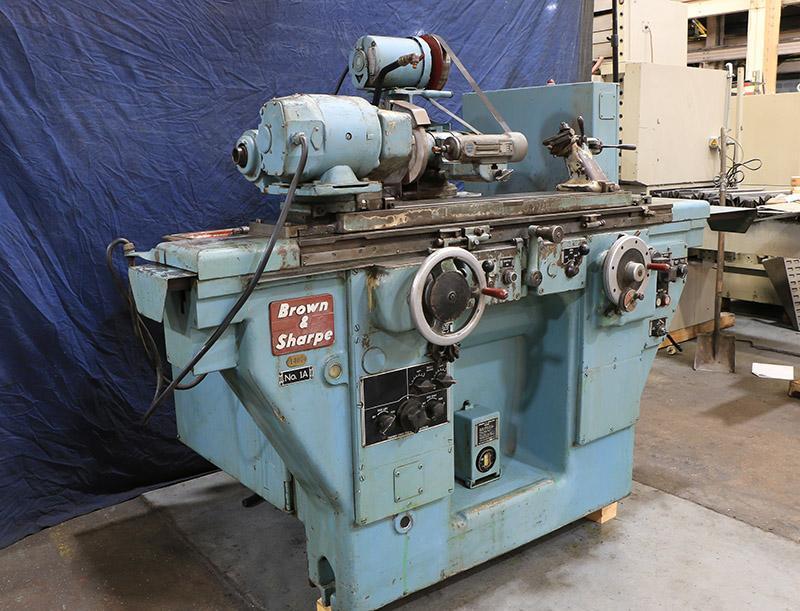

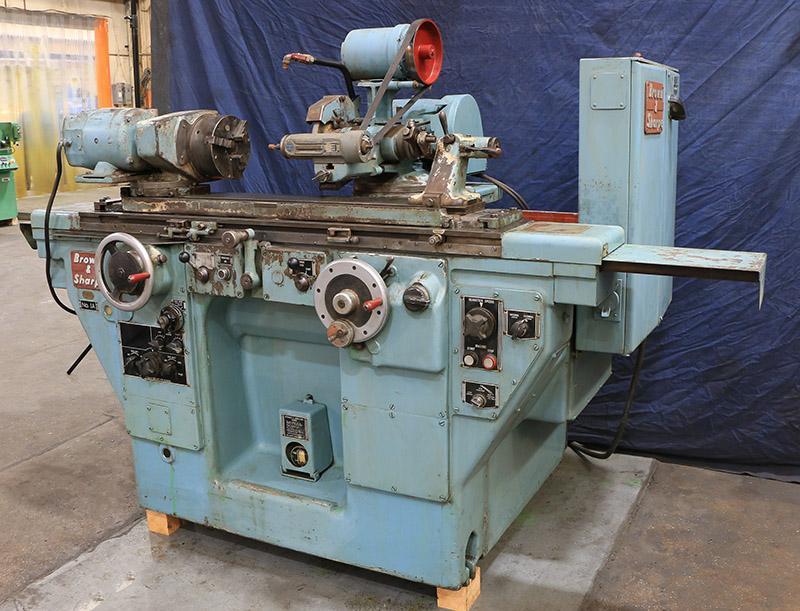

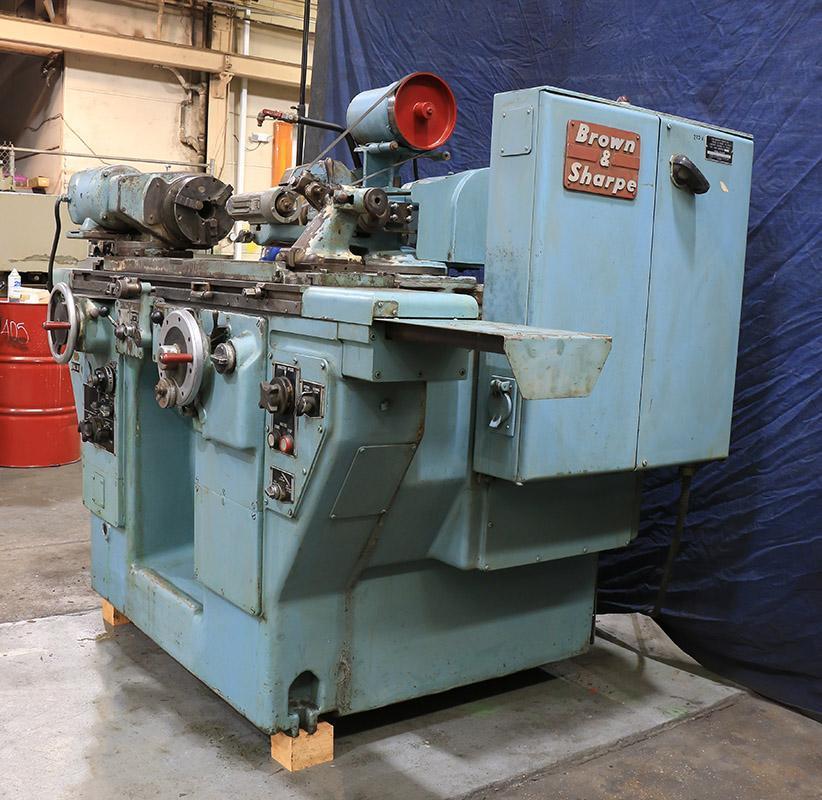

 10" X 20" BROWN & SHARPE MODEL 1 UNIVERSAL I.D./O.D. CYLINDRICAL GRINDER

NEW 1966

UNIQUE TO BROWN & SHARPE GRINDERS FEATURE

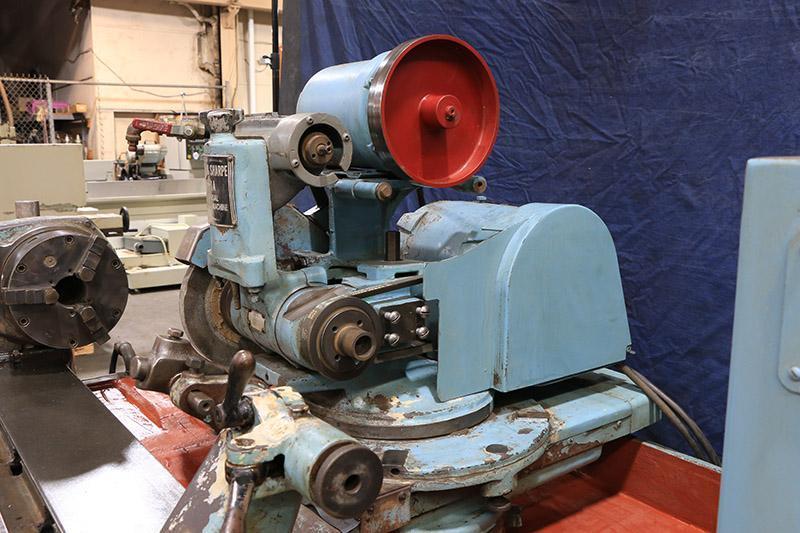

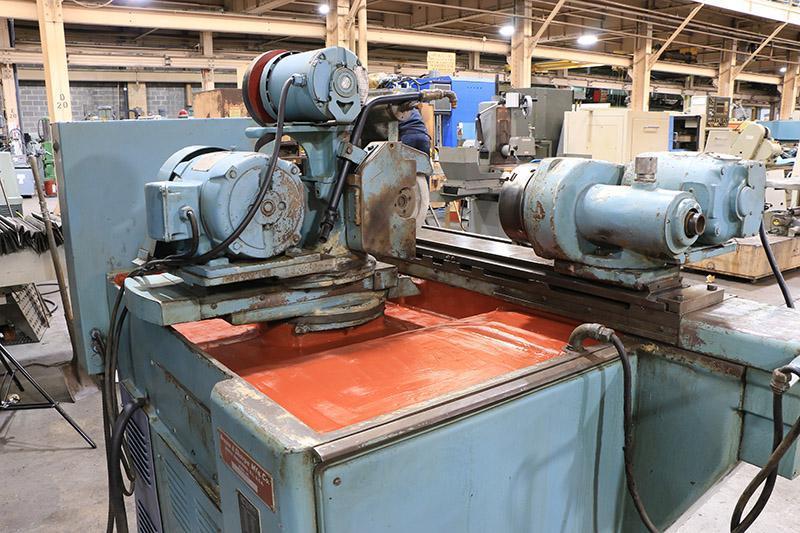

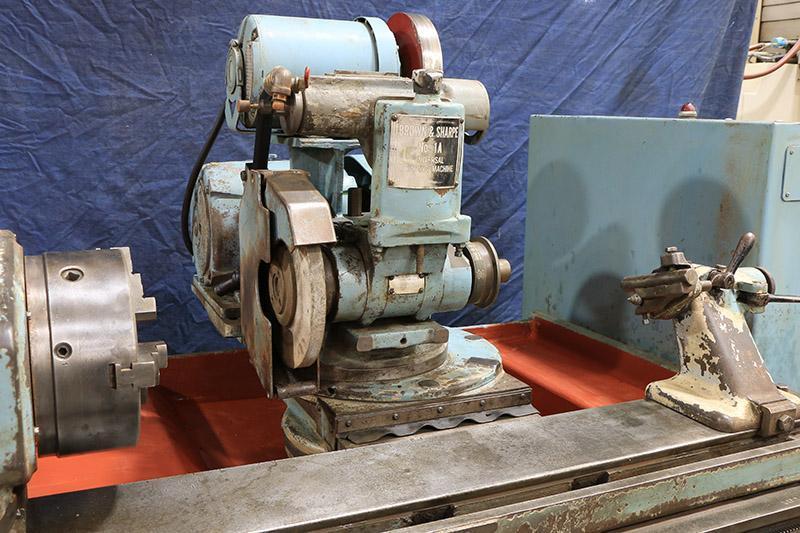

- DOUBLE SWIVEL WHEELHEAD:



"THE WHEEL SPINDLE HEAD WHICH SUPPORTS THE EXTERNAL &

 INTERNAL GRINDING SPINDLES CAN BE SWIVELED TO EITHER

 SIDE OF ZERO. AN ADDITIONAL SWIVEL THROUGH 90 DEGREES

 IS PROVIDED AT THE WHEEL SLIDE. ANY COMPOUND SETTING

 REQUIRED IN COMBINATION STRAIGHT & TAPER OR DOUBLE

 TAPER GRINDING, O.D. OR I.D., CAN BE MADE QUICKLY

 & ACCURATELY. THE UNIVERSAL TURRET, WHICH

 SUPPORTS THE WHEEL SPINDLE HEAD, PROVIDES FURTHER

 ADJUSTMENT FOR CHANGE OF WHEEL LOCATION. THE TURRET

 SWIVELS ON THE WHEEL SLIDE, AND CAN BE LOCKED

 IN ANY OF FOUR POSITIONS. EACH CHANGE MOVES THE

 WHEEL 2". RIGHT HAND WHEEL MOUNTING PROVIDES

 FOUR ADDITIONAL WHEEL POSITIONS."



SWING OVER TABLE .................................. 10"

DISTANCE BETWEEN CENTERS, NOMINAL ................. 20"

DISTANCE BETWEEN CENTERS, MAXIMUM ............. 22-3/4"

GRINDING WHEEL MOTOR ............................. 2 HP

WHEELHEAD SPINDLE SPEEDS .......... INFINITELY VARIABLE

GRINDING WHEEL SIZE ..................... 10" X 1" X 3"

SWIVEL AT THE WHEELSLIDE ........ 90 DEGREES EITHER WAY

WHEEL SPINDLE SWIVELS ........... 90 DEGREES EITHER WAY



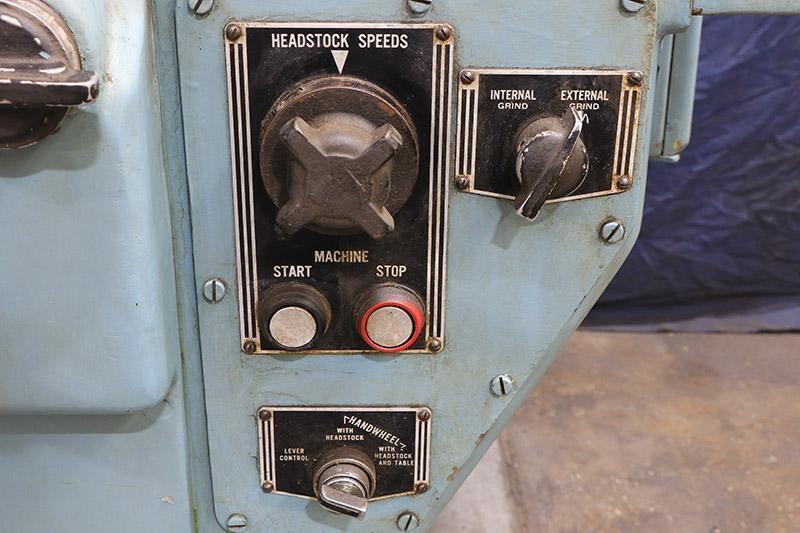

HEADSTOCK MOTOR ................................ 1/4 HP

INFINITELY VARIABLE SPINDLE SPEEDS ...... 60 TO 600 RPM

HEADSTOCK SPINDLE NOSE TAPER .................... A2-5"

HEADSTOCK SWIVELS EITHER SIDE OF ZERO ...... 90 DEGREES



INFINITELY VARIABLE TABLE SPEED ........ 3" TO 150" IPM

TABLE PER REV. OF HANDWHEEL:

  SLOW ........................................... 0.1"

  FAST ........................................... 1.5"

DWELL AT EACH OR ALTERNATE TABLE REV. .. 0 - 2-1/2 SEC.

TABLE SWIVEL, SCALES FOR ANGULAR SETTING ... 8-1/4 DEG.

SCALES-TAPER PER FT. ..................... 3-1/2" (25%)

AUTOMATIC CROSS FEED, REDUCTION IN DIAMETER OR WORK

  AT EACH OR ALTERNATE REVERSALS ...... 0.0001" - .003"

HAND FEED PER REV. OF HANDWHEEL:

  SLOW ........................................... 0.1"

  FAST ........................................... 0.3"



TAILSTOCK SPINDLE TAPER ...................... #7 JARNO

TAILSTOCK SPINDLE TRAVEL ......................... 5/8"



APPROXIMATE WEIGHT .......................... 5,100 LBS



MACHINE FEATURES:

  WHEELHEAD - DOUBLE SWIVEL & TURRET (DESCRIBED ABOVE)

  HYDRAULIC TABLE TRAVERSE

  AUTO INFEED

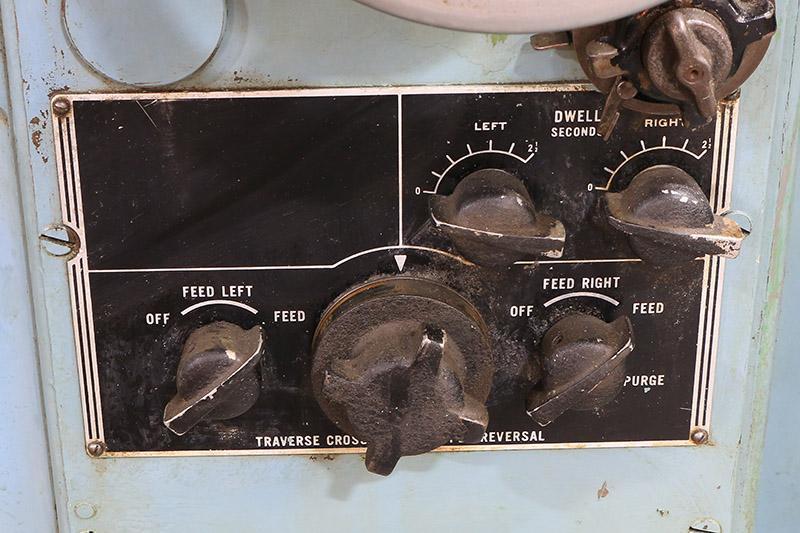

  ADJUSTABLE TABLE DWELL

  RIGHT OR LEFT END WHEEL MOUNTING

  SWIVELLING AT WHEEL SPINDLE HEAD OR AT THE WHEEL

   SLIDE PERMITS ANY COMPOUND SETTING REQUIRED IN

   COMBINATION STRAIGHT AND TAPER GRINDING,

   EXTERNAL OR INTERNAL

  L.H. & R.H. GRINDING WHEEL COVERS

  DUAL DEAD/LIVE HEADSTOCK SPINDLE

  SELF-CONTAINED COOLANT SYSTEM

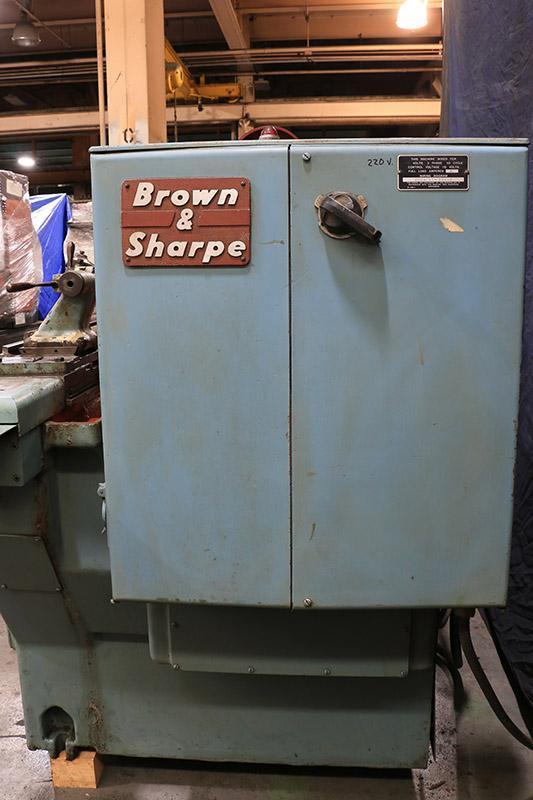

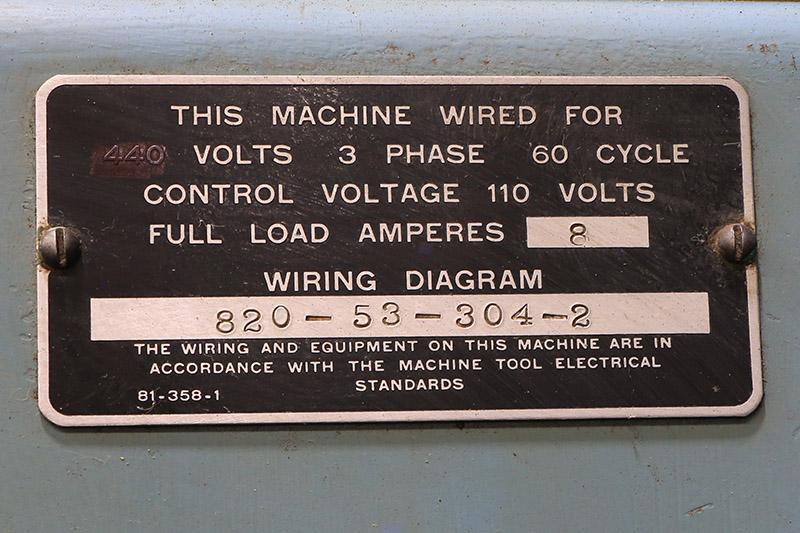

  3/60/220-440 VOLT MOTORS



EQUIPPED WITH:

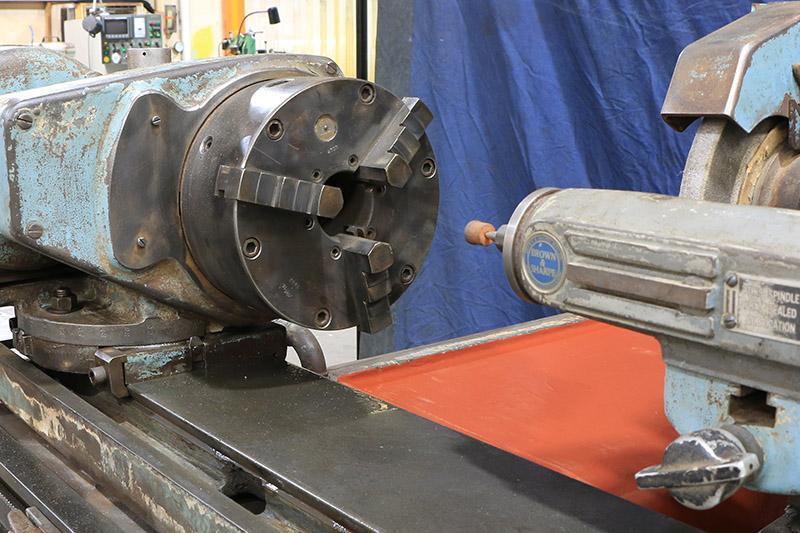

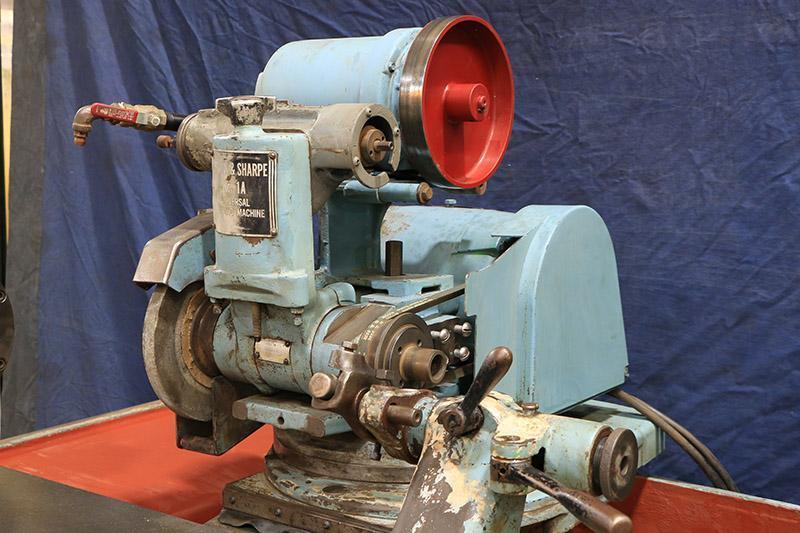

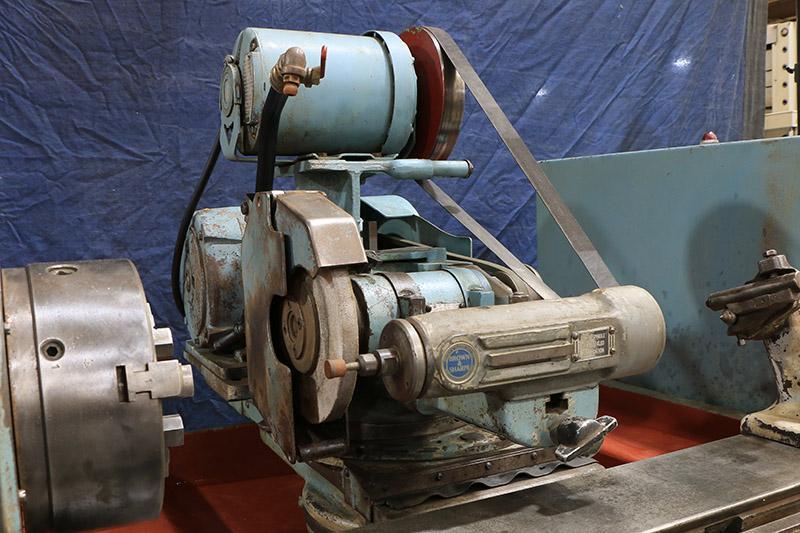

SWING DOWN I.D. GRINDING ATTACHMENT WITH I.D. SPINDLE

3-JAW CHUCK MOUNTED ON WORKHEAD

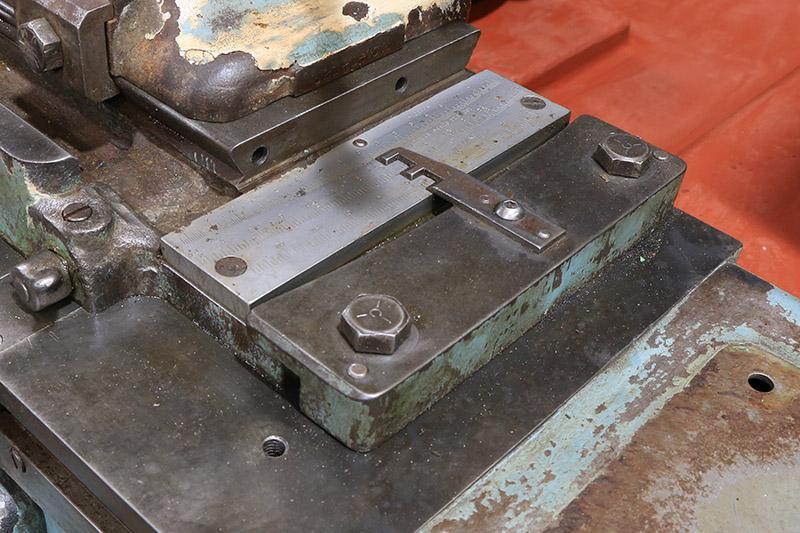

ELECTRALIGN TABLE TAPER ADJUSTMENT (NOT WORKING)

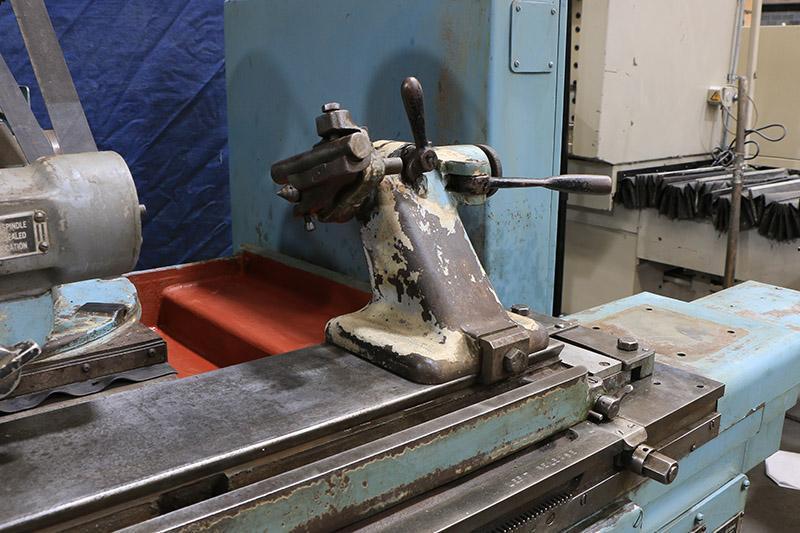

DRESSER MOUNTED ON THE BACK OF THE TAILSTOCK

WIRED PRESENTLY FOR 220 VOLTS
