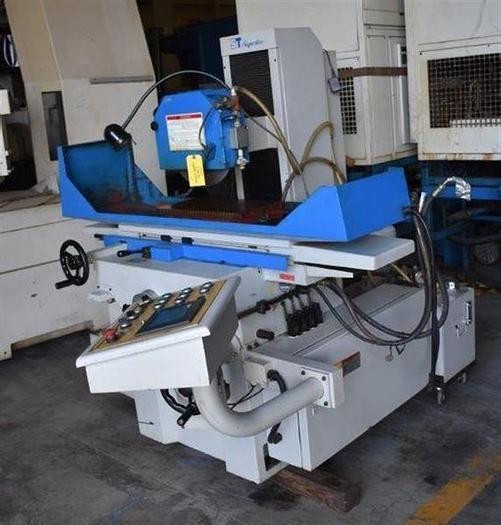

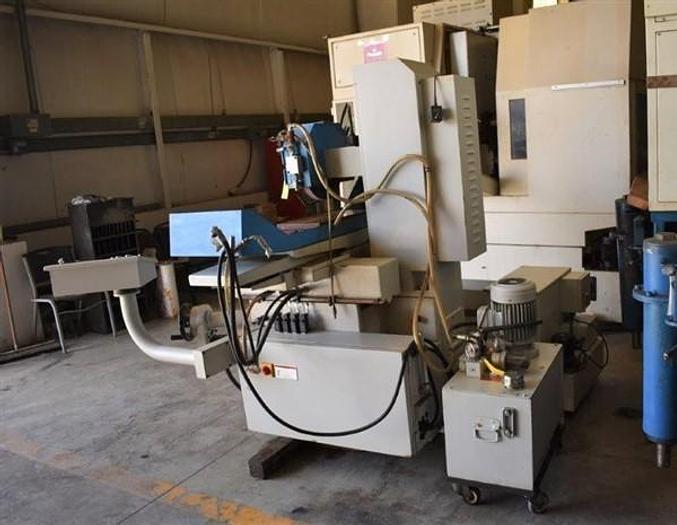

10" x 20" SUPERTEC MODEL SG-3A1020 3-AXIS AUTOMATIC SADDLE-TYPE HYDRAULIC-FEED HORIZONTAL-SPINDLE SURFACE GRINDER
New 2012

EQUIPPED WITH:

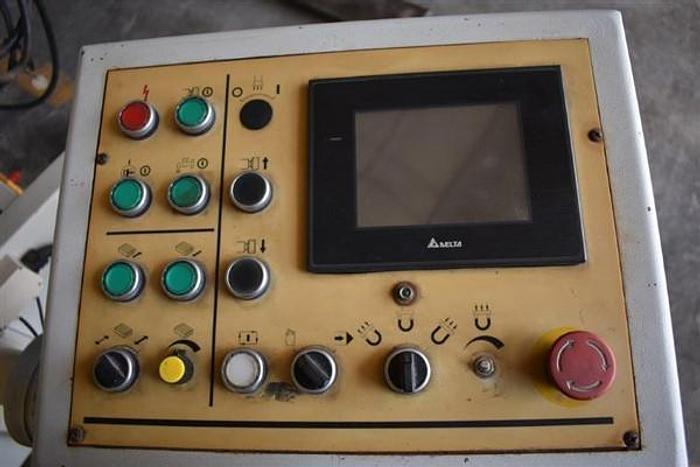

Mitsubishi PLC Controls w/Menu Driven LCD Touch Screen

10" x 20" Electro-Magnetic Chuck

Incremental Power Down Feed

Meehanite Casting - Double V-Ways Longitudinal & Cross

Automatic Lubrication System

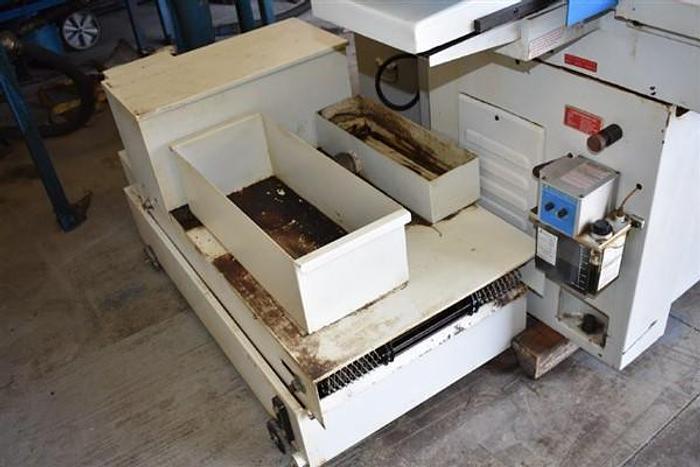

Coolant System w/Filtration System

CATALOG SPECIFICATIONS:

Table Working Surface, W x L .......... 10" x 20"

Grinding Width Capacity, Maximum .......... 10"

Grinding Length Capacity, Maximum .......... 20"

Height Spindle Center to Table, Maximum .......... 19.2"

Table Longitudinal, Power .......... 24"

Table Cross Travel .......... 11"

Grinding Wheel Diameter, Standard .......... 14"

Grinding Wheel Width, Standard .......... 1"

Grinding Wheel Hole Diameter .......... 5"

Grinding Spindle Speed .......... 1800 RPM

Table Longitudinal Feeds, Range .......... 40 to 1000 IPM

Crossfeed Travel Feeds, Automatic .......... 0.1 to 0.4"

Spindle Auto Downfeed , Range .......... .0001 to .001 IPR

Spindle Horsepower .......... 3 HP

Hydraulic Motor Horsepower .......... 2 HP

Weight, Approximately .......... 3750 LBS
