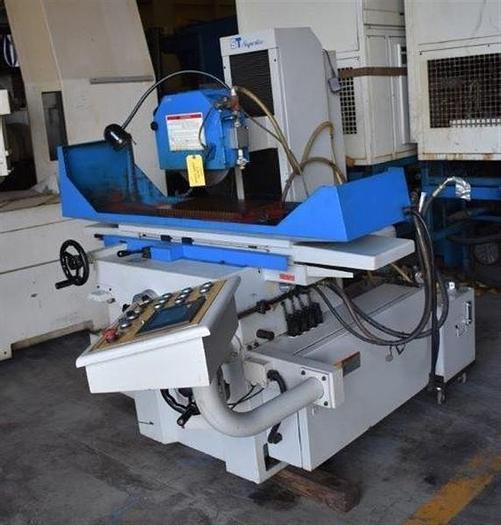

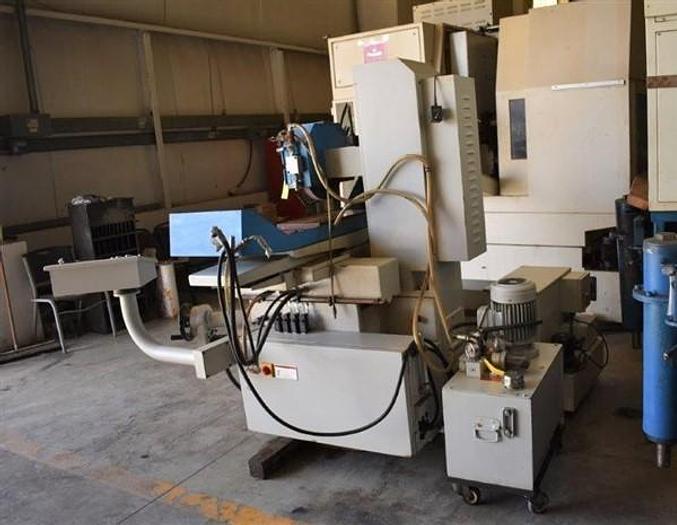

10" x 20" SUPERTEC MODEL SG-3A1020 3-AXIS AUTOMATIC SADDLE-TYPE HYDRAULIC-FEED HORIZONTAL-SPINDLE SURFACE GRINDER
New 2012
EQUIPPED WITH:

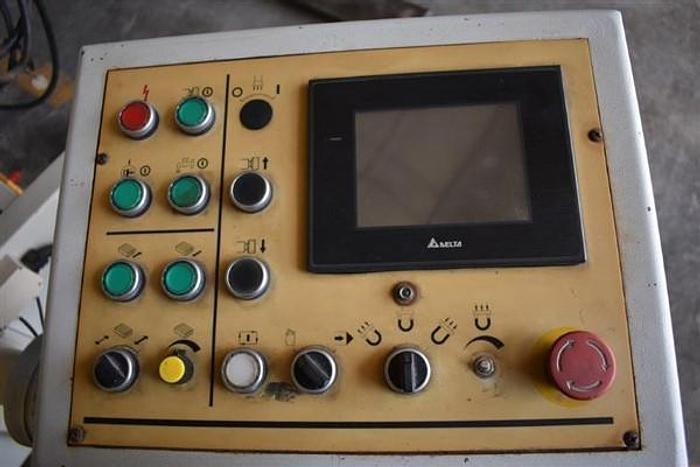

Mitsubishi PLC Controls w/Menu Driven LCD Touch Screen
10" x 20" Electro-Magnetic Chuck
Incremental Power Down Feed
Meehanite Casting - Double V-Ways Longitudinal & Cross
Automatic Lubrication System

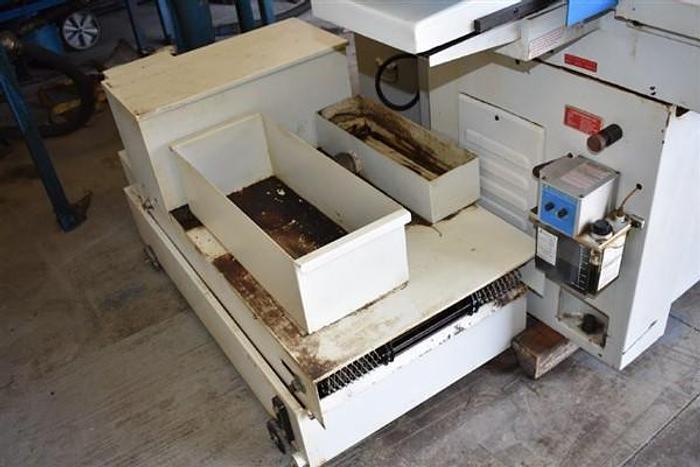

Coolant System w/Filtration System
CATALOG SPECIFICATIONS:
Table Working Surface, W x L .......... 10" x 20"
Grinding Width Capacity, Maximum .......... 10"
Grinding Length Capacity, Maximum .......... 20"
Height Spindle Center to Table, Maximum .......... 19.2"
Table Longitudinal, Power .......... 24"
Table Cross Travel .......... 11"
Grinding Wheel Diameter, Standard .......... 14"
Grinding Wheel Width, Standard .......... 1"
Grinding Wheel Hole Diameter .......... 5"
Grinding Spindle Speed .......... 1800 RPM
Table Longitudinal Feeds, Range .......... 40 to 1000 IPM
Crossfeed Travel Feeds, Automatic .......... 0.1 to 0.4"
Spindle Auto Downfeed , Range .......... .0001 to .001 IPR
Spindle Horsepower .......... 3 HP

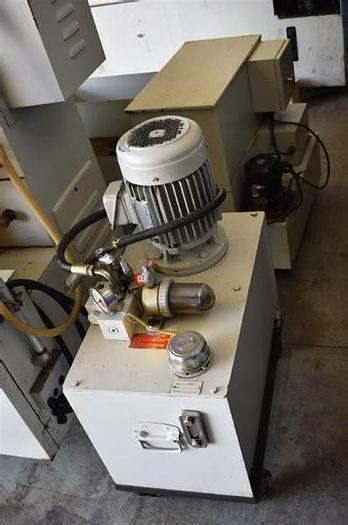

Hydraulic Motor Horsepower .......... 2 HP
Weight, Approximately .......... 3750 LBS
NOTE: Replacement Price Is Over $38,450.00.
