Year
1975
Stock #
160799
Condition
Not specified
Keep Scrolling To Learn More

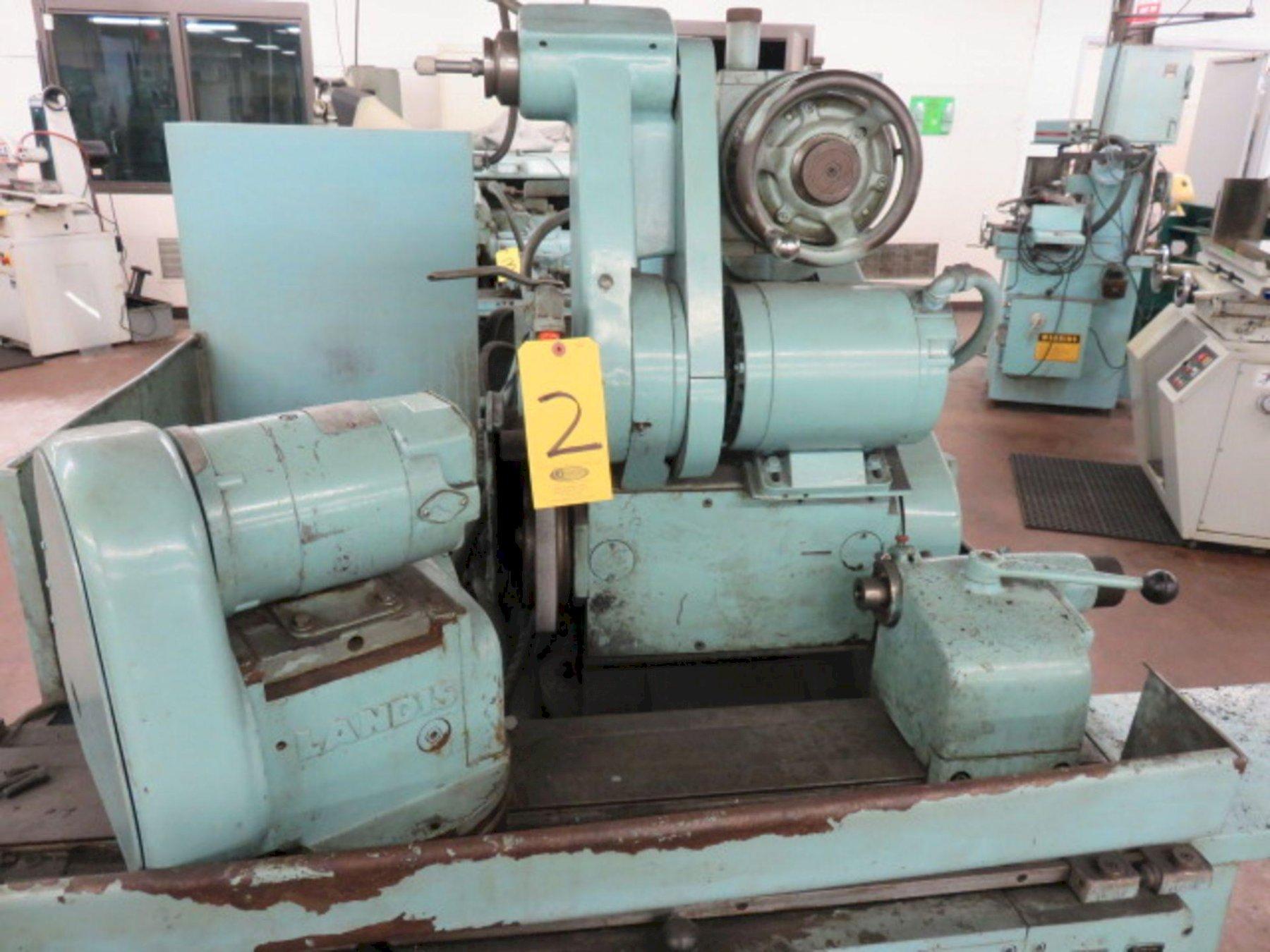

MAXIMUM SWING OVER TABLE................... 10-31/32"
DISTANCE BETWEEN CENTERS................... 24"
TABLE:
SWIVEL TABLE GRADUATED (IN. PER FOOT)...... 4-1/2"
SWIVEL TABLE GRADUATED
(DEG. INCLUDED ANGLE).................... 20 DEGREES
WORK CARRIAGE:
TRAVERSE SPEED............................. 2 TO 240 I.P.M.
TRAVERSE PER TURN OF HANDWHEEL: SLOW....... 0.100"
FAST........ 1.000"
WHEELHEAD & WHEEL FEED:
STANDARD GRINDING WHEEL SIZE............... 14" O.D. X 2" WIDE
X 5" HOLE
SWIVEL RANGE: UPPER........................ 180 DEGREES
LOWER...................................... 60 DEG. CLOCKWISE
30 DEGREES CCW
(2) GRINDING WHEEL SPINDLE SPEEDS.......... 2005-2533 R.P.M.
WORKHEAD AND TAILSTOCK:
INFINITELY VARIABLE WORKHEAD............... 30-150 RPM
120-600 RPM
WORKHEAD TAPER............................. #10 JARNO
DIA. OF HOLE, WORKHEAD SPINDLE............. 1"
WORKHEAD SWIVEL RANGE...................... 120 DEGREES
WORKHEAD SPINDLE NOSE...................... 5A-2
TAILSTOCK TAPER............................ #6 JARNO
APPROX. MACHINE WEIGHT .................. 8,000 LBS.

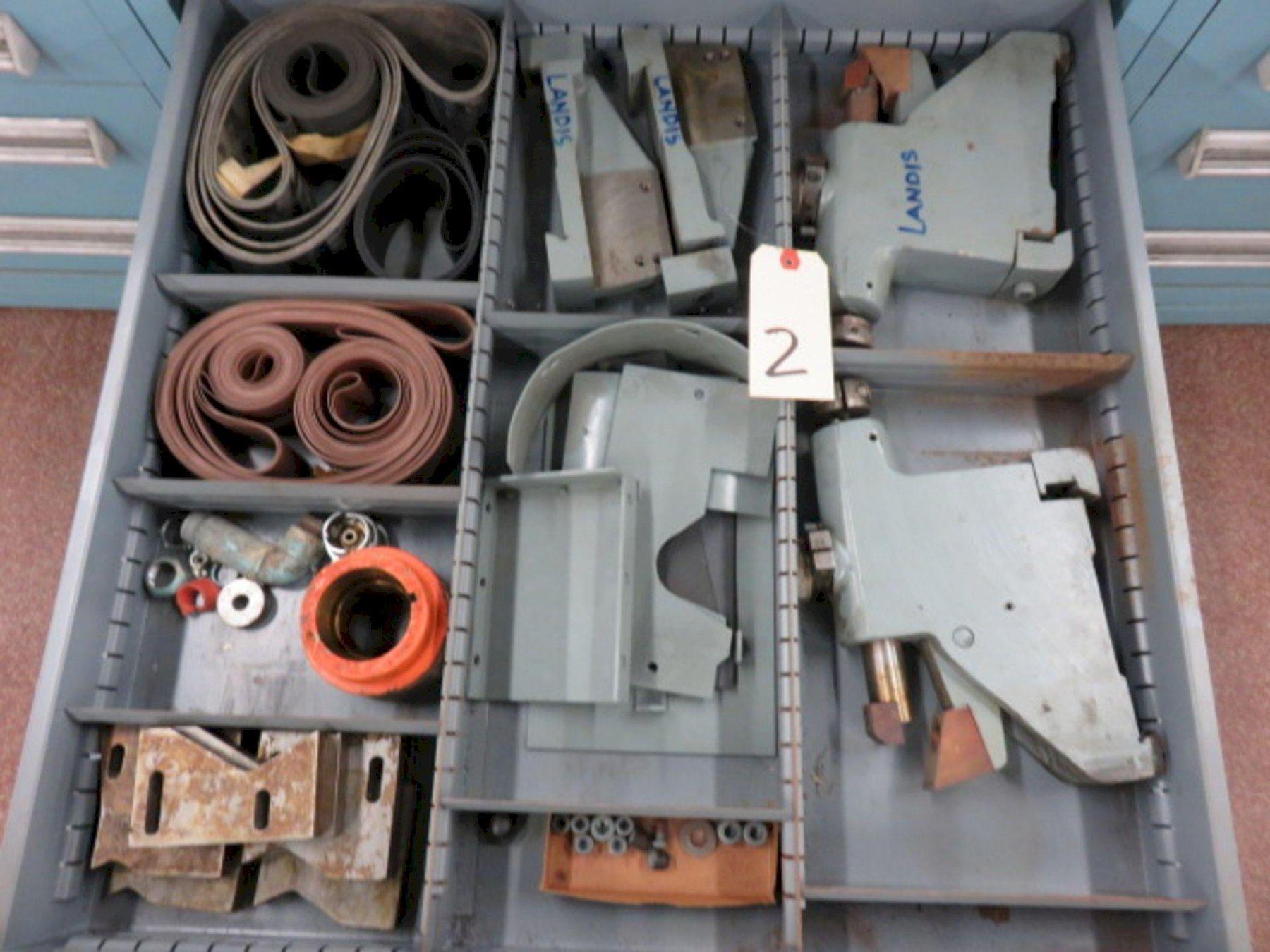

EQUIPPED WITH:
SWING DOWN I.D. GRINDING ATTACHMENT WITH I.D. SPINDLE
HYDRAULIC TABLE TRAVERSE
AUTOMATIC INFEED
DUAL LIVE/DEAD HEADSTOCK SPINDLE
14" DIAMETER GRINDING WHEEL
BIJUR ONE-SHOT LUBRICATION SYSTEM FOR WHEELHEAD
SELF-CONTAINED COOLANT SYSTEM IN THE BASE
3 H.P. 3/60/230-460 VOLT WHEELHEAD DRIVE MOTOR
There are no files attached to this listing currently. If you Have any further questions regarding this listing, please contact us for more information.
