Equipped With

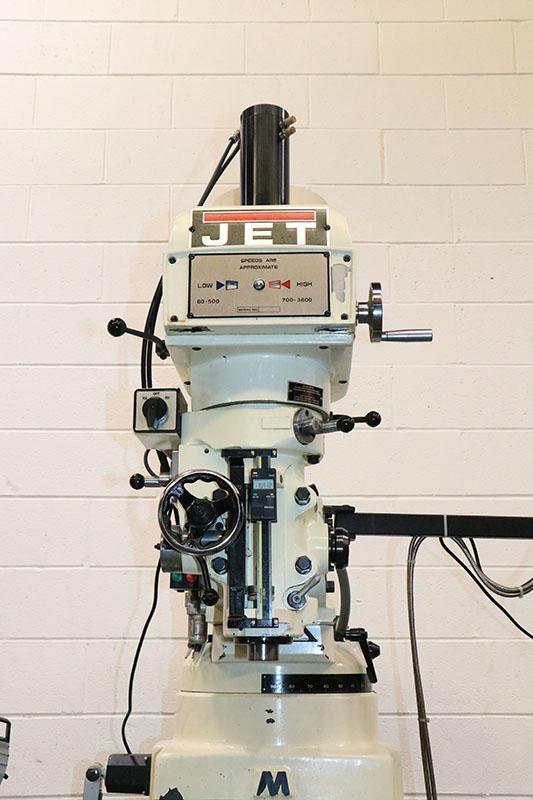

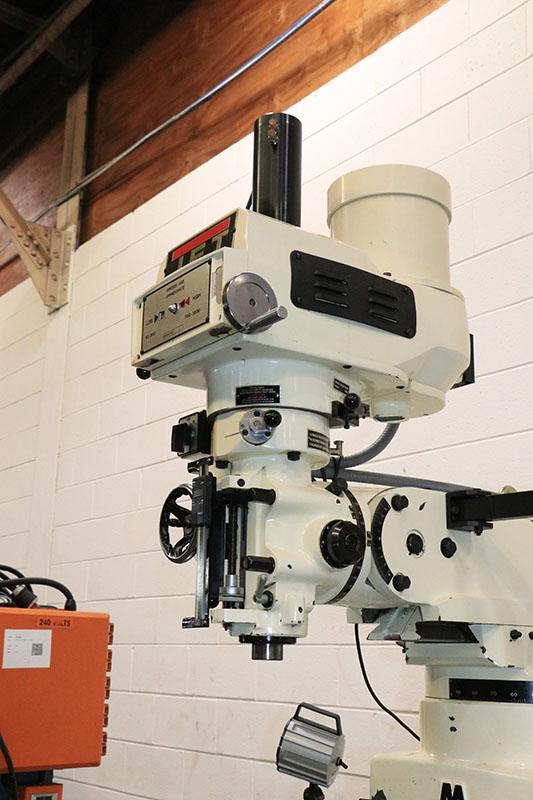

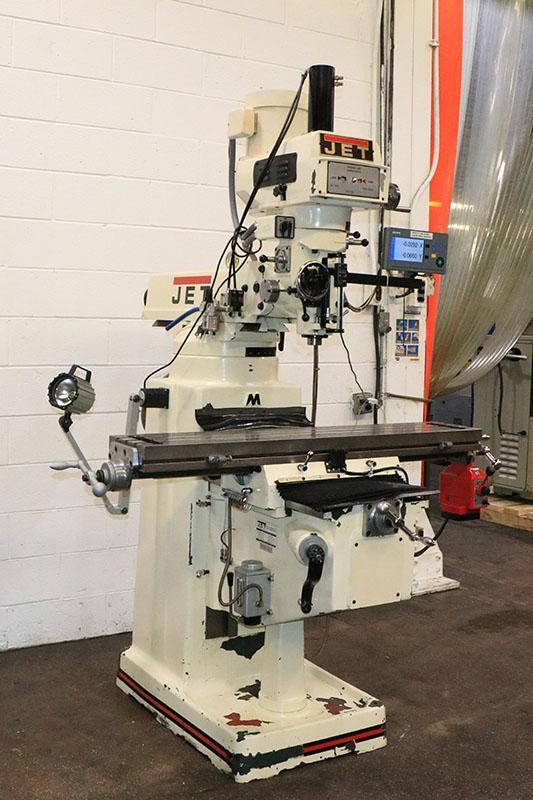

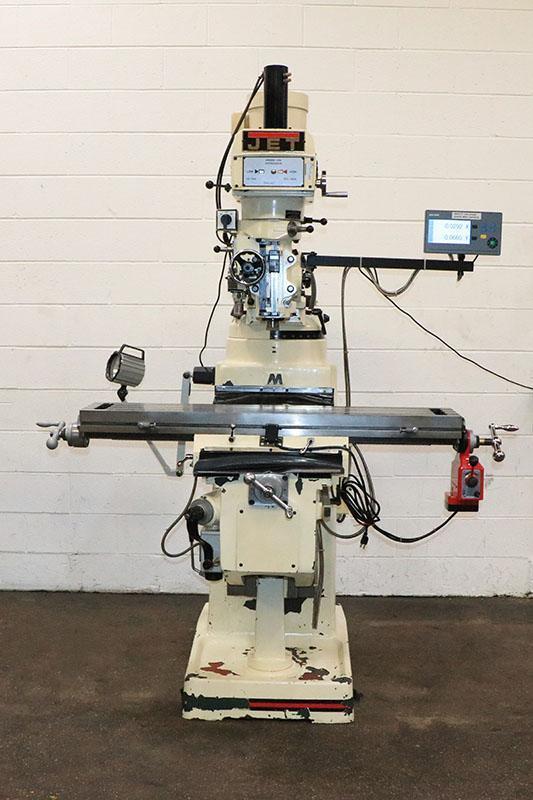

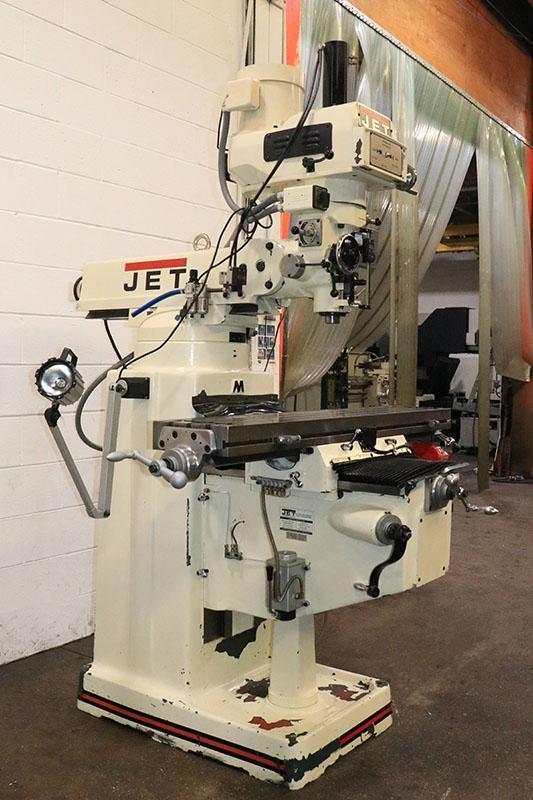

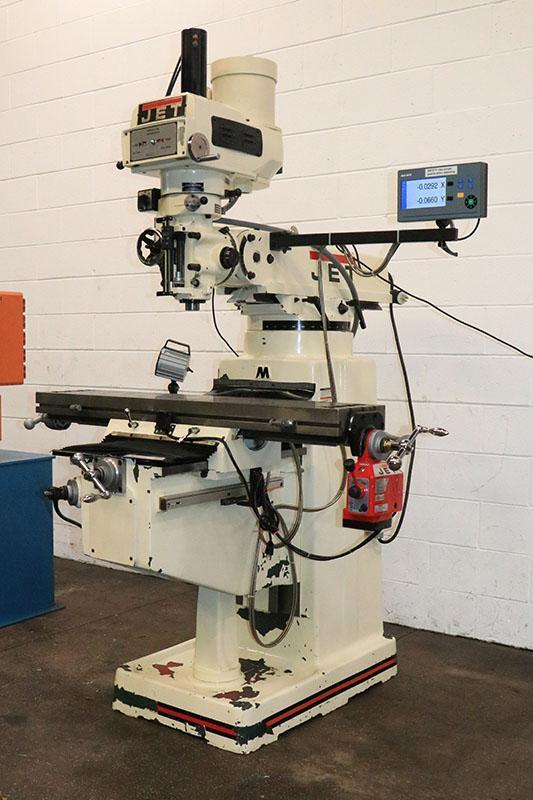

10" x 50" JET MODEL JTM-1050 VERTICAL MILL
New 2007

SPECIFICATIONS:

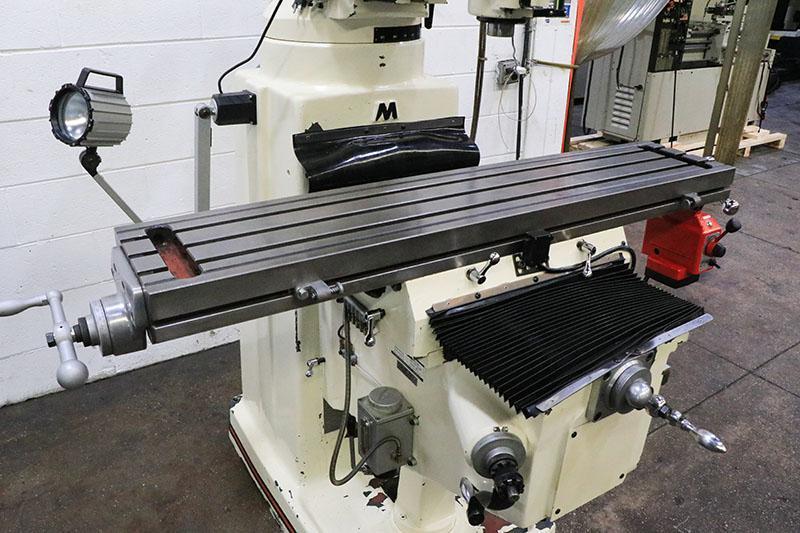

TABLE WORKING SURFACE ............. 10" X 50"

NUMBER OF T-SLOTS ................. 3

RANGE:

     LONGITUDINAL (X) ............. 35"

     CROSS (Y) .................... 16"

     VERTICAL, KNEE (Z) ........... 16-1/2"

     QUILL ........................ 5"

RAM TRAVEL ........................ 21-1/4"

HEAD TILT:

     LEFT AND RIGHT ............... 90 DEGREES

     FRONT TO REAR, EACH WAY ...... 45 DEGREES

TURRET ROTATION ................... 360 DEGREES

MAX DISTANCE, SPINDLE NOSE

     TO TOP OF TABLE .............. 19

MAX DISTANCE SPINDLE TO COLUMN .... 26-1/2"

(3) POWER QUILL FEEDS ............. .0015, .003, .006 I.P.R.

INF VAR SPINDLE SPEEDS ............ 70 - 3,800 R.P.M.

SPINDLE TAPER ..................... R-8

APPROX WEIGHT ..................... 2,900 LBS.

EQUIPPED WITH:

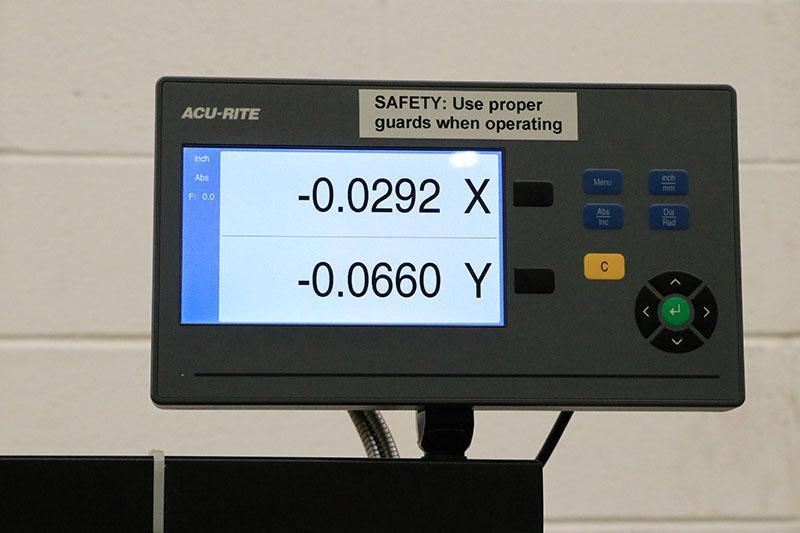

- ACU-RITE DIGITAL READOUT FOR X & Y AXES TRAVEL

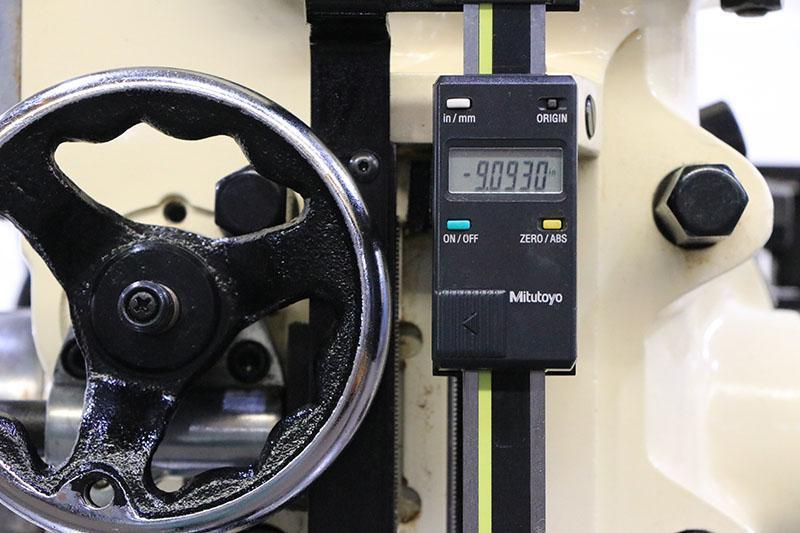

- MITUTOYO Z-AXIS QUILL DIGITAL READOUT

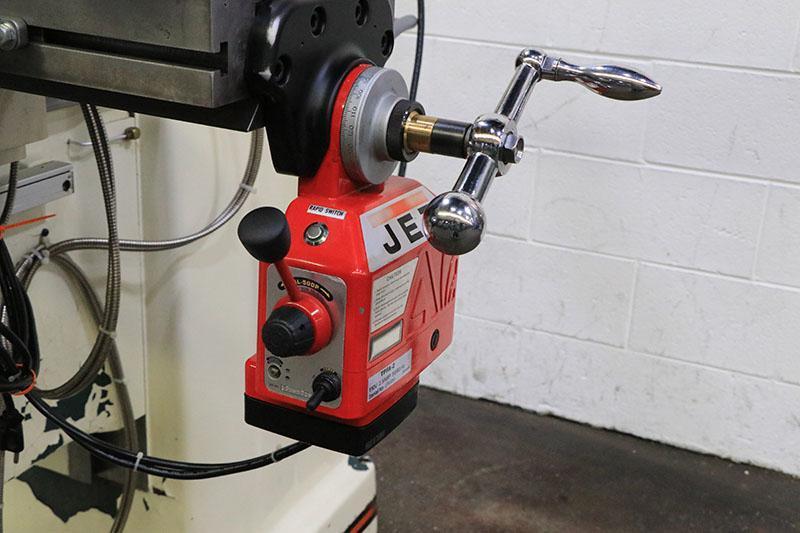

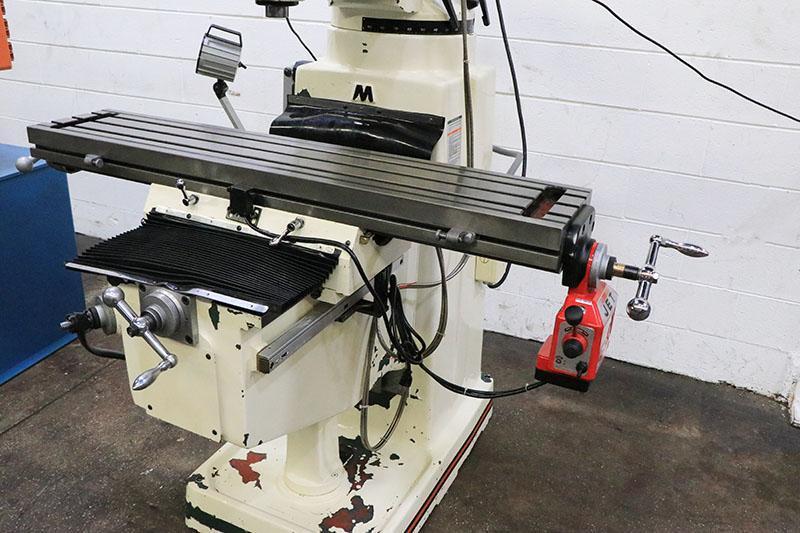

- POWER FEED FOR LONGITUDINAL TABLE TRAVEL

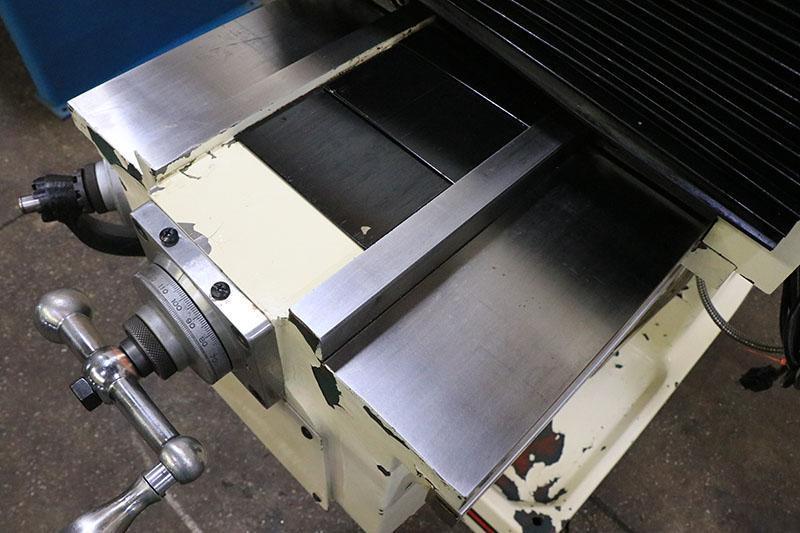

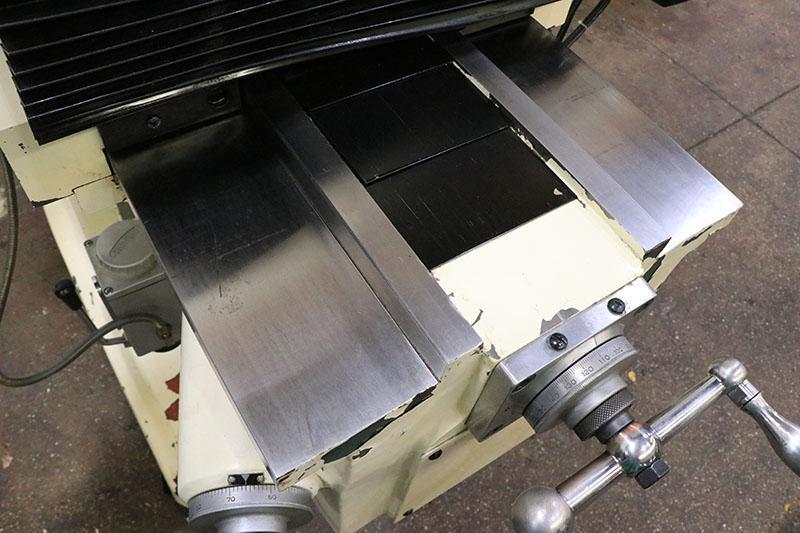

- HARDENED AND GROUND WAYS

- MEEHANITE CASTING

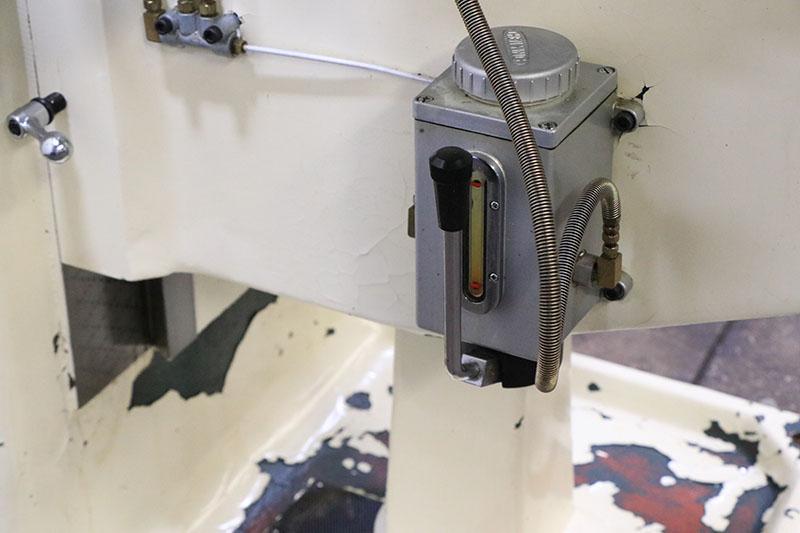

- ONE-SHOT LUBRICATION SYSTEM

- 3 HORSE POWER 3/60/220-440 VOLT SPINDLE DRIVE MOTOR
