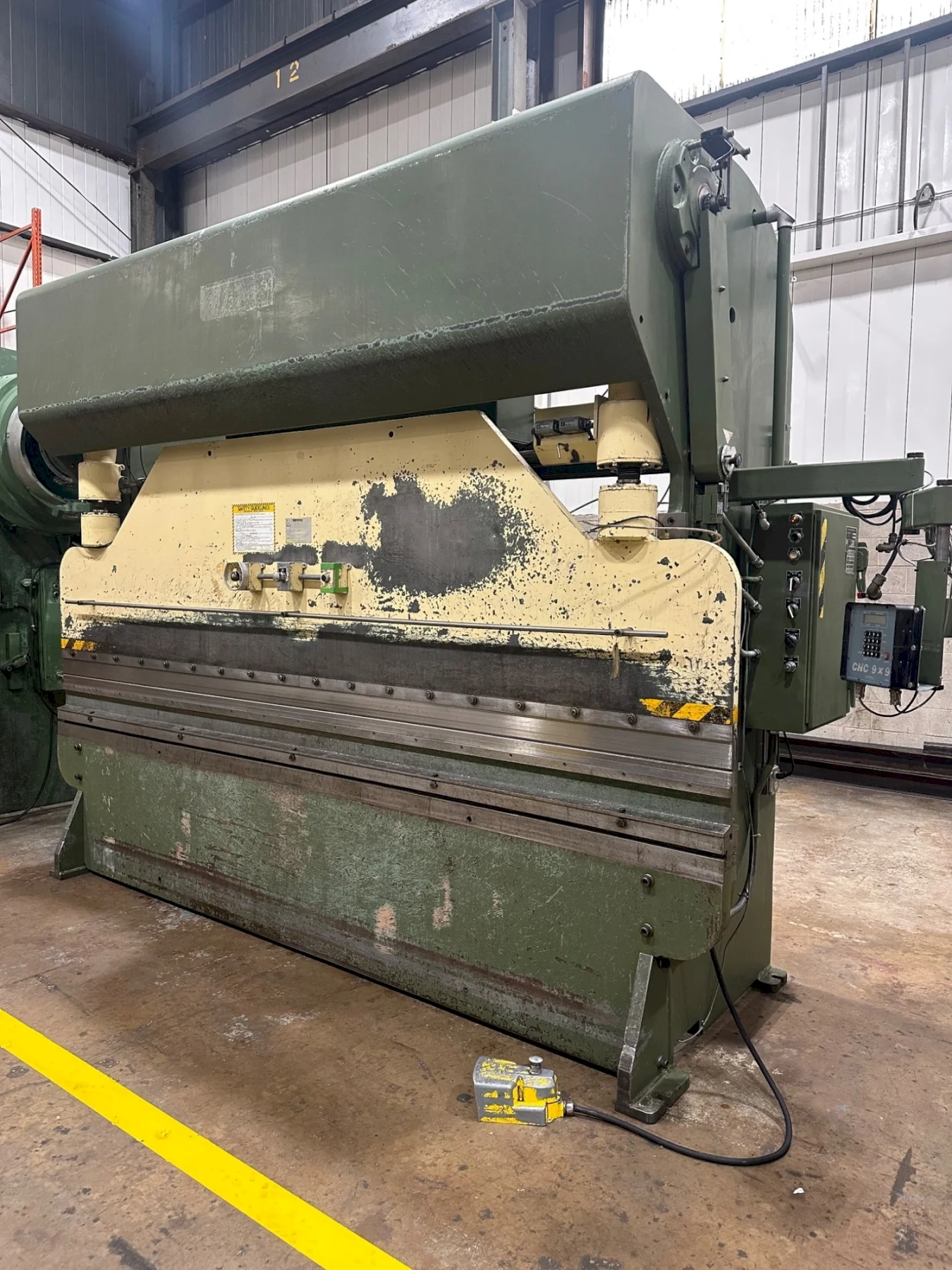

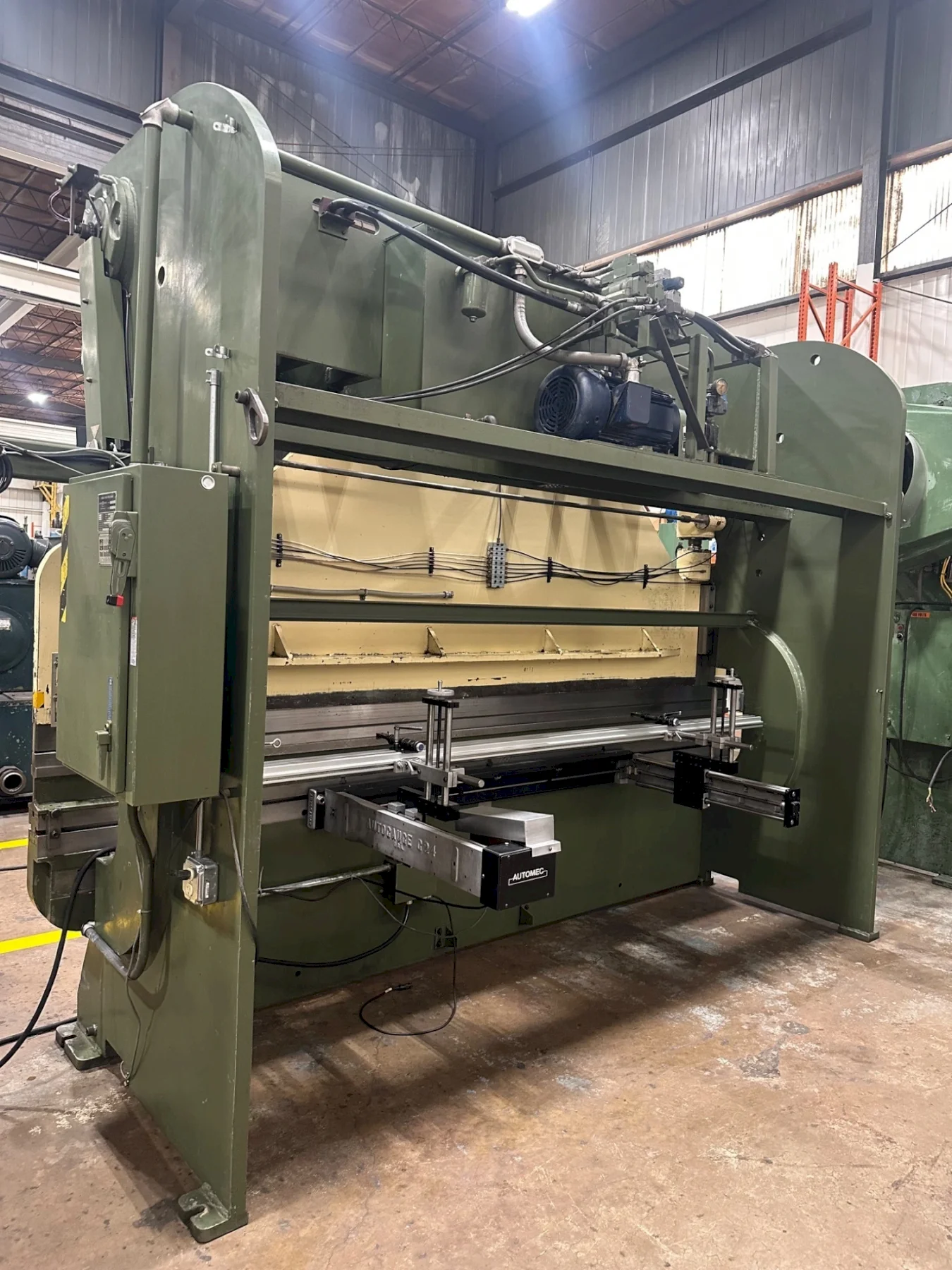

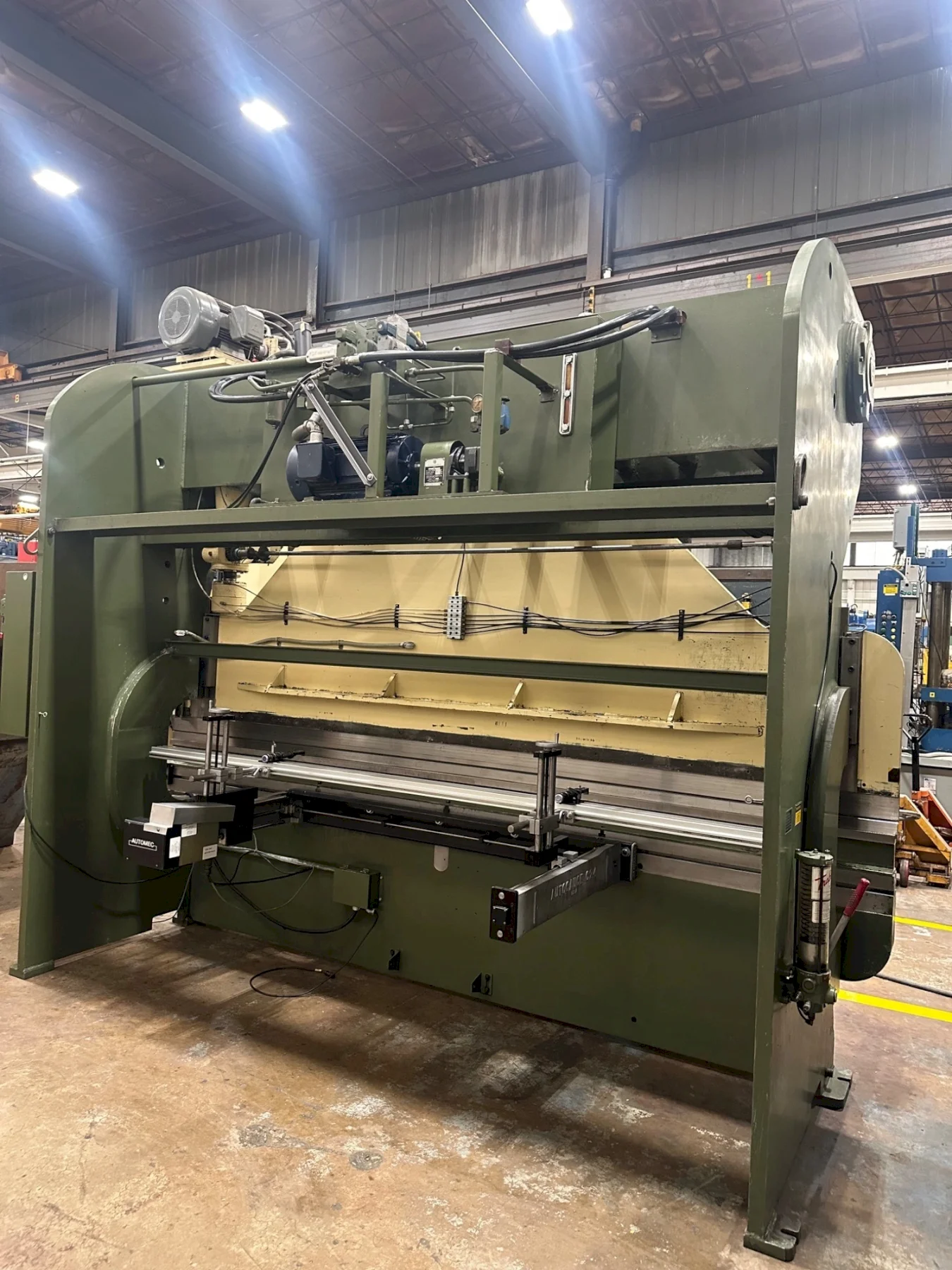

100 TON x 10' DIACRO MODEL 100-12 HYDRA-MECHANICAL PRESS BRAKE
Year
Not provided
Stock #
19564
Condition
Used
Keep Scrolling To Learn More
Specifications
Equipped With
100 TON x 10' DIACRO MODEL 100-12 HYDRA-MECHANICAL PRESS BRAKE
Equipped With:
|
|

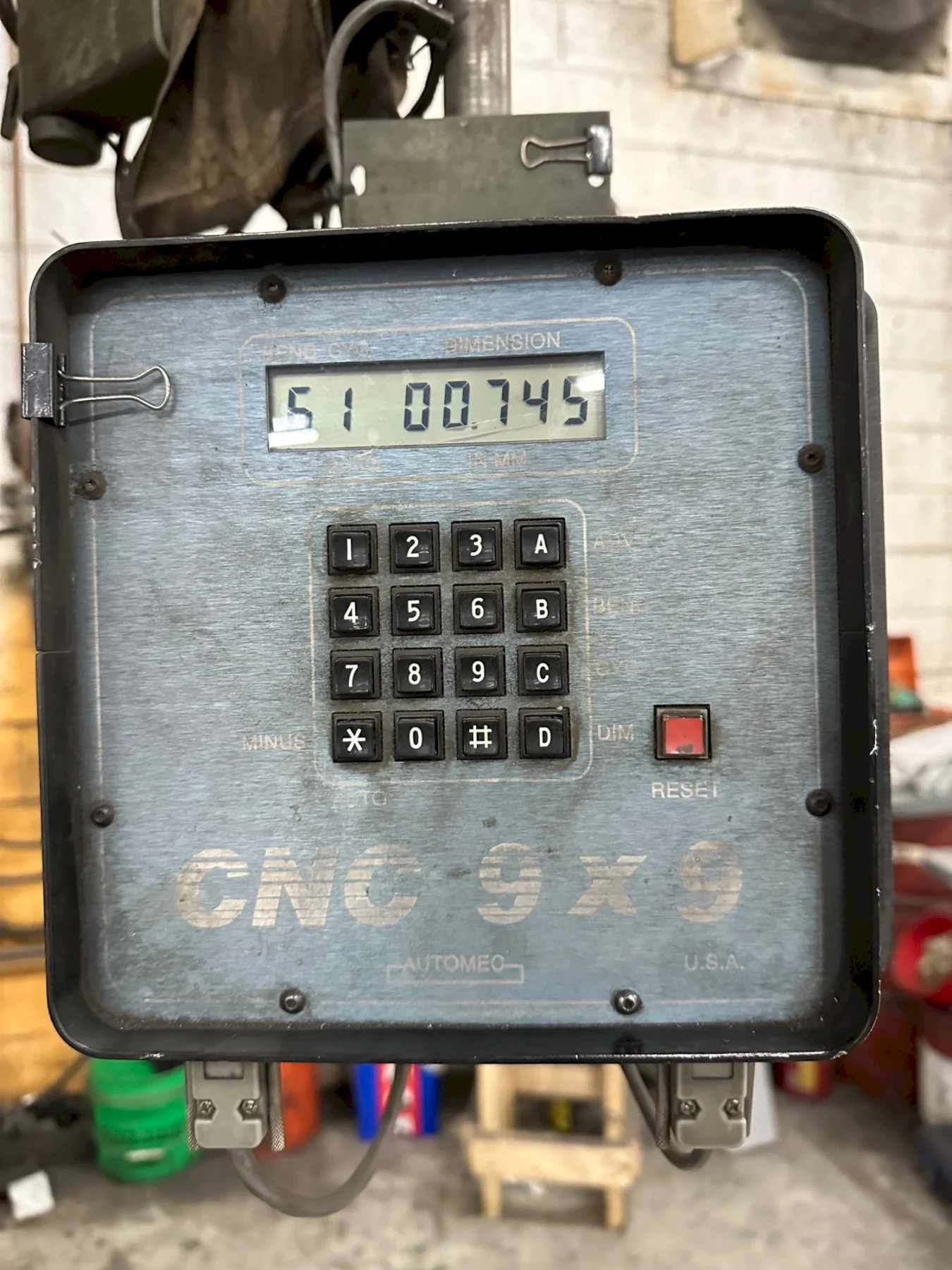

vertical adjustment & readout in inches & millimeters
5-1/2" high die rail
Dual palm buttons with emergency stop button
Electric foot switch
Pushbuttons for start – stop
Selector switches for setup – off – run; slo - hi-slo – hi-stop-slo;
key selector switch for hand – foot – off
Power ram adjustment with position indicators
Stroke length adjustment
Trabon one shot oil lubrication
Sectional ram die clamps
(5) T-slots in top of bed
Dovetail slots in front & back of bed
Hydraulic pump, driven by
15 HP 1750 RPM 208/230/460/3/60 motor
Bending capacities: 12' x 12 ga. mild steel
10' x 10 ga. mild steel
Tonnage capacity: 100 tons
Overall length of bed & ram: 146"
Distance between housings: 126"
Stroke: 3"
Ram adjustment (power): 5" (power)
Shut height S.D.A.U.: 12"
Throat depth: 12"
Width of bed: 4"
Floor to top of bed: 33"
S.P.M. approx.: 22
Weight approx. 22,000 lbs.
Overall dimensions approx. 162" L-R x 57" F-B x 116" H
