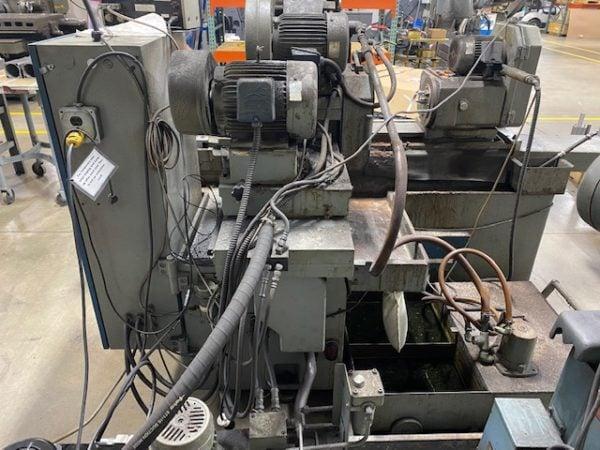

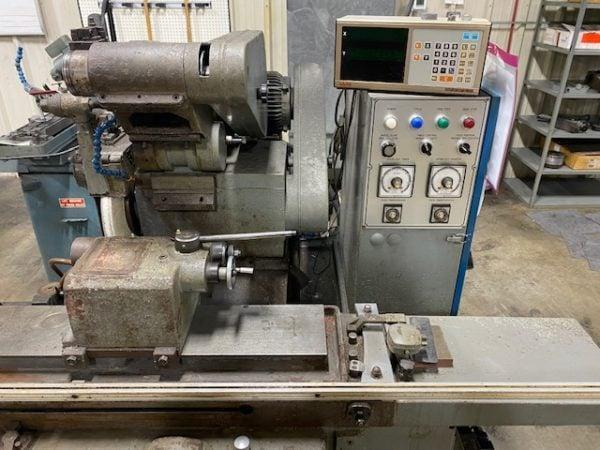

11" x 23.6" Shigiya GUA-30-60H OD ID Universal Cylindrical Grinder
Year
2011
Stock #
17985
Condition
Very Good
Keep Scrolling To Learn More
Specifications
Equipped With
11" x 23.6" Shigiya GUA-30-60H OD ID Universal Cylindrical Grinder
New 2011
SPECIFICATIONS:
Swing: 11.8″
Distance Between Centers: 23.6″
Longitudinal Table Speed: 2″ to 160″ per min
Table Swivels (total): 10 degs
Max Stroke of Wheelhead (Manual): 6.9″
Rapid Traverse (Hydraulic): 1.6″
Max Auto Infeed Stroke: 0.4″
Auto Infeed Rate: 0.00004″ to .004″
Plunge Infeed Rate: 0.0008″ to .06″
One Rev of Handwheel: 0.04″
Wheelhead Swivels Left & Right: 30 Degrees
Grinding Wheel Size: 14″ x 1-2″ x 5″
Grinding Wheel Speeds (2): 1675 / 2013 rpm
Workhead Spindle Taper: No. 4 MT
Workhead Spindle Speeds (9): 13 to 252 rpm
Workhead Swivel Range (Total): 120 Degrees
Tailstock Spindle Taper: No. 4 MT
Tailstock Spindle Travel: 1.2″
Machine Weight: Approx 7000 Lbs.
Attachments
There are no files attached to this listing currently. If you Have any further questions regarding this listing, please contact us for more information.
