Year
1998
Stock #
17176
Condition
Not specified
Keep Scrolling To Learn More

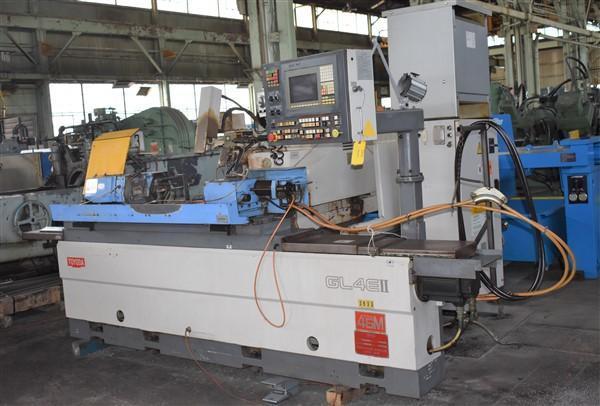

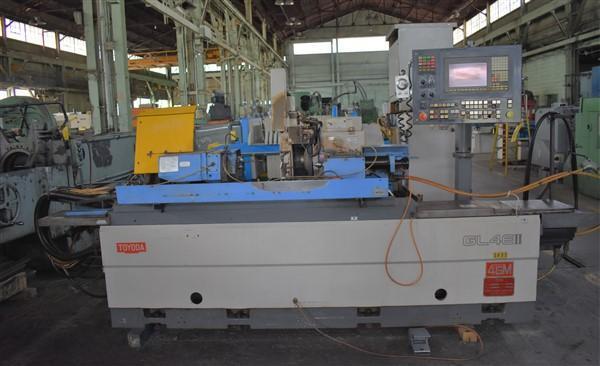

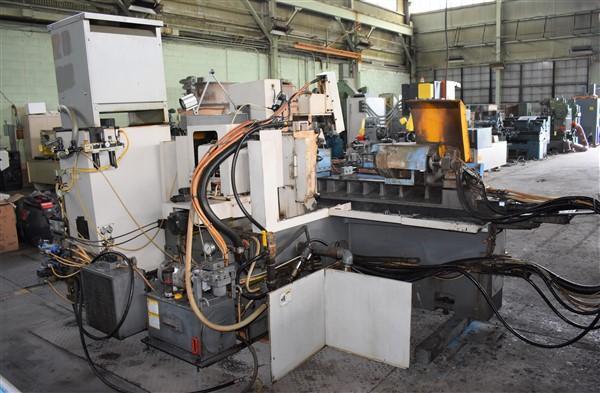

12.6" X 39.4" TOYODA MODEL GL4P-100EII CNC STRAIGHT WHEELHEAD CYLINDRICAL GRINDER
SERIAL NO. LG5964-1
EQUIPPED WITH: |
|

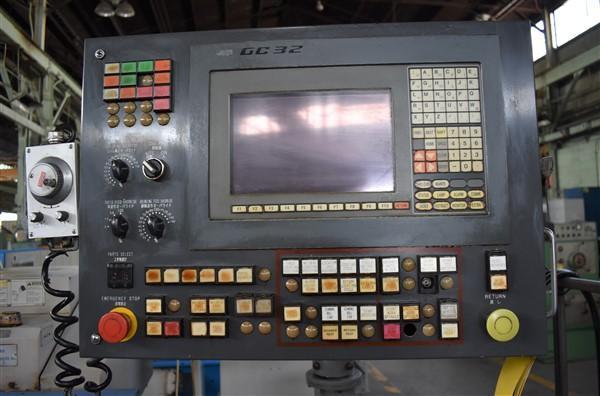

#GC32 Toyoda CNC Control w/CRT |
|
Straight Type Wheelhead Design - Gauging |
|
Table Mounted Diamond Roll Wheel Dresser |
|
Combination Live/Dead Workhead |
|
Combination Manual/Hydraulic Footstock |
|
Foot Pedal - Hand Held Remote |
|

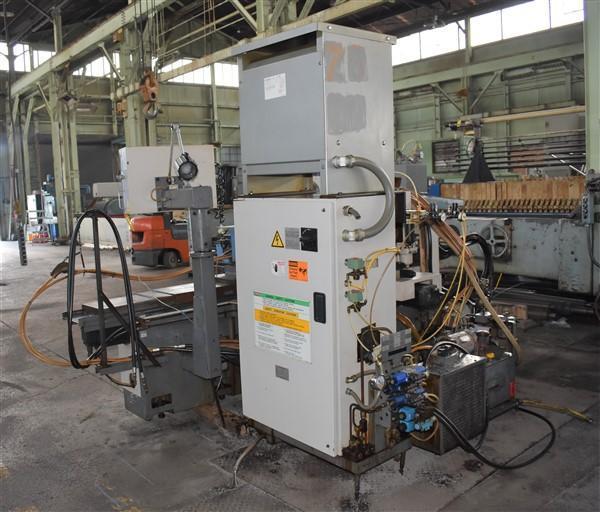

Coolant System (Tank & Pump) |
|
|
|
CATALOG SPECIFICATIONS: |
|
Swing Over Table, Maximum |
12.6" |
Grinding Diameter, Maximum |
11.8" |
Distance Between Centers, Nominal |
39.4" |
Weight Capacity Between Centers |
330 LBS |
Grinding Wheel Diameter, Standard |
16" |
Grinding Wheel Width, Maximum |
4" |
Grinding Wheel Width, Standard |
3" |
Grinding Wheel Hole Diameter |
5" |
Table Swiveling Angle, CCW~CW |
5~0 DEGREES |
Wheelhead Feed Stroke, Total |
9.76" |
Workhead and Tailstock Center Tapers |
#4 MT |
Grinding Wheel Speeds, Surface-Feet |
8850 SFPM |
Workhead Spindle Speeds, Infinite Range |
10 to 500 RPM |
Table & Wheelhead Rapid Feed Rate |
591 IPM |
Grinding Wheelhead Spindle Motor |
7.5 HP |
Floor Space, W x D |
15' x 9' |
Weight, Approximately |
10800 LBS |
There are no files attached to this listing currently. If you Have any further questions regarding this listing, please contact us for more information.
