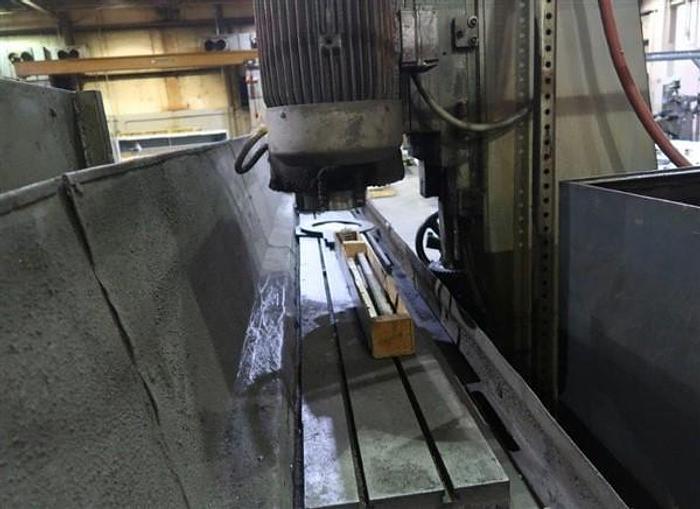

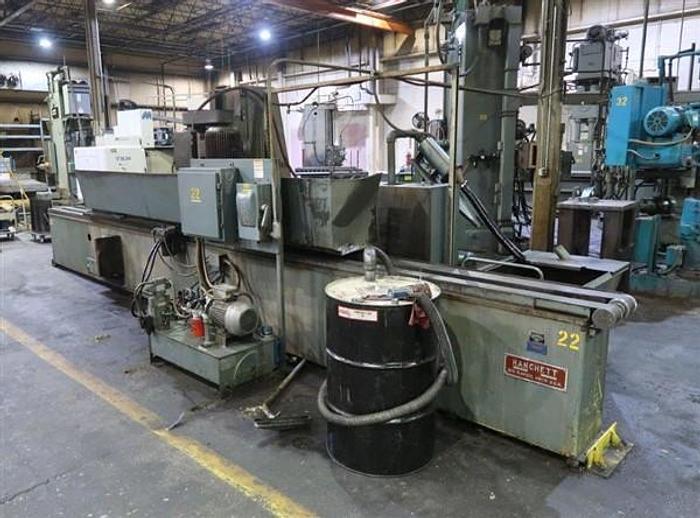

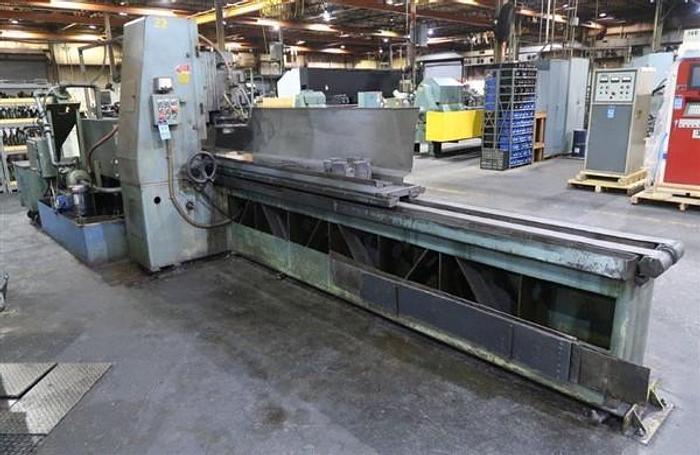

12" X 120" HANCHETT MODEL VS122 HYD HYDRAULIC-FEED VERTICAL-SPINDLE KNIFE/SURFACE GRINDER

Manufacturer

HANCHETT

Model

VS122 HYD

Year

1985

Stock #

19205

Condition

Not specified

Request A Quote

Keep Scrolling To Learn More

Specifications

Equipped With

12" X 120" HANCHETT MODEL VS122 HYD HYDRAULIC-FEED VERTICAL-SPINDLE KNIFE/SURFACE GRINDER

New 1985

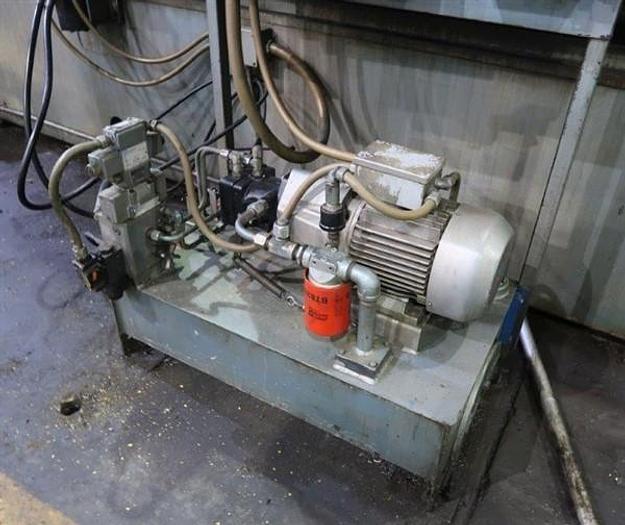

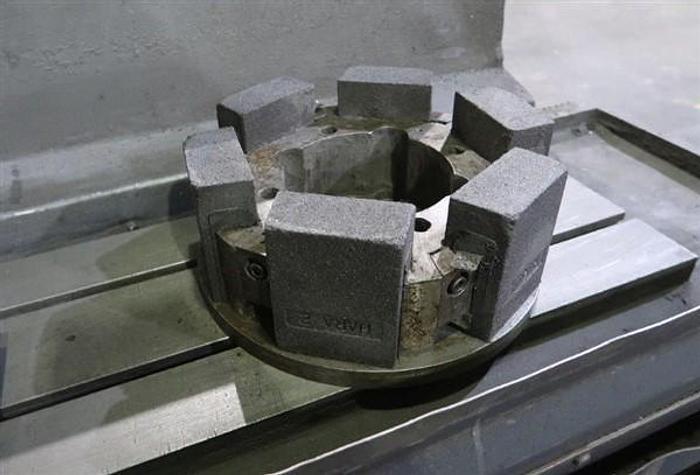

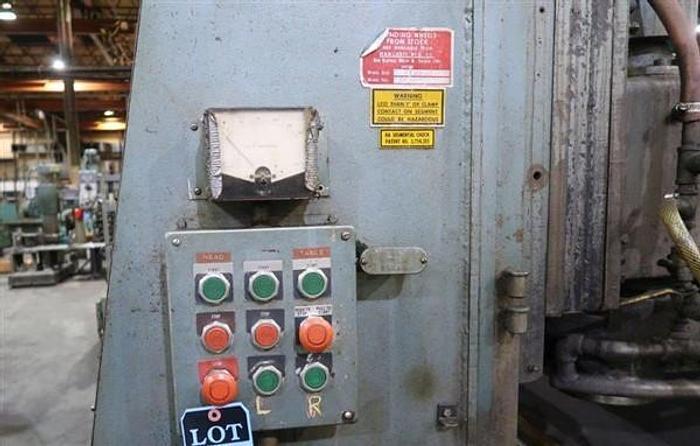

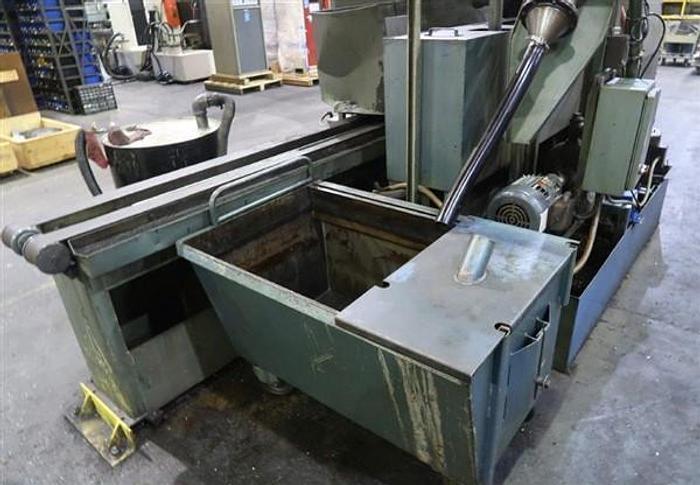

EQUIPPED WITH: 14" DIAMETER QUICK-CHANGE SEGMENTED GRINDING WHEEL INCREMENTAL POWER DOWN FEED AMMETER CHECK FOR MOTORIZED SPINDLE LOADS REAR OPERATORS STATION FAUVER HYDROSTATIC HYDRAULIC DRIVE UNIT (18 GALLON) EXTRA RACK & SCRAP BIN ON CASTERS

SPECIFICATIONS:

Table working surface, w x l 12" X 124"
Table overall dimensions 12" X 141"
Grinding width capacity, maximum 12"
Height under grinding wheel 12"
Table longitudinal stroke, length 131.5"
Grinding wheel diameter, maximum 14"
Number of grinding wheel segments 6
Table longitudinal feeds, range 15 TO 75 FPM
Spindle vertical feeds, range .002 TO .0025 IPR
Grinding wheel spindle motor 15 HP
Overall dimensions, l x w 287" X 70"
Overall height 85"

Attachments

There are no files attached to this listing currently. If you Have any further questions regarding this listing, please contact us for more information.
