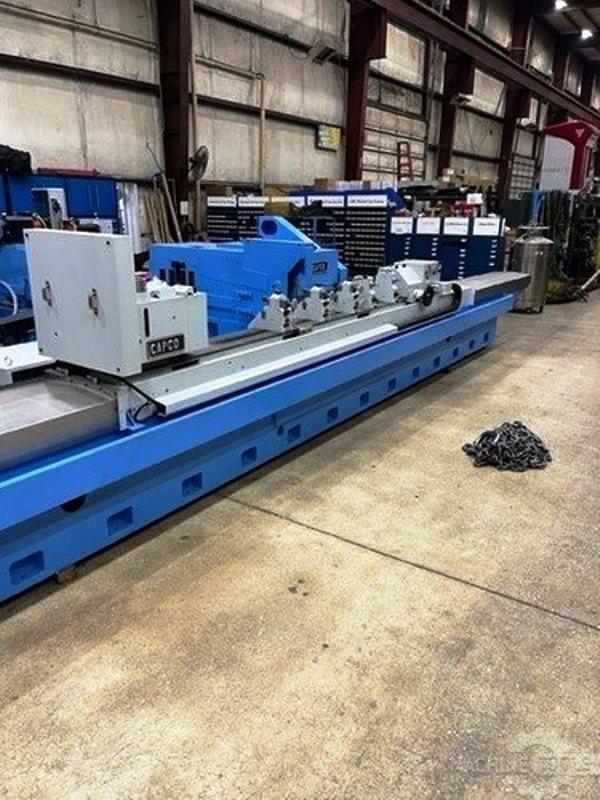

14” x 120” CAPCO ROLL GRINDER

Remanufactured

SPECIFICATIONS:

Swing over table:                                                                      14”

Maximum swing over table:                                                      15”

Minimum diameter machine will grind:                                      0

Distance between centers:                                                         127”

Maximum weight between centers:                                            1322 lbs.

WHEELHEAD:

Maximum grinding wheel:                                                         18”

Grinding wheel spindle speeds:                                                  0-1800 rpm

Grinding wheel motor                                                               Fanuc AC Vector

Grinding Wheel Drive                                                               Fanuc AC Vector

HEADSTOCK:

Number of spindle speeds:                                                         Infinite

Range of spindle speeds:                                                            0 – 300 rpm

Taper hole in spindle:

Workhead motor                                                                     Fanuc AC Vector

Workhead Drive                                                                     Fanuc AC Vector

INFEED:

Wheelhead infeed motor                                                        Fanuc AC Digital Servo

Table:

Type                                                                                        1 Piece

Traverse motor                                                                       Fanuc AC Digital Servo

Traverse speeds                                                                      0 - 200 IPM

Ballscrew

TAILSTOCK:

Taper hole spindle

Tailstock mount dresser

CROSS TRAVERSE & SIZING

Wheelhead movement per rev. of handwheel                              1/16”

Min. Infeed increment on Diameter                                            .0001”

Max. Auto. Pickfeed at Table Reversal                                       .0012”

Min. Auto. Pickfeed at Table Reversal                                        .0002”

Power Cross Traverse Rate                                                        16 IPM

Control Specifications: AGQ3000 Touch Screen Conversational Control

20” Fanuc PLC Control Screen

Least Input Increment of 0.00010”

Manual Pulse Generator

Programmable feeds and speed

Crowning

Continuous infeed

Taper compensation

End infeed, either end or both ends

End Dwell (Tarry) Programmable

RPM Readout of Wheel and Work Speeds

IPM display of table traverse.

Spindle percentage load meter

EQUIPMENT:

Heavy Duty Headstock with Equalizer Drive

3 Steady Rest

Footstock with Diamond Holder

Wheel Mount

Wheel Lifter

Telescoping Table Way Covers

Splash Guards

Tachometers for work and wheel RPM

Spindle Load Meter

Mirror Attachment


POWER REQUIREMENTS:

Base machine as described herein                                          480/3/60, approx. 10amp.
