Equipped With

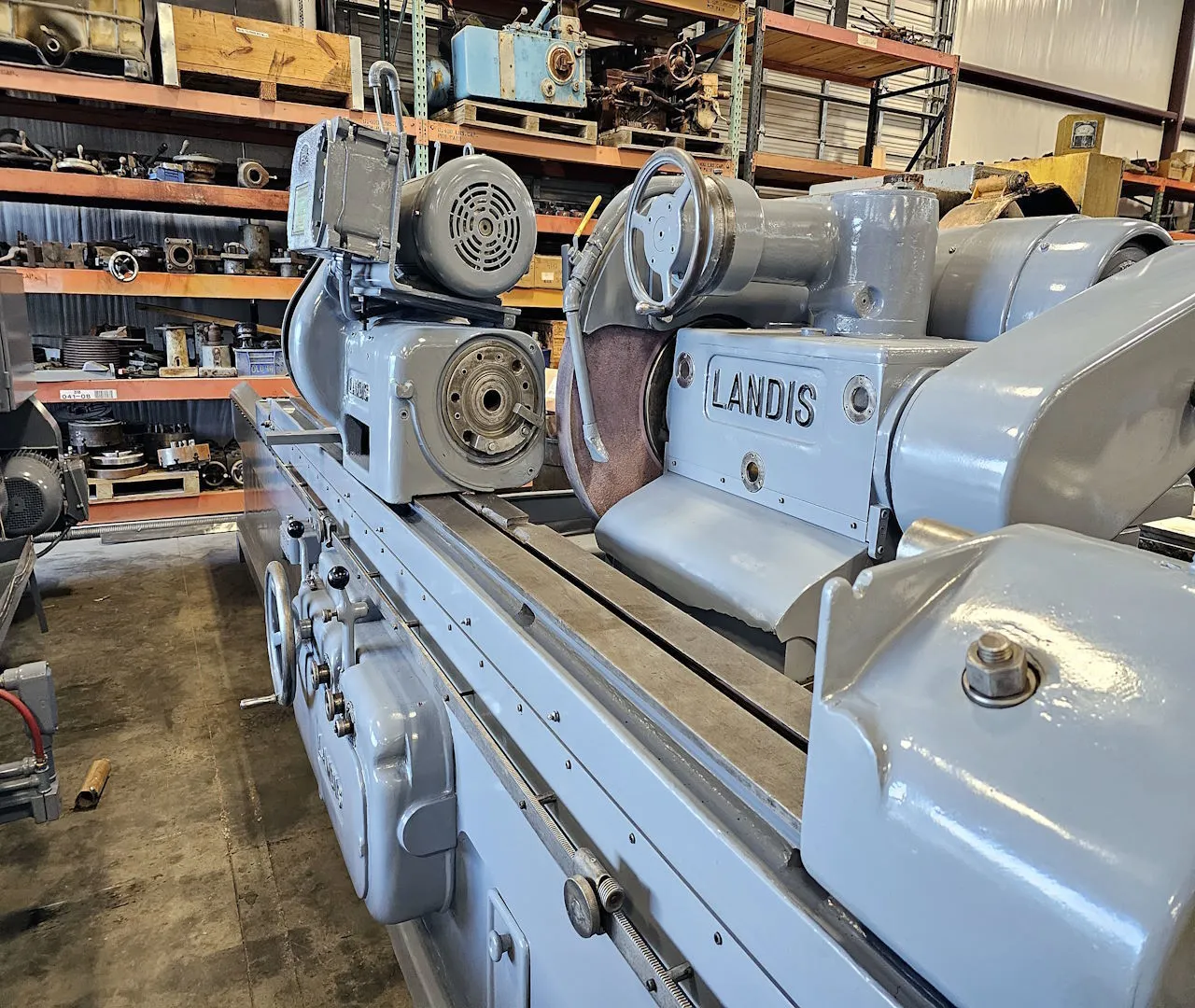

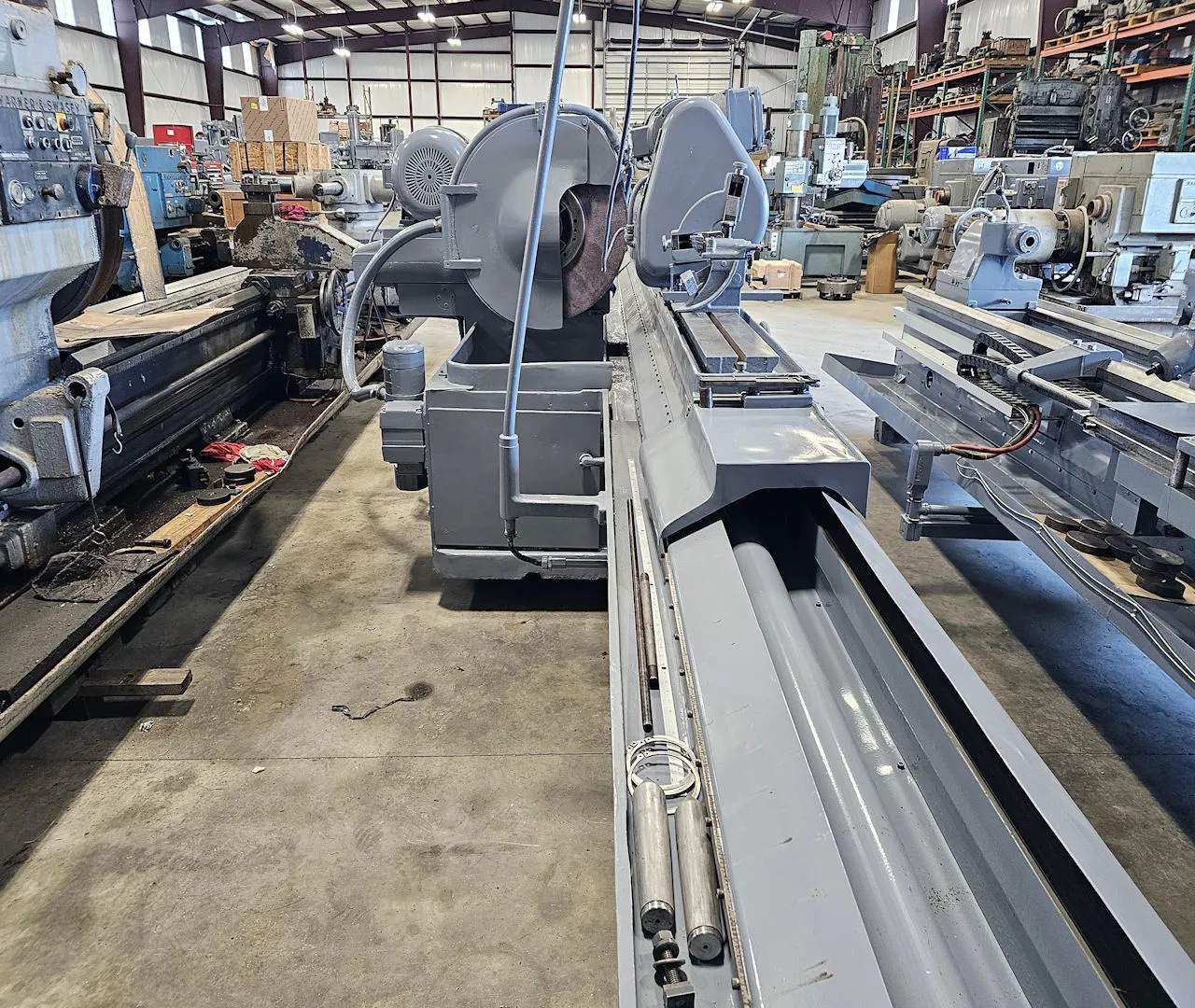

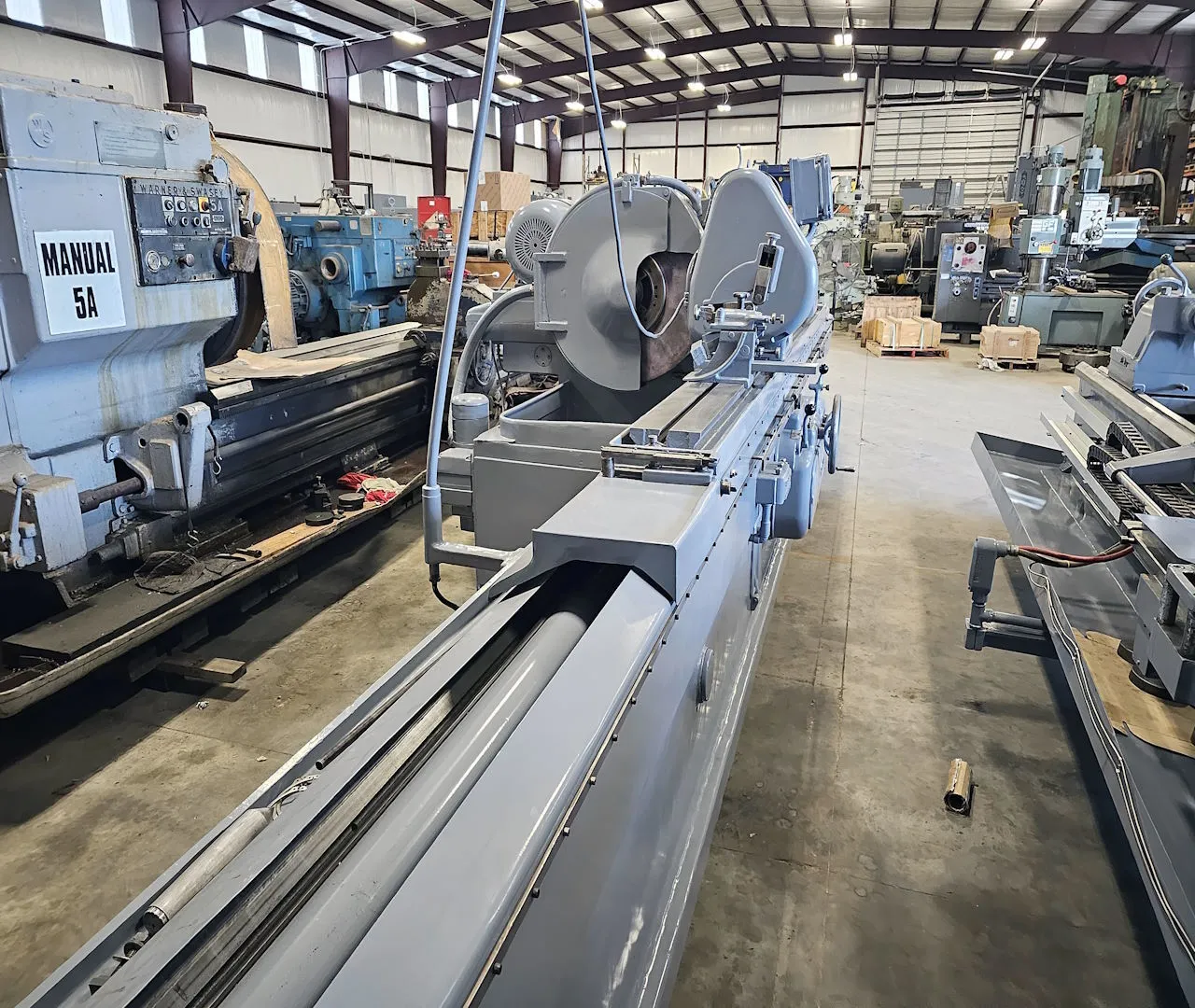

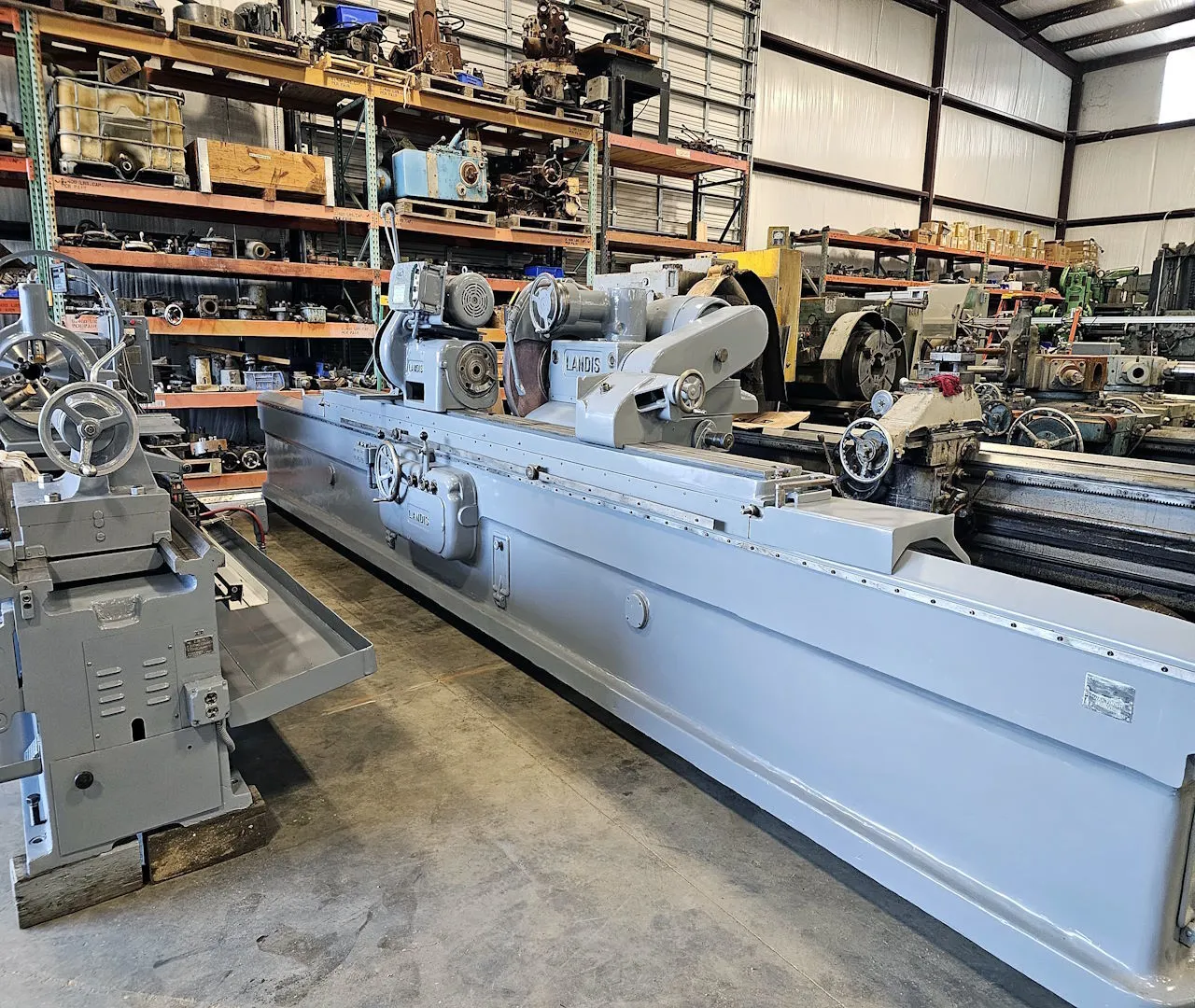

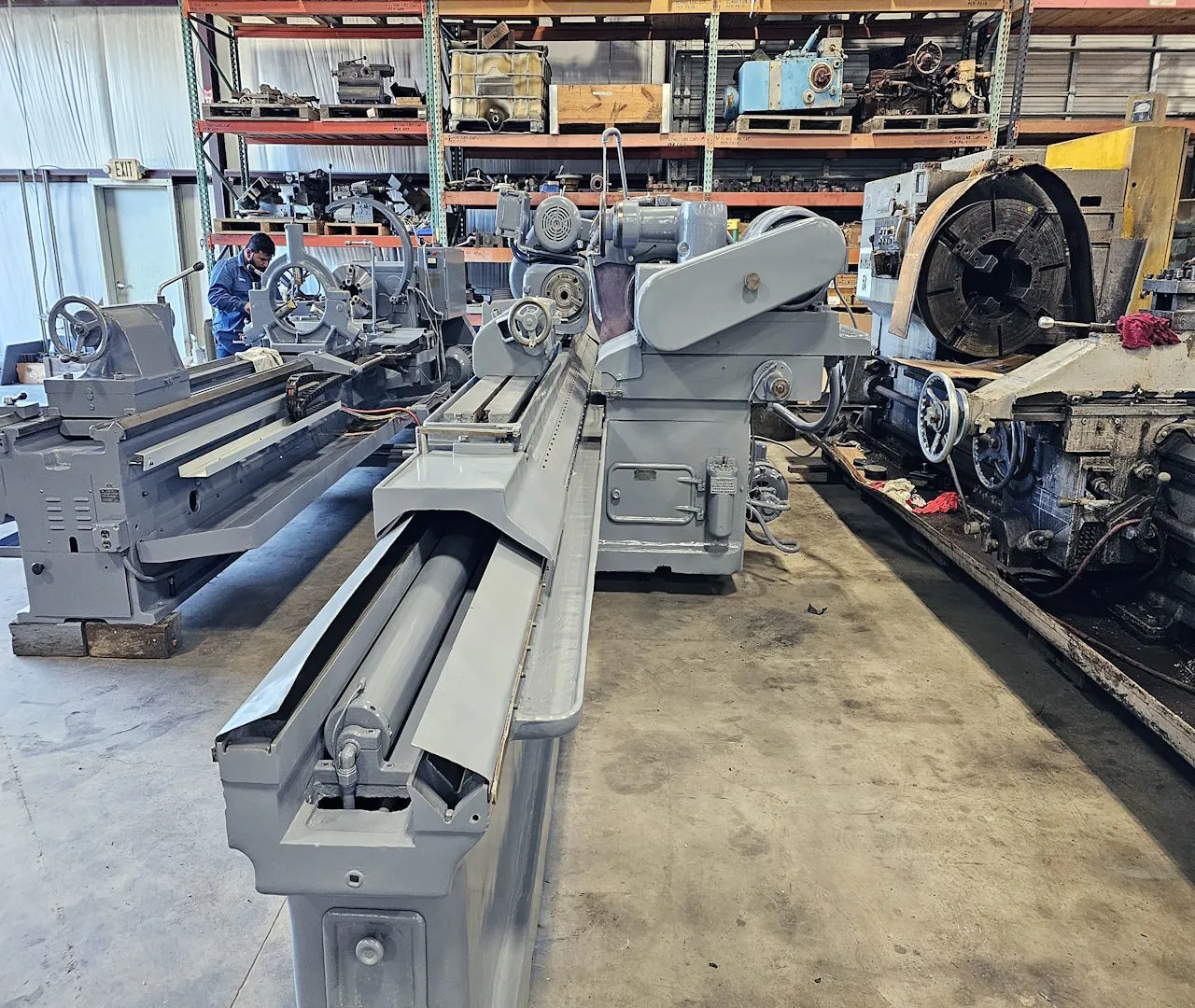

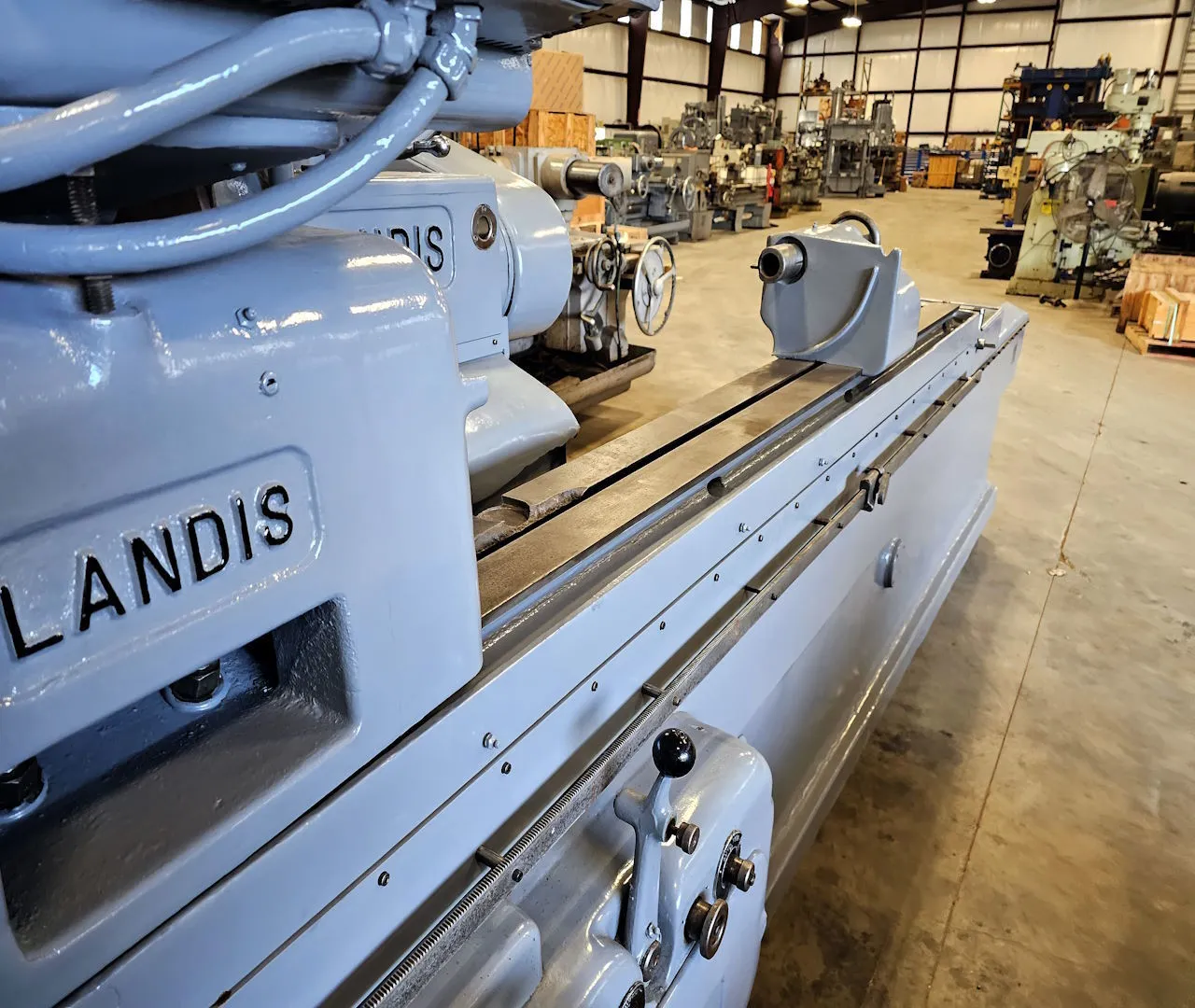

14" X 120" Landis MOdel CH Plain Cylindrical Grinder

New 1946

SPECIFICATIONS:
Swing Over Table......................................14"
Table Swivel Included Angle...........................6 Degree
Distance Between Centers..............................120"
Hydraulic Table Travel ...............................2" To 240" I.P.M.
Diameter Of Grinding Wheel Hole.......................12"
Diameter Of Grinding Wheel............................30"
Width Of Grinding Wheel...............................4"
Work Head Speeds......................................51 To 140 Rpm's
Work Head.............................................#14 Jarno
Taper On Table........................................1/4" Per Foot
Main Motor Wheel Head.................................15 Hp.
Main Motor Work Head Variable.........................1 Hp.
Hydraulic Motor.......................................2 Hp.
Floor Space...........................................L-R 288" X F-B 96"
Machine Height........................................66"
Machine Weight........................................30,000 Lbs.
Swiveling Table.......................................Yes
Coolant Tank & Motor..................................Yes
Plunge................................................Yes
Tail Stock Manual Crank...............................Yes
Work Rest (1 Landis)..................................Yes
Work Rest (1 Home Made Roller Type)...................Yes

Note:
Machine has been cleaned, painted and cycled. We have pulled the table
to make sure everything is lubing properly. New belts have been ordered.
