14" X 40" ACRA MODEL 1440SVS PRECISION VARIABLE SPEED GAP BED ENGINE LATHE

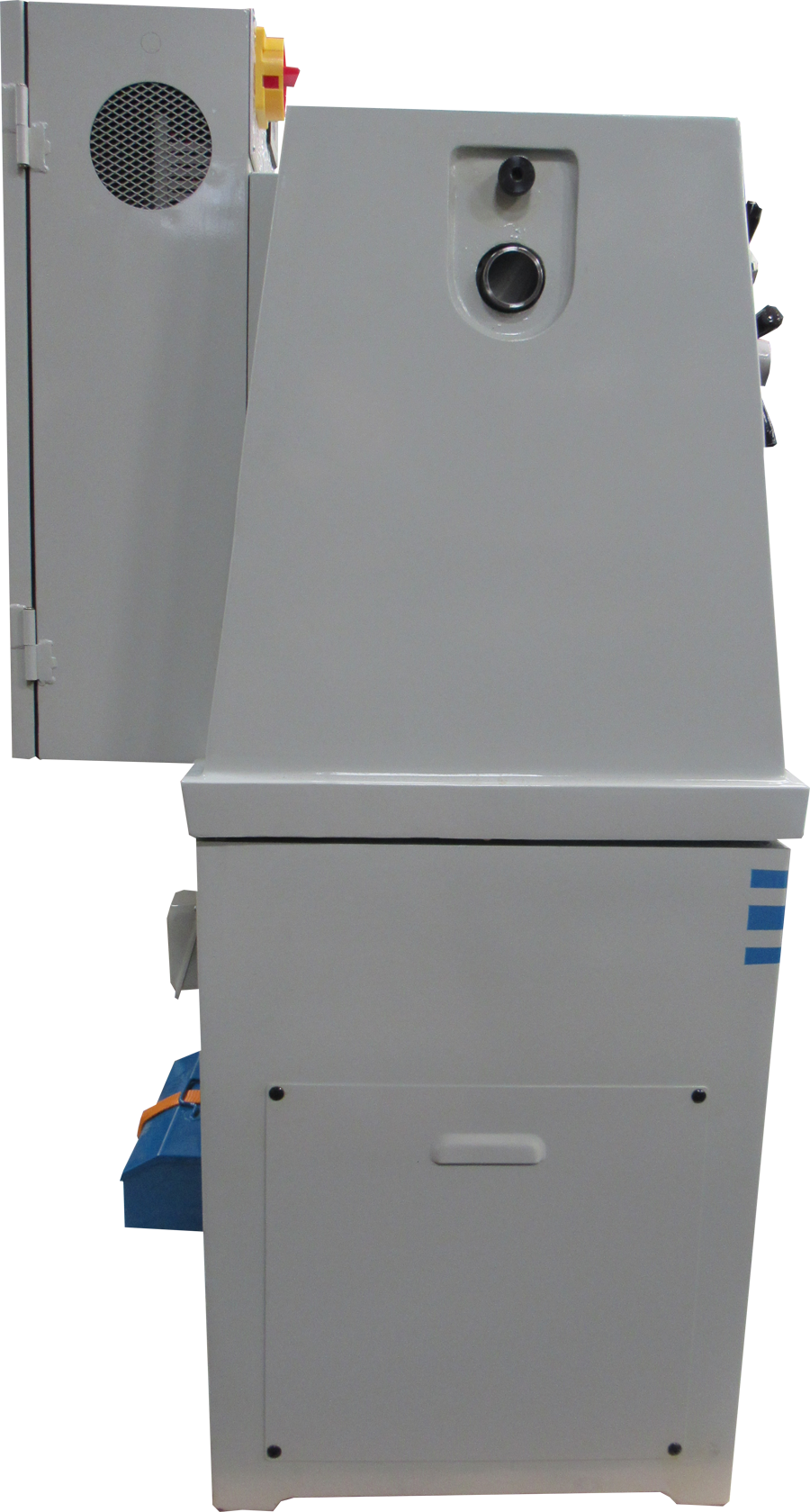

1-1/2″ hole through spindle.
Heavy duty geared head; hardened and ground gears.
Hardened and ground bed-way.
Open type chip tray can be pulled out easily to remove chip.
5 H.P. (3.75Kw) Three phase main motor.
Foot Brake giving rapid braking.
Emergency stop button equipped on the front of headstock.
Jog button for easy gear engagement and inching spindle.
Extra safety switch shuts down machine entirely for changing belt or gear for threading cutting.
Specifications:
Capacity: 14″/20″ x 40″
Swing Over Bed: 14″
Swing Over Cross Slide: 8-5/8″
Swing In Gap: 20″
Distance Between Centers: 40″
Bed Width: 8-1/2″
Spindle Nose: D1-4
Spindle Bore: 1-1/2″
Taper of Spindle: MT NO.5
Spindle Speeds – Steps: Variable Speed 2 step
Spindle Speeds – Range: 30 ~ 2,500 RPM
Cross Slide Travel: 6-1/2″
Compound Slide Travel: 4″
Inch Threads: 1~56 TPI
Metric Threads: 0.45 ~ 7.5 mm
Longitudinal Feeds: 0.0011 ~ 0.0543″/rev
Cross Feeds: 0.0003 ~ 0.0181″/rev
Tailstock:
Quill Diameter: 1-9/16″
Quill Travel: 4-3/4″
Quill Taper: MT #3
Spindle Drive Motor: 5 HP
Voltage: 230/460V AC /3 PH
Weight 2100 lbs
Dimensions 71 × 32 × 51 in
Standard Equipment:
6″ 3-Jaw Chuck
8″ 4-Jaw Chuck

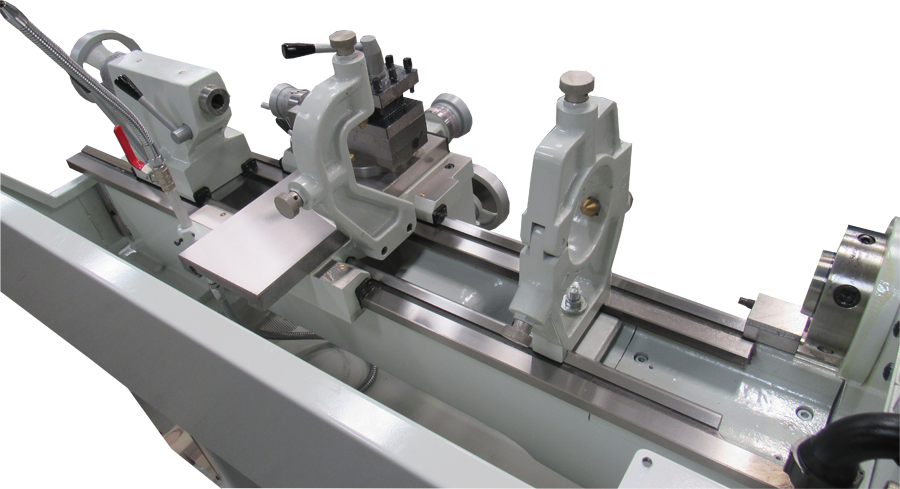

Stead/Follow Rest
Coolant System

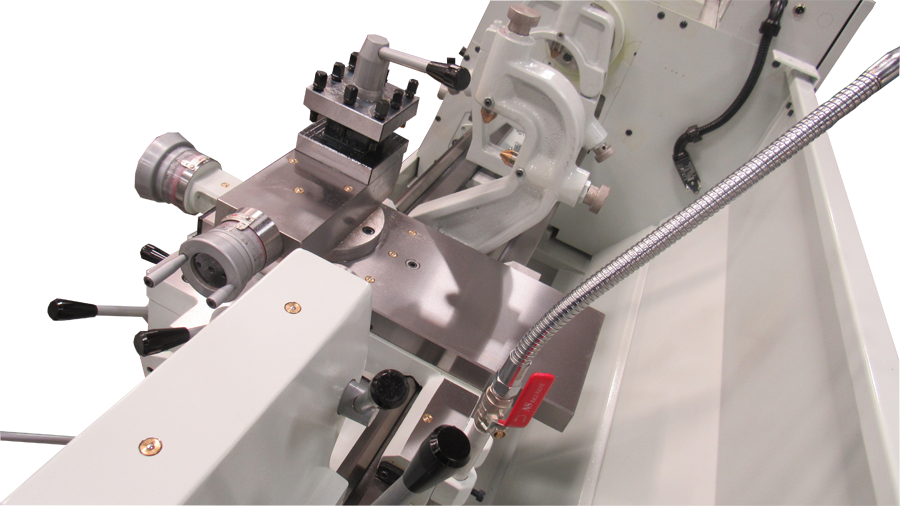

4 Way Tool Holder

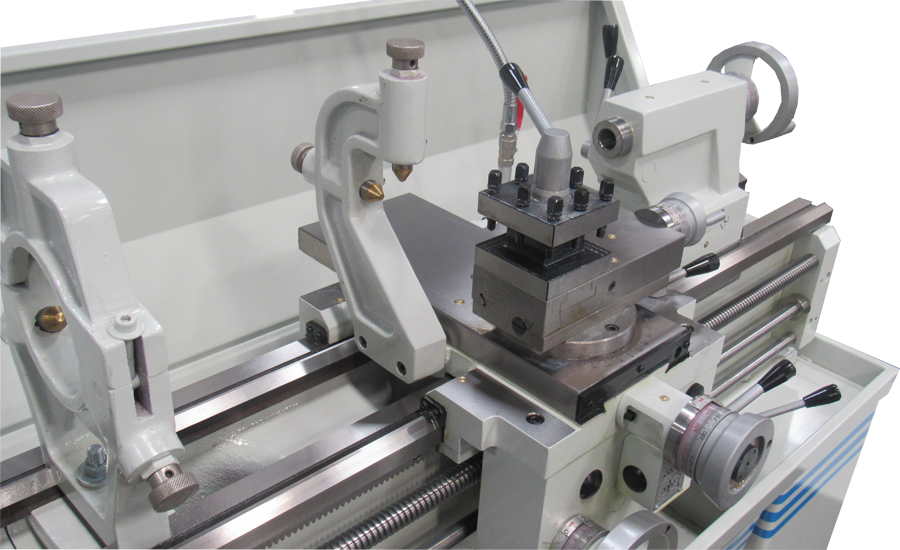

Full Length Splash Guard
Micro Bed Stop
Halogen Light
Foot Brake

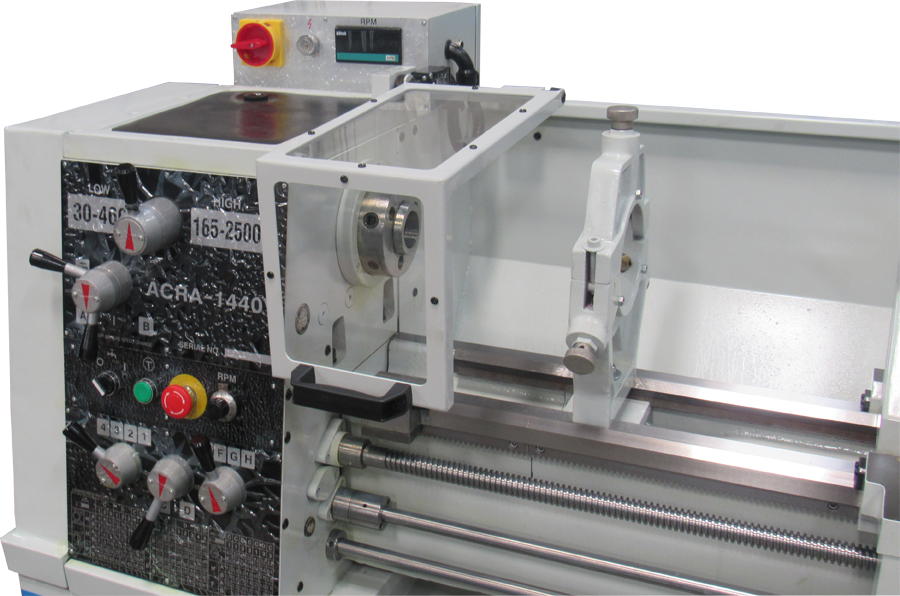

Chuck Guard
