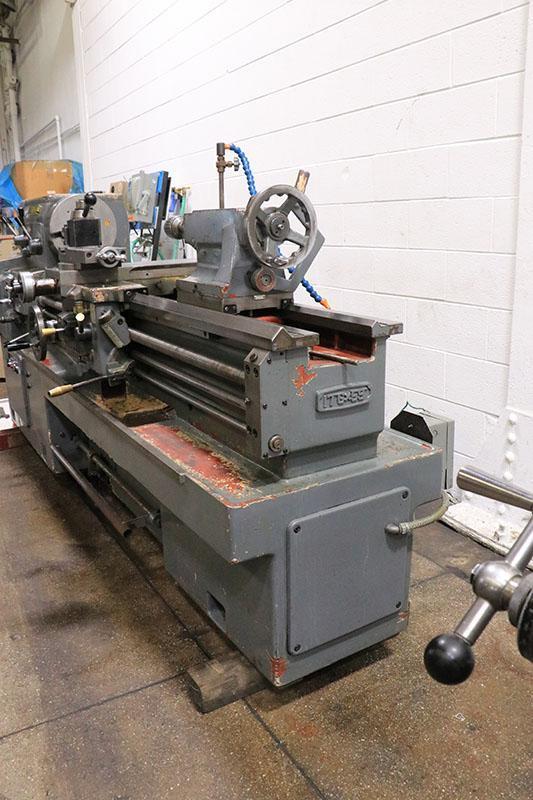

17"/25-1/2" x 59" WEBB MODEL 1759G GAP BED ENGINE LATHE
New 1981


SPECIFICATIONS:

SWING OVER BED ....................... 17-1/8"

SWING IN REMOVEABLE GAP .............. 25-9/16"

SWING OVER CROSS SLIDE ............... 9-3/4"

HOLE THRU SPINDLE .................... 2-3/64"

DISTANCE BETWEEN CENTERS ............. 59"

SPINDLE NOSE ......................... ASA A1-6

BED WIDTH ............................ 13-3/4"

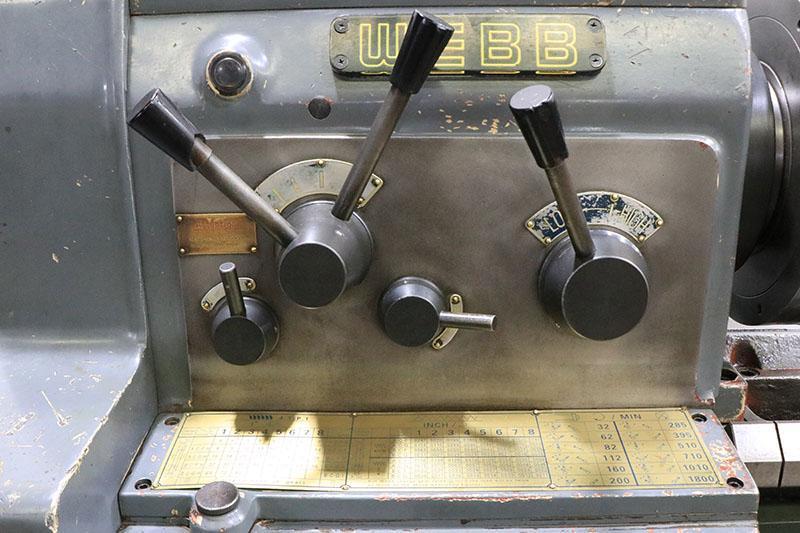

SPINDLE SPEED RANGE (12) ............. 32 - 1800 RPM

LONGITUDINAL FEED RANGE  ............. .0018 - .0247 IPR

CROSS FEED RANGE ..................... .00156 - .011 IPR

ENGLISH THREADING RANGE  ............. 4 - 80 TPI

METRIC THREADING RANGE ............... .25 -7mm

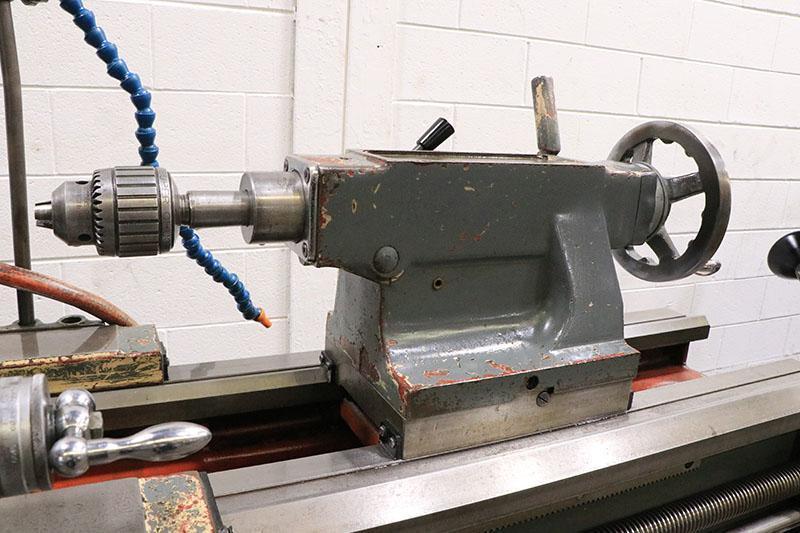

TAILSTOCK SPINDLE TRAVEL ............. 6"

TAILSTOCK SPINDLE TAPER .............. #4MT

APPROX WEIGHT ........................ 5,000 LBS

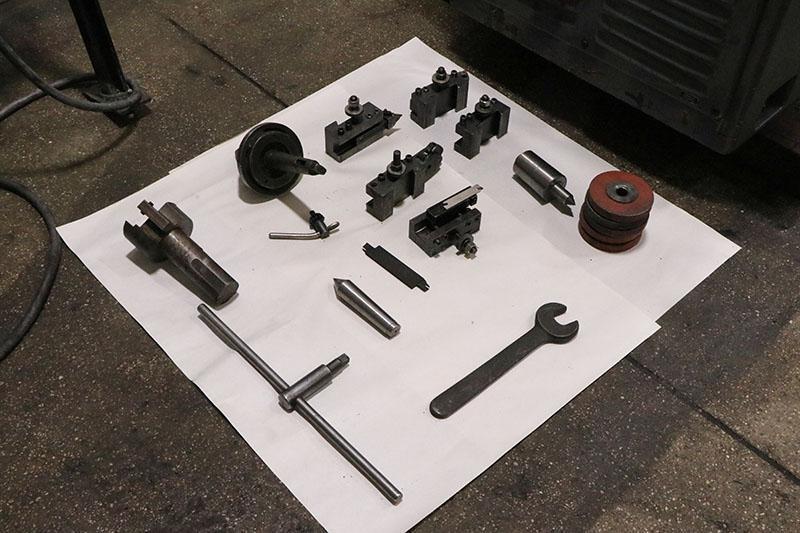

EQUIPPED WITH:

INCH/METRIC THREADING CAPABILITY

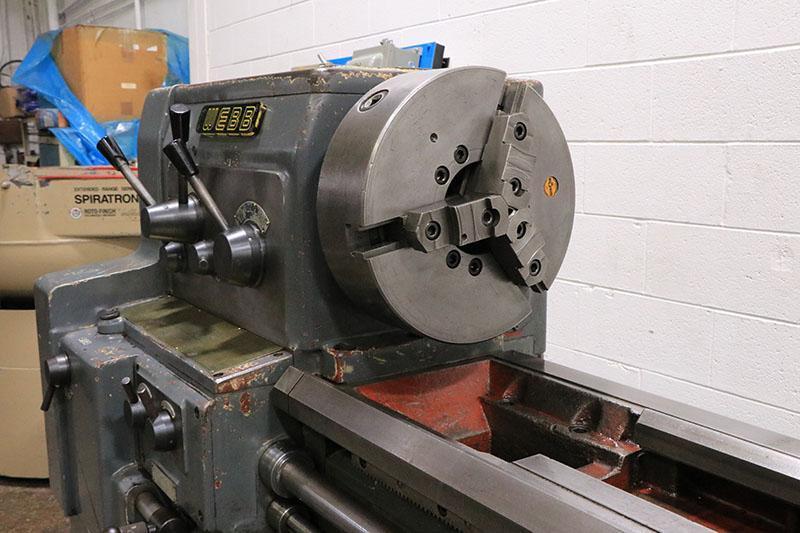

12" ROHM 3-JAW CHUCK

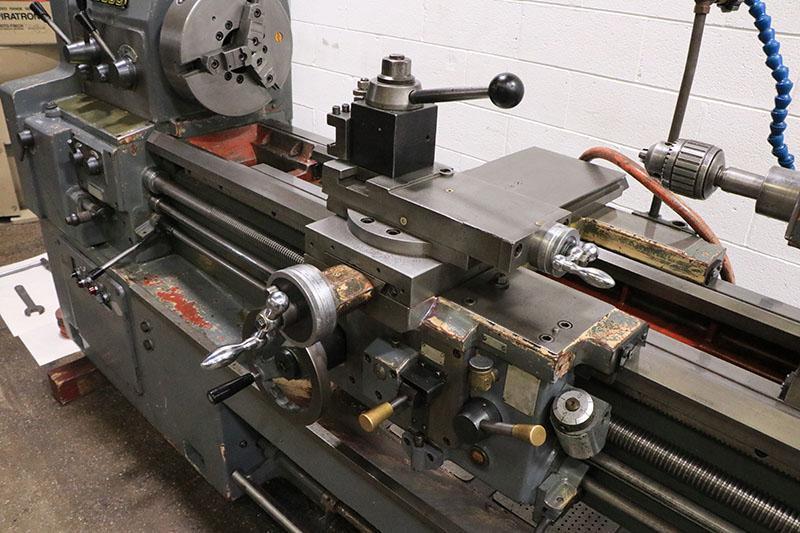

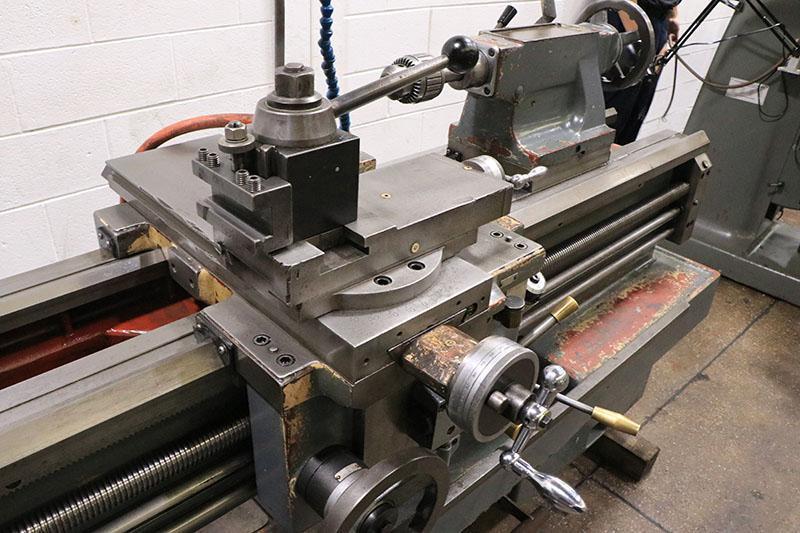

ALORIS MODEL: CA QUICK CHANGE TOOLPOST

THREAD DIAL INDICATOR

COOLANT SYSTEM

FOOTBRAKE

HARDENED & GROUND BEDWAYS

5 HORSE POWER MAIN MOTOR - 220/440 VOLT 3 PHASE
