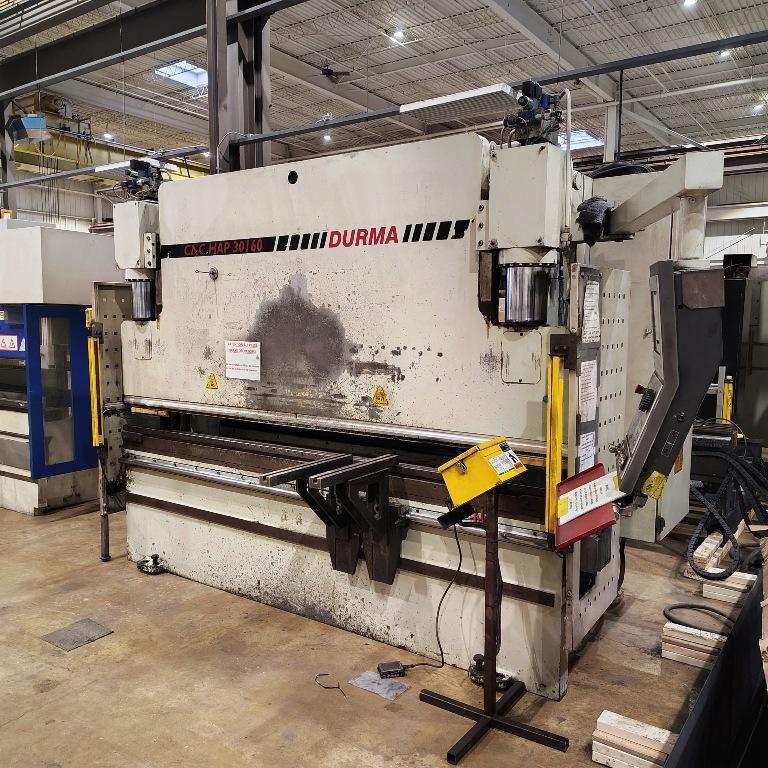

176 TON x 120" DURMA MODEL HAP 30160 CNC HYDRAULIC PRESS BRAKE

Manufacturer

Not provided

Model

HAP30160

Year

2005

Stock #

19550

Condition

Not specified

Price

$29,500.00

Request A Quote

Keep Scrolling To Learn More

Specifications

Equipped With

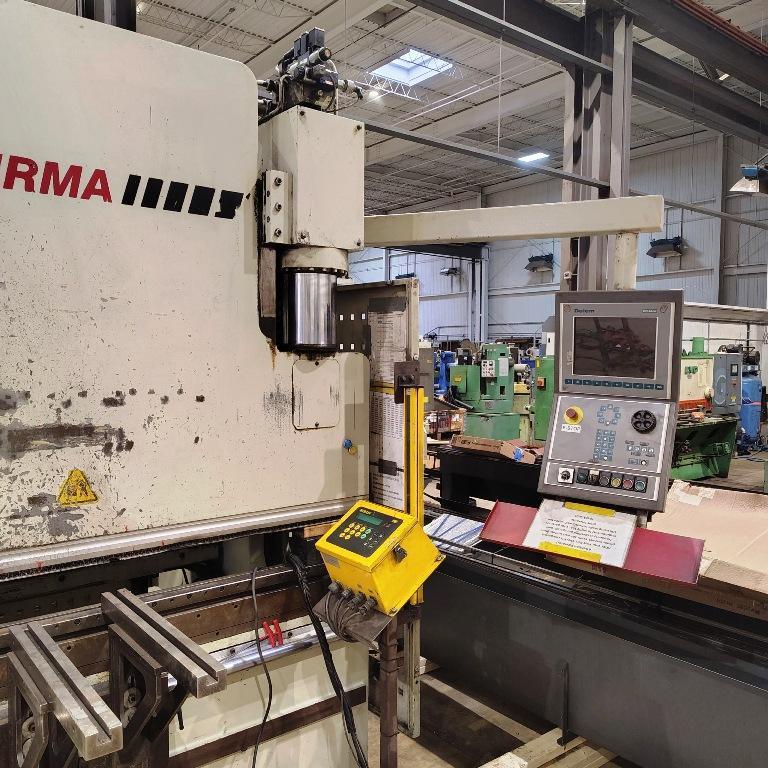

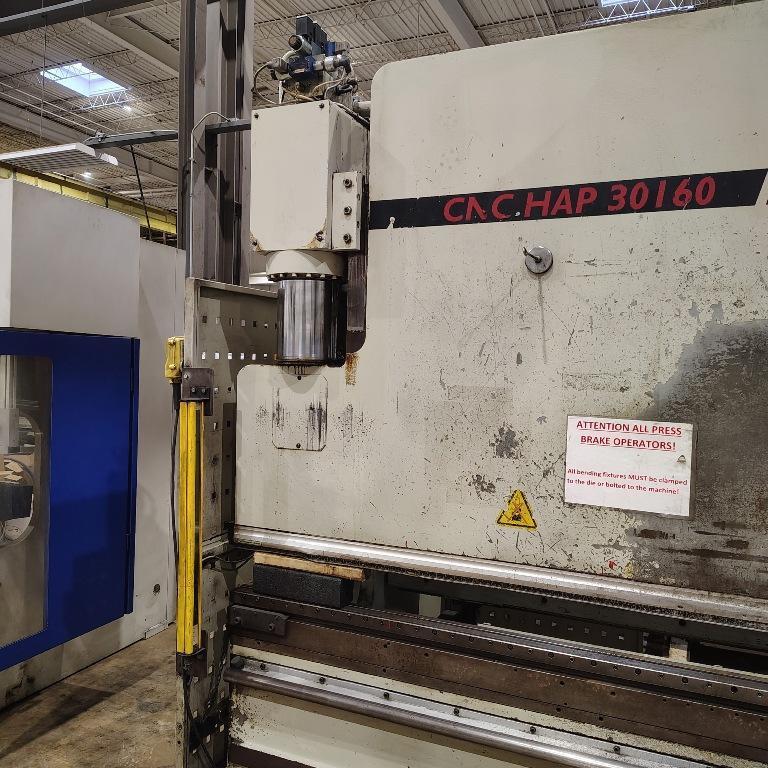

176 TON x 120" DURMA MODEL HAP 30160 CNC HYDRAULIC PRESS BRAKE

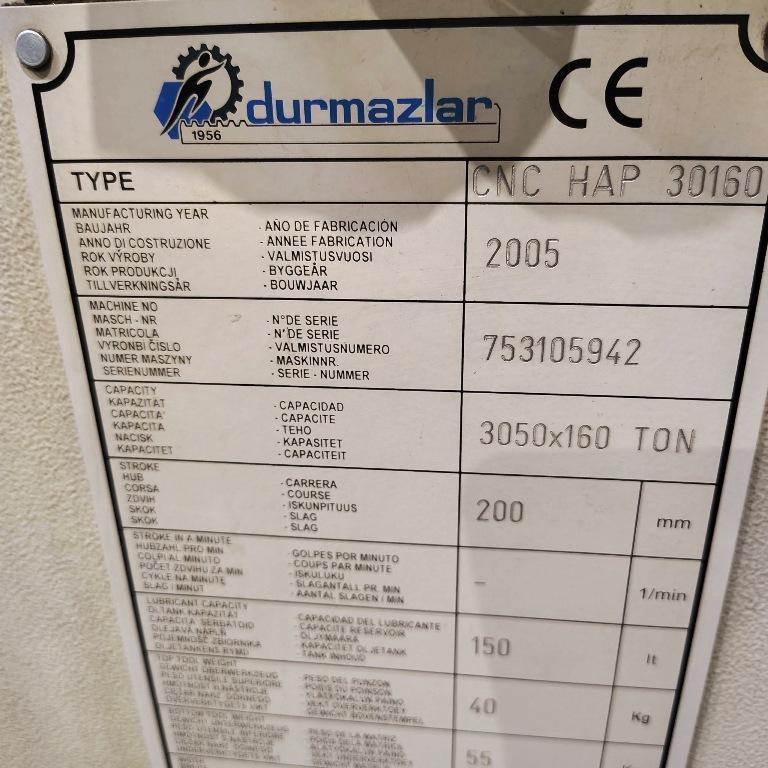

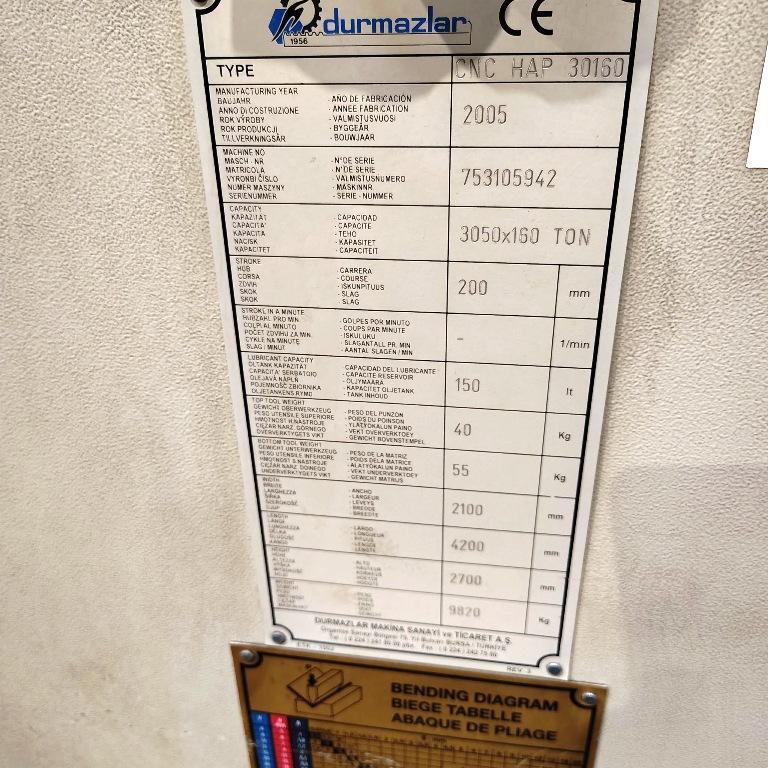

Serial No. 753105942                                                 New 2005


EQUIPPED WITH

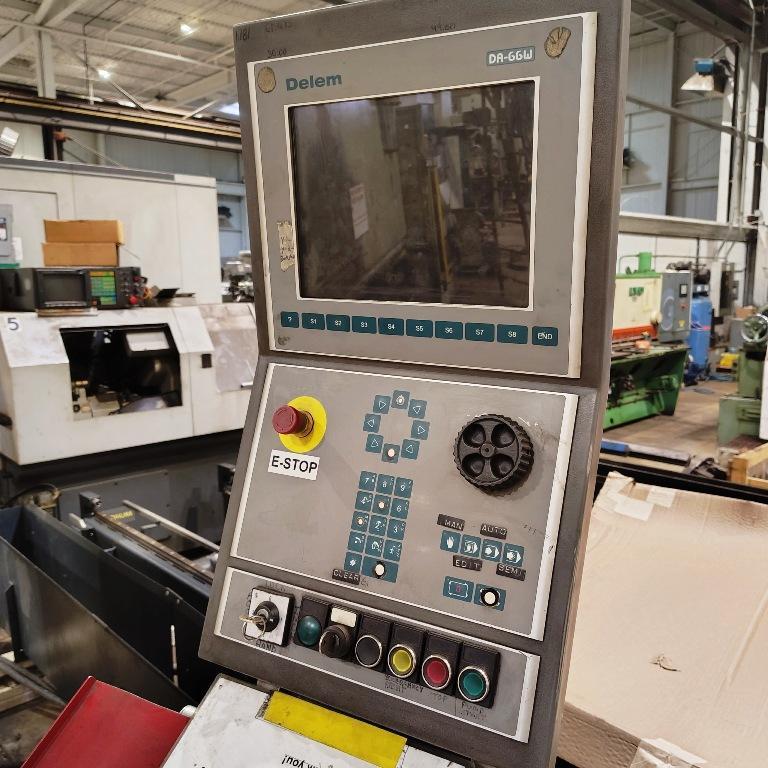

Delem DA-66W CNC Controls
Auto Crown
Wila Tooling

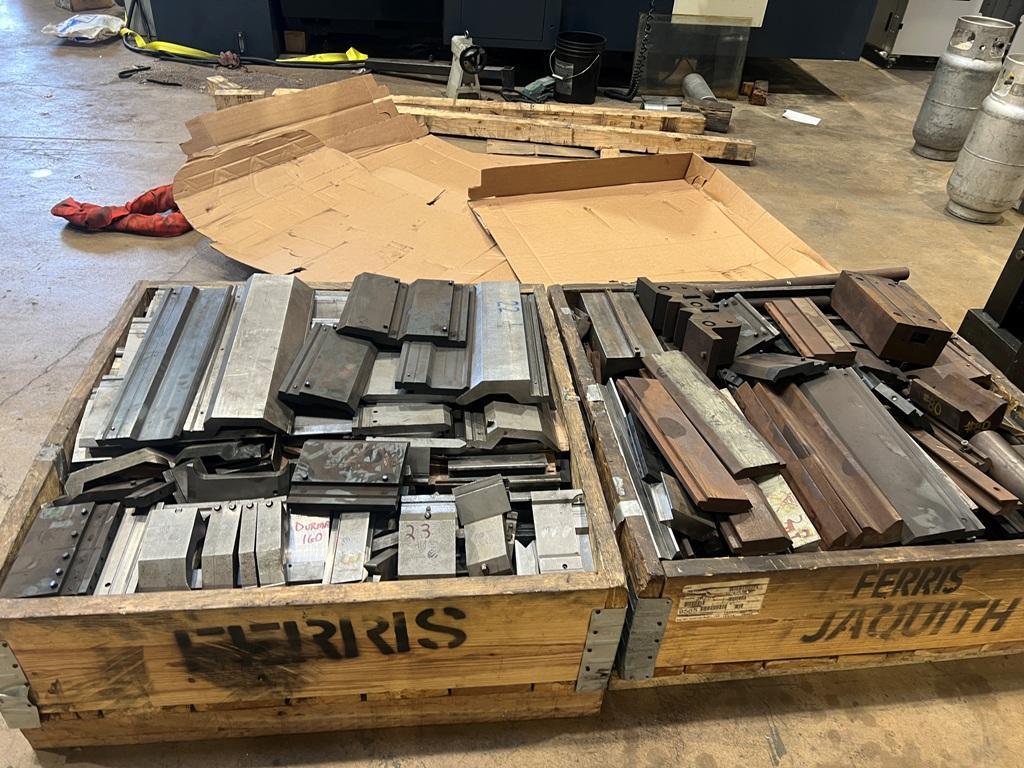

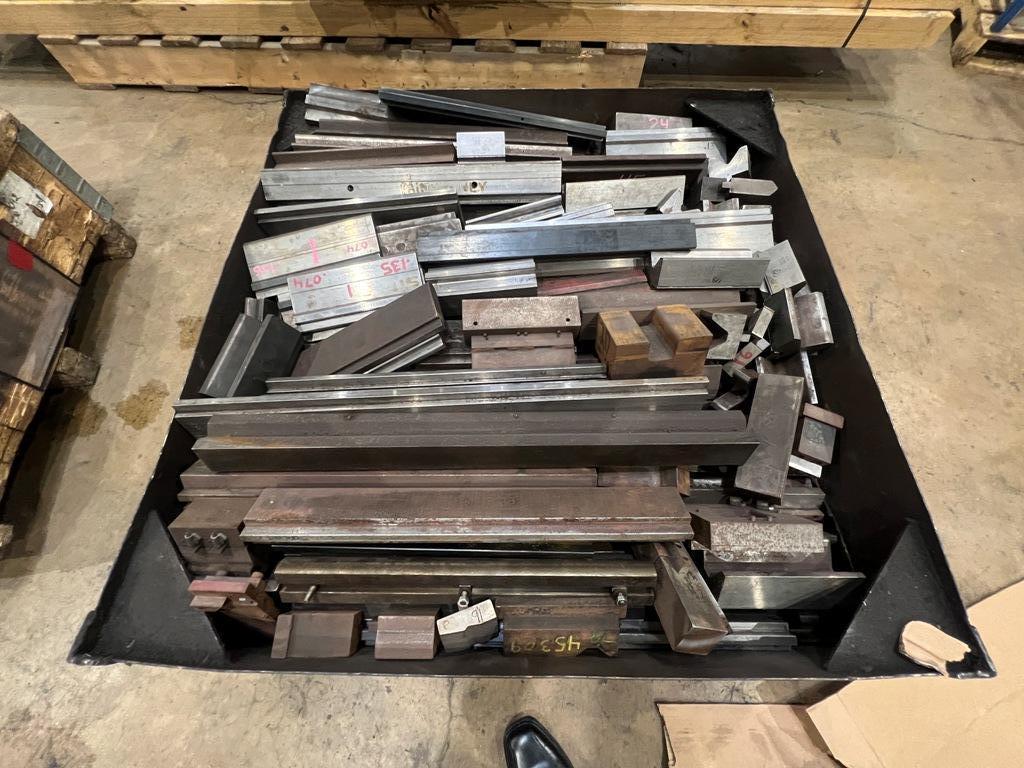

Crates of Misc Press Brake Dies & Misc Tooling

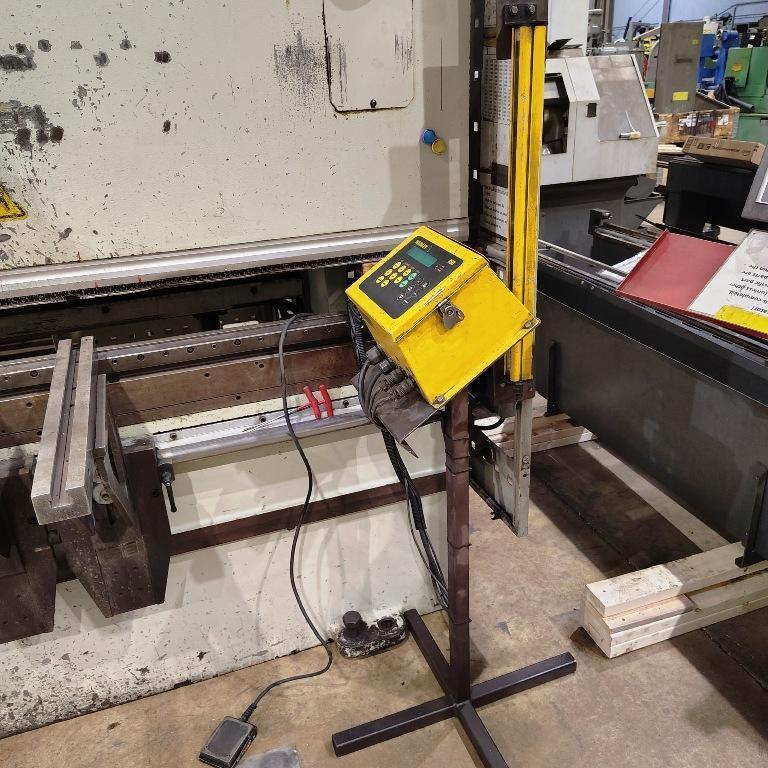

Pedestal Palm Station / Foot Switch


SPECIFICATIONS
Tonnage Capacity:                                   176  US Tons
Overall Length of Bed & Ram:                 120”
Distance Between Housings:                   100”
Stroke:                                                      7.87”
Open Height:                                           14.7”
Speeds
    Approach                                             236 IPM
    Form                                                    21 IPM
    Return                                                 203 IPM
Width of Bed:                                          4.1”
Throat Depth:                                         13.8”

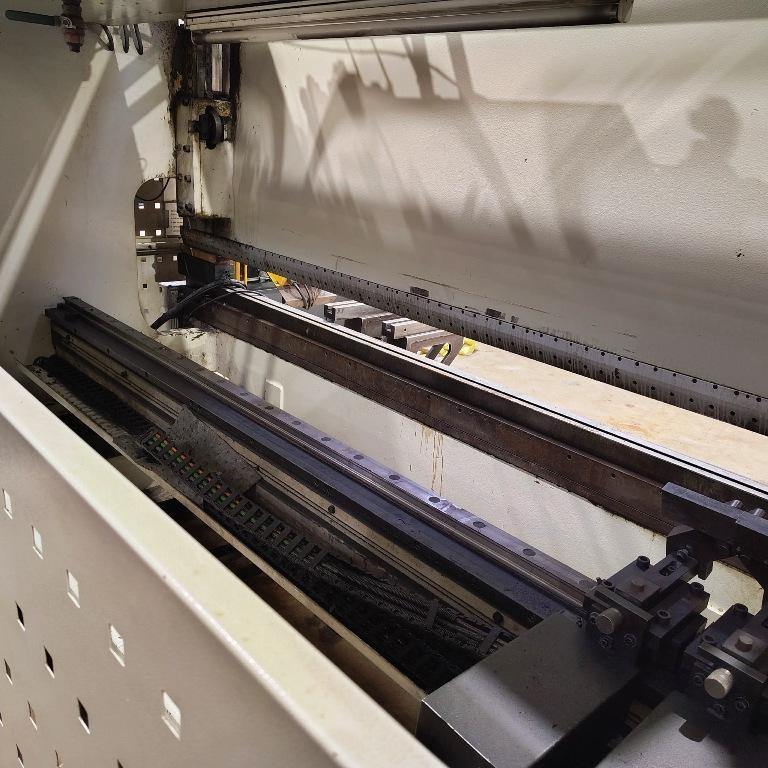

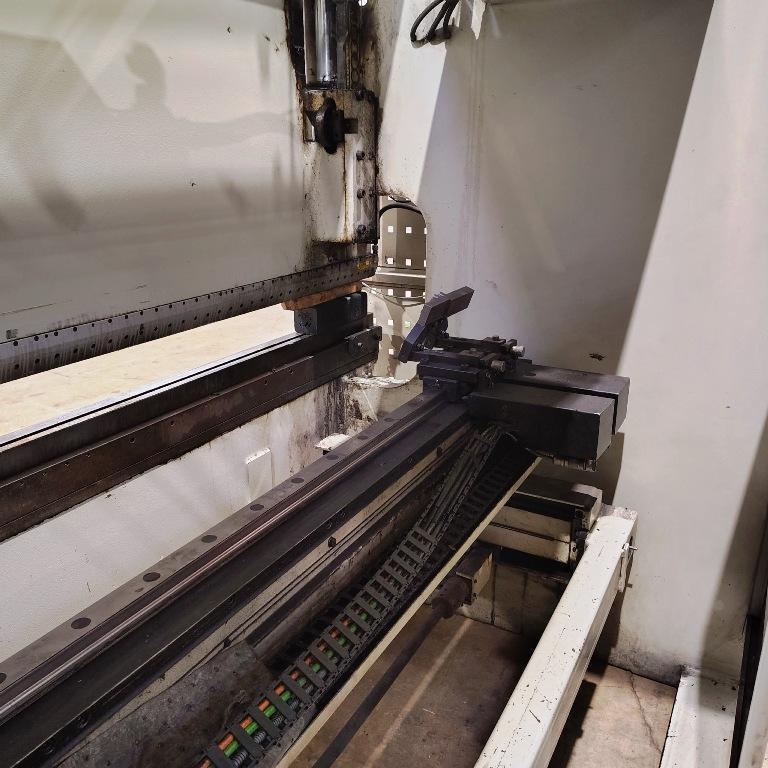

Back Gauge X Range                              24.4”
Oil Capacity                                            39.6 US Gallons
Main Motor Horsepower                       20HP  480/3/60
Approx. Dimensions                              165 X 82" x 106"H
Approx. Weight                                     21,649 Lbs
