Equipped With

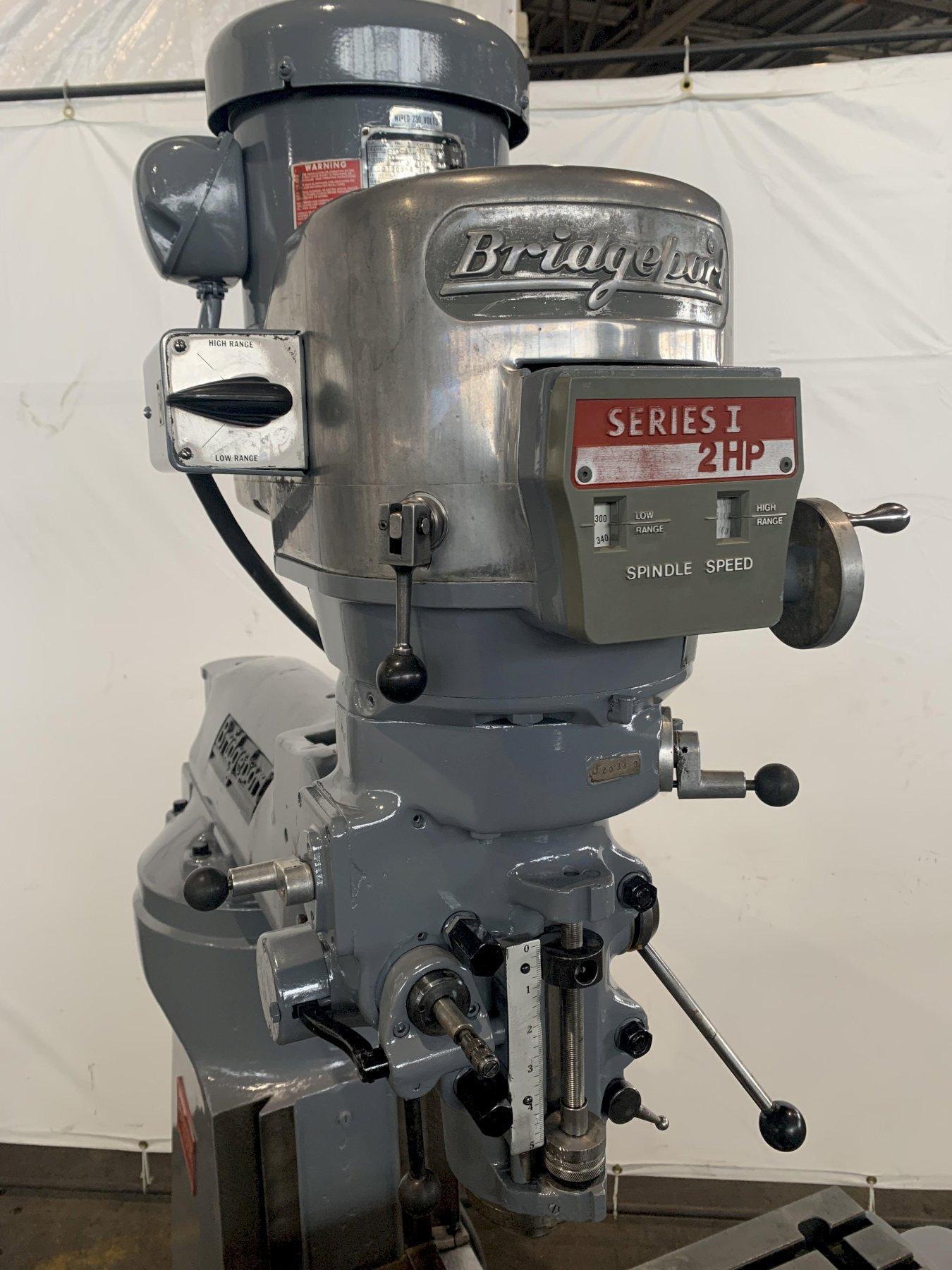

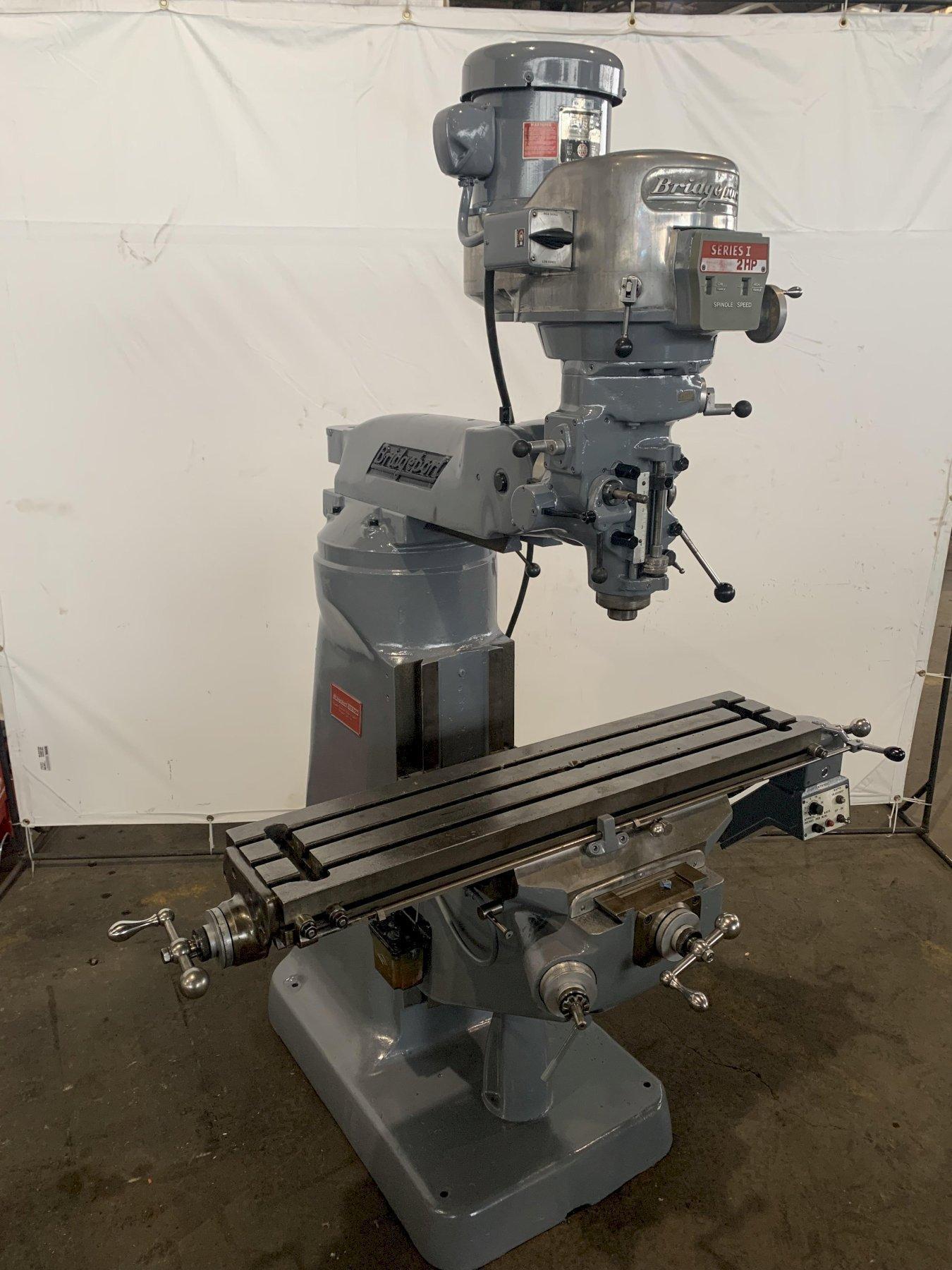

2 HP BRIDGEPORT SERIES 1 VERTICAL MILL

New 1978


SPECIFICATIONS:

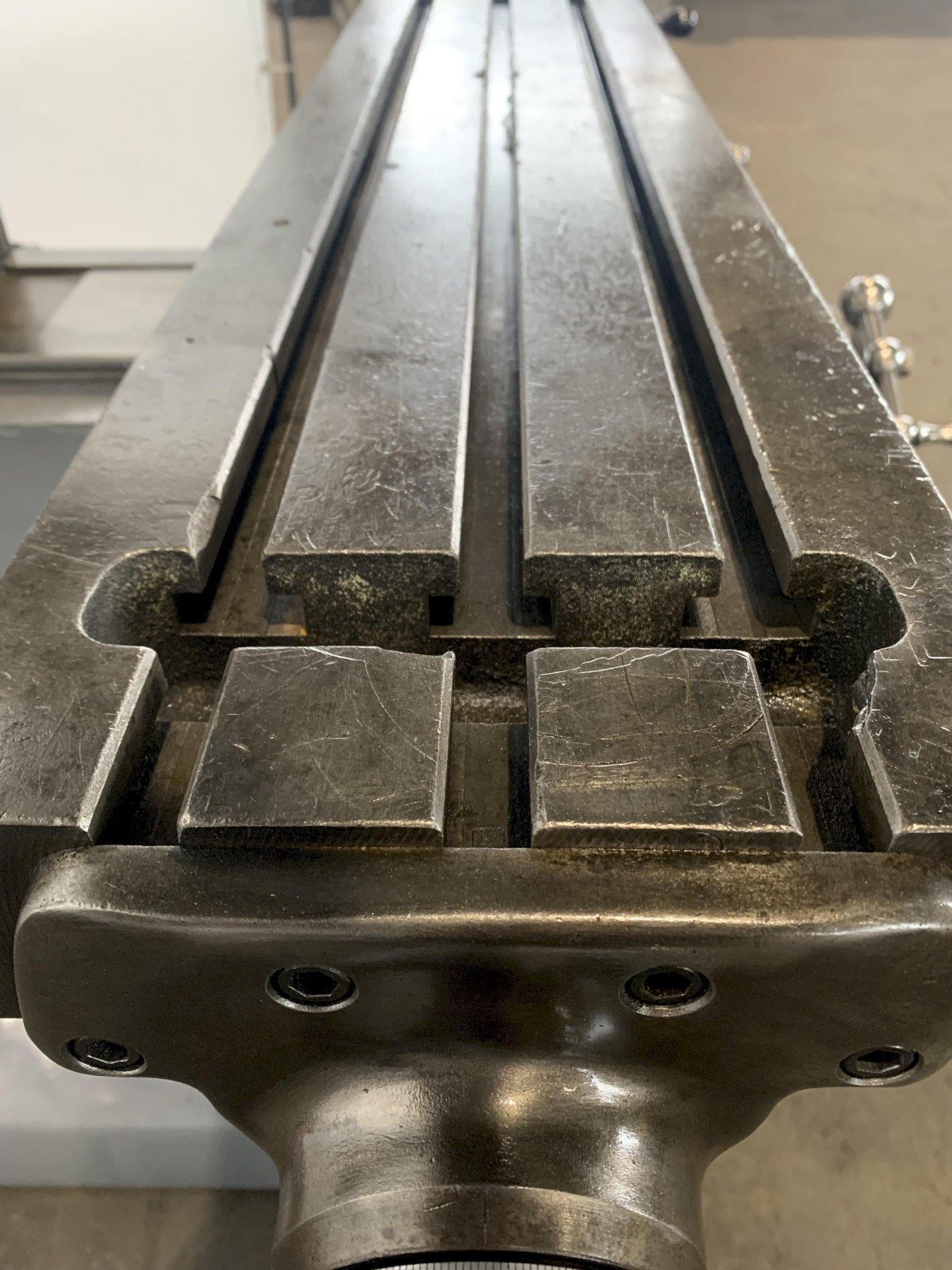

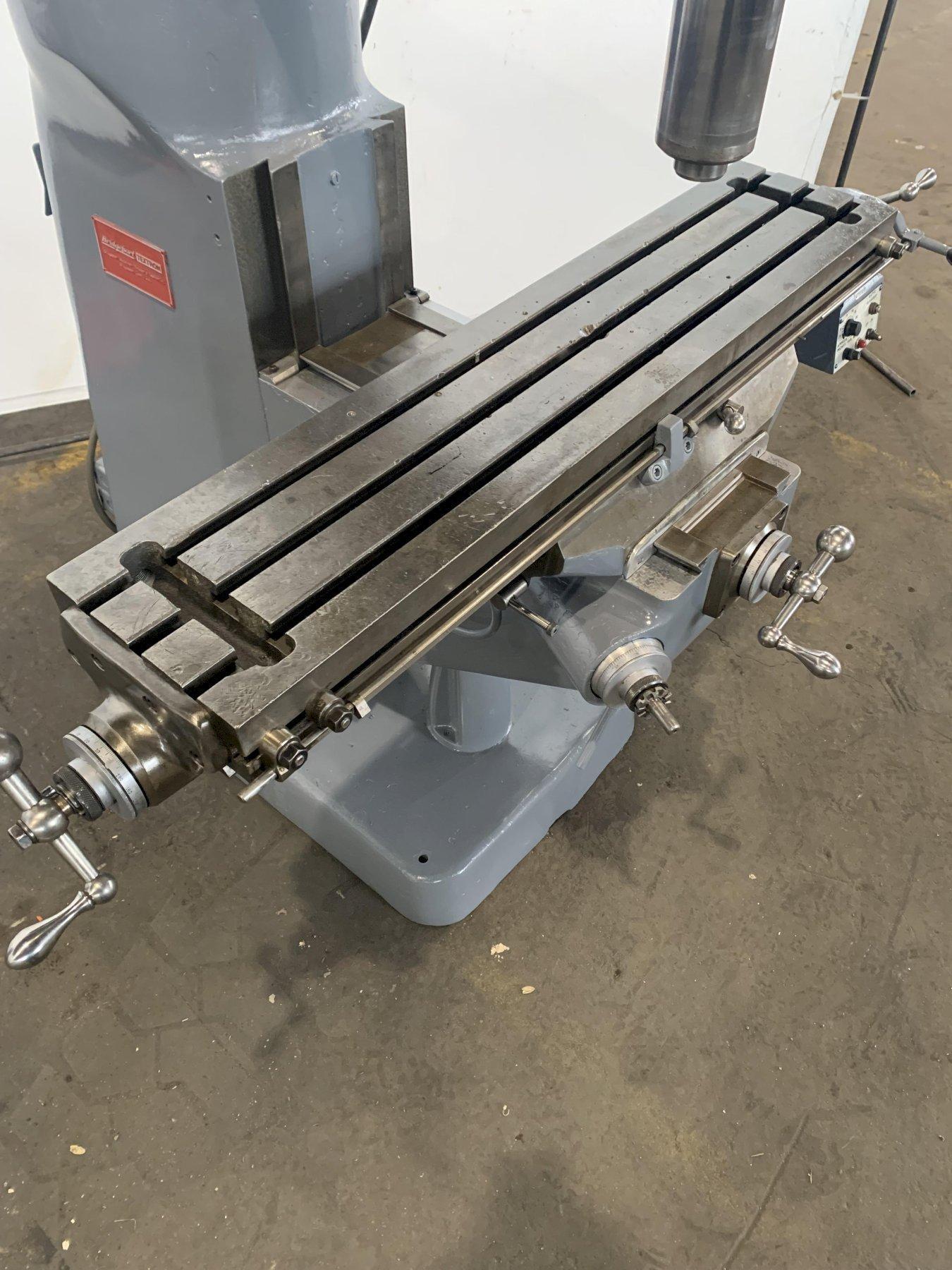

AREA OF TABLE....................: 42" X 9"
SPINDLE SPEEDS...................: 60 TO 4200 RPM
SPINDLE FEEDS....................: .0015,.003, .006 IPR
LONGITUDINAL TABLE TRAVEL........: 30"
CROSS TRAVEL.....................: 12"
VERTICAL KNEE TRAVEL.............: 16"
QUILL TRAVEL.....................: 5"
RAM TRAVEL.......................: 12"
DEPTH OF THROAT..................: 6-3/4" TO 18-3/4"
TAPER IN SPINDLE.................: R8
HEAD TILTS, FRONT/BACK...........: 45 DEGREE EITHER WAY
HEAD SWIVELS, LEFT/RIGHT.........: 90 DEGREE EITHER WAY
CHROME WAYS......................: YES
1 SHOT LUBE......................: YES
MOTOR............................: 2 HP

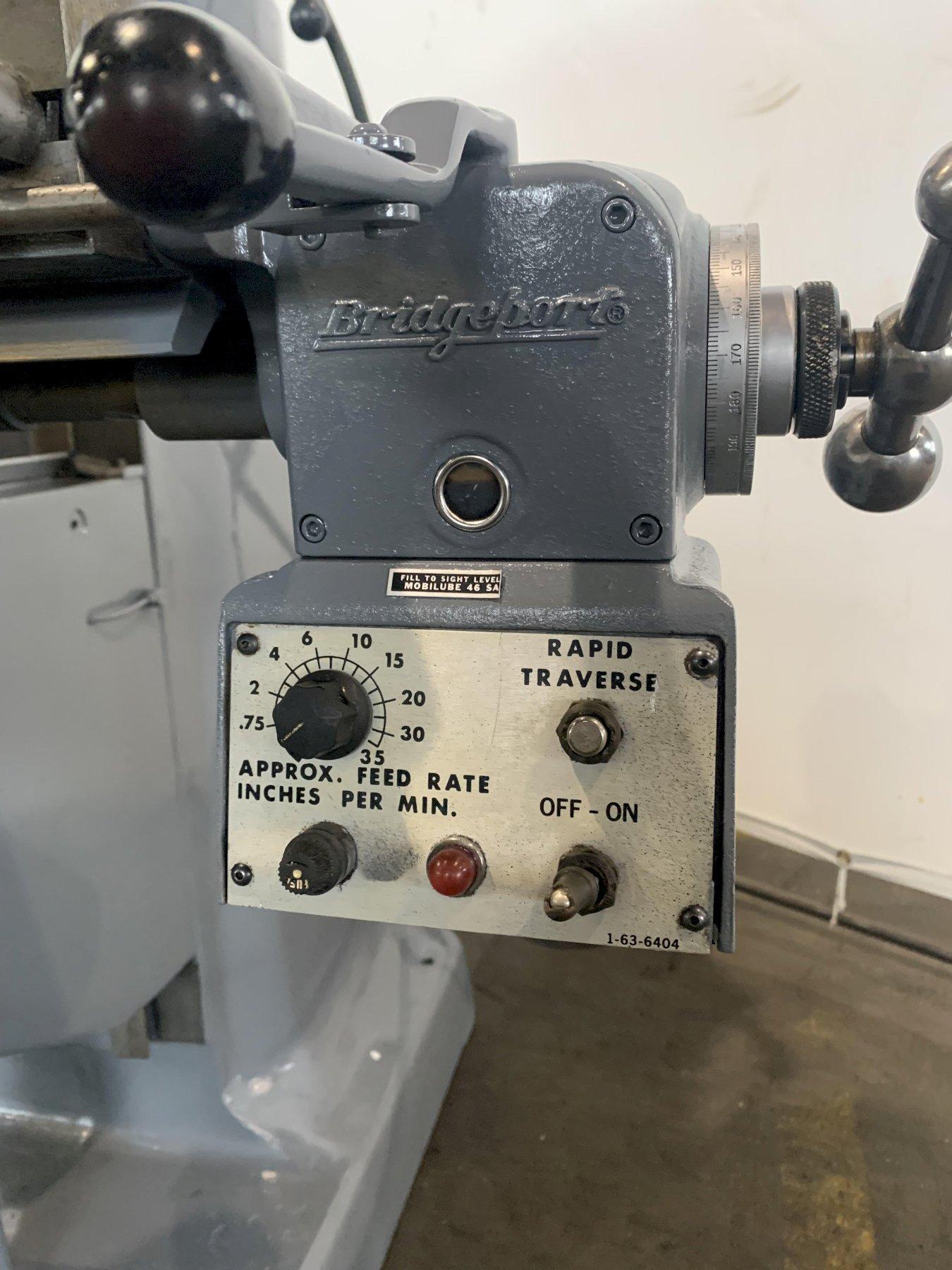

POWER TRAVERSE...................: YES
