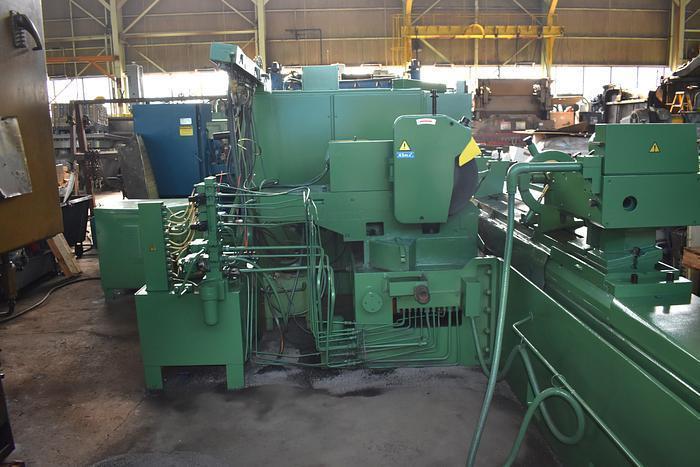

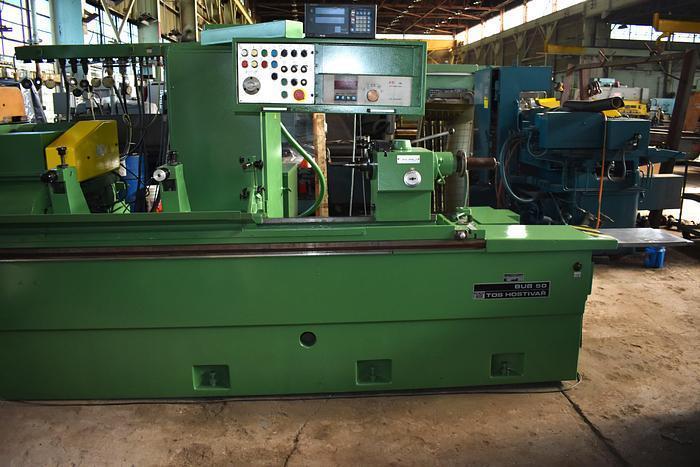

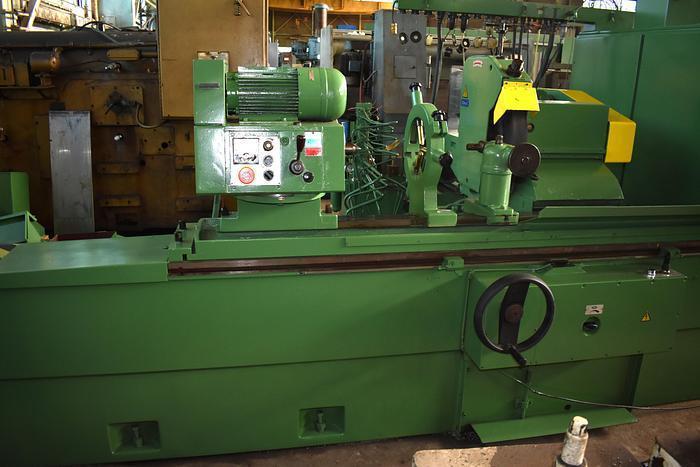

20" x 120" TOS HOSTIVAR "BUB 50/3000" UNIVERSAL CYLINDRICAL GRINDER w/DIGITAL READOUTS

Serial No. 0239550

EQUIPPED WITH:

Sony 2-Axis Digital Readouts

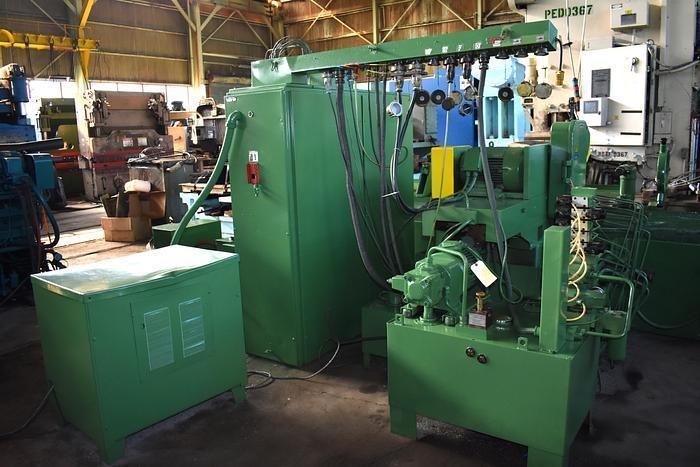

Hydraulic Longitudinal Table Feed

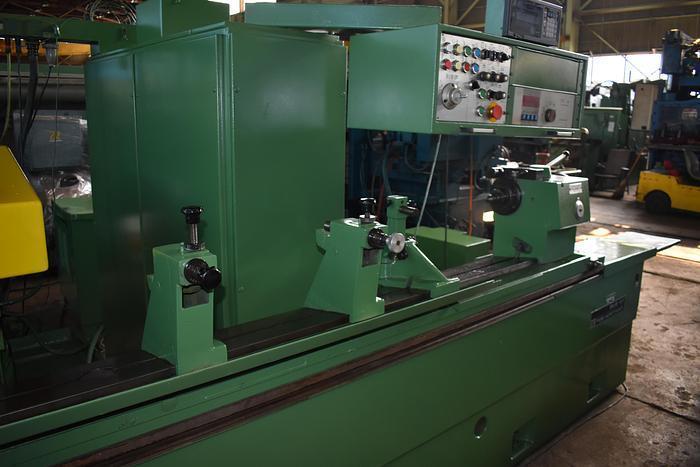

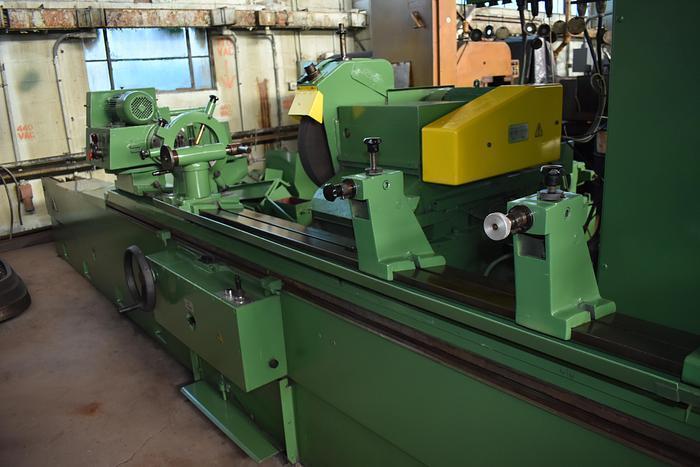

Steady Rest - (2) Follow Rests

Table-Mounted Grinding Wheel Dresser

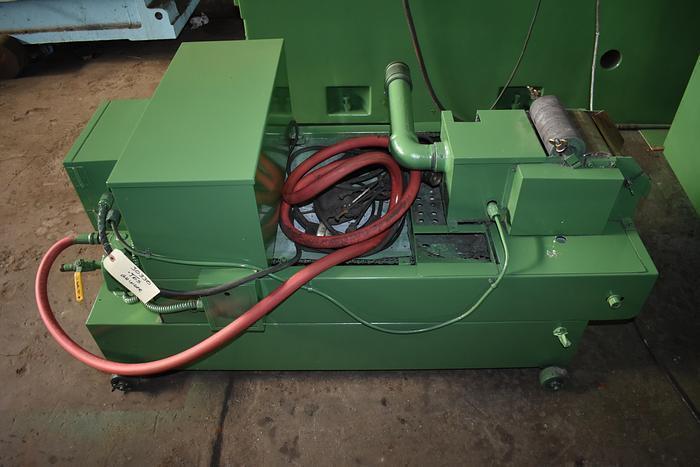

Coolant System

SPECIFICATIONS:

Swing Over Table, Maximum 20"

Grinding Diameter, Maximum 20"

Distance Between Centers, Nominal 120"

Weight Capacity Between Centers 771 LBS

Grinding Wheel Diameter, Standard 20"

Grinding Wheel Width, Standard 3"

Grinding Wheel Width, Maximum 5"

Grinding Wheel Hole Diameter 8"

Table Longitudinal Travel, Maximum 126"

Table Longitudinal Speed, Infinitely Variable .0019 to .196 IPM

Table Rapid Traverse

Table Swivel Range -2/+ 4-DEGREES

Headstock Swivel Range 90-DEGREES

Grinding Wheelhead Swivel Range -15/+ 45-DEGREES

Grinding Wheelhead Speeds 1720 & 1980 RPM

Workhead Spindle Speeds, Infinite Range 18 to 560 RPM

Wokhead & Tailstock Spindle Taper 5 MT

Grinding Wheelhead Spindle Motor 13 HP

Floor Space Required, L x D 390" x 118"

Weight, Approximately 16750 LBS
