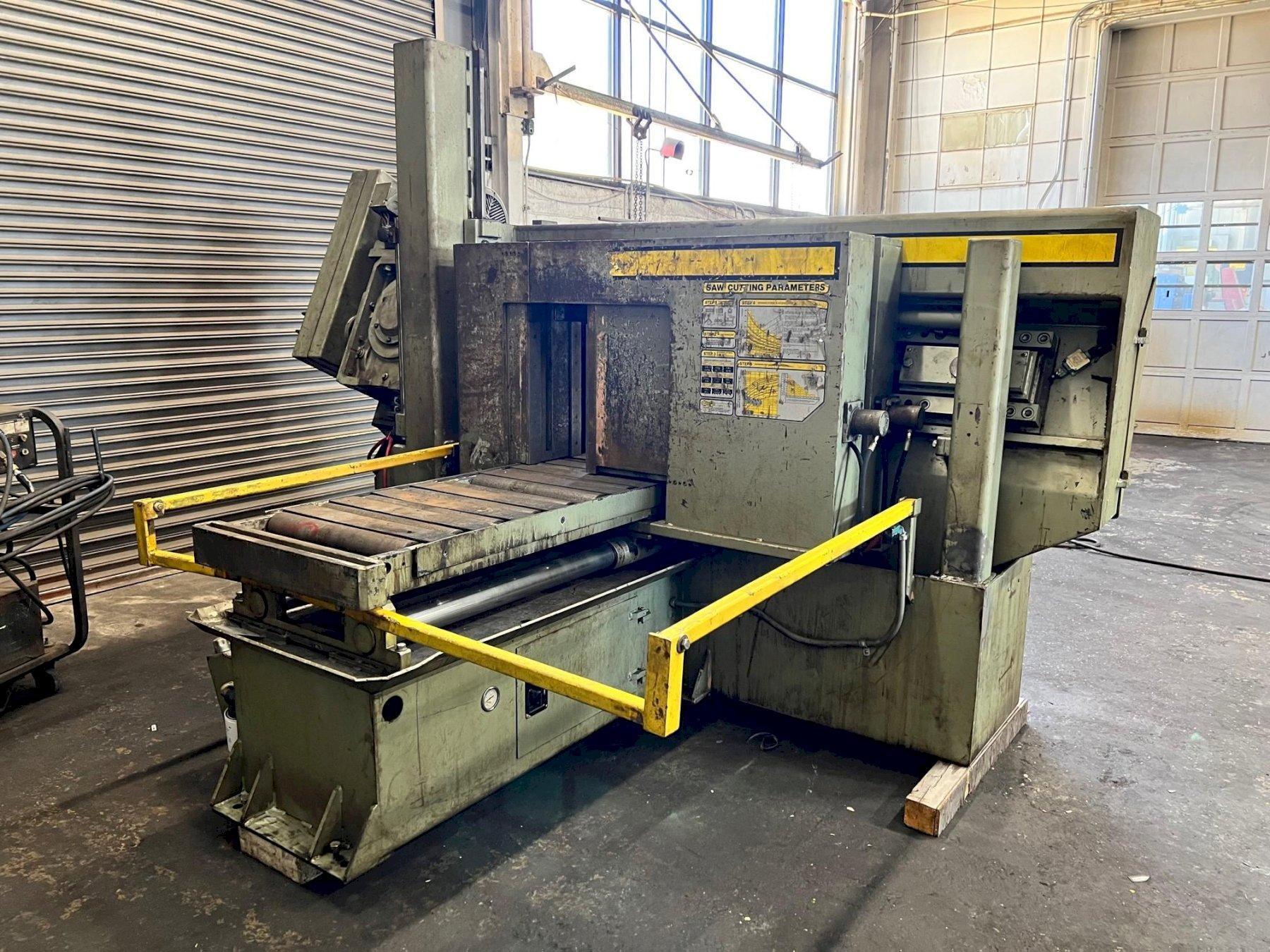

20" x 20" HYDMECH H-20A AUTOMATIC HORIZONTAL BAND SAW

Manufacturer

Not provided

Model

H-20A

Year

1993

Stock #

17803

Condition

Not specified

Request A Quote

Keep Scrolling To Learn More

Specifications

Equipped With

20" x 20" HYDMECH H-20A AUTOMATIC HORIZONTAL BAND SAW
New 1993


Specifications:
Max. cutting cap. 90 deg, round: 20”
Max. cutting cap. 90 deg, square: 20” x 20”
Blade dimensions: 22’2” x 2” x .063
Blade guides: Carbide
Guide arm (manual / powered): Powered
Blade speeds: 40-300 FPM
Number of speeds: Infinite
Blade motor: 10 HP
Blade drive type: Motor to gearbox
Blade tension type: Powered
Blade wheel size: 27”
Hydraulic motor: 3 HP
Hydraulic Tank Capacity: 9 gallons
Coolant type: Flood
Coolant tank capacity: 10.5 gallons
Maximum feed length: 36”
Number of multi indexes: Infinite
Table height: 31”
Maximum weight load: 15,000 lbs
Vise type: Hydraulic
Voltage: 220 / 440 volt 3 phase
Dimensions: 140” x 95” x 94”
Weight: 12,500 lbs

Equipped with:
PLC100 Control - holds up to 29 jobs with length & piece counter and the ability to run up to 9 jobs in queue with blade speed readout
Manual / automatic mode
Head height limit switch setting
Blade break switch
Coolant wash down hose
Powered blade speed change
Carbide guides
Flood coolant
Powered blade chip brush
Hydraulic chip auger
Positive downfeed
