20" X 24" HEM V130HM VERTICAL SAW

Manufacturer

HEM

Model

V130HM

Year

2000

Stock #

17426

Condition

Very Good

Request A Quote

Keep Scrolling To Learn More

Specifications

Equipped With

20" X 24" HEM V130HM VERTICAL SAW

New 2000



Description:

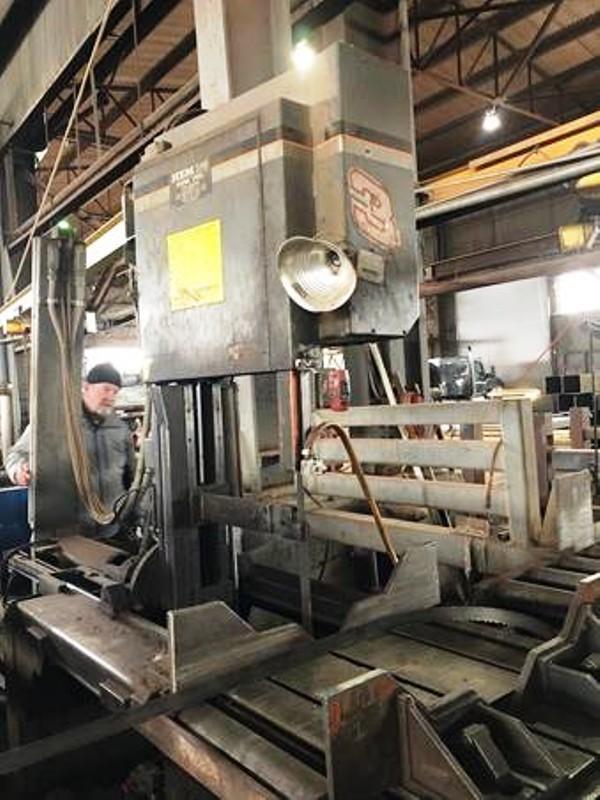

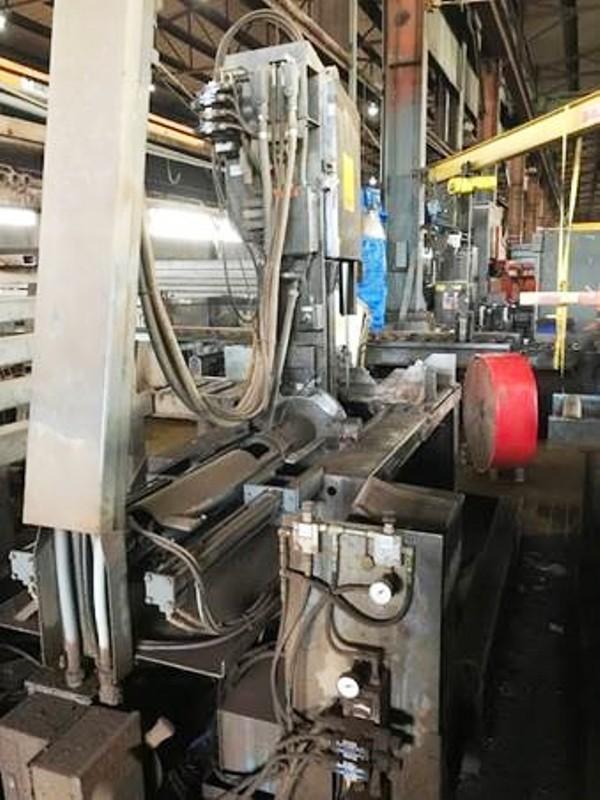

HEM Model V130HM Vertical Bandsaw Can be seen under power in IL. 20" x 24" capacity
These HEM Vertical Band Saws are time proven band saw designs for cutting materials up to 45 degrees, both left and right. Capacities for these vertical band saw work horses range from (18-25″) wide to (20-36″) high.
HEM band saws are well known for their reliability and accuracy. A HEM Vertical Band Saw will give years of accurate band sawing life
A. Motor & gearbox are encased in the upper head of the saw away from the coolant and chip area. This engineering philosophy sets us apart from our competitors as, as the life of these components are significantly increased by this protection.
B. HEM vertical band saws use only the highest quality standard components such as Lincoln Electric variable speed motors, Borg Warner Morse gearboxes and Allen Bradley electrics.
C. The perpendicular guide arm provides solid support to the back of the blade, resulting in less vibration and increased blade life. It is fully adjustable to the height of the material.
D. Flat carbide guides provide solid support to each side of the vertical band saw blade, increasing the stability of the band saw blade through the material. Band Saw Blade Guides are ground and relieved towards the twist of the blade to make the transition into the perpendicular position easy on the blade.

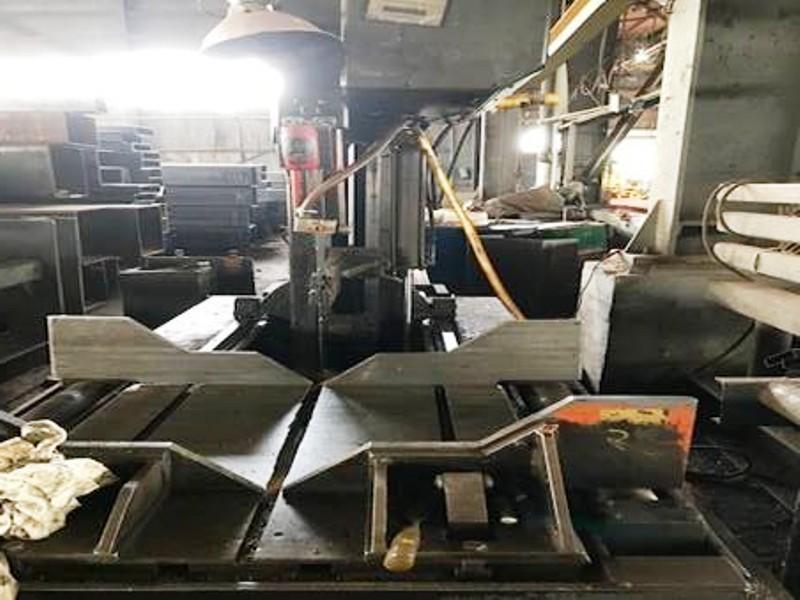

E. HEM Vertical Band Saw Vises are engineered for versatility and ease of operation, and come standard with infinitely variable clamping pressure. Stops are set off the front of the band saw vise plate, preventing the possibility of cutting off your vises.
F. Because we put the motor & gearbox on top of the band saw, we have to counterbalance the head with dead weight. This makes our band saw head heavier than the competitors, resulting in less vibration and increased blade life.







Equipped With:



Adjustable Clamping Force
Adjustable Cutting Force
Adjustable Feed Rate
Adjustable Main Vise
Air Powered Blade Tension
Blade Brush
Boltable Side Wings for Coolant Drainage
Broken Blade Indicator
Carbide Blade Guides

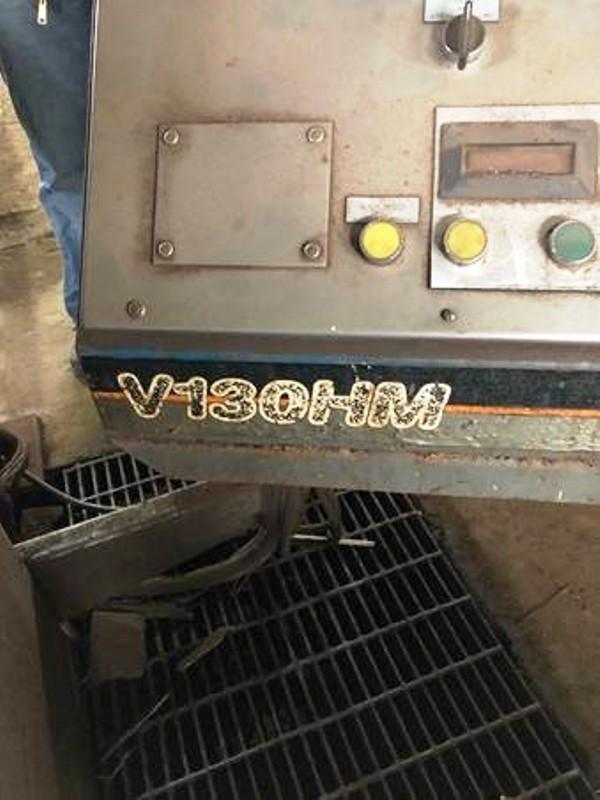

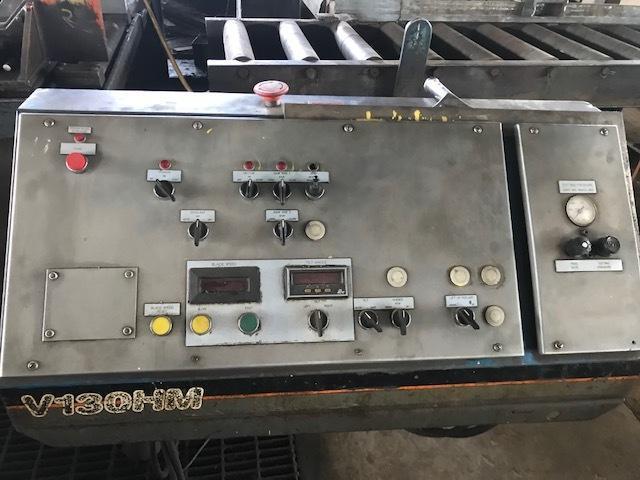

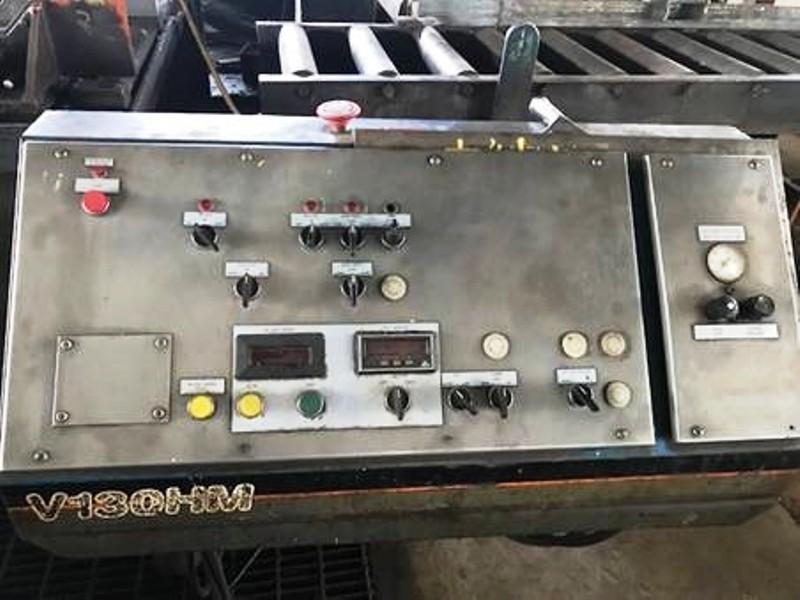

Console Located on Front of Saw ? Manual Control
Flood Coolant System w/ Wash-Down Hose
Forward Cut Stop
Powered Guide Arm
Powered Tilt w/ Angle Readout
Safety Guards
Tilting by hydraulic

Specifications:





Throat Cap

24"

Work Height

20"

Power

10 hp

Blade Width

1.5"

Blade Length

17.5'

FPM

400

Control

CNC (Manual Swing Away)

HEM Model V130HM Vertical Bandsaw
Machine Details:
MODEL ............................... V130HM
YEAR NEW ............................ 2000
CAPACITY ............................ 20" X 24"
CAPACITY MITTER LEFT ................ 20" X 16"
CAPACITY MITER RIGHT ................ 20" X 15"
CAPACITY (ROUNDS) ................... 18"
BLADE SPEEDS (VARIABLE) ............. 72 TO 400 FPM
BLADE SIZE .......................... 1 1/2" X 19'
GUIDE ARM ........................... HYDRAULIC
HYDRAULIC VISE PRESSURE ............. 0 TO 1500 LBS
HYDRAUCIC BLADE TENSION ............. YES
HEAD TILTS  ......................... HYDRAULIC
DIGITAL READOUT DISPLAYS ............ YES
COOLANT ............................. YES
MOTOR ............................... 10 HORSEPOWER



Attachments

There are no files attached to this listing currently. If you Have any further questions regarding this listing, please contact us for more information.
