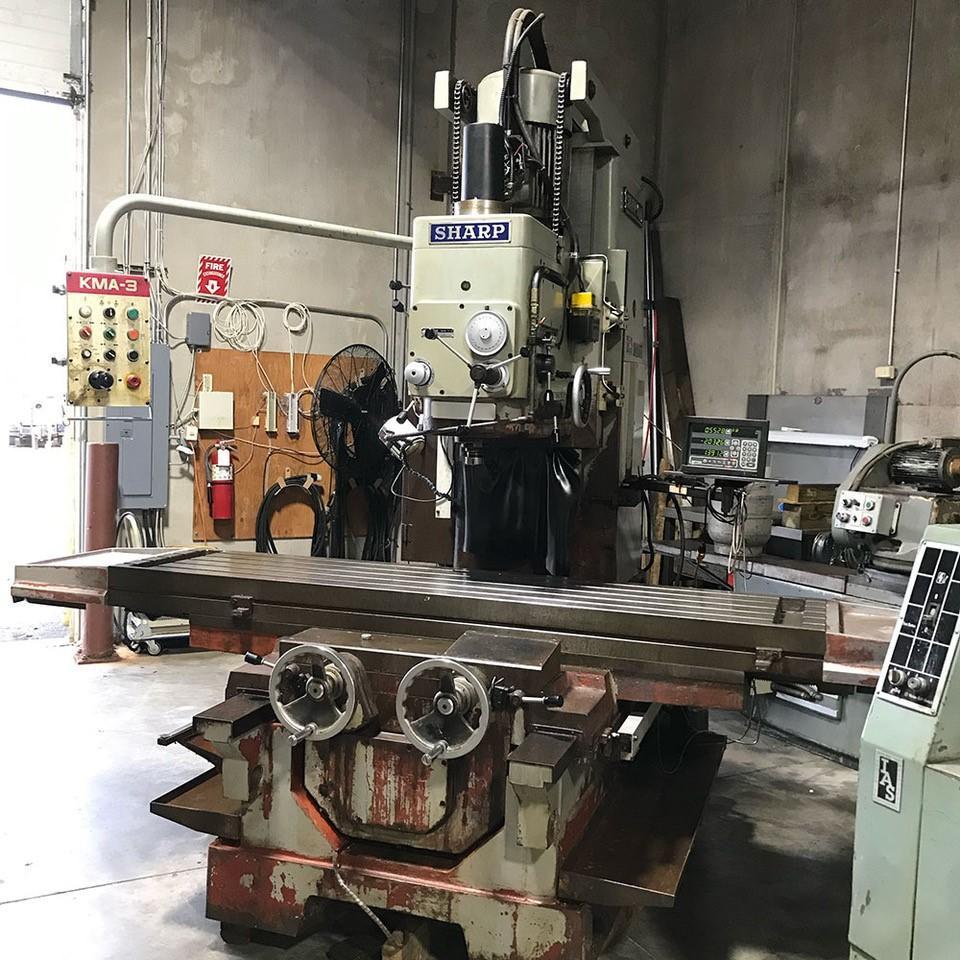

20" X 87" SHARP MODEL KMA-3 BED TYPE MILLING MACHINE
New 1999
SPECIFICATIONS:
Table Travel (X) 59"
Table Travel (Y) 23-5/8"
Spindle Head Travel (Z) 27-9/16"
Spindle Nose to Table Top 3-15/16"-31.5"
Spindle Center to Column Front 21-5/8"

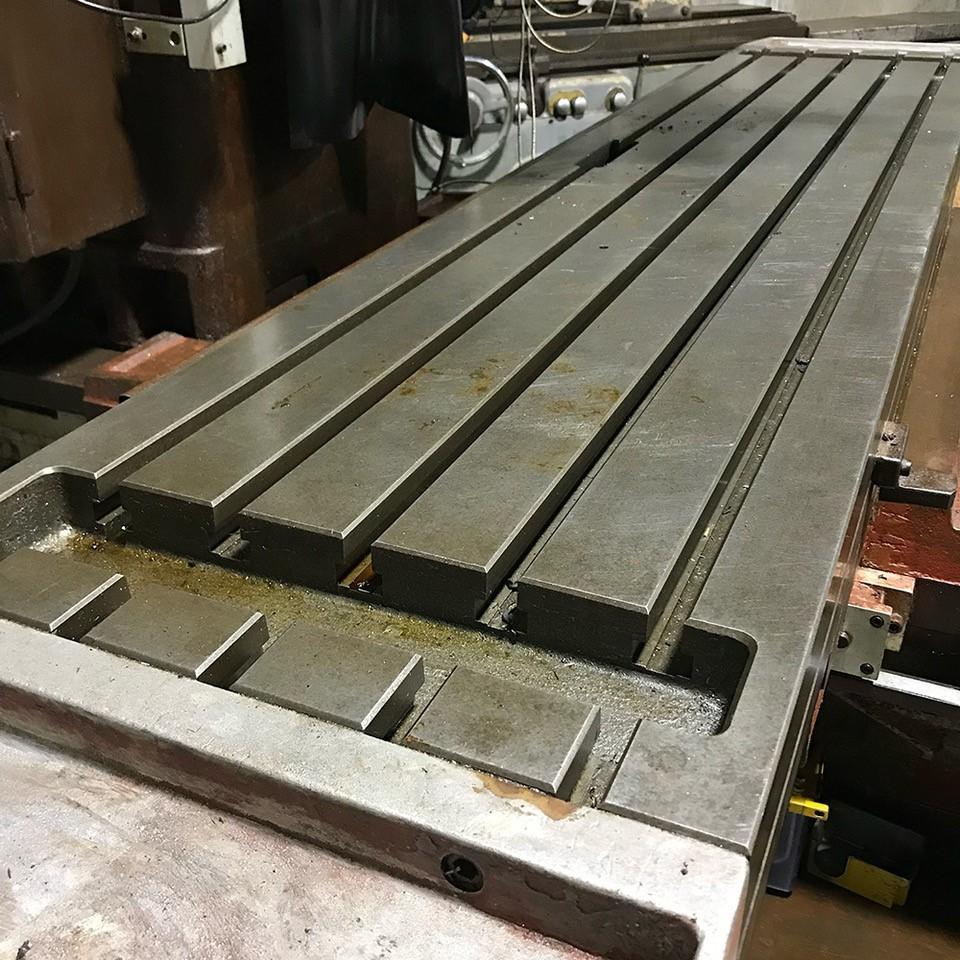

TABLE
Table Working Area 86-5/8" x 19-11/16"
T-Slot (W x No. x Pitch) 0.75" x 5" x 3-9/16"
Table Top to Floor 34-1/4"
Max Loading 2640 lbs approx.

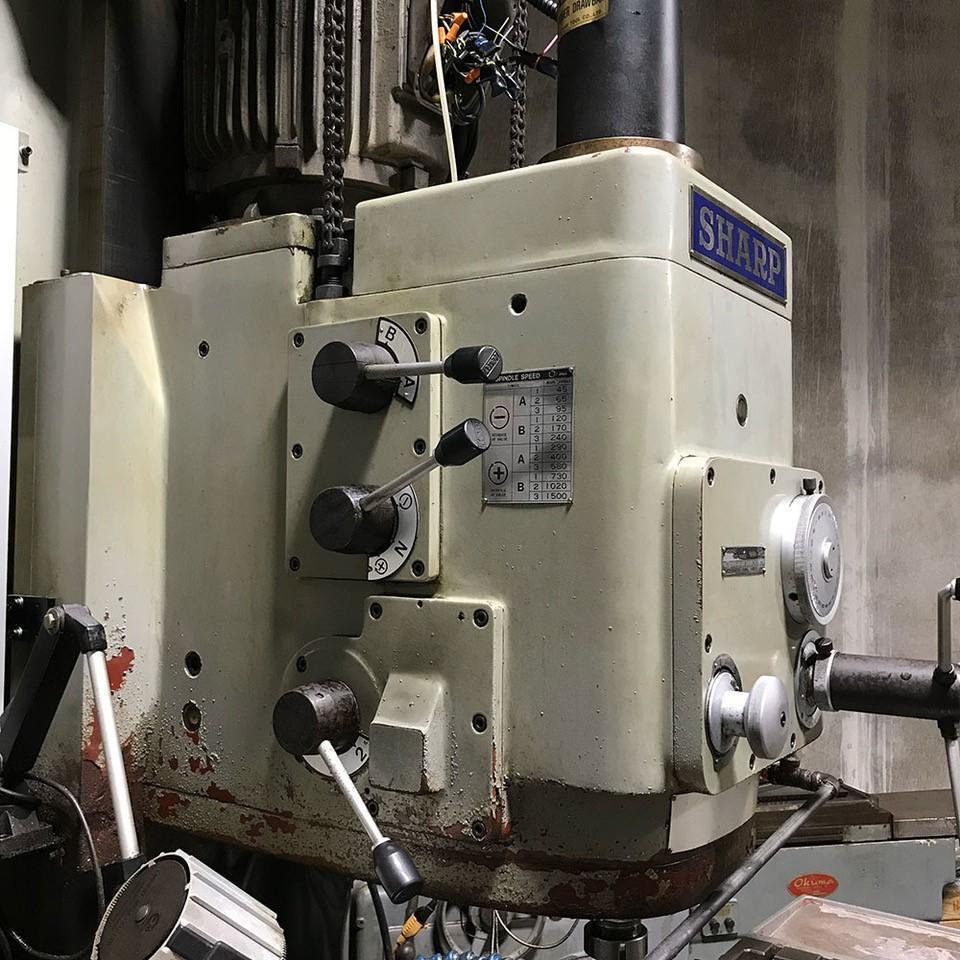

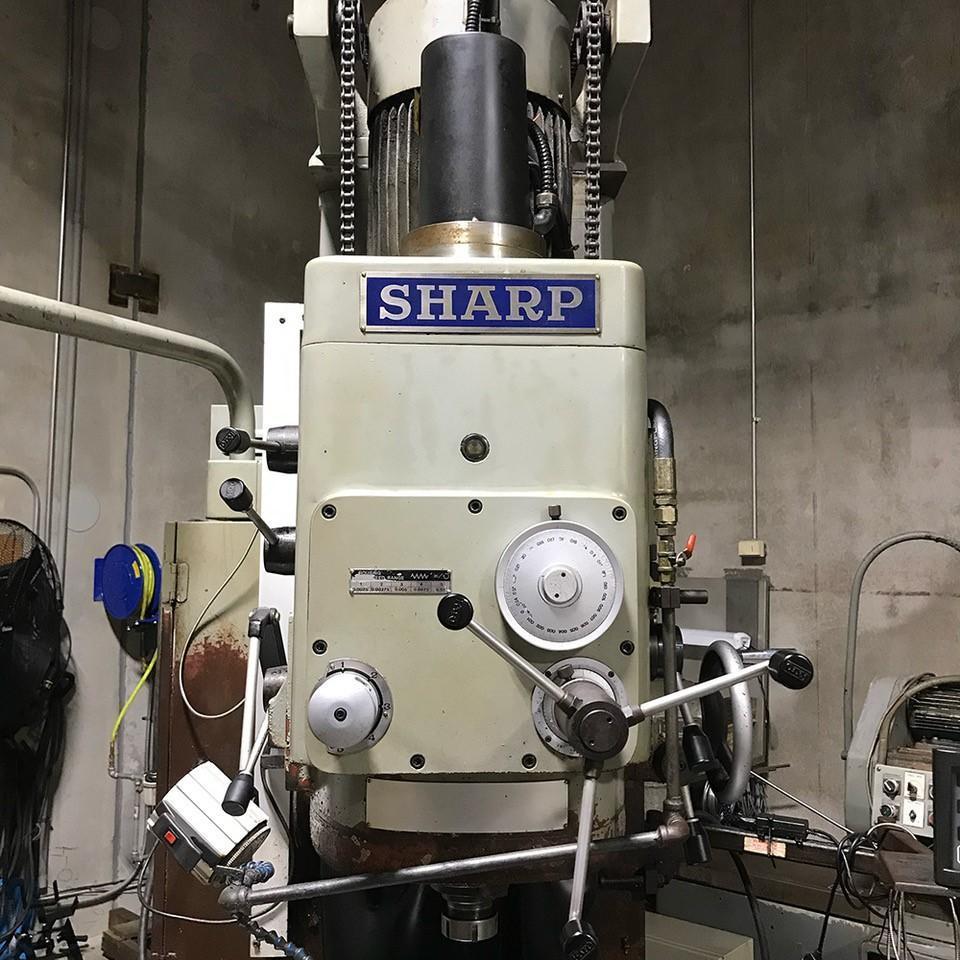

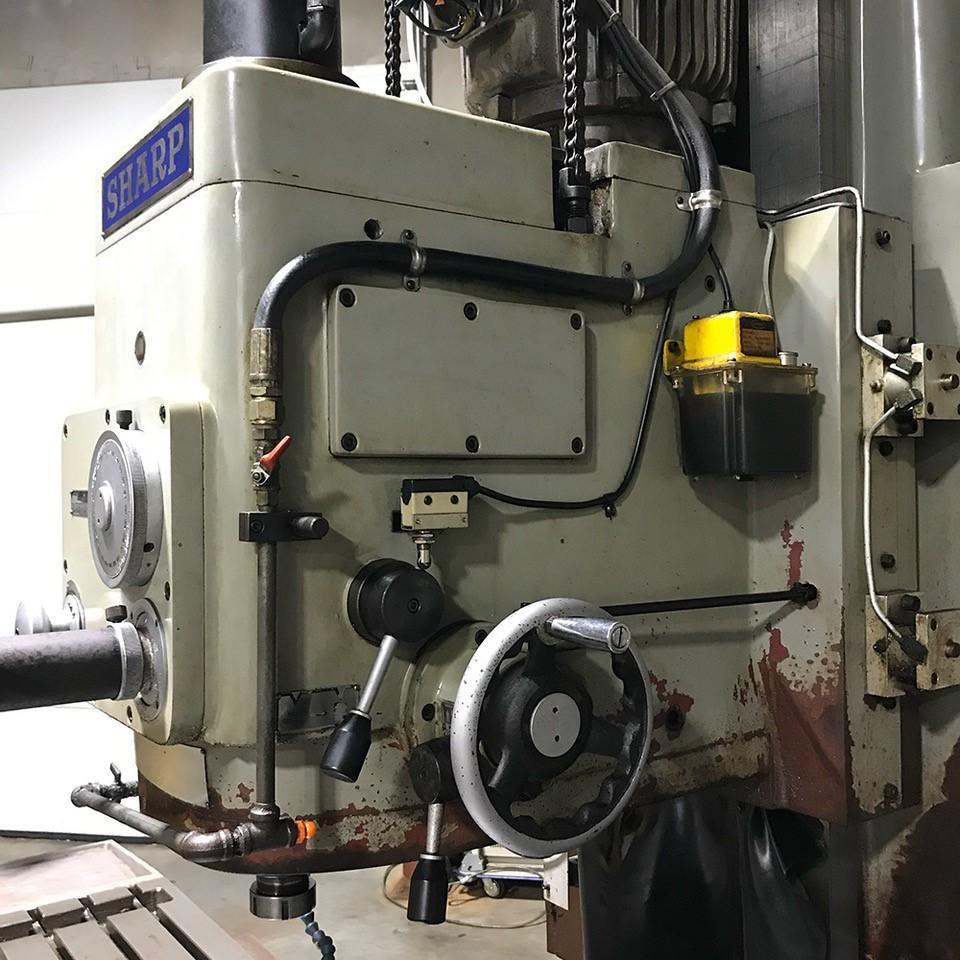

SPINDLE HEAD
Spindle Nose No. 50
Vertical Spindle Speeds 45 - 1,500 RPM
No. of Speeds No Step
Feeds (vertical) 11.8 IPM
MOTORS
For Spindle 17.5 HP
MACHINE SIZE
Machine Height 113"
Floor Space (X,Y) 175" x 100"
Net Weight (approx.) 15,400 lbs
Standard Color Silver
EQUIPPED WITH:
50 Taper
Power Draw Bar
3 Way Power Feeds & 3 Way Rapid Traverse
Coolant System

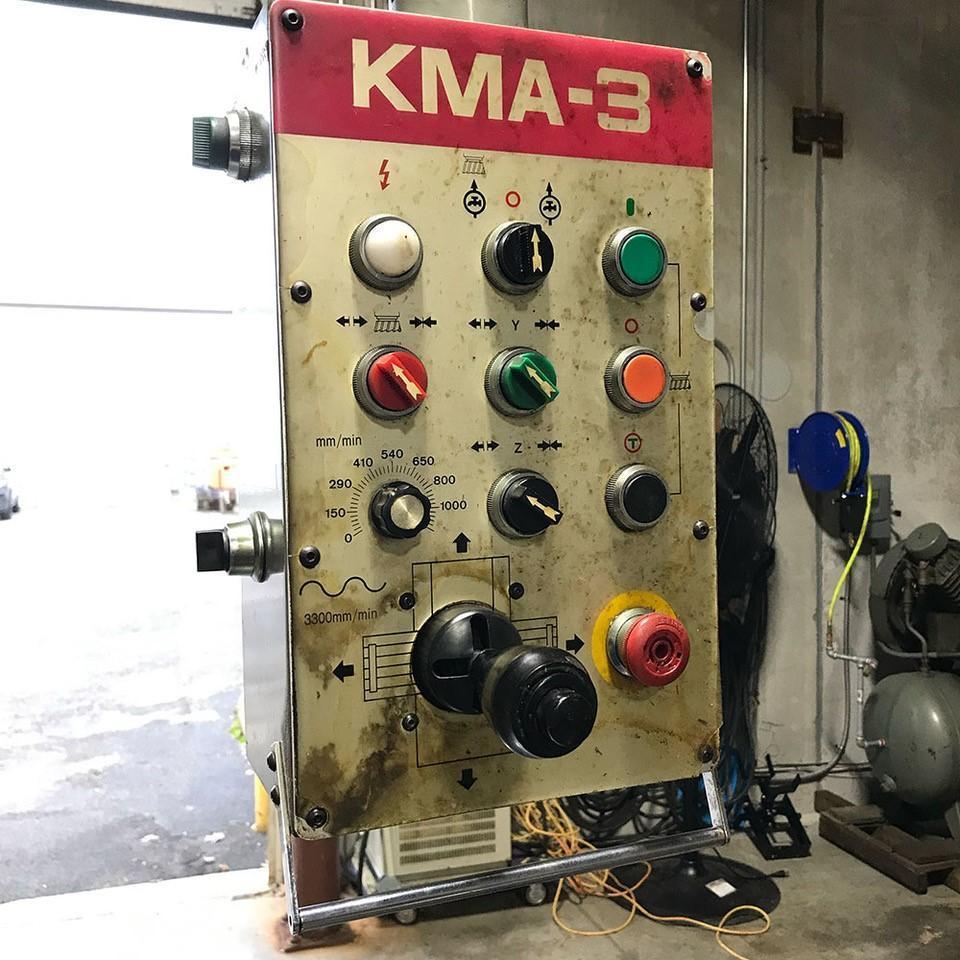

Pendant Control

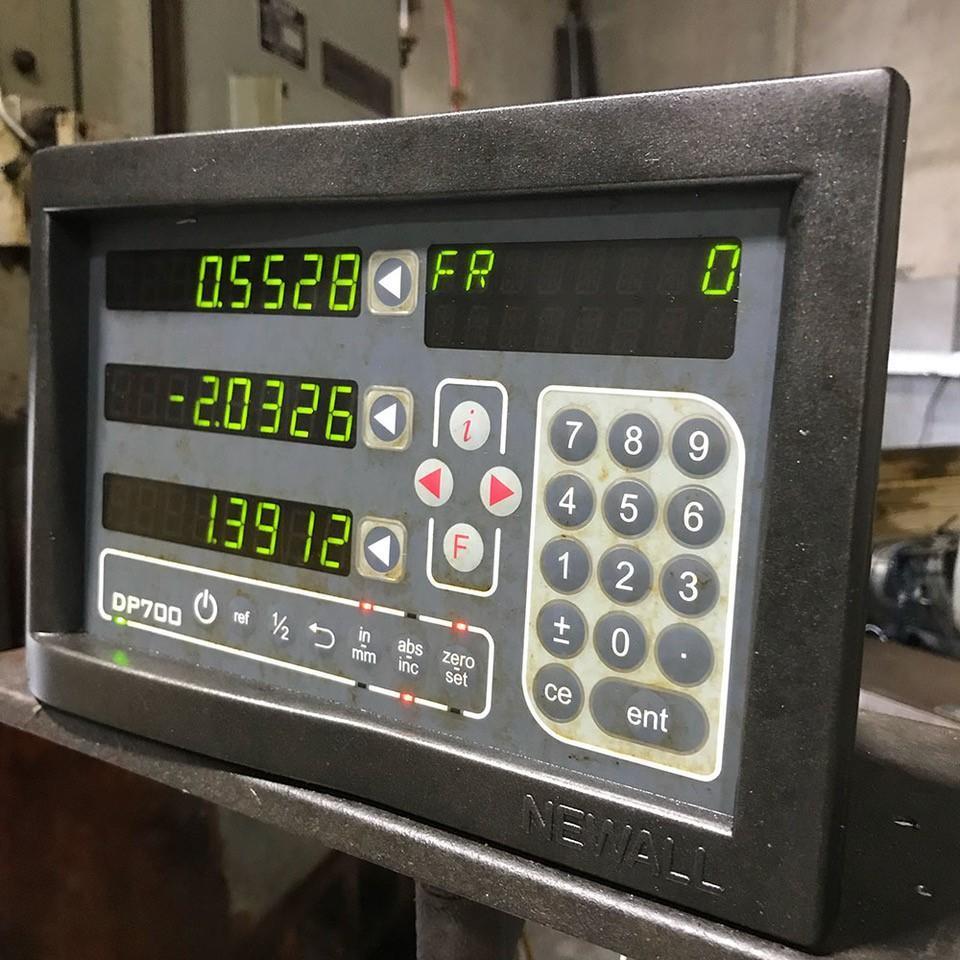

3 Axis Newall Digital Readout
