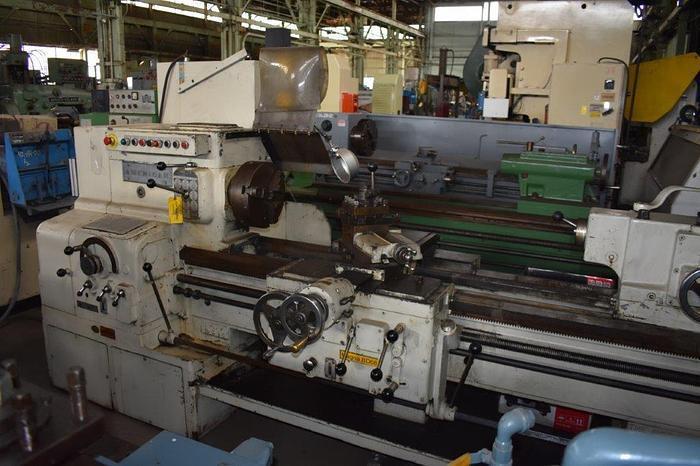

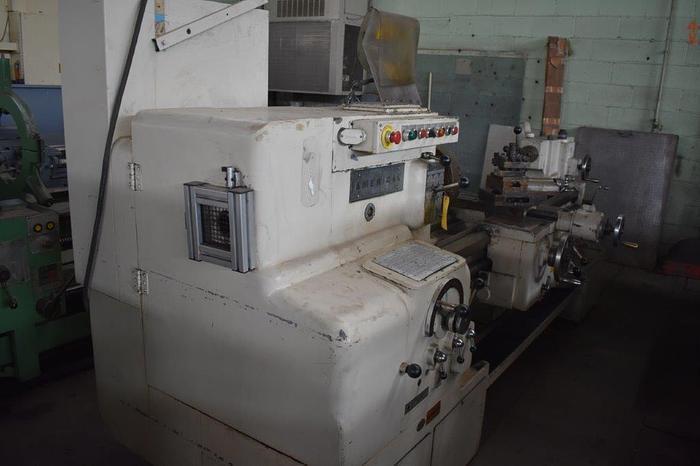

21.5" X 54" AMERICAN "STYLE C 16X54" ENGINE LATHE
Year
1969
Stock #
19513
Condition
Very Good
Keep Scrolling To Learn More
Specifications
Equipped With
21.5" X 54" AMERICAN "STYLE C 16X54" ENGINE LATHE
NEW 1969
EQUIPPED WITH: 12" 3-JAW CHUCK HARD WAYS - 4-WAY TOOL POST FULL-LENGTH LEAD-SCREW THREADING QUICK CHANGE GEAR BOX AND THREADING DIAL FULL LENGTH COOLANT-CHIP PAN
SPECIFICATIONS:
| Hole thru spindle | 2 |
| Hole thru spindle | 2" |
| Swing over bed ways, rated | 16" |
| Swing over bed ways, actual | 21.5" |
| Swing over carriage wings | 20" |
| Swing over cross-slide | 13" |
| Distance between centers | 54" |
| Cross-slide cross-feed travel | 12.25" |
| Top-slide cross-feed travel | 4" |
| Tailstock, spindle diameter | 4" |
| Tailstock, spindle travel | 10" |
| Tailstock, spindle taper | #4 MT |
| (27) spindle speeds, range | 23 TO 1500 RPM |
| (66) carriage longitudinal feeds | .0015 TO .091 IPR |
| (66) thread changes, range | 2 TO 120 TPI |
| Weight, approximately | 10000 LBS |
Attachments
There are no files attached to this listing currently. If you Have any further questions regarding this listing, please contact us for more information.
