Equipped With

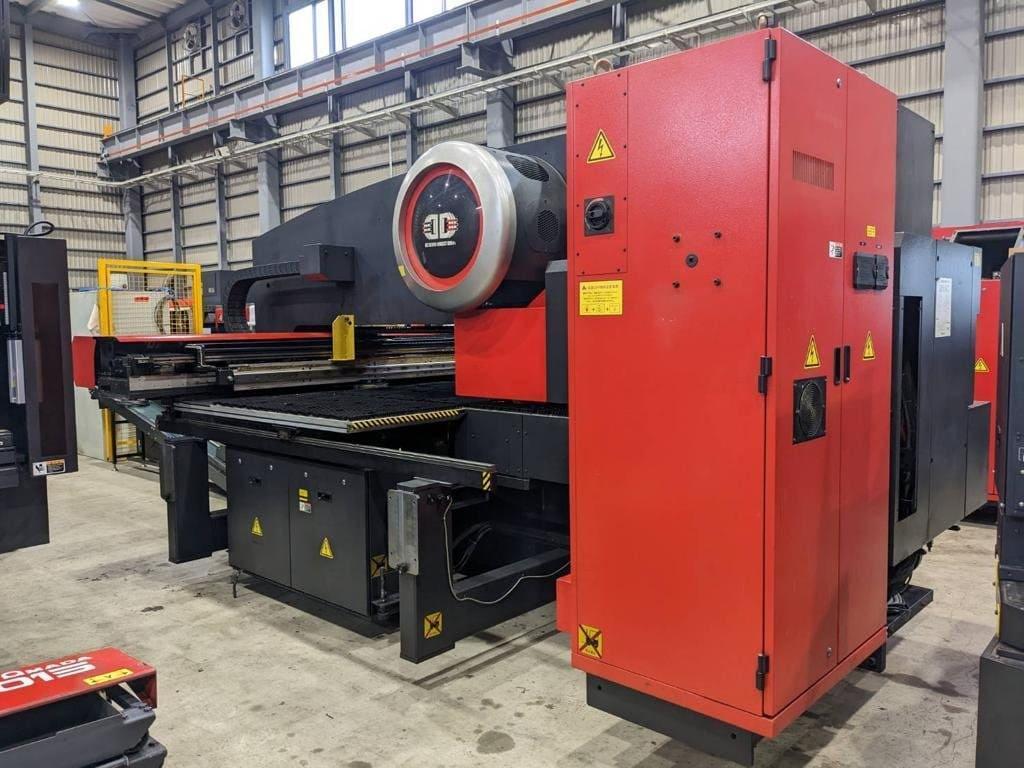

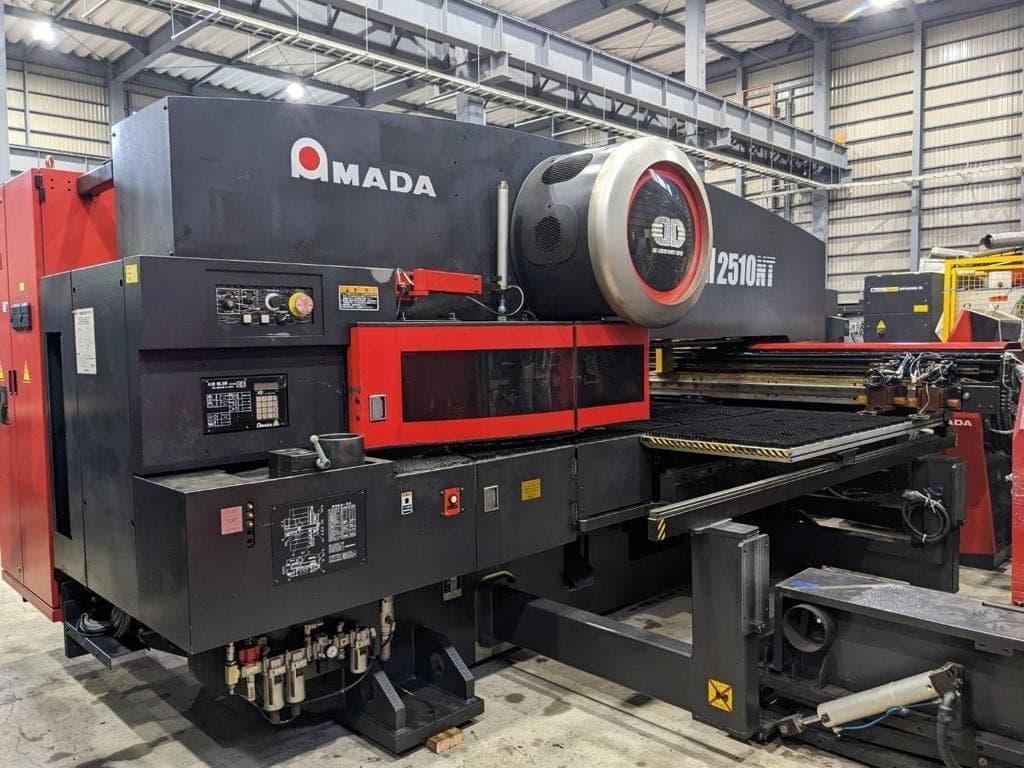

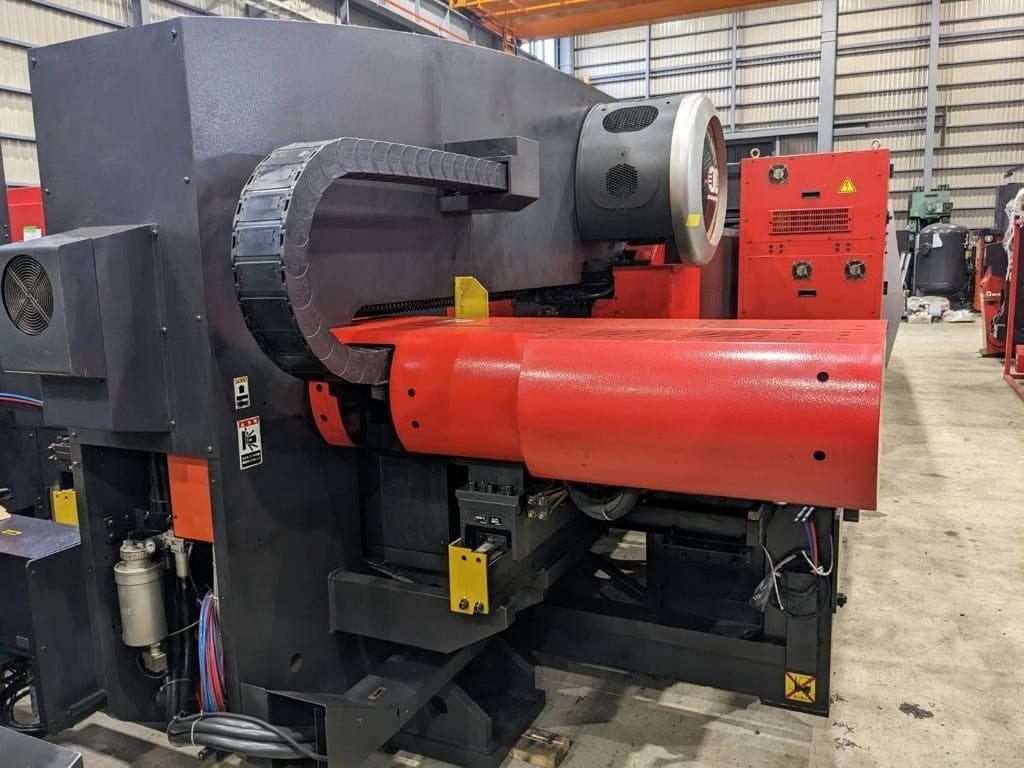

22 Ton Amada EM2510-NT Turret Punch Press

New 2004

EQUIPPED WITH

• Slide Type Die Holder Standard

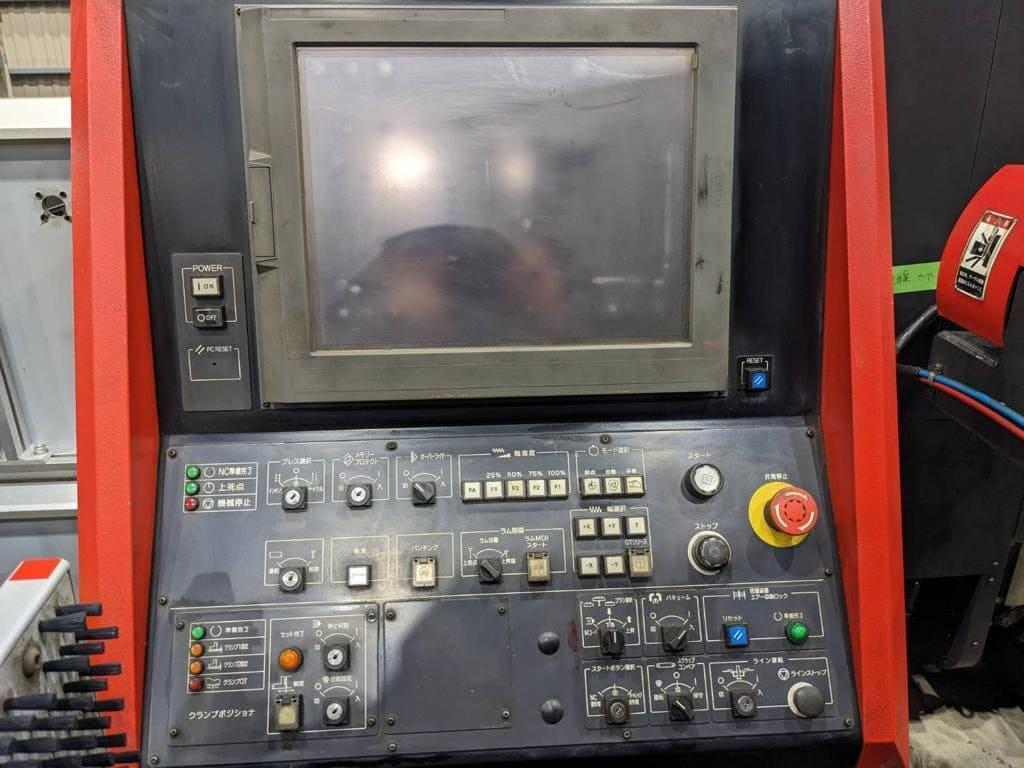

• AMNC-F (Fanuc) Controller Network support and job input by bar code
• Auto Reposition Work Clamps
• Brush Table StandardEQUIPPED WITH
  • Slide Type Die Holder Standard
  • AMNC-F (Fanuc) Controller Network support and job input by bar code
  • Auto Reposition Work Clamps
  • Brush Table Standard

• 500HPM (0.197″ stroke & 1″ pitch)
• 780SPM (0.197″ stroke & 0.040″ pitch)
• 1800SPM (0.197″ pitch marking)

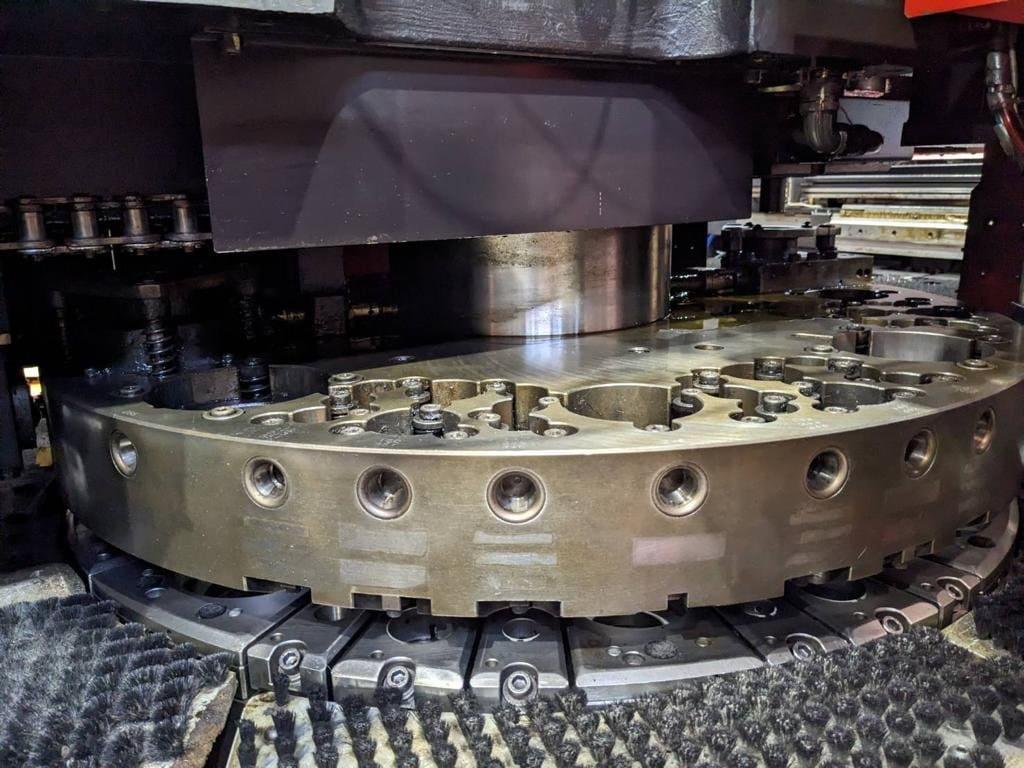

• Turret: 58 Station 2 Auto Index
• Feed Clearance: 0.984″
• Press Capacity: 20 Metric Tons
• Sheet Size: (without reposition) 50″ x 100″
• Axis Speed: X-Axis: 3950″/min.
• Y-Axis: 3150″/min.
