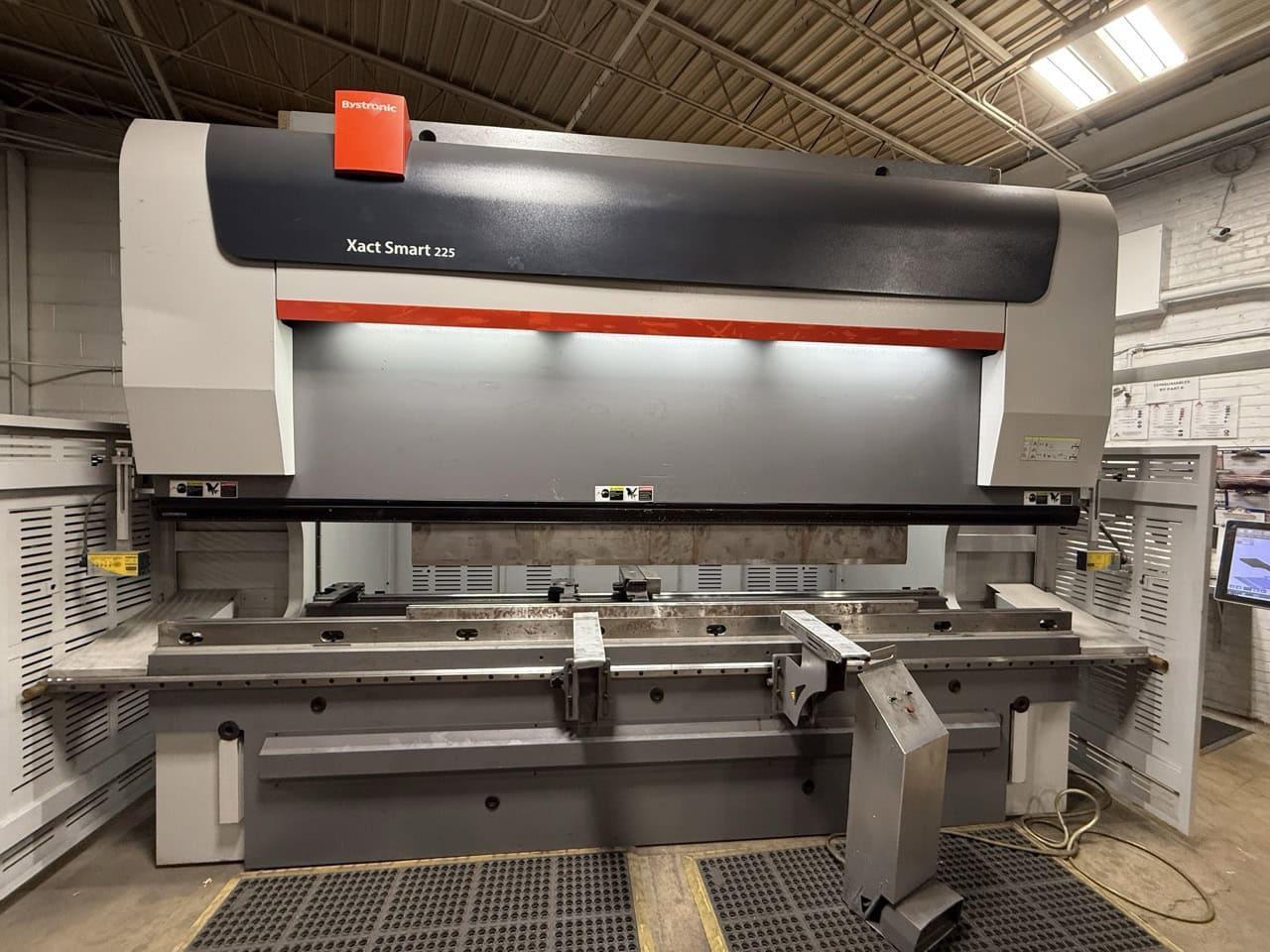

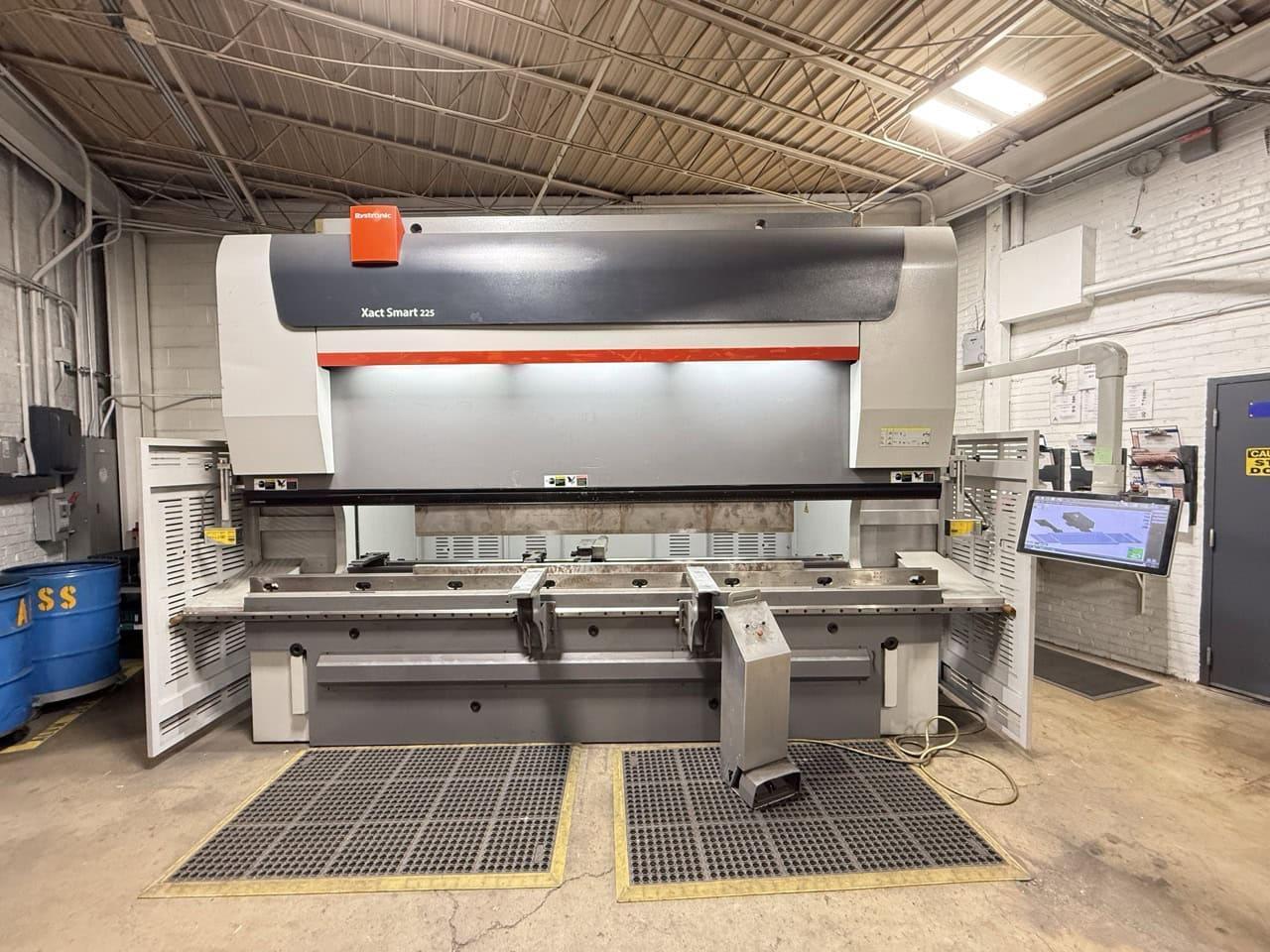

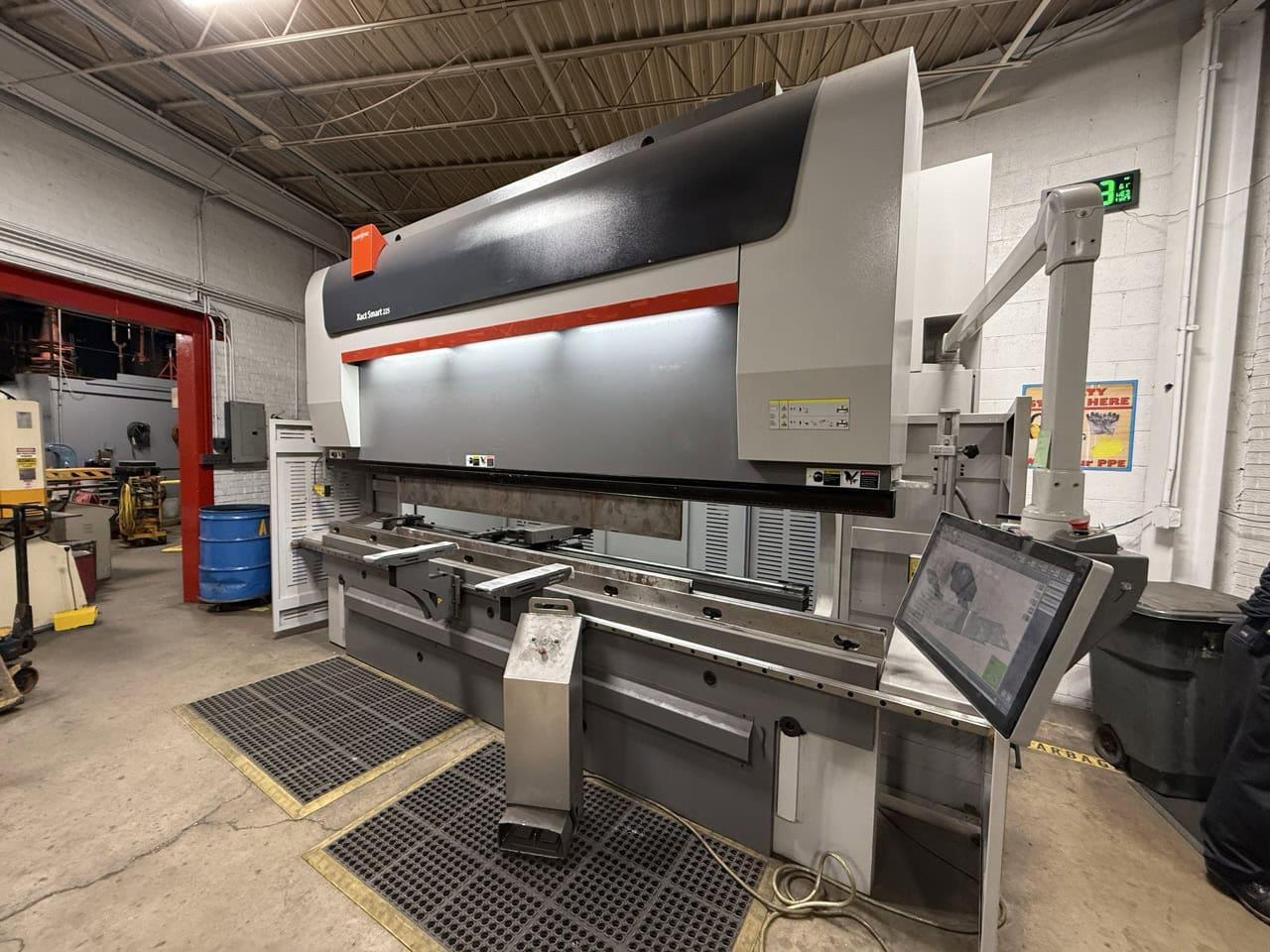

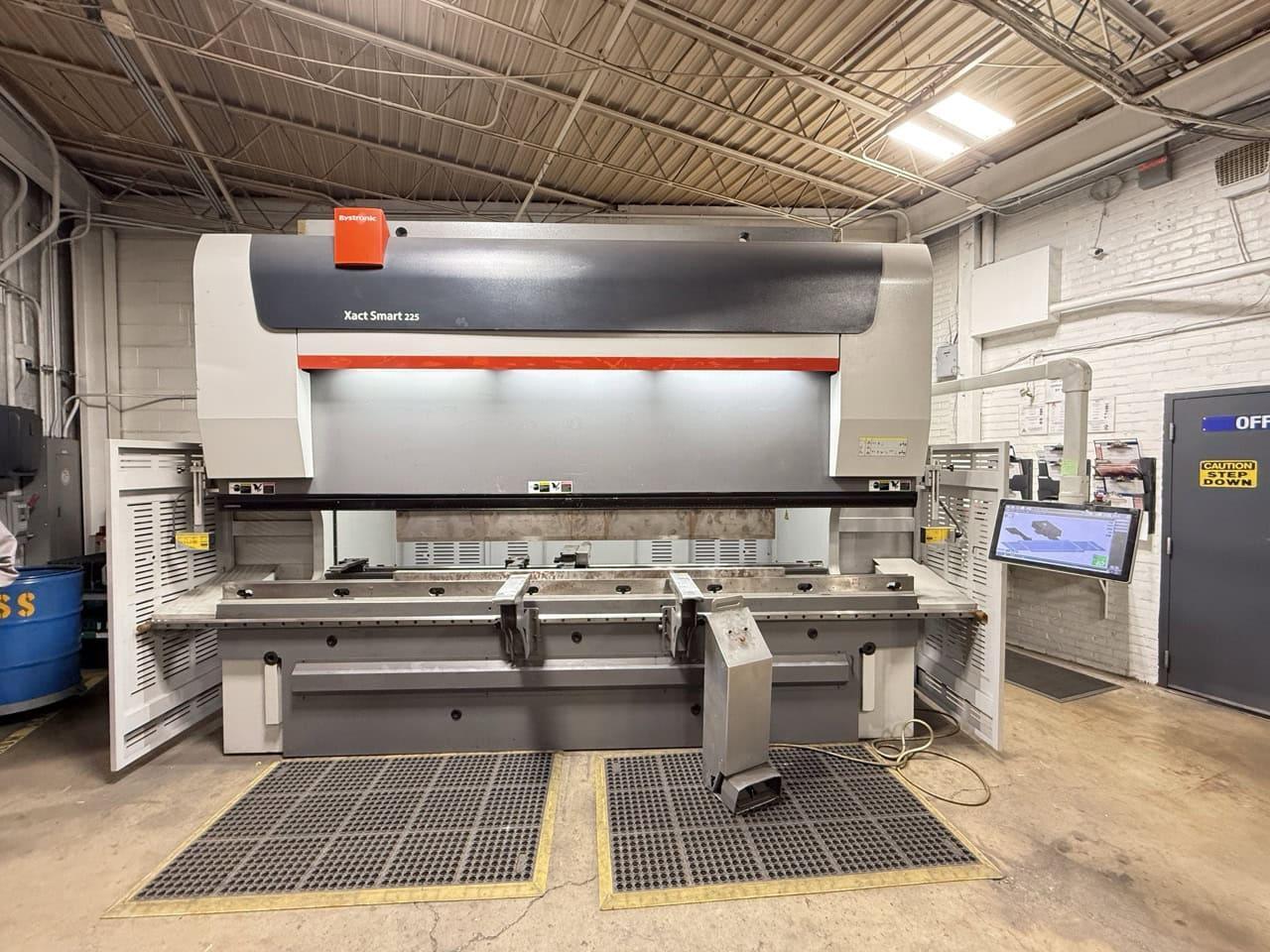

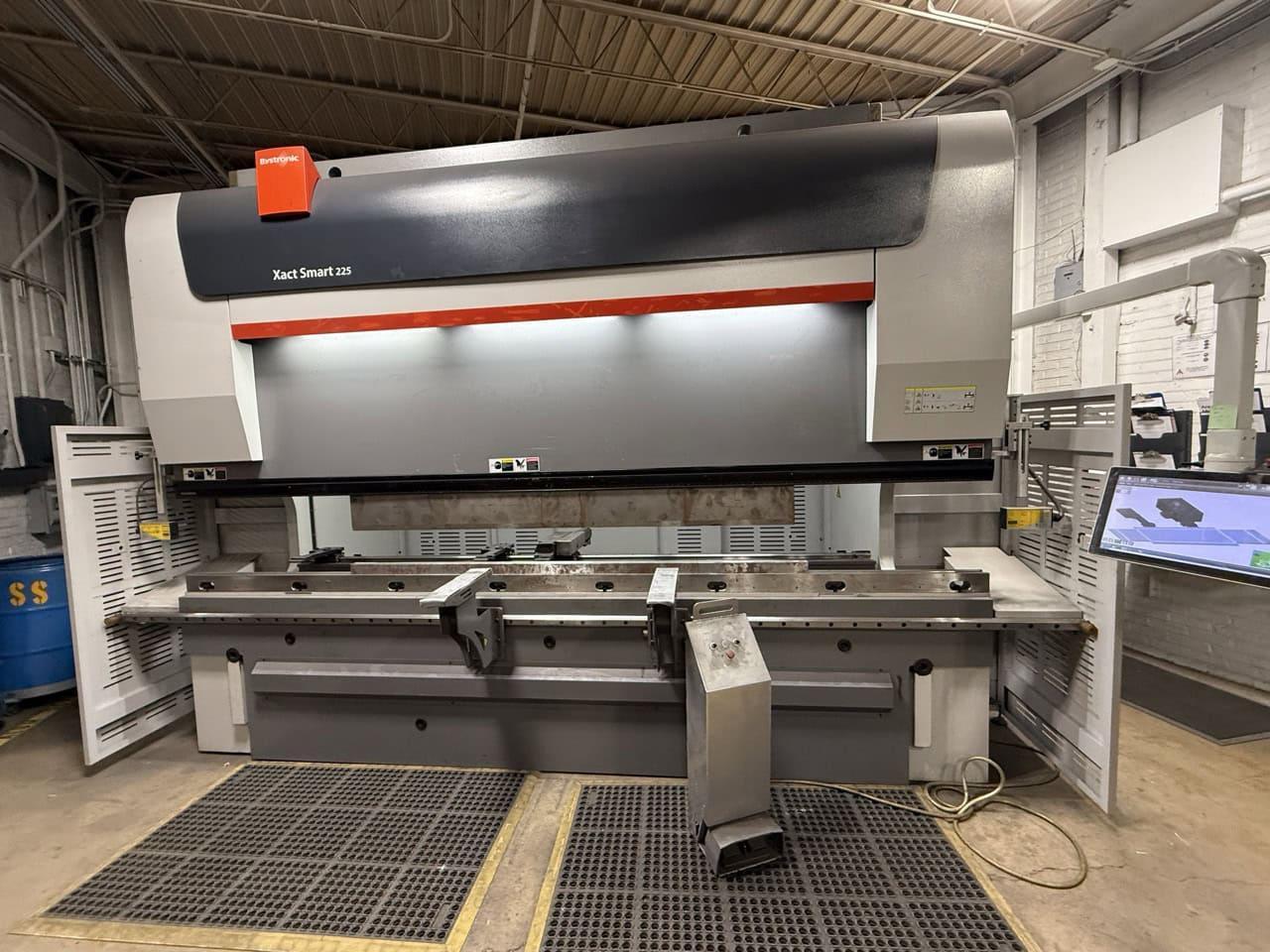

248 Ton x 13′ Bystronic Xact Smart 225-4100 Hydraulic CNC Press Brake, with 5-Axis Backgauge

New 2017


SPECIFICATIONS:
Press Capacity:                                                    225 tons
Working Length:                                                   161.4″
Maximum Stroke:                                                 11.8″
Rapid Approach Speed:                                       5.5″/sec
Working Speed:                                                    0.04-0.39″/sec
Return Speed:                                                      4.5″ inches/sec
Weight:                                                                 36,297 lbs.

EQUIPPED WITH:

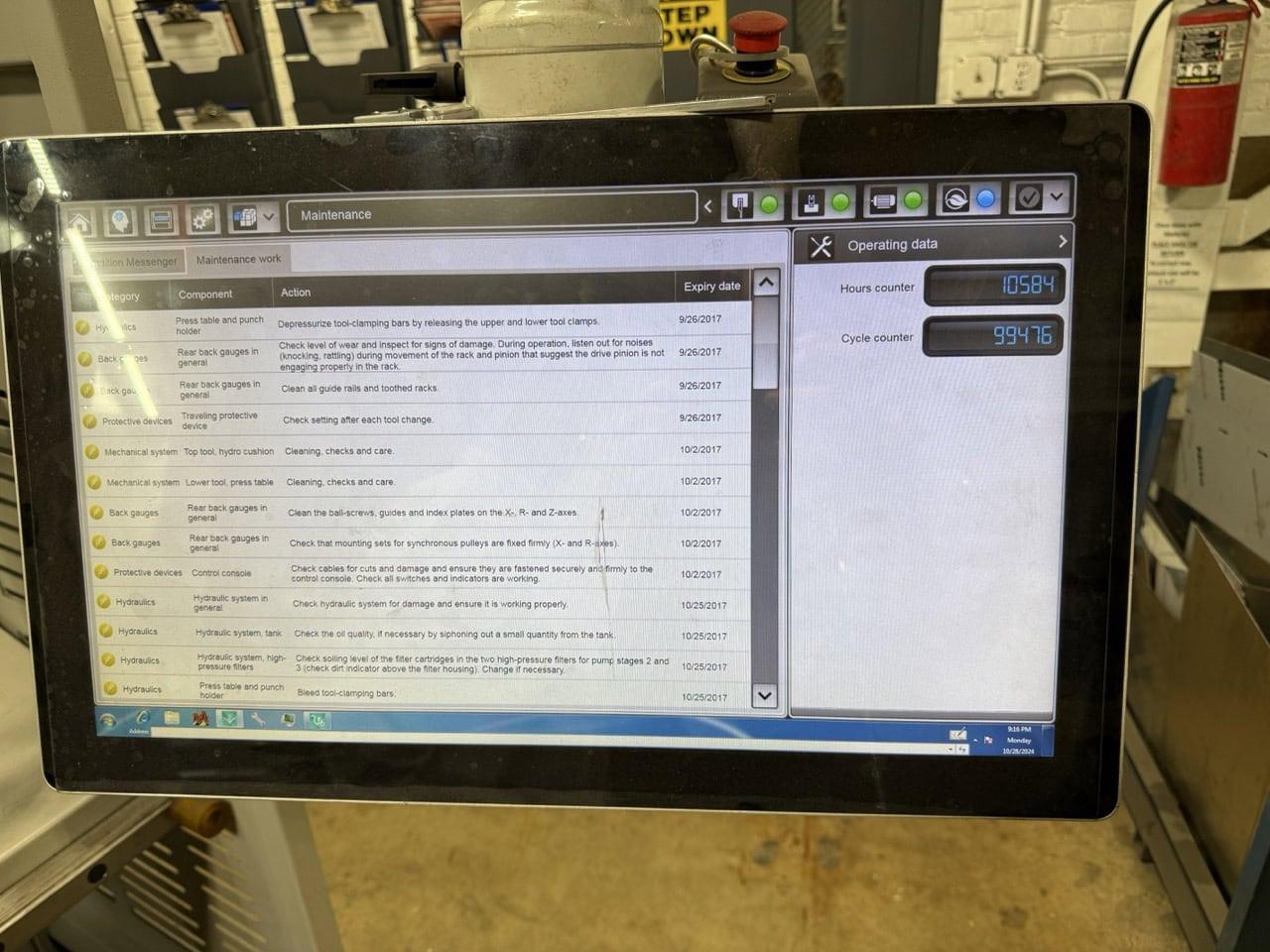

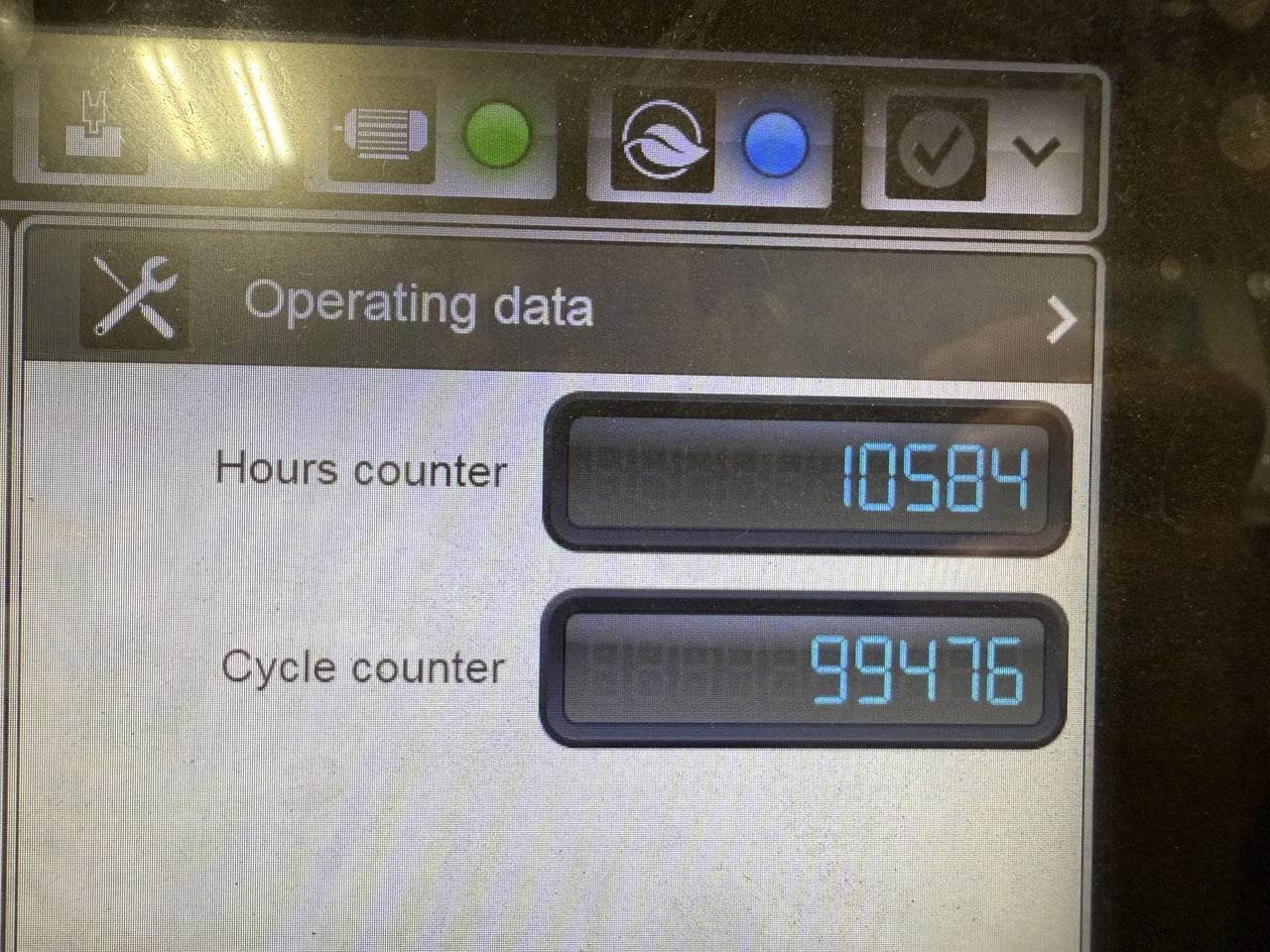

Control: CNC with ByVision Bending Control with 22″ Full HD Display and Tough Technology
DNC Controlled Hydraulic Crowning
Hydraulic RFA style clamping

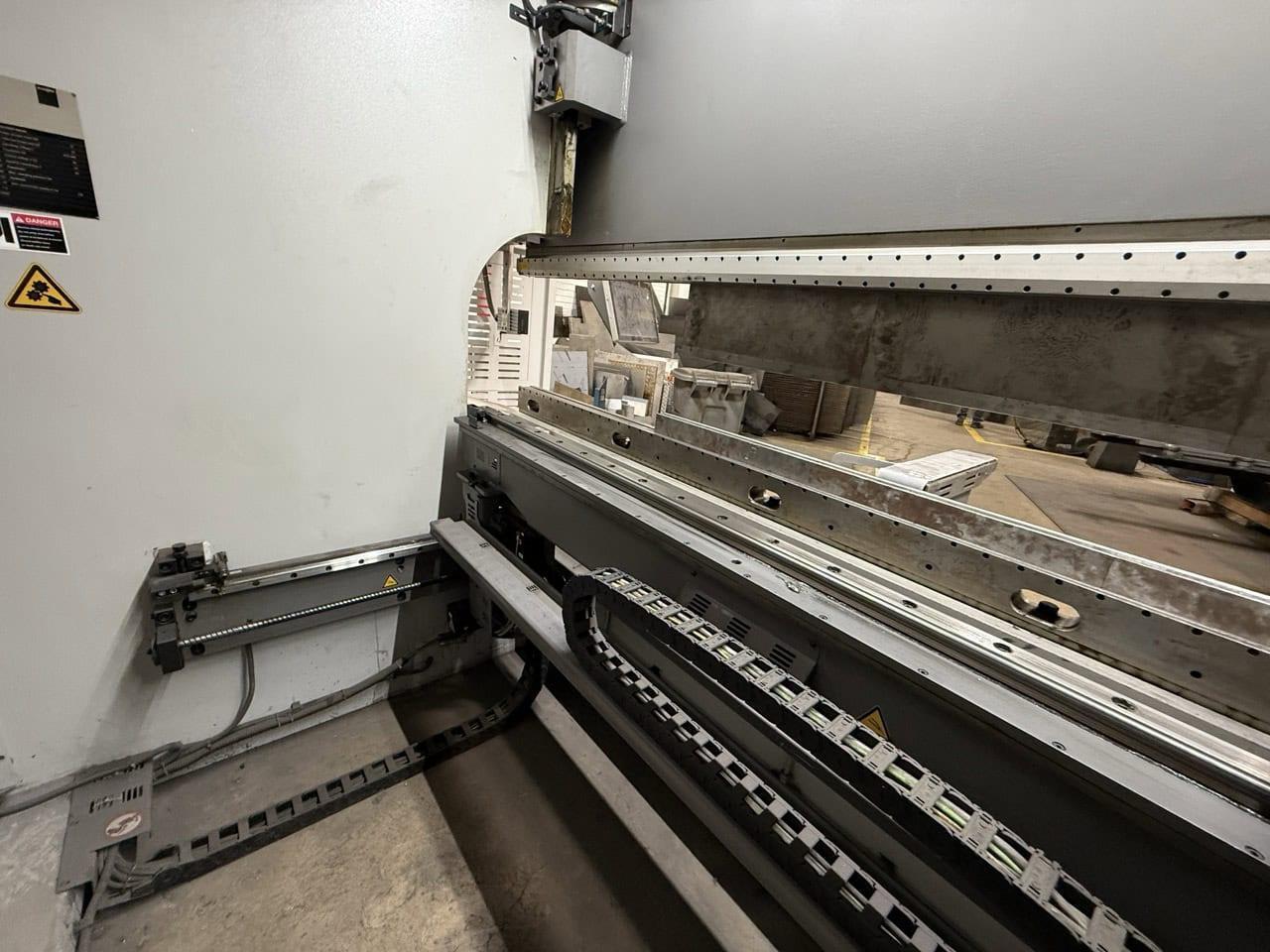

Backgauge: 5-axis
Productive Product Pack- Includes T12 with Hydraulic Lower Tool Clamping, H=90mm,

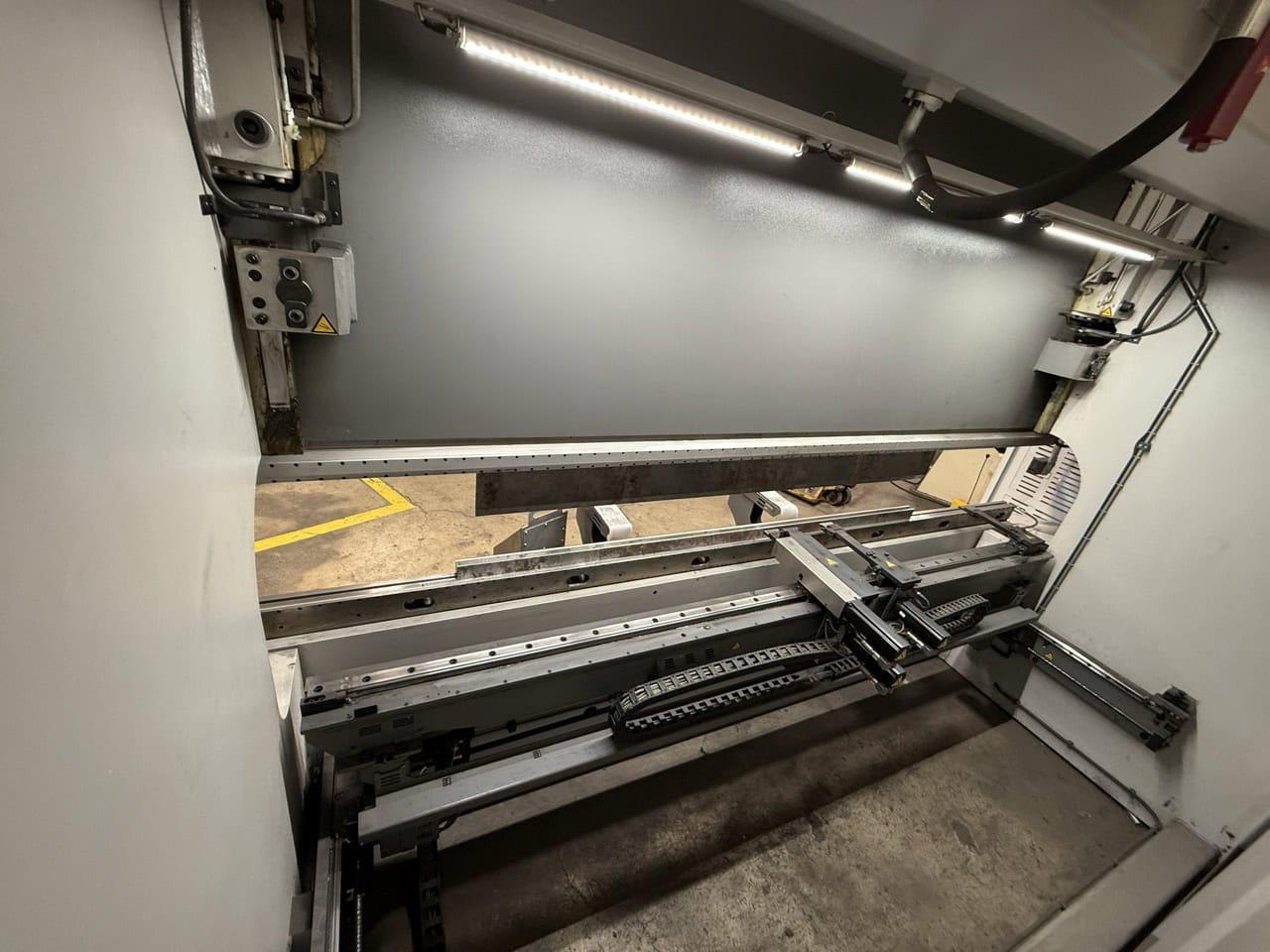

LED Illumination at the front and back,
Enlargement of daylight and Stroke by 100mm

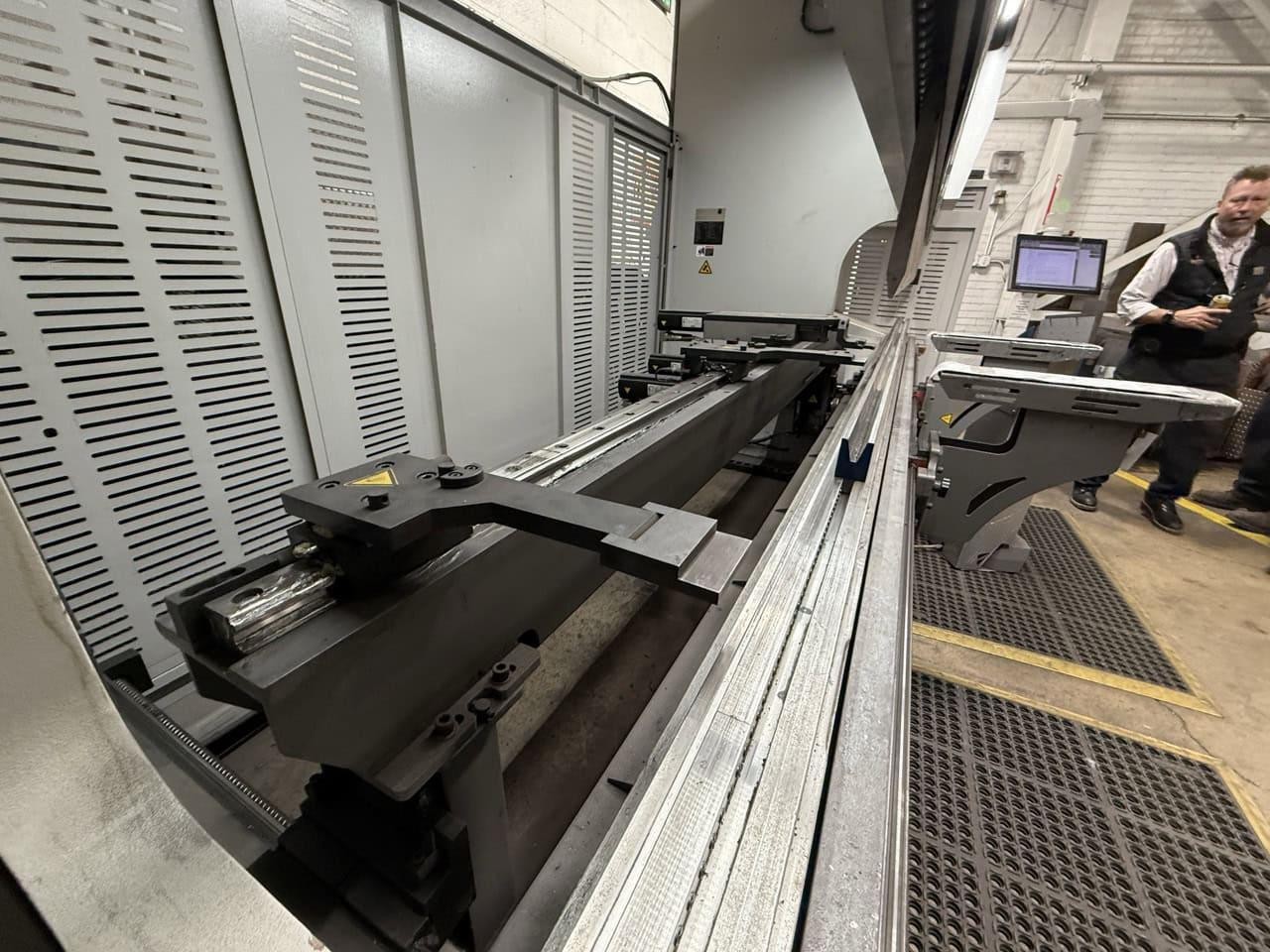

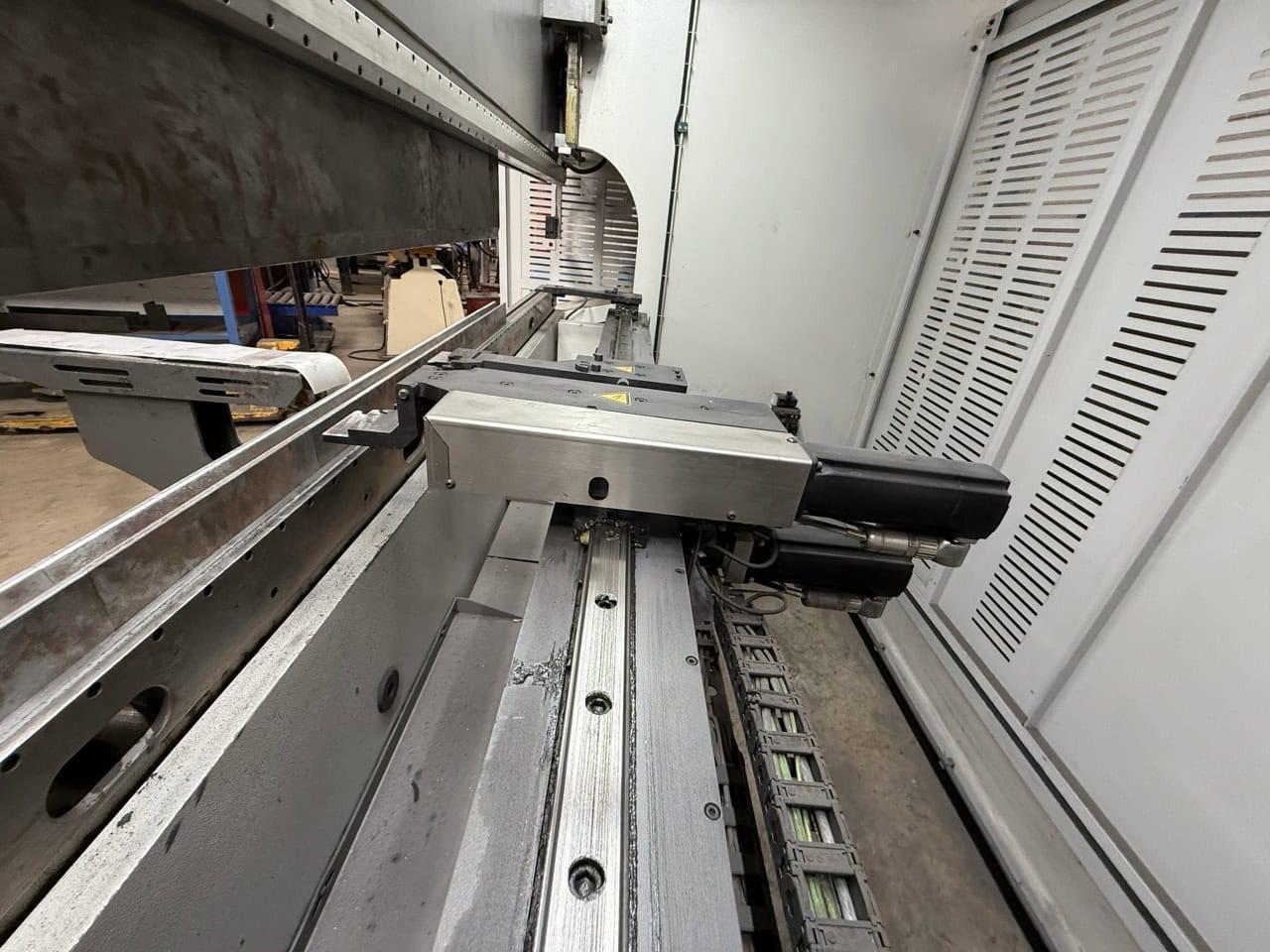

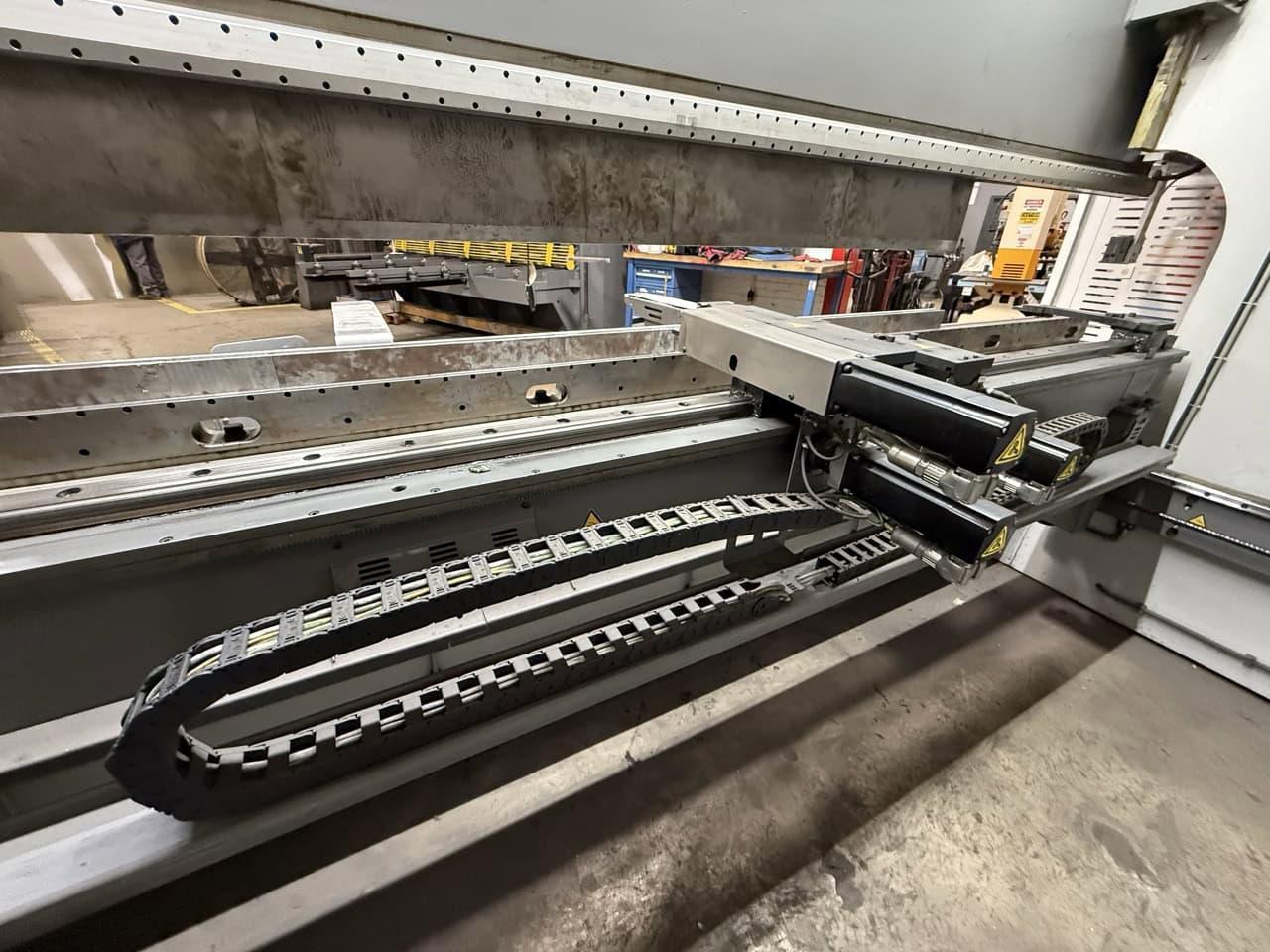

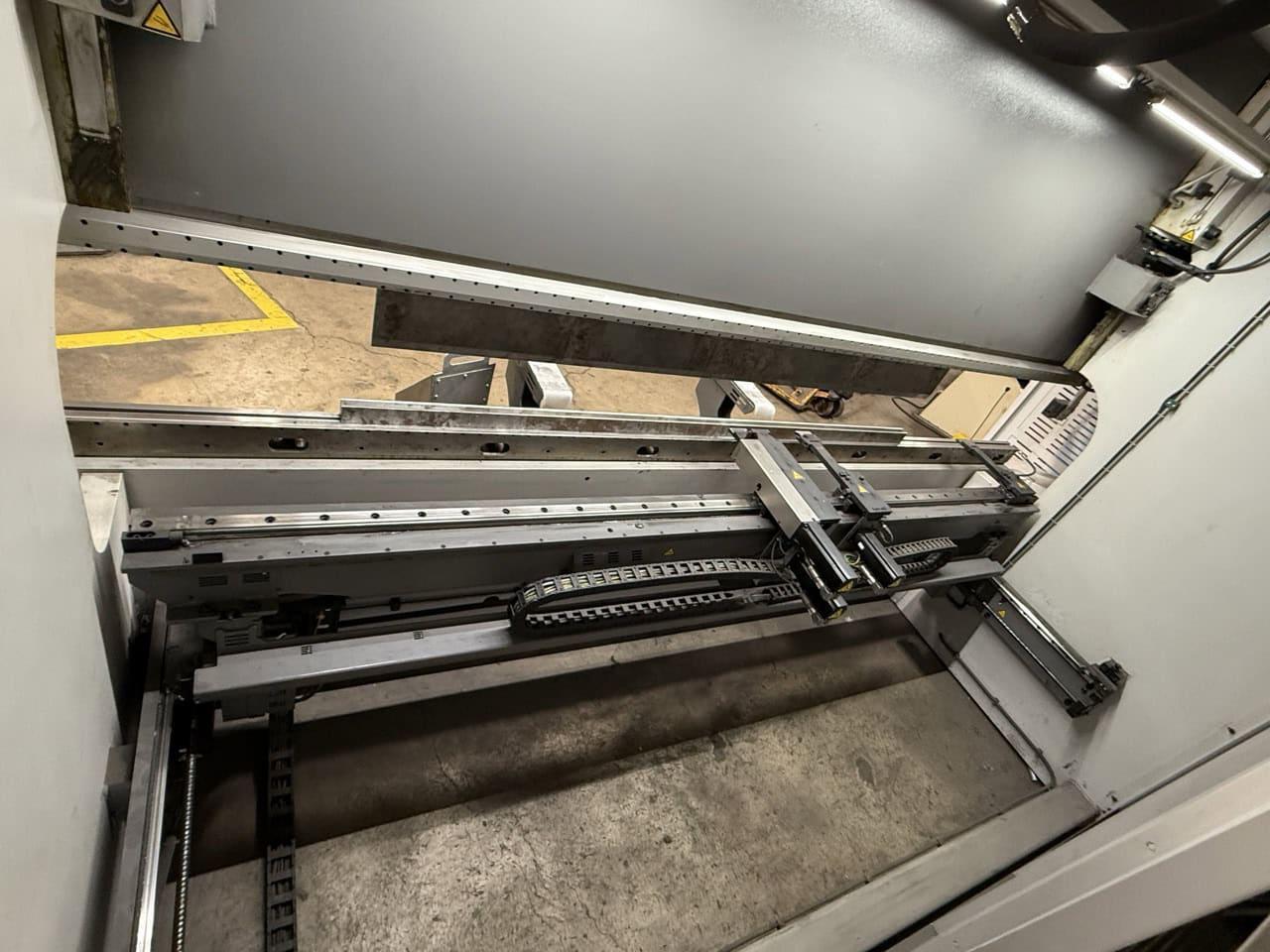

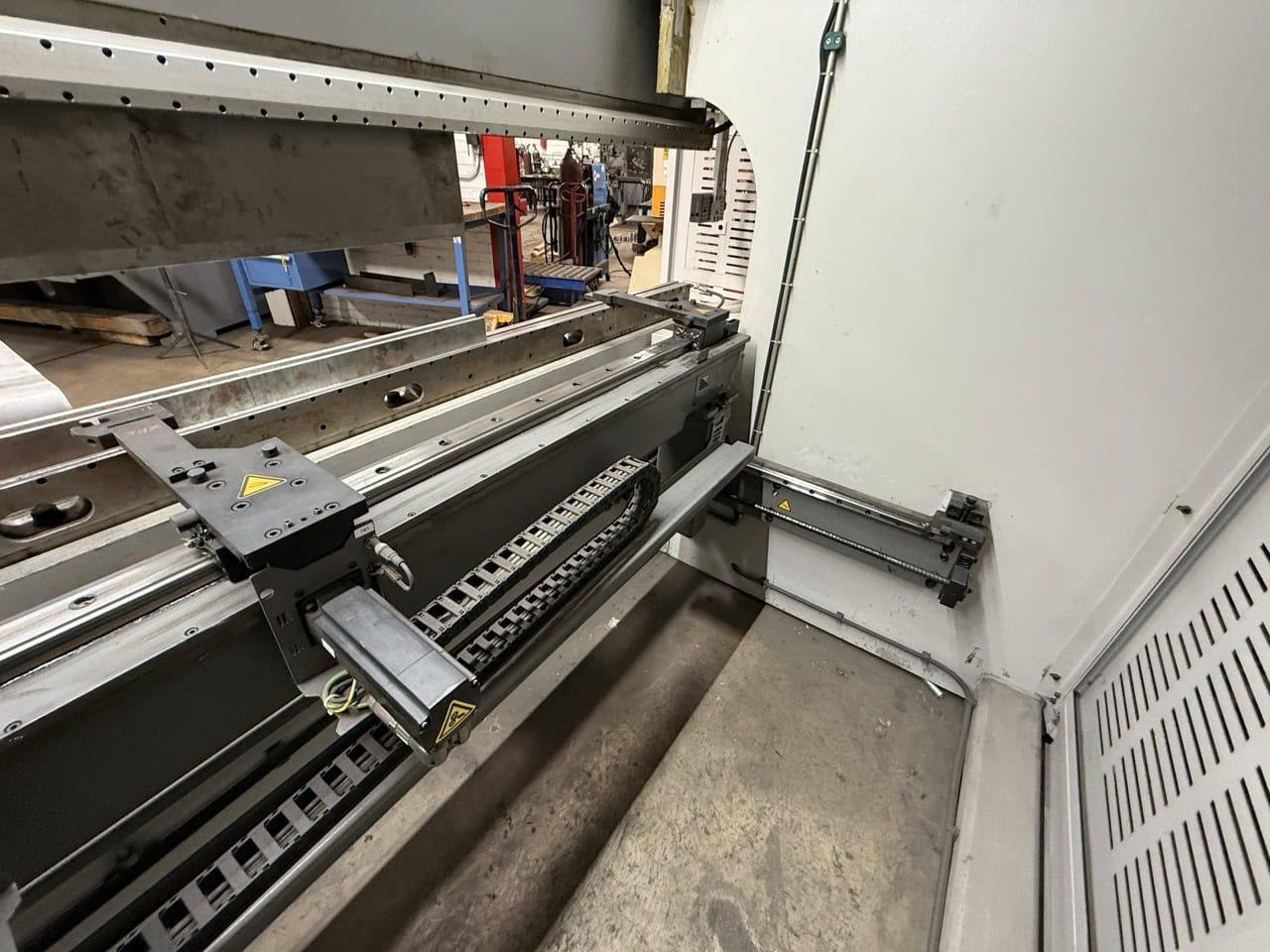

5-Axis Backgauge (X, X1, R, Z1, Z2)
Energy Saver

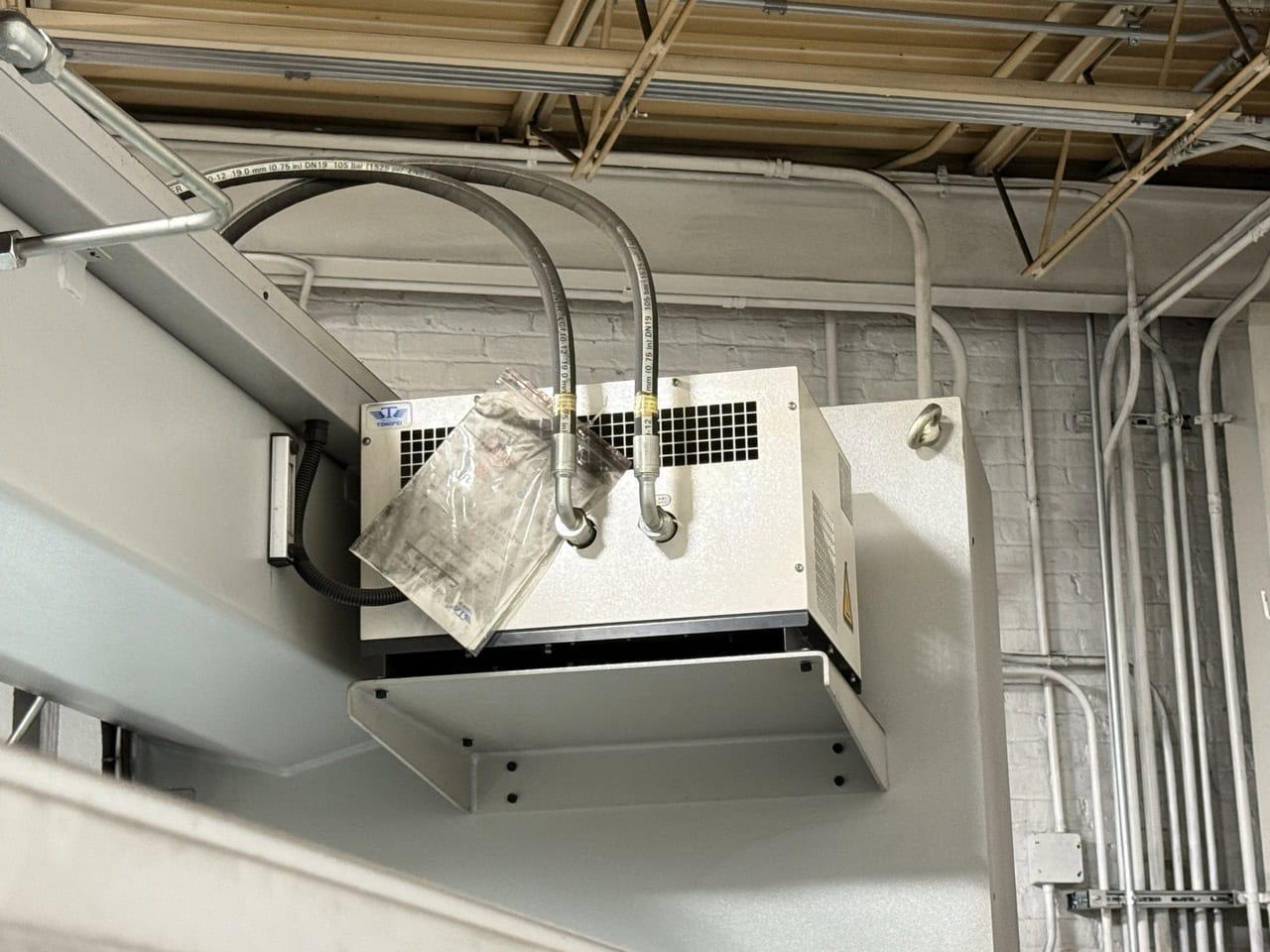

Tropical Pack (Oil Cooling Unit, Heat Exchanger, assembled on the electric cabinet)
Additional Backstop Arm
Z-Axis Manually Adjusted
2- Manual Adjustable Front Supports, length 400mm

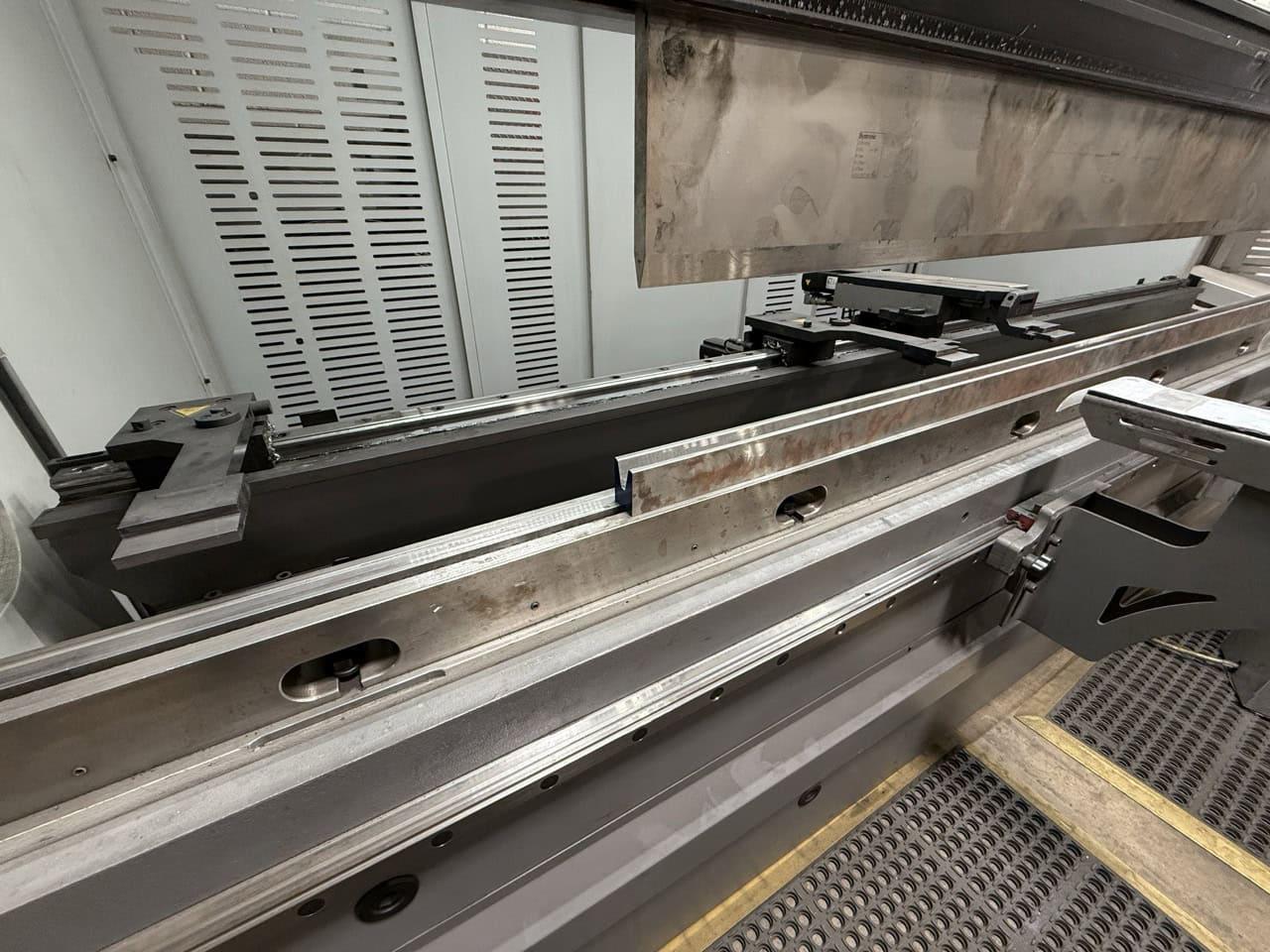

Table T5/90
Electrically interlocked side fences
Rear protection devices/ sliding door incl. interlocing switch
Control console with foot switch

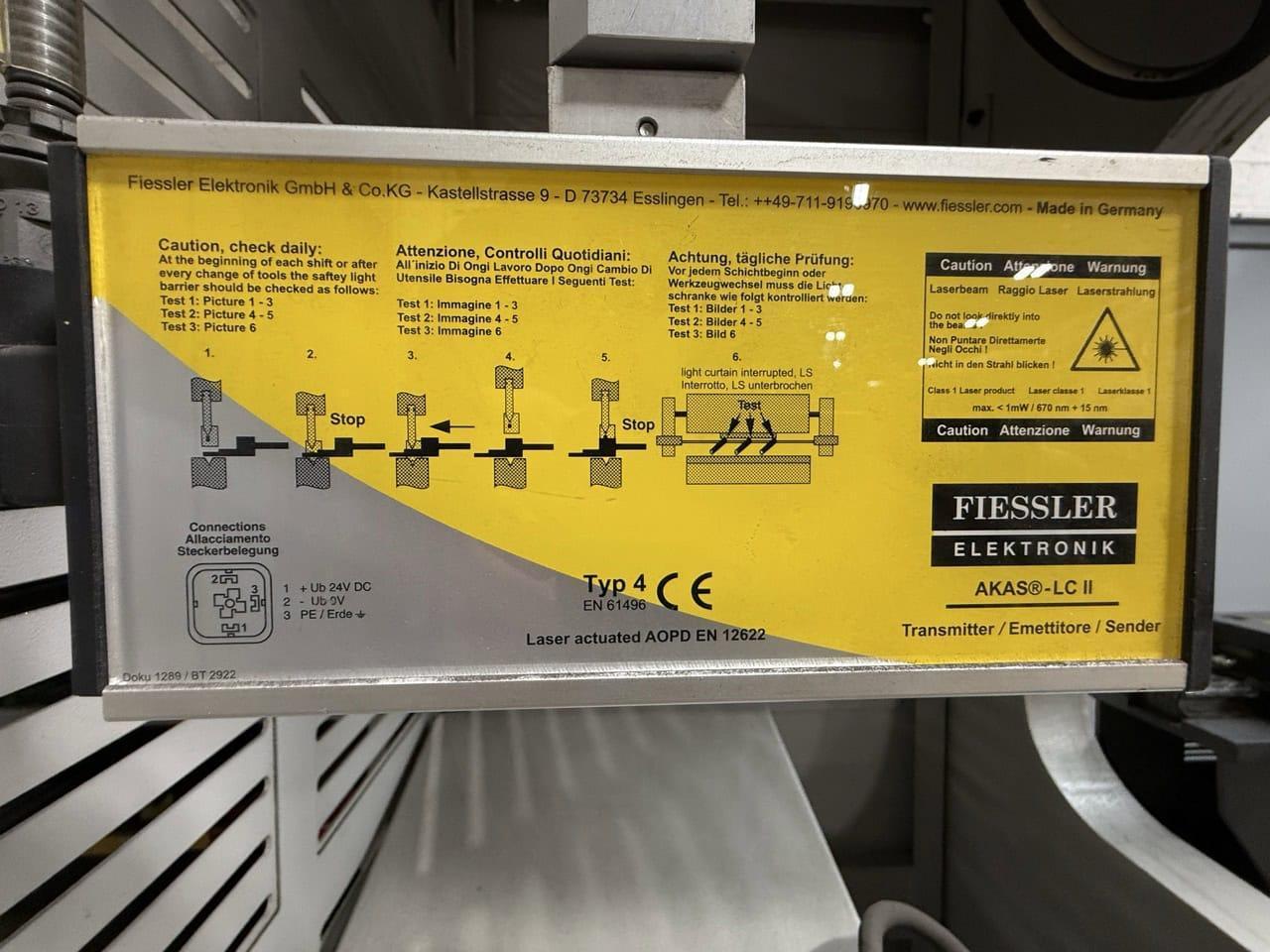

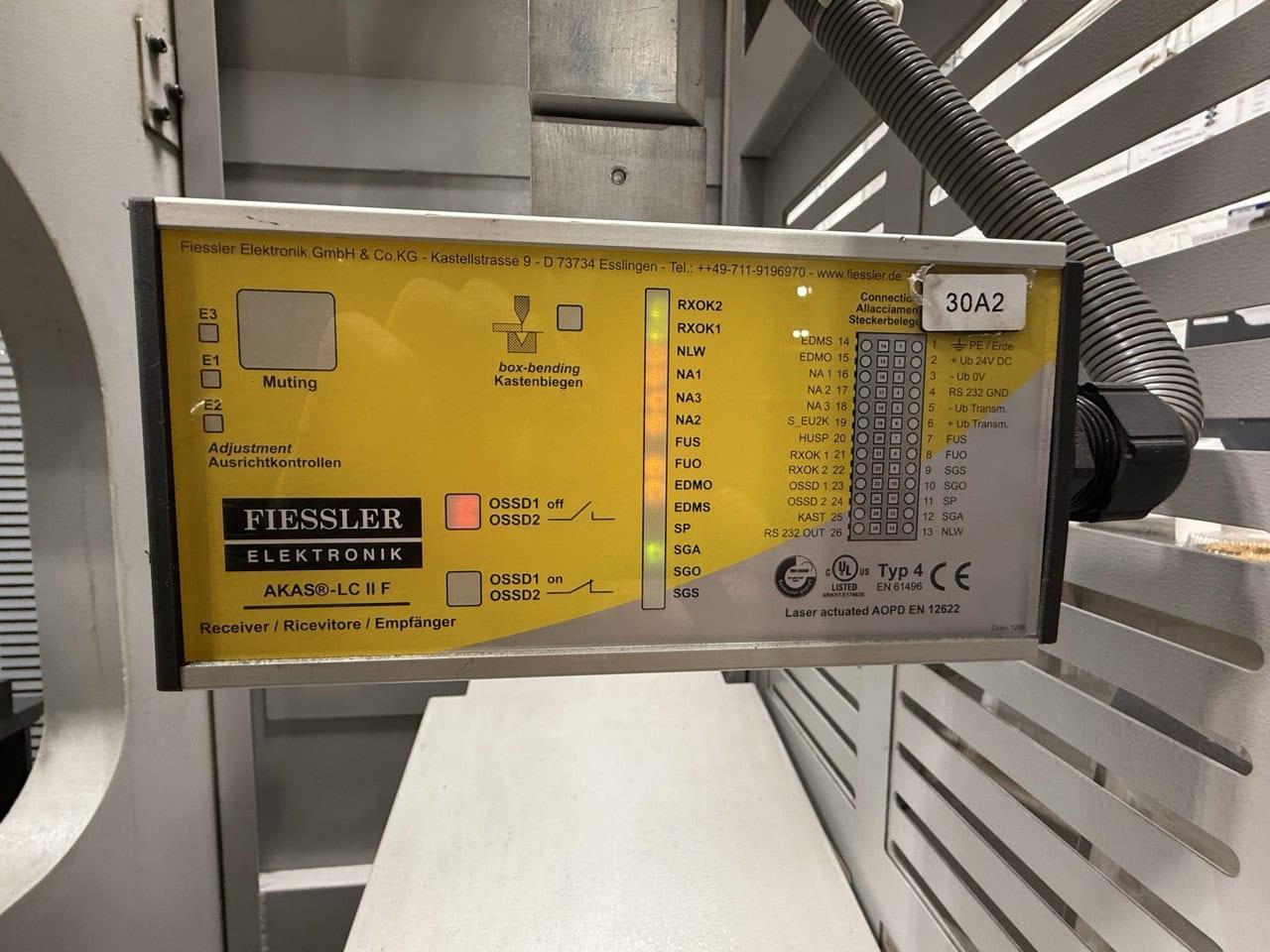

Safety System: Fast Bend S (light curtain)
Power Requirements: 480V, 3-phase, 50 Hz
