Equipped With

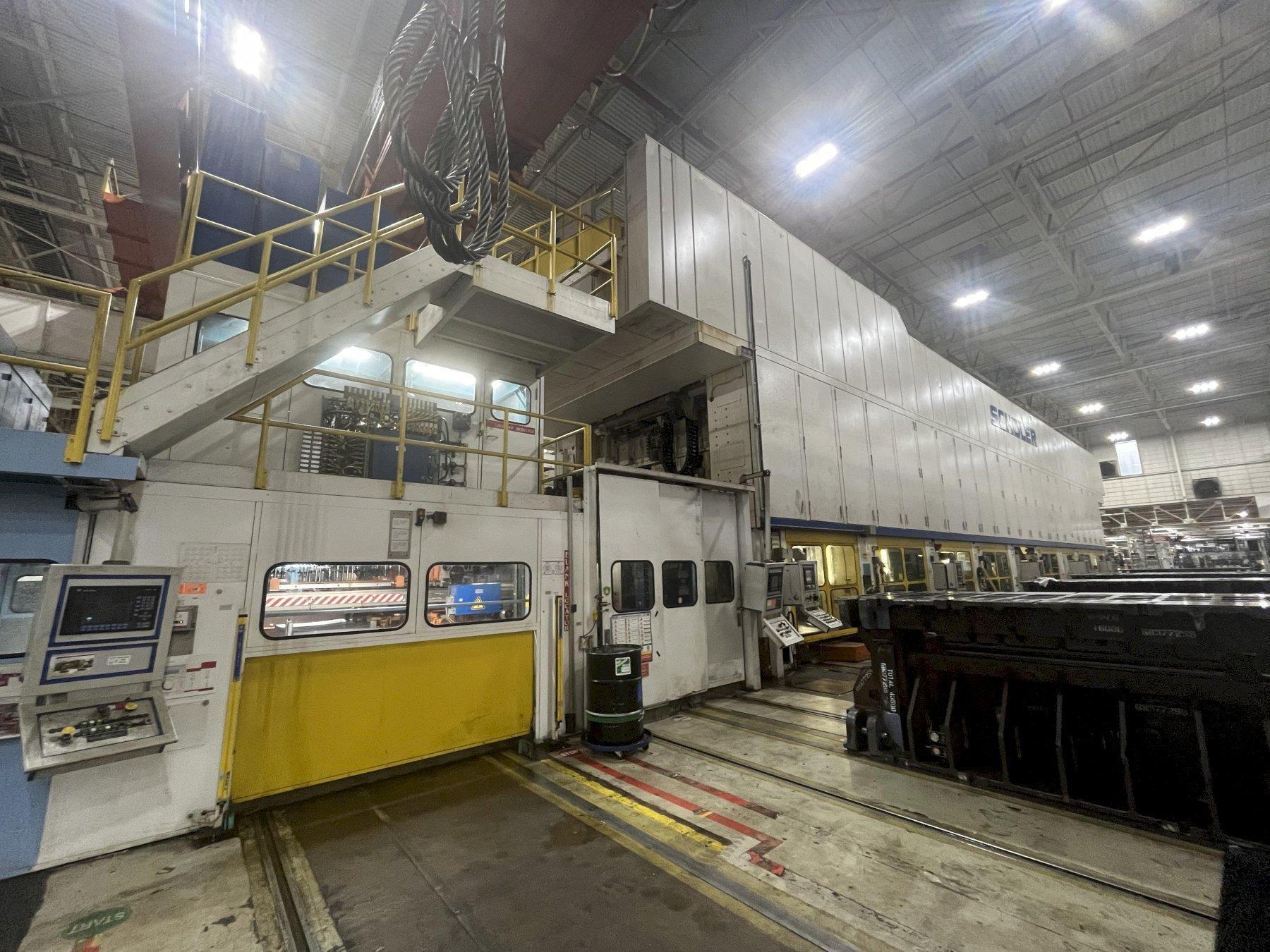

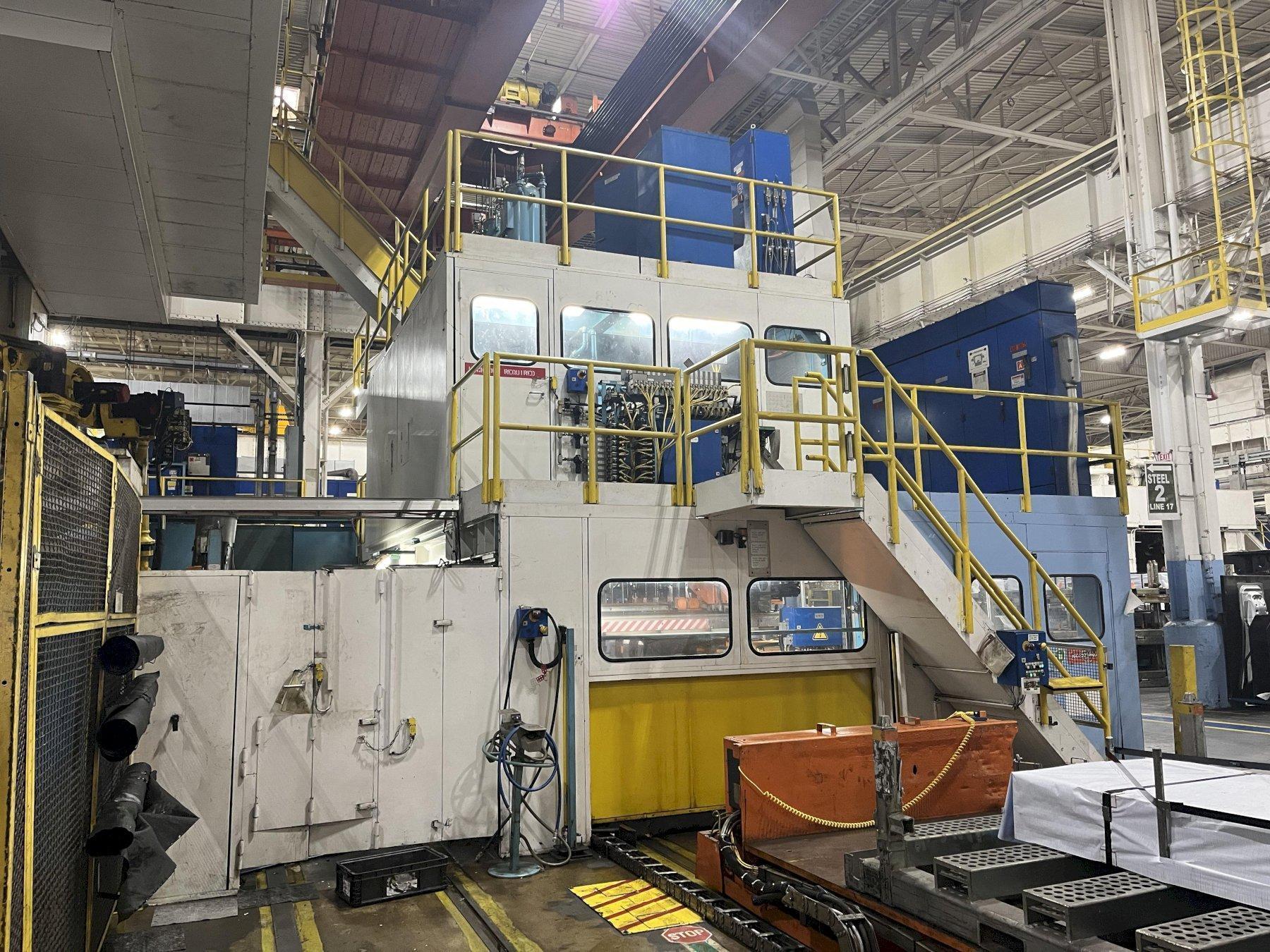

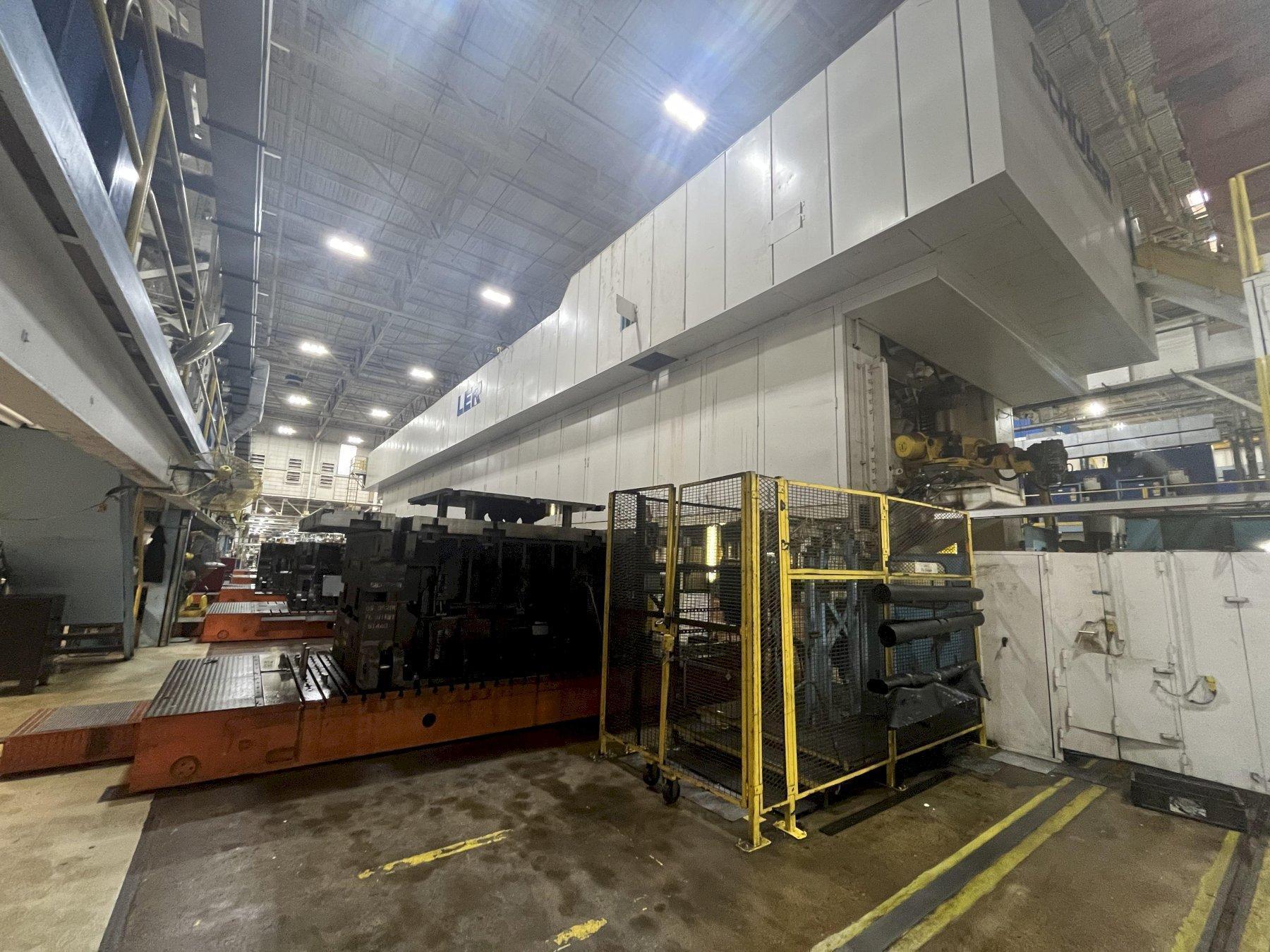

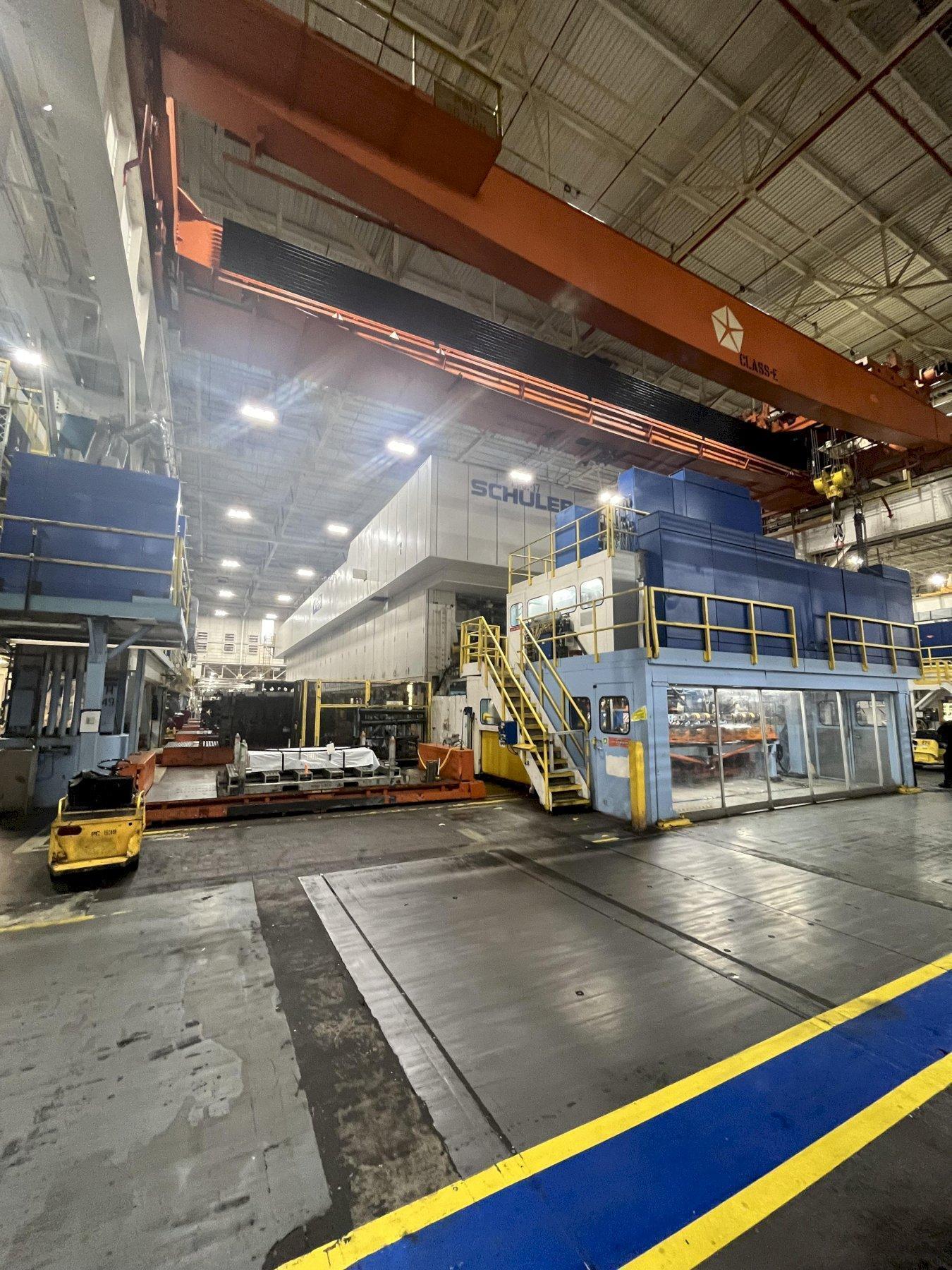

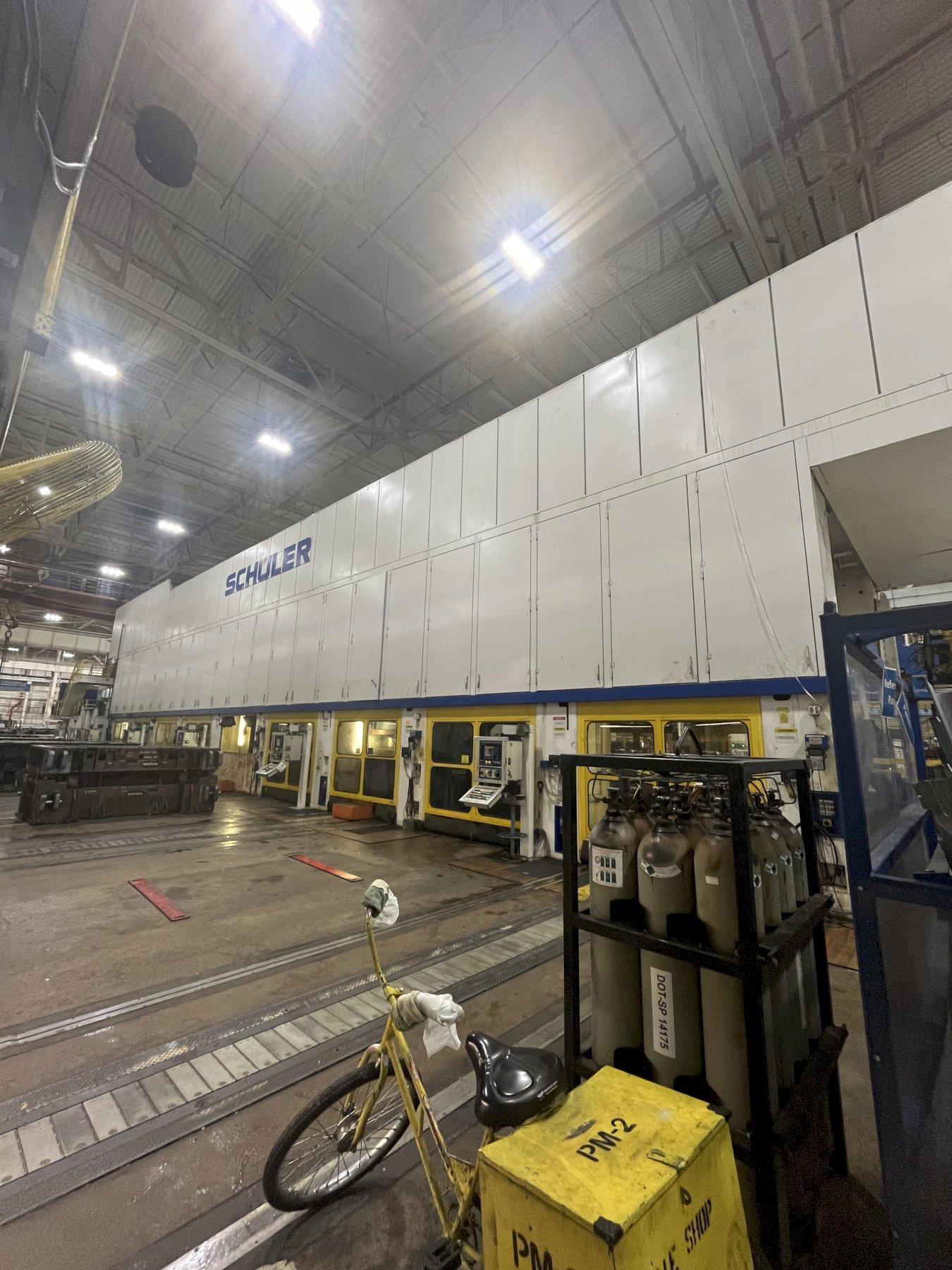

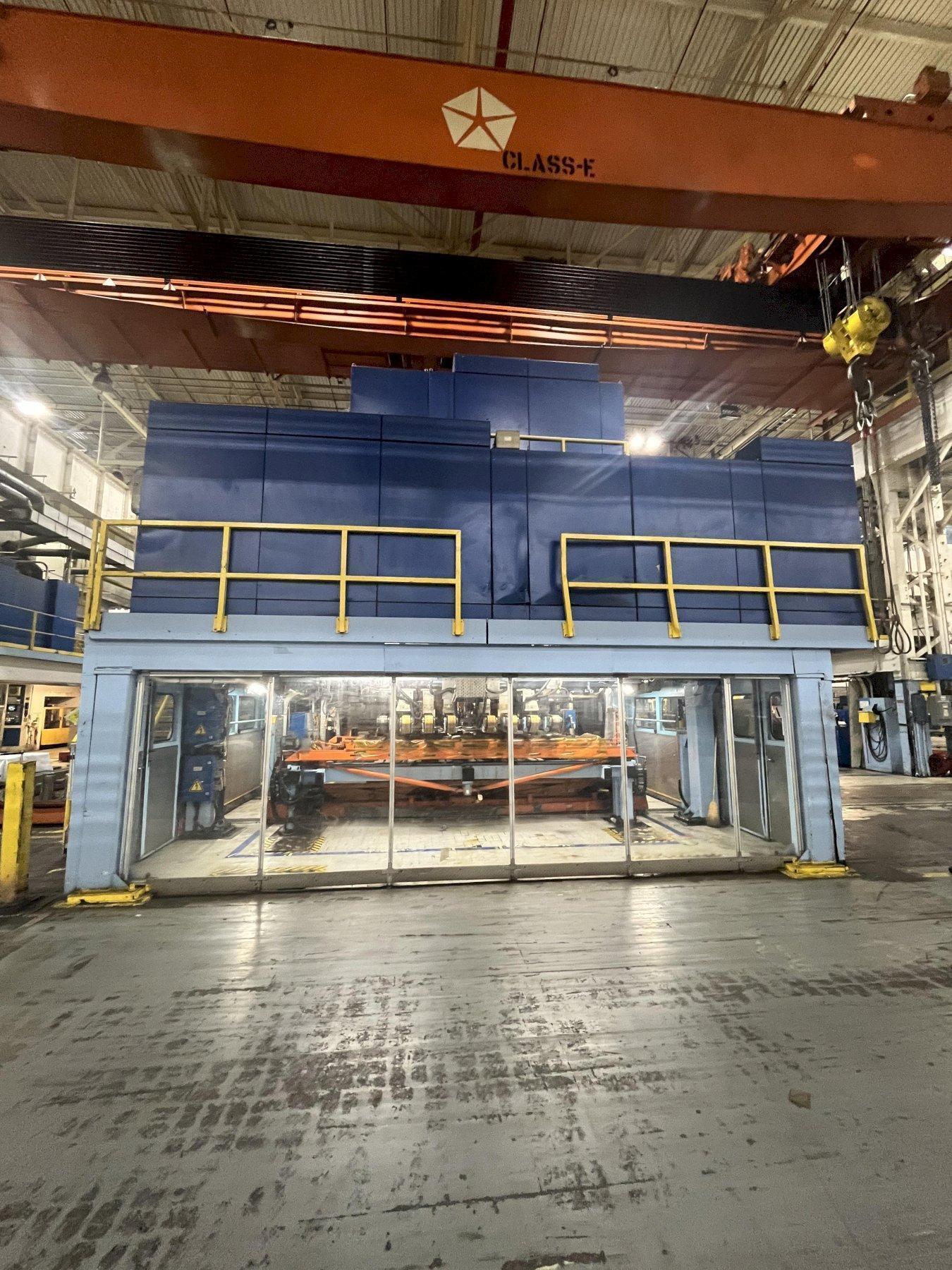

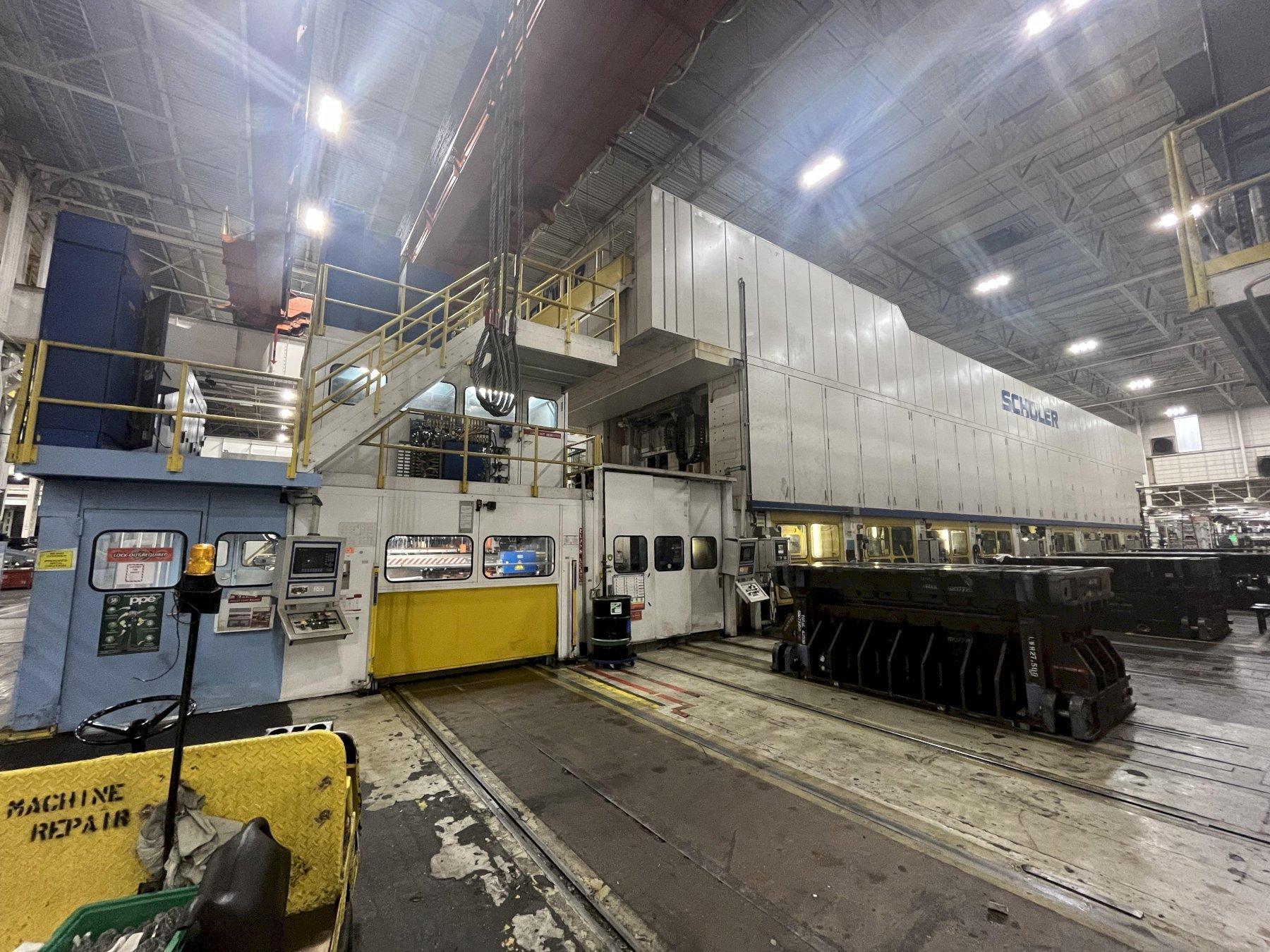

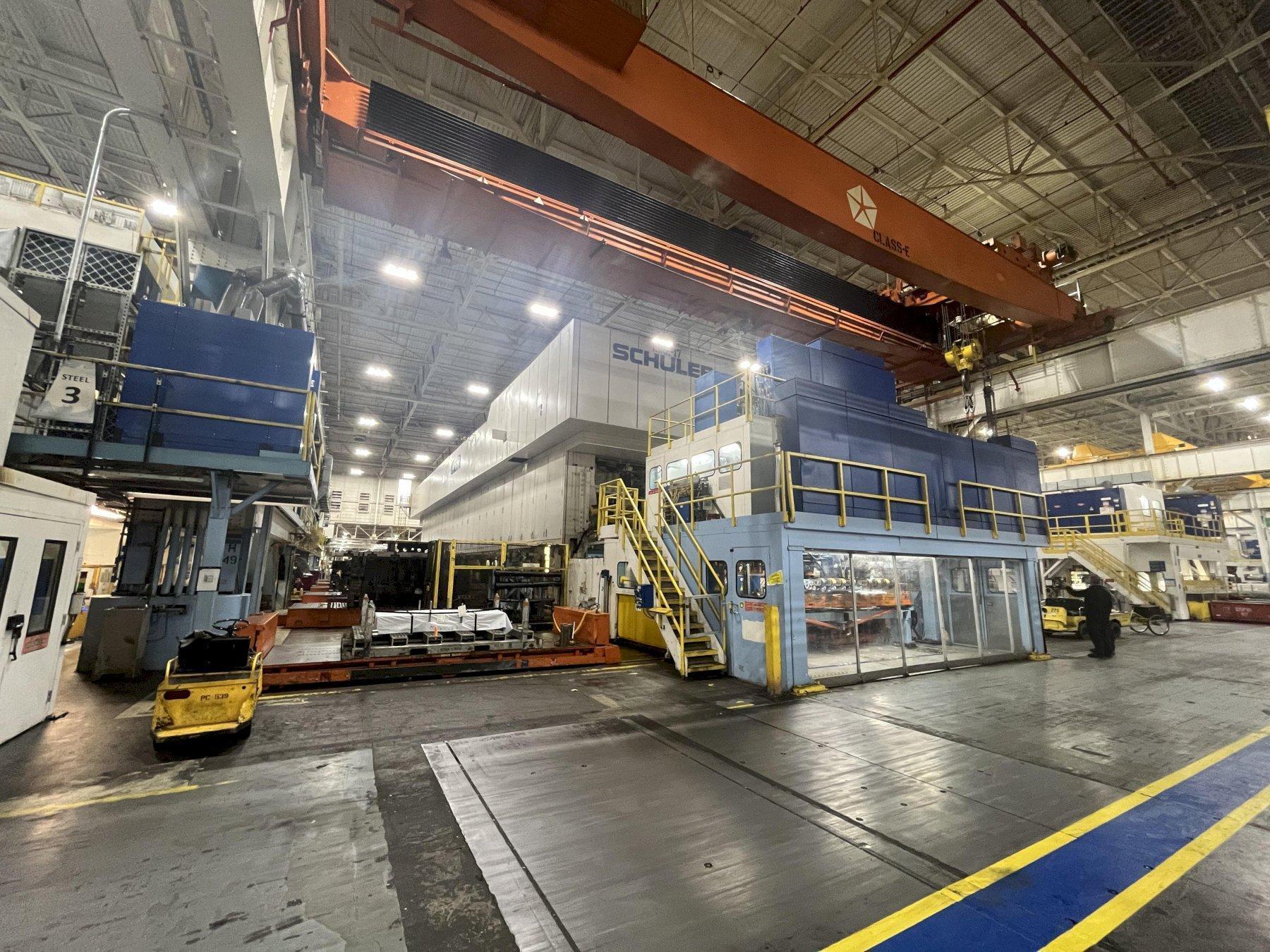

2500 Ton Schuler Model HZPUI Hydraulic Tandem Press Line - (4) 1250 Ton Schuler follow up Presses

New 2002

Line consists of the following:

2500 Ton Schuler Double Action Hyd. Press w/ cushion

1600 U.S. Tons Slide Force
900   U.S. Tons Blank Holder Force
129.5 U.S. Tons Retraction Force (Slide)
46" Min Shut Height (Blank Holder to Bed)
104" Max Shut Height (Blank Holder to Bed)
65" Max Stroke (Blank Holder)

180"x 96" Bolster Area (L-R x F-B)
180" x 96" Blank Holder (L-R x F-B)
6" T-Slot Spacing
44-440 Displacement Force Bed Cushion
12" Stroke Bed Cushion

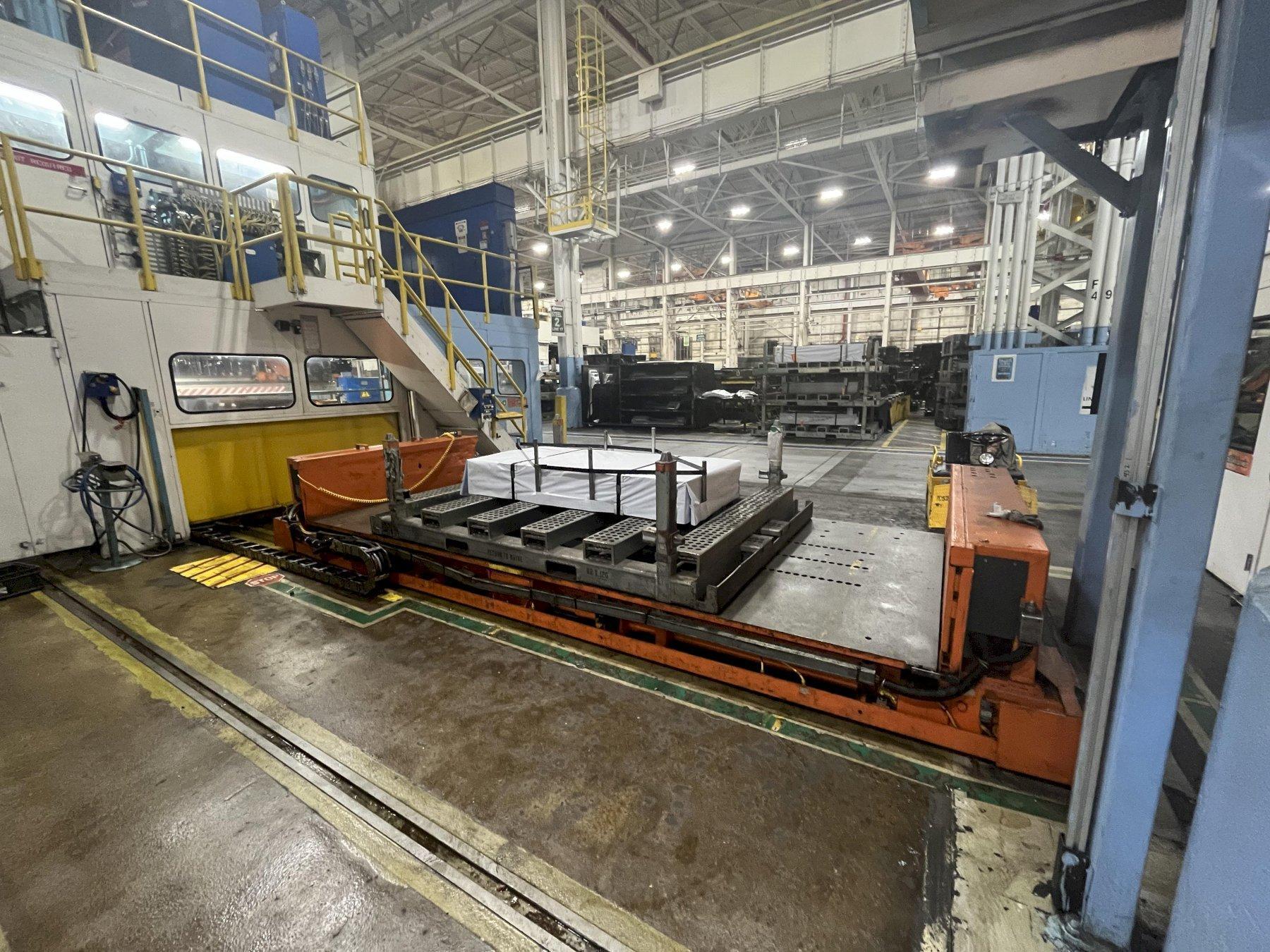

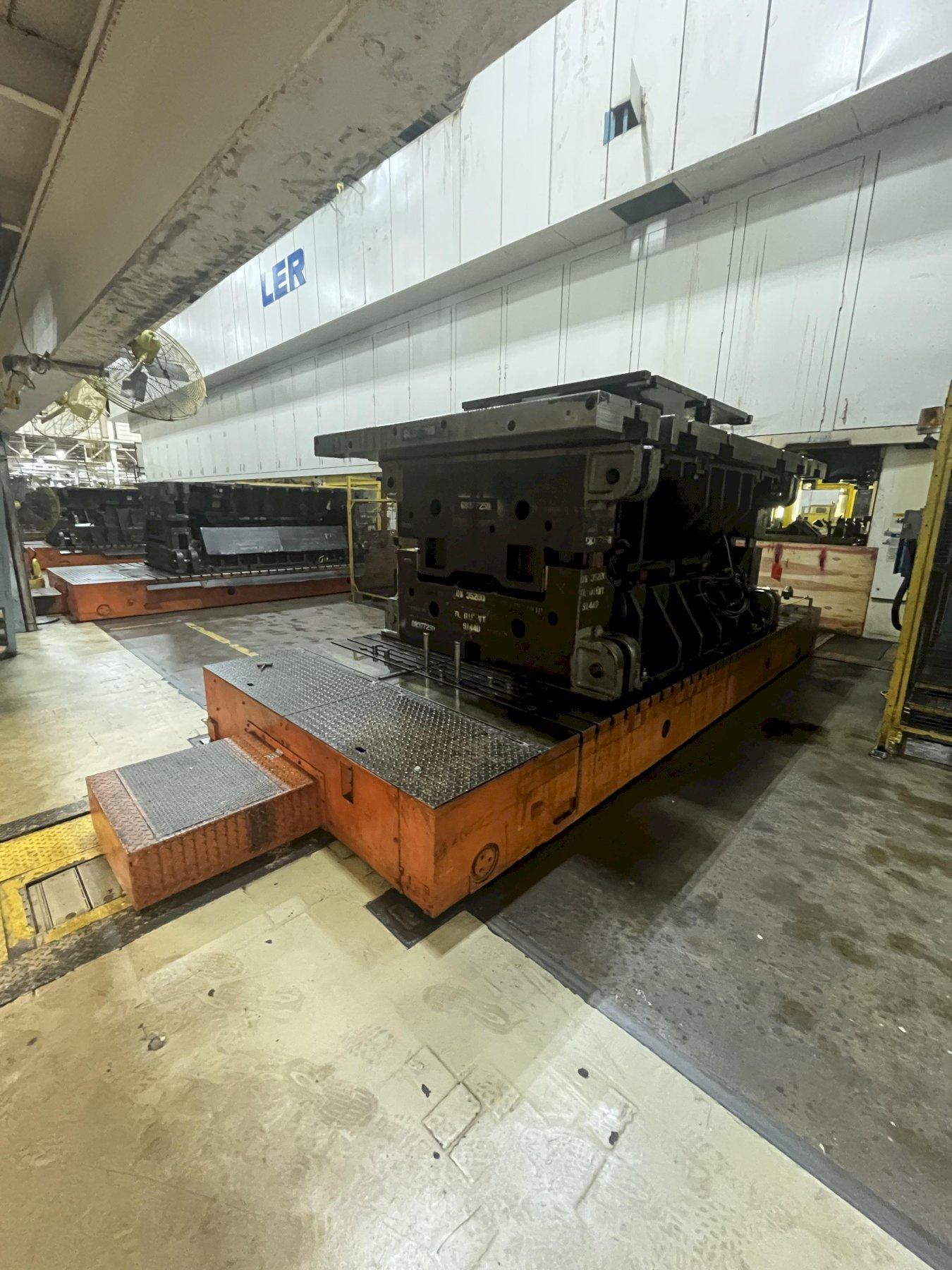

2- Rolling Bolsters

(4) 1250 Ton Single Action Straight Side Hyd. Presses

1250 U.S. Tons
146.3 U.S. Retraction Force
46" Stroke
104" Max Shut Height (Slide to bed)
65" Max Stroke
180"x 96" Bolster Area (Sliding) (L-R x F-B)
180"x 96" Slide Area (L-R x F-B)
T-Slot Spacing

Equipment & Features

Complete Running Tandem Line for Immediate Sale
Each Press equipped with 2 Bolsters

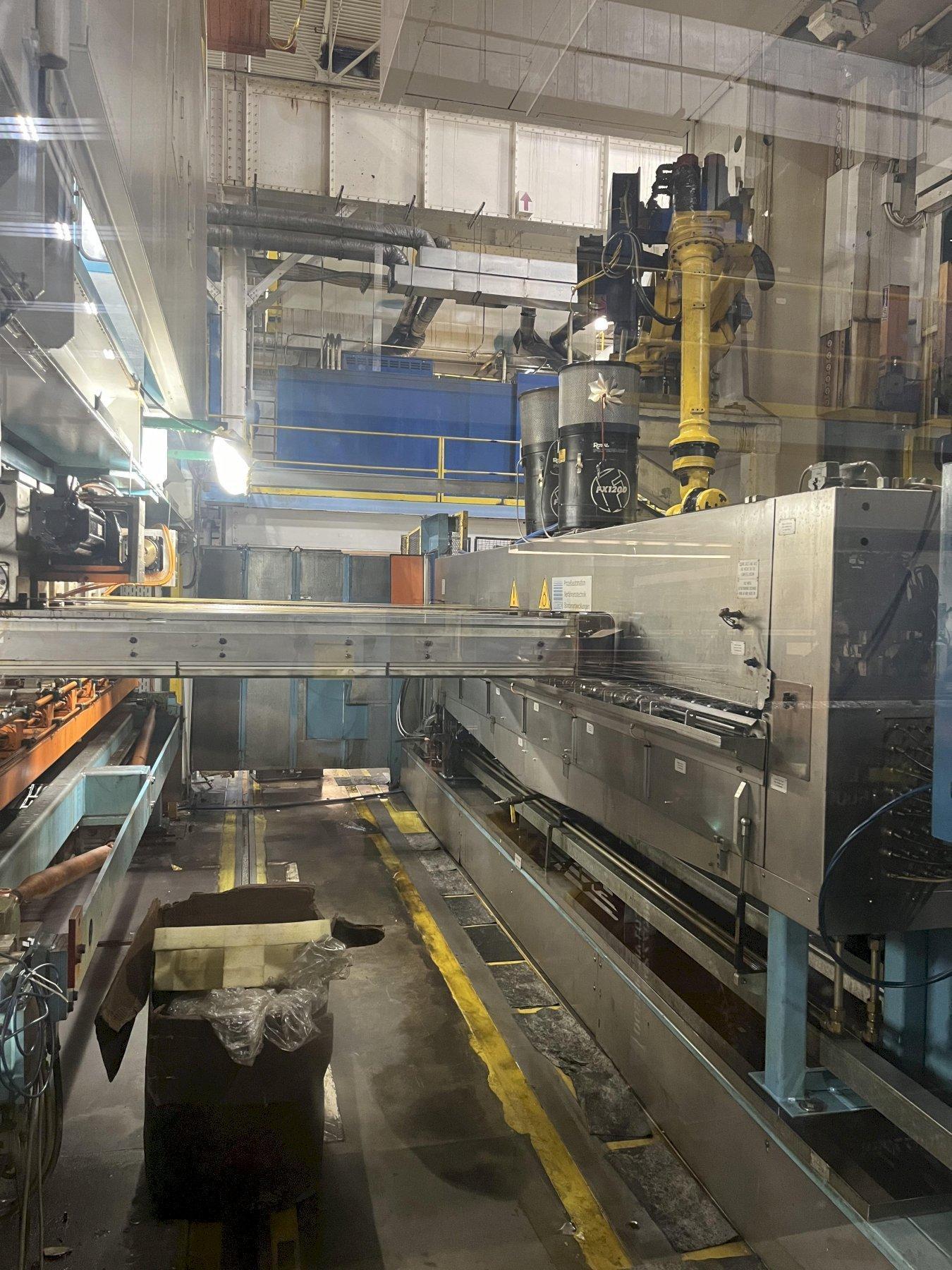

(4) Fanuc Loading Robots between each Press

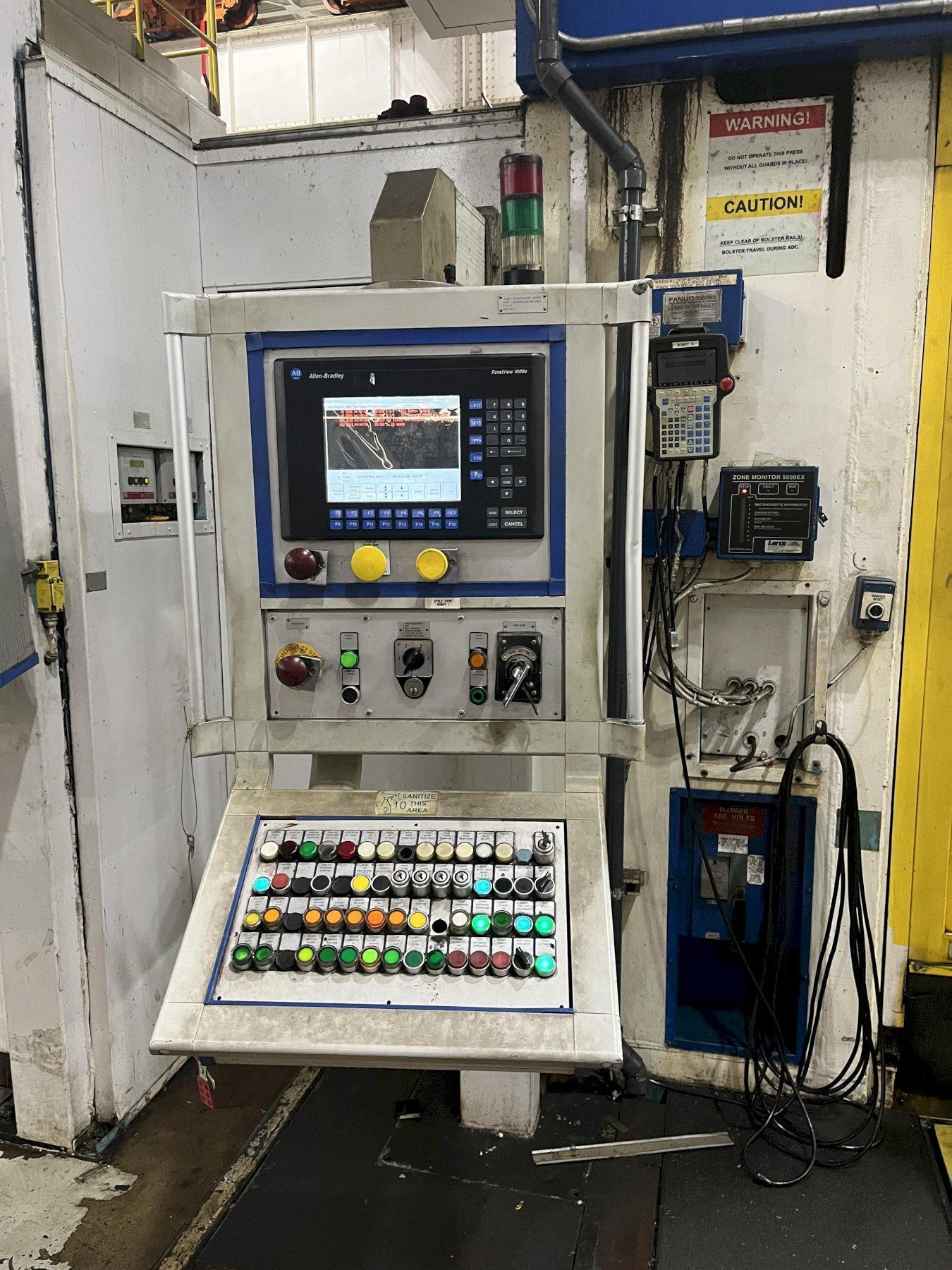

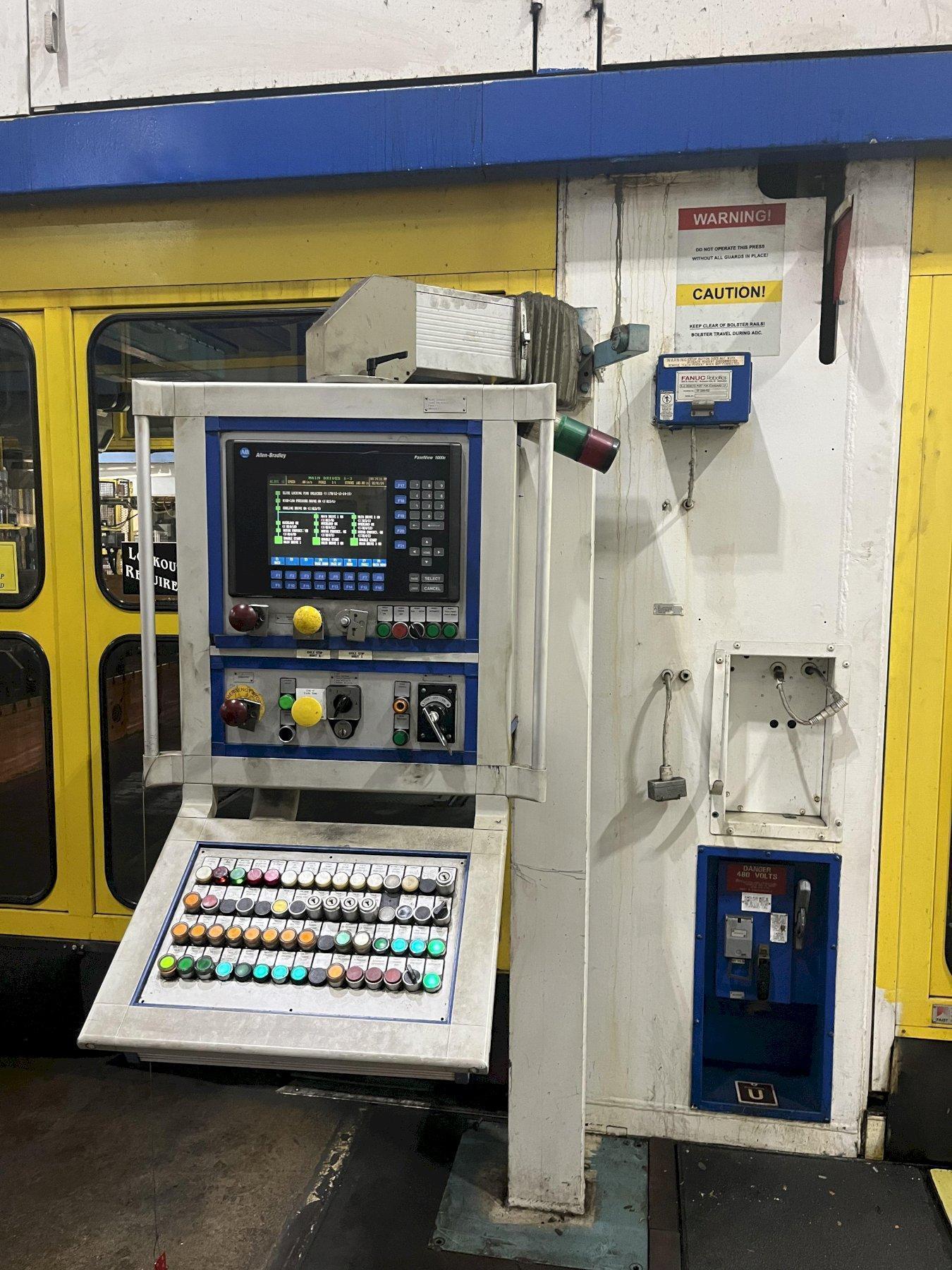

Press Control Console
