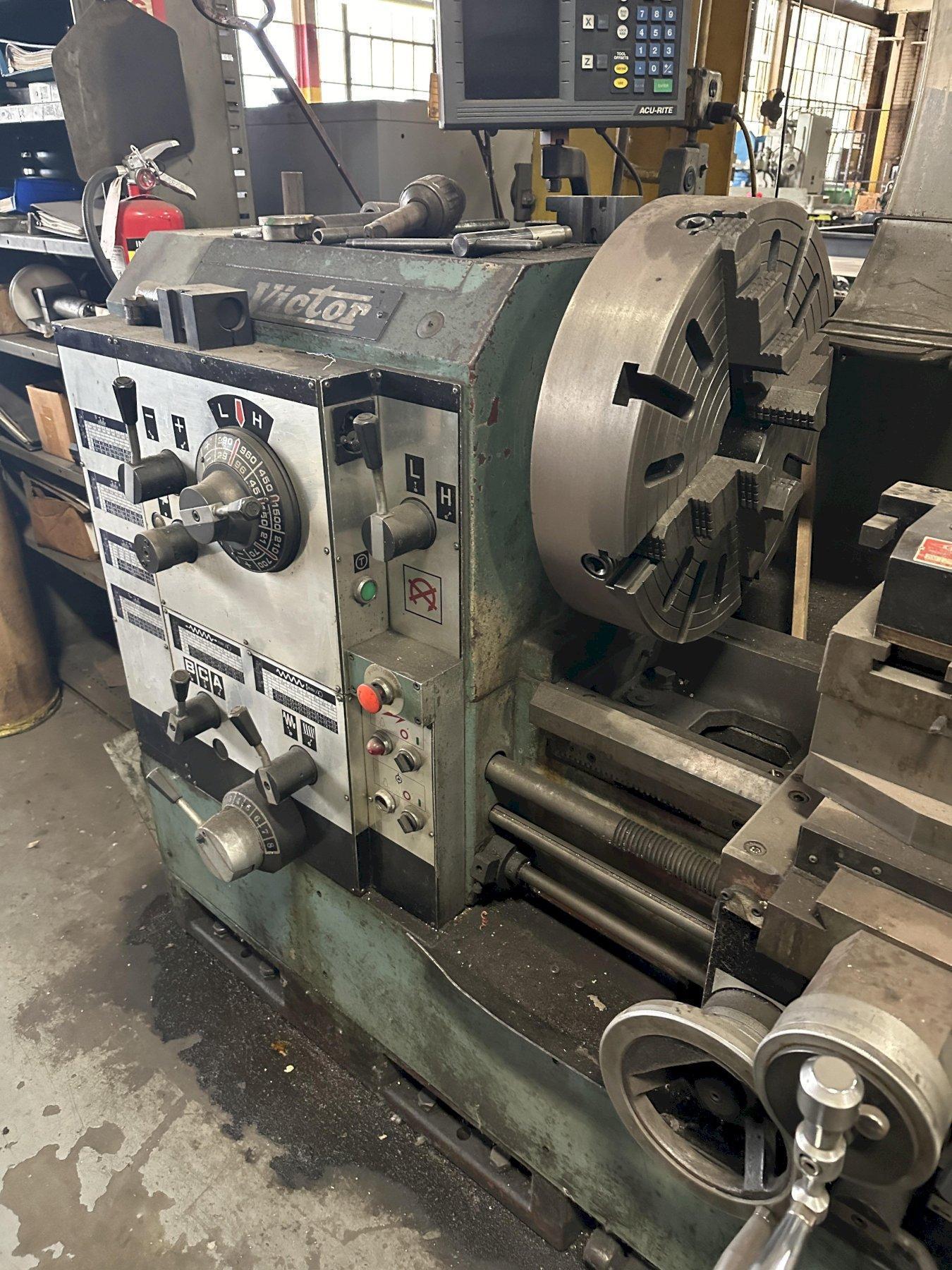

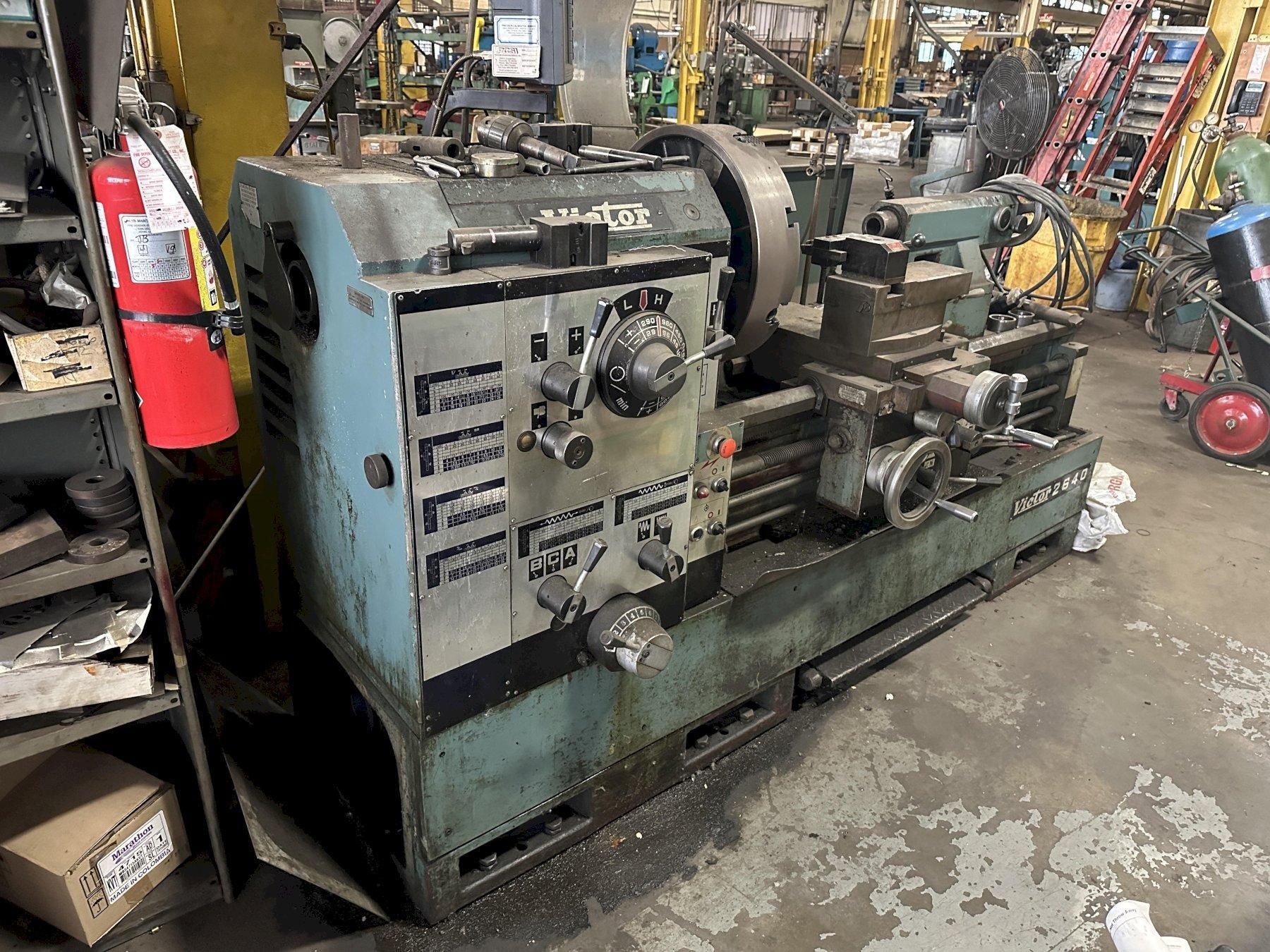

26" X 40" VICTOR MODEL #2640 GAP BED ENGINE LATHE
Year
Not provided
Stock #
19491
Condition
Used
Keep Scrolling To Learn More
Specifications
Equipped With
26" X 40" VICTOR MODEL #2640 GAP BED ENGINE LATHE
SWING OVER BED .................. 26"
SWING OVER CROSS SLIDE .......... 18-1/16"
SWING OVER GAP .................. 33-1/4"
BED WIDTH ....................... 15-3/4"
DISTANCE BETWEEN CENTERS ........ 40"
SPINDLE BORE DIAMETER ........... 4.13"
SPINDLE BORE TAPER .............. M.T. #8
TAPER OF CENTER IN SLEEVE ....... M.T. #5
SPINDLE NOSE .................... D1-11
NUMBER OF SPINDLE SPEEDS ........ 12 Steps
RANGE OF SPINDLE SPEEDS ......... 21 TO 1,500 RPM
RANGE OF LONGITUDINAL FEEDS ..... 0.0014" ~ 0.0387" /rev.
RANGE OF CROSS FEEDS ............ 0.0007" ~ 0.01935"/rev.
INCH THREADS .................... 2 ~ 112 TPI x 60 kinds
METRIC THREADS .................. 0.2 ~ 14 mm x 60 kinds
CROSS SLIDE TRAVEL .............. 15"
COMPOUND SLIDE TRAVEL ........... 10"
TAILSTOCK TAPER CENTER .......... M.T. #5
TAILSTOCK QUILL TRAVEL .......... 6-5/16"
MAIN MOTOR ...................... 15 HP 3 Phase
COOLANT PUMP .................... 1/8 HP
WEIGHT........................... 5082 Lbs
DIMENSIONS....................... 101"L x 45"W x 67"H
WEIGHT........................... 5082 Lbs
DIMENSIONS....................... 101"L x 45"W x 67"H
