Equipped With

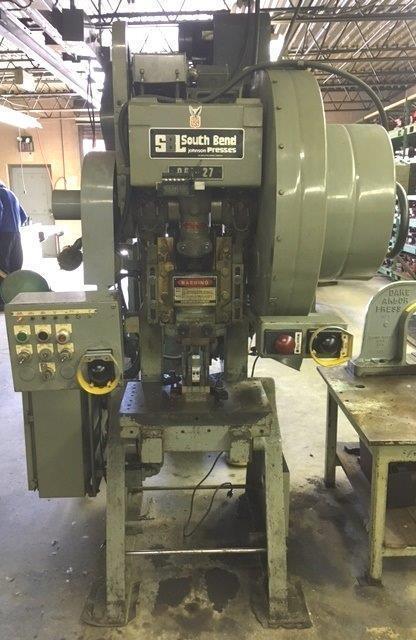

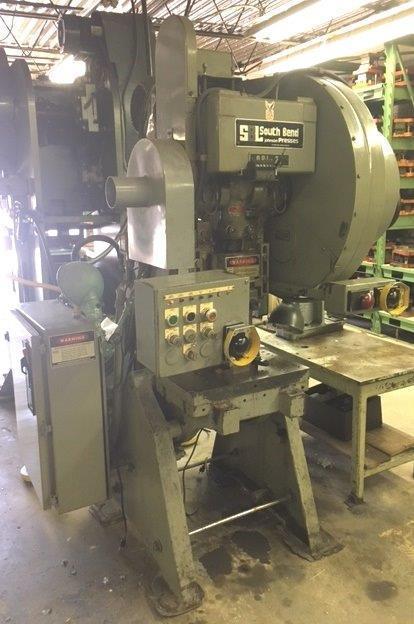

27 TON SOUTH BEND MODEL 27-FW-AC OBI PRESS
New 1983


GENERAL SPECIFICATIONS

Flywheel Type
Stroke: 2-1/2"
Ram Adjustment: 2-1/2"
Shut Height: 9-7/8"
Strokes Per Minute: 160
Bed Area: 21-1/2" x 13"
Bed Opening: 10-1/2" x 5-1/2"
Bolster Plate Size: 21-1/2" x 13" x 2"
Punch Shank Hole Diameter: 1-9/16"
Opening Thru Back: 10-1/2"

EQUIPPED WITH

3 HP Motor, 230/440/60/3
Air Clutch and Brake
One Shot Lube System
Dual Palm Button Operation
Inch, Single , Continuous Stroke
Emergency Stop, Top Stop
Bolster Plate: 2" Thick

Approximate Weight: 4000 Lbs
