Equipped With

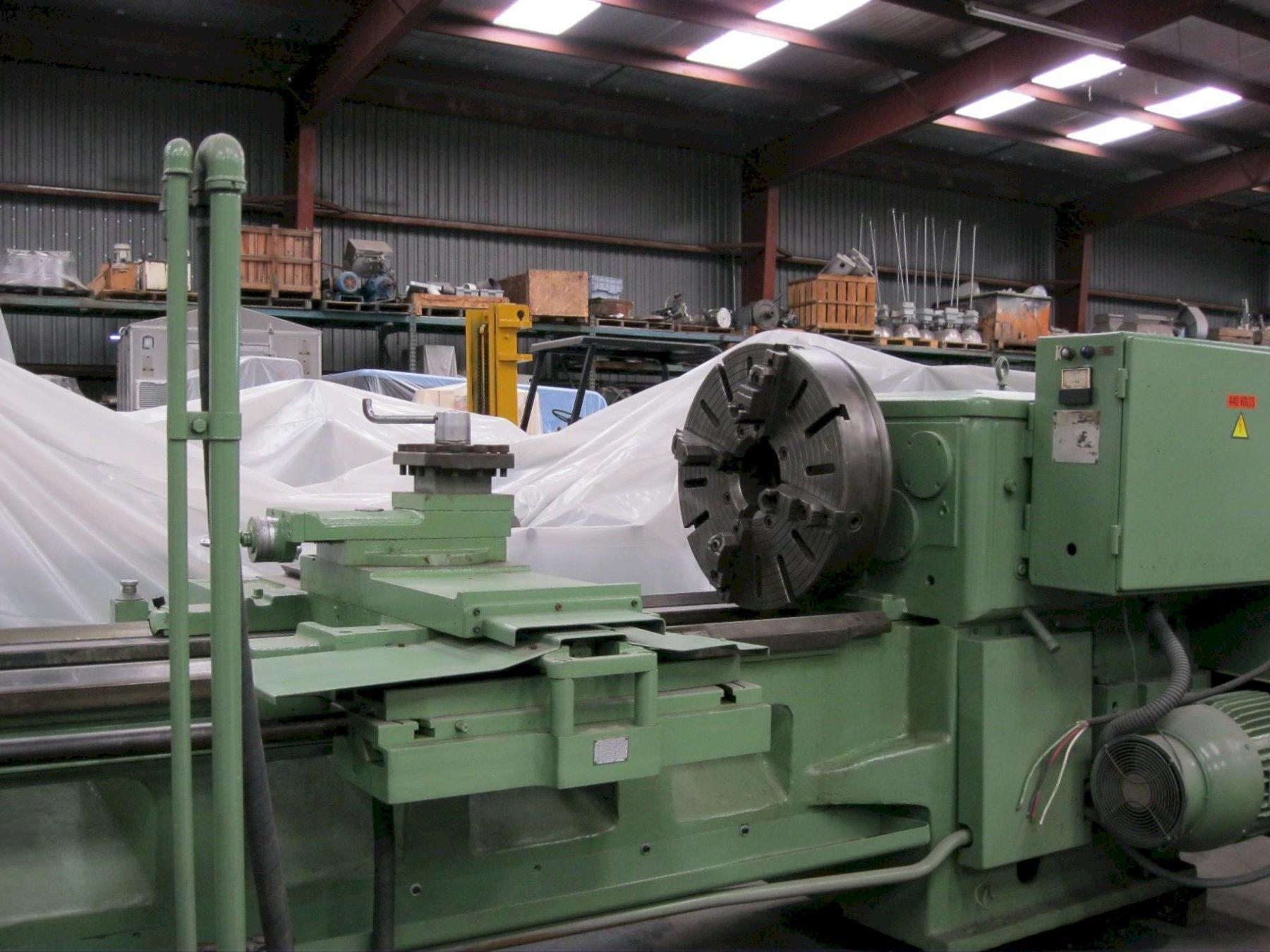

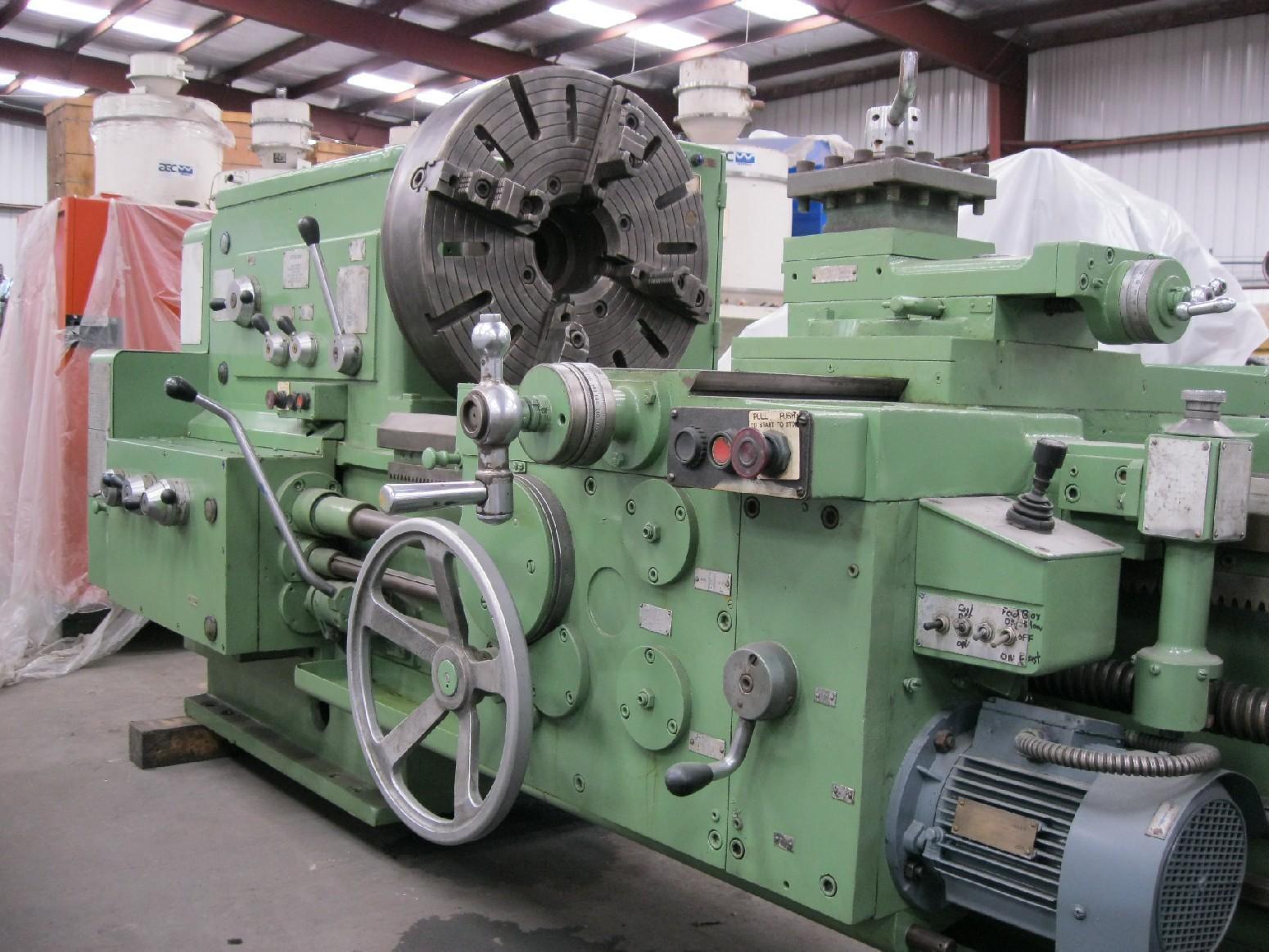

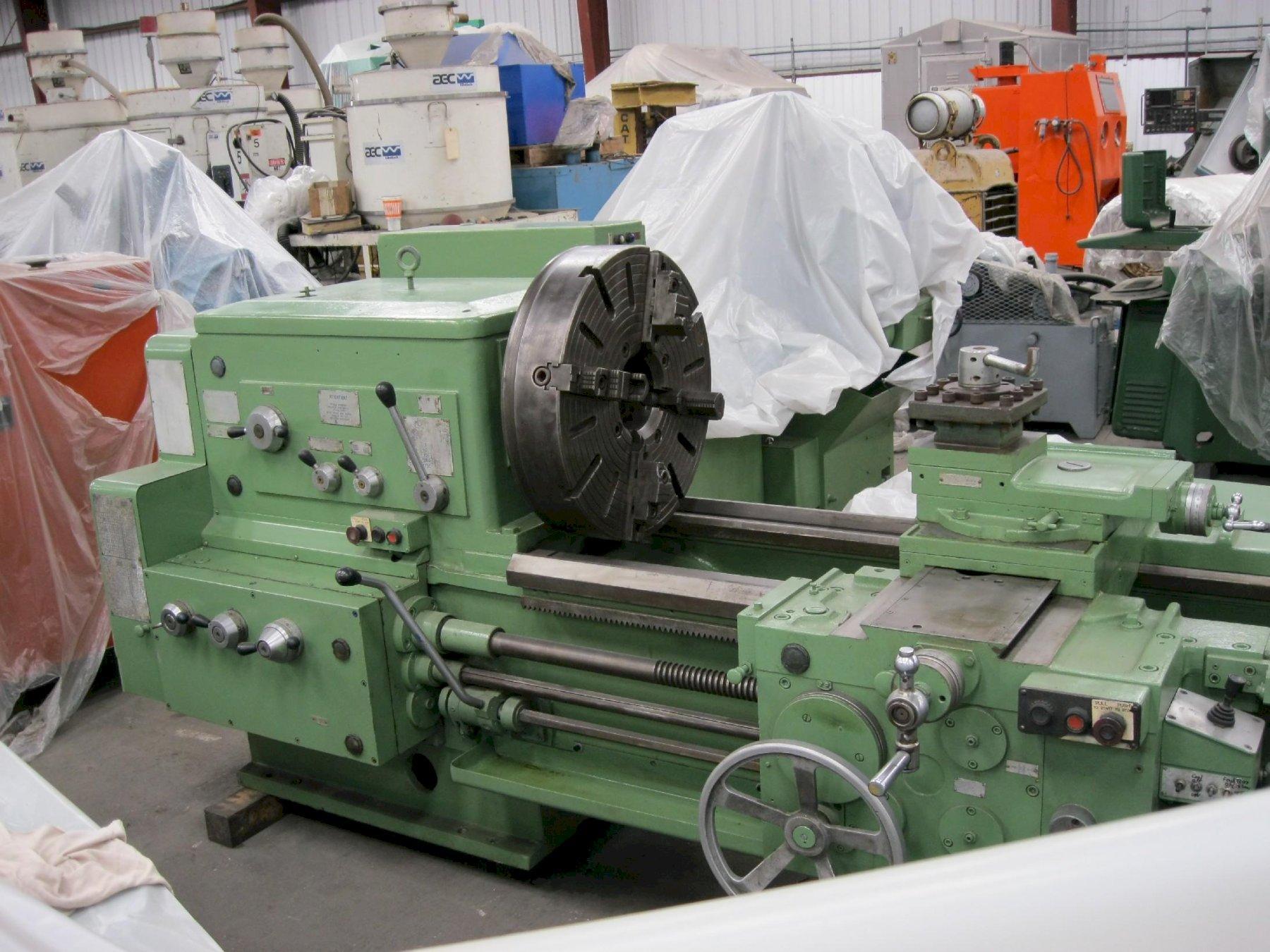

27" x 118" RYAZAN MODEL 1M63N ENGINE LATHE
New 1991

Swing over the bed                27.56”

Swing over the carriage        13.78”

Cross slide travel                   15”

Center distance                      118”

Chuck                                     21” 4-jaw with a 4” hole in the chuck, 2-piece top jaw

Spindle hole                           4 1/8”

Threading                              Inch, Metric, Diametral and Modular threading

Taper attachment                  Yes

Spindle speeds                       10-1250, 22 steps

Feeds                                      32

Main motor                            20 hp

Electrics                                 currently 440volt

Dimensions                            206” Long x 70” wide x 60” high

Weight                                   12,600 lbs.
