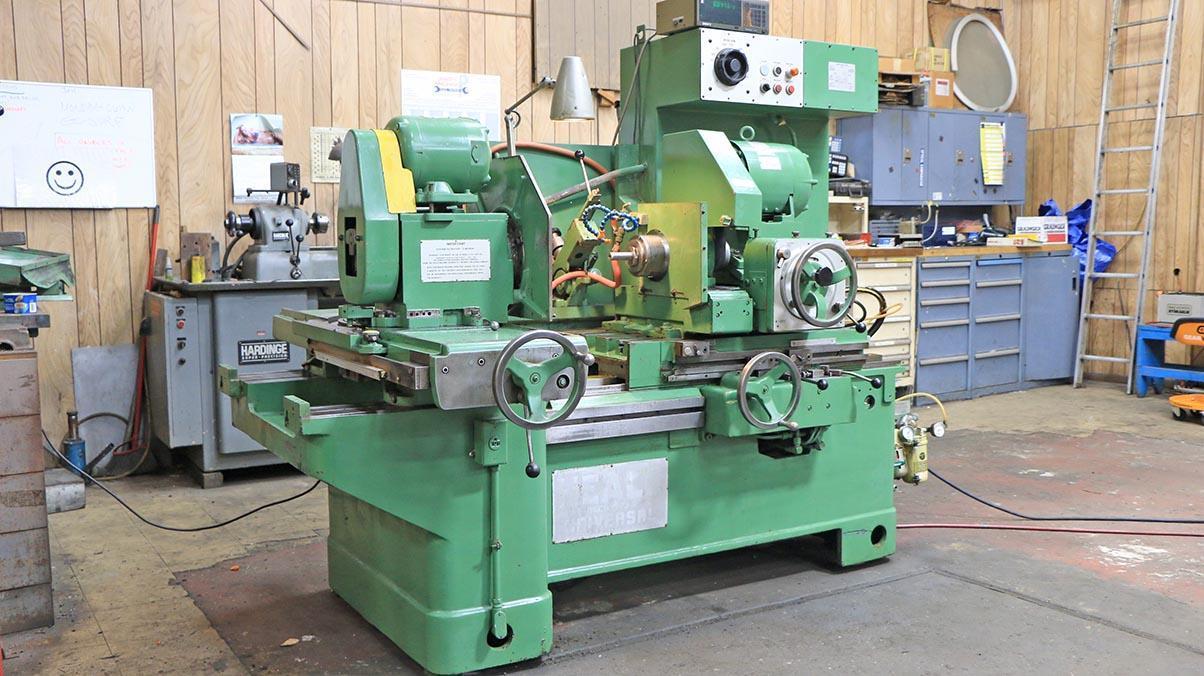

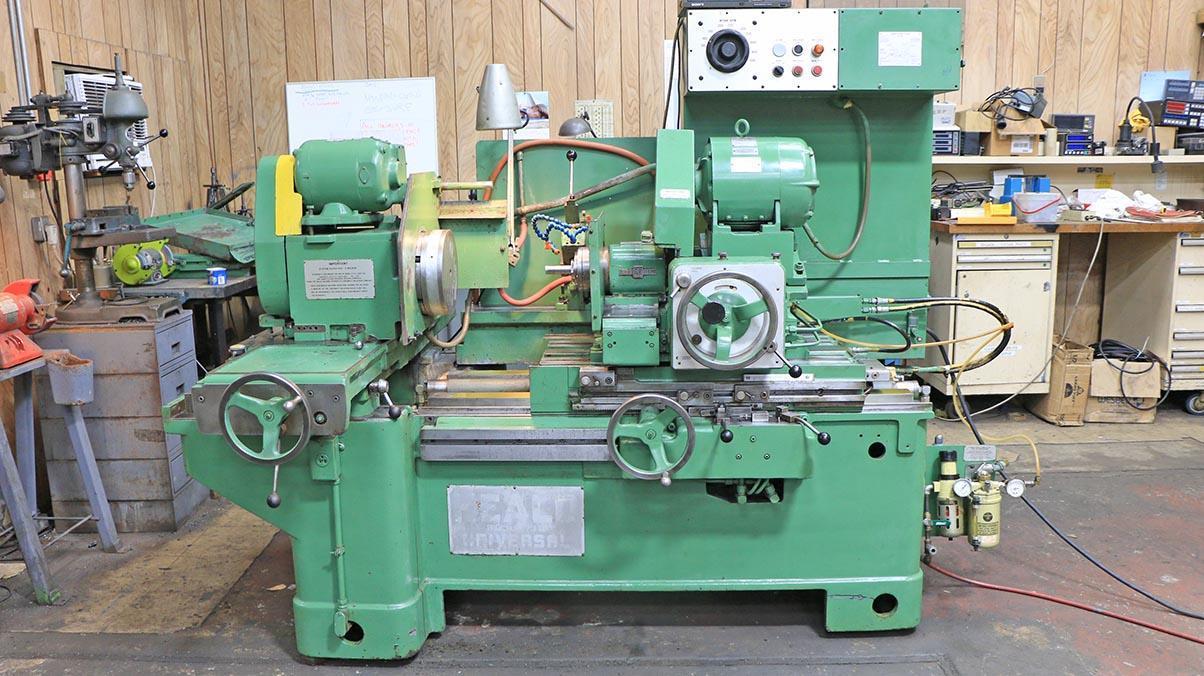

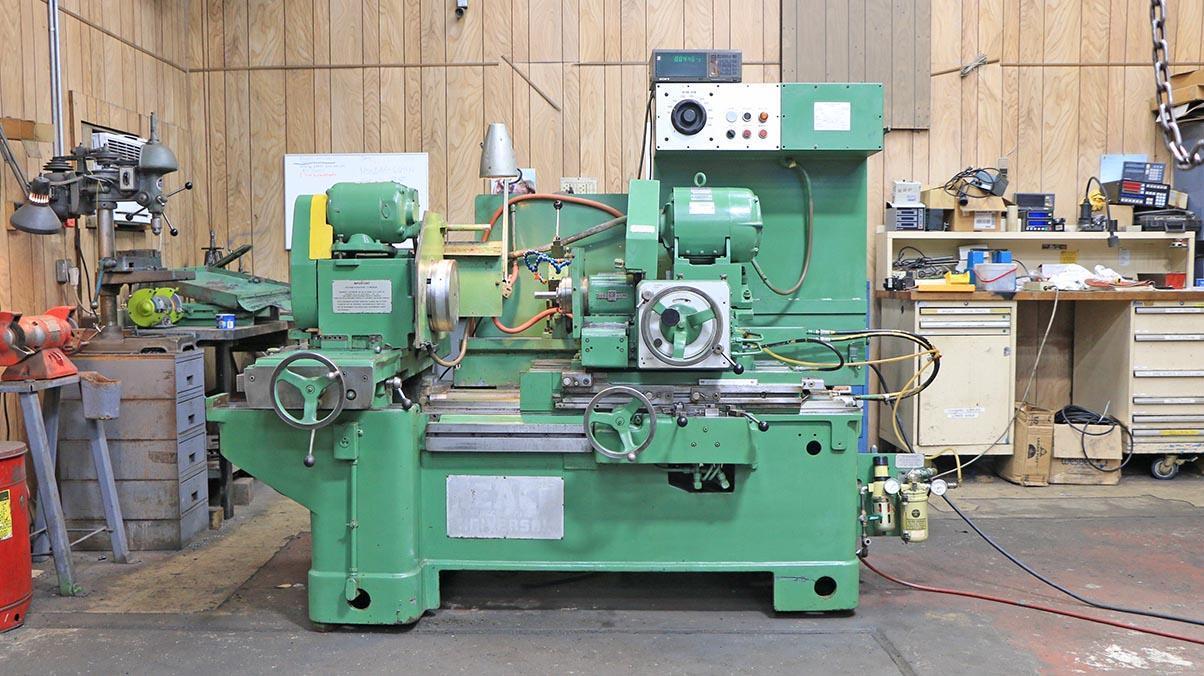

273A CINCINNATI MILACRON-HEALD "HIGH-PRECISION" UNIVERSAL INTERNAL GRINDING MACHINE W/EXTENDED BASE OPTION

Manufacturer

Not provided

Model

273A

Year

1976

Stock #

17102

Condition

Not specified

Request A Quote

Keep Scrolling To Learn More

Specifications

Equipped With

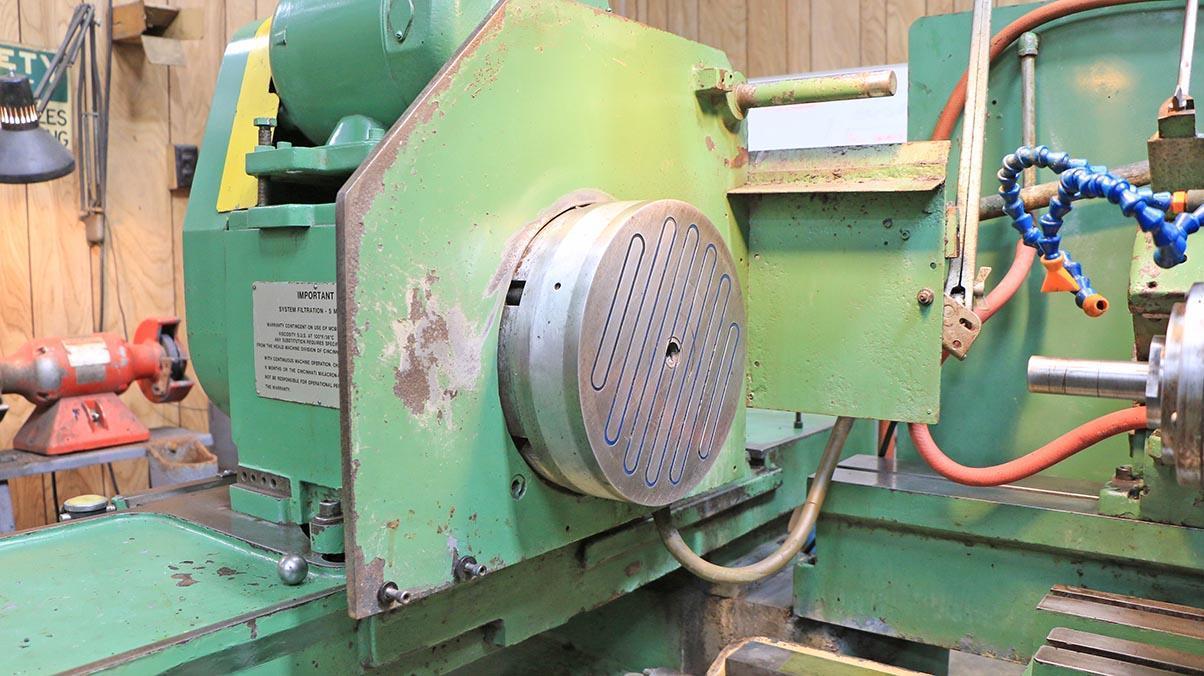

273A CINCINNATI MILACRON-HEALD "HIGH-PRECISION"  UNIVERSAL INTERNAL GRINDING MACHINE W/EXTENDED BASE OPTION
New 1976


MAXIMUM SWING OVER TABLE EXTENSION, WORKHEAD

 PARALLEL TO TABLE WITHOUT CHUCK GUARD,

 PERMITS NO WORKSLIDE TRAVEL,

 LIMITED TABLE TRAVEL ........................ 24-1/2"

SWING WORKHEAD SWIVELED +/- 90 DEGREES ....... 16"

SWING INSIDE STANDARD CHUCK GUARD ............ 20"

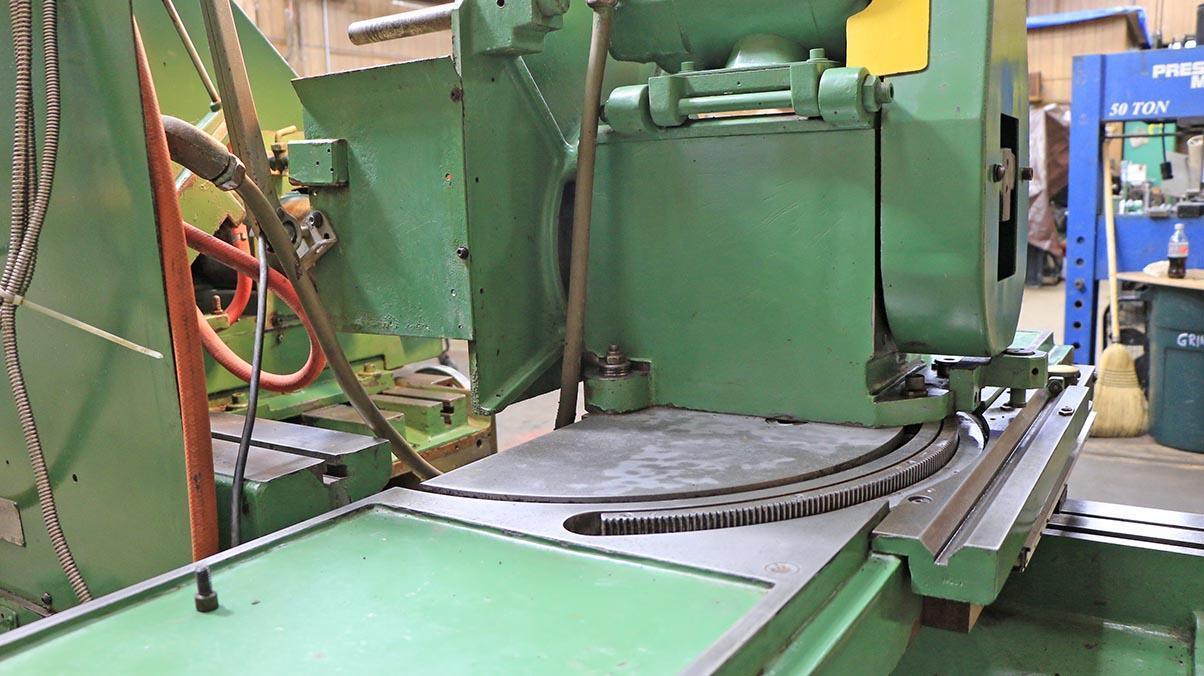

ANGULAR ADJUSTMENT OF WORKHEAD ............... 90 DEGREES

WORKHEAD POSITIONING SLIDE TRAVEL ............ 17-1/2"

MAXIMUM TABLE TRAVEL ......................... 20"

MAXIMUM GRINDING STROKE ...................... 16"

WHEELHEAD CROSS SLIDE TRAVEL ................. 1-1/2"

CENTER OF WORKHEAD SPINDLE TO FLOOR .......... 43-1/2"

DISTANCE WORKHEAD FLANGE TO EDGE

WHEELSLIDE ................................... 0 TO 29-1/16"

TABLE SPEEDS FOR GRINDING .................... 0 TO 18' FPM

WOKRHEAD SPEEDS - REVERSIBLE & VARIABLE

BETWEEN ...................................... 0 TO 500 RPM

RAPID TRAVERSE OF TABLE ...................... 18' FPM

ONE TURN OF CROSS FEED HANDWHEEL ............. 0.050" ON DIA.

CROSS FEED IN INCREMENTS, AT ONE OR

BOTH ENDS OF TABLE STROKE .................... 0.0001" TO .0005" ON DIA.

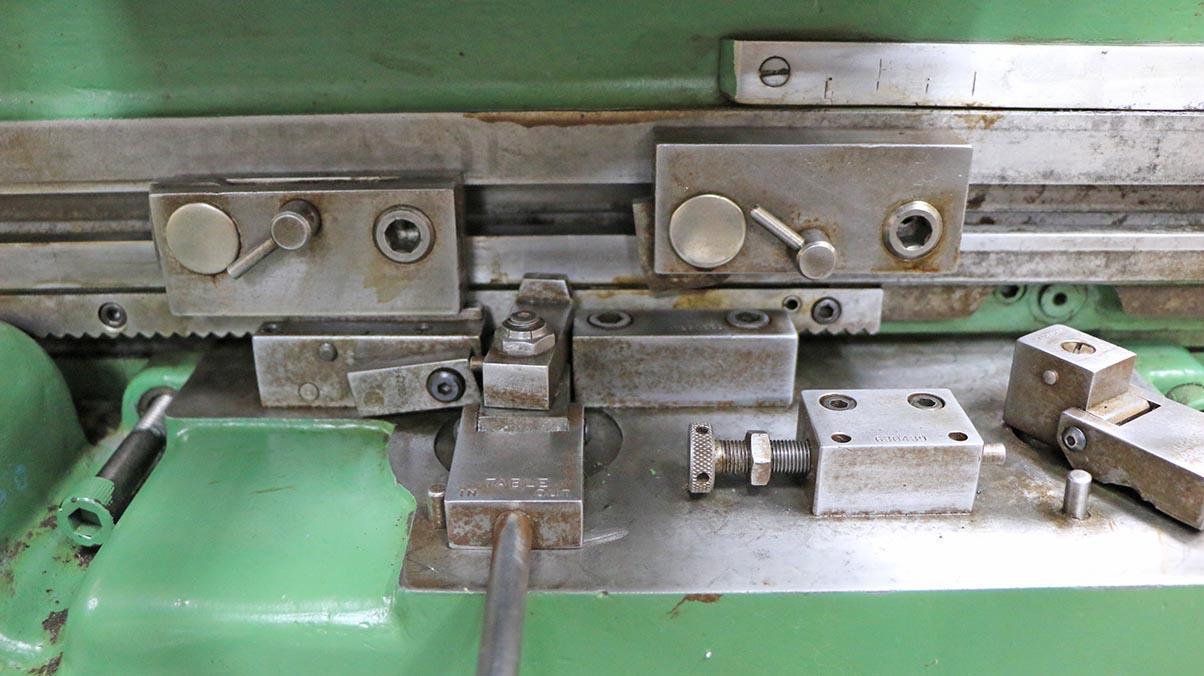

MINIMUM STROKE ............................... 0.125"

ONE TURN OF WORKSLIDE HANDWHEEL .............. 0.100"

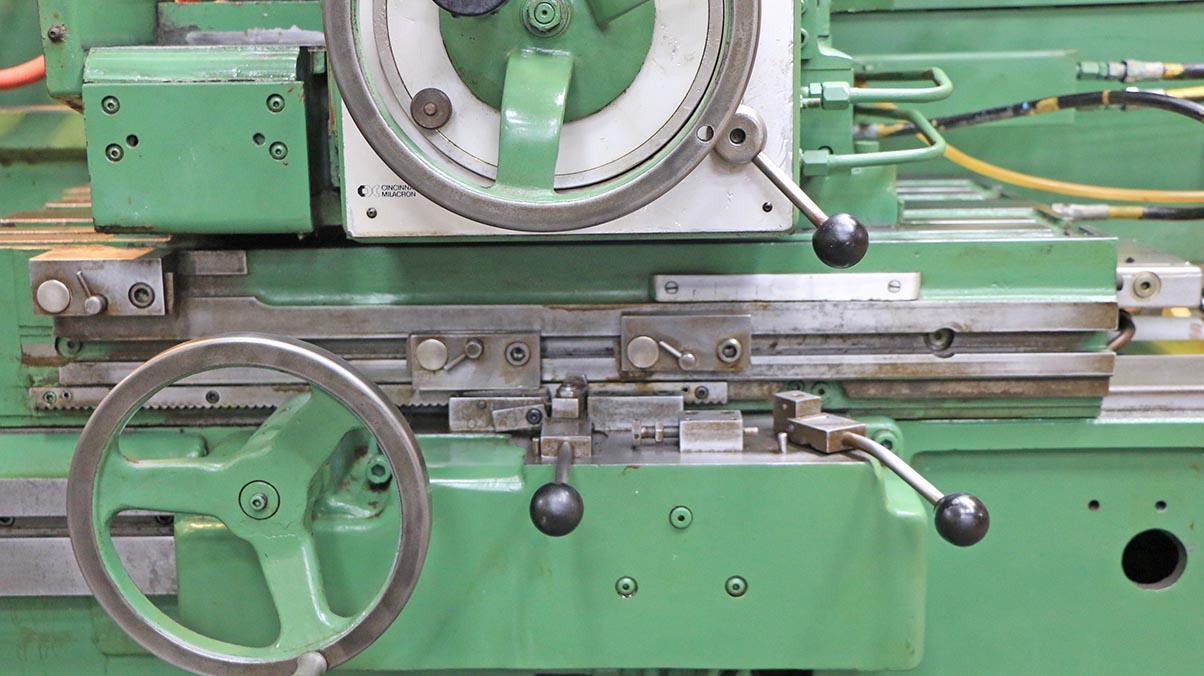

ONE TURN OF TABLE HANDWHEEL .................. 3-3/4"



APPROXIMATE MACHINE WEIGHT ................... 7,500 LBS

APPROXIMATE FLOOR SPACE (MACHINE ONLY) ....... 84" X 38"



EQUIPPED WITH:

EXTENDED BASE FACTORY OPTION

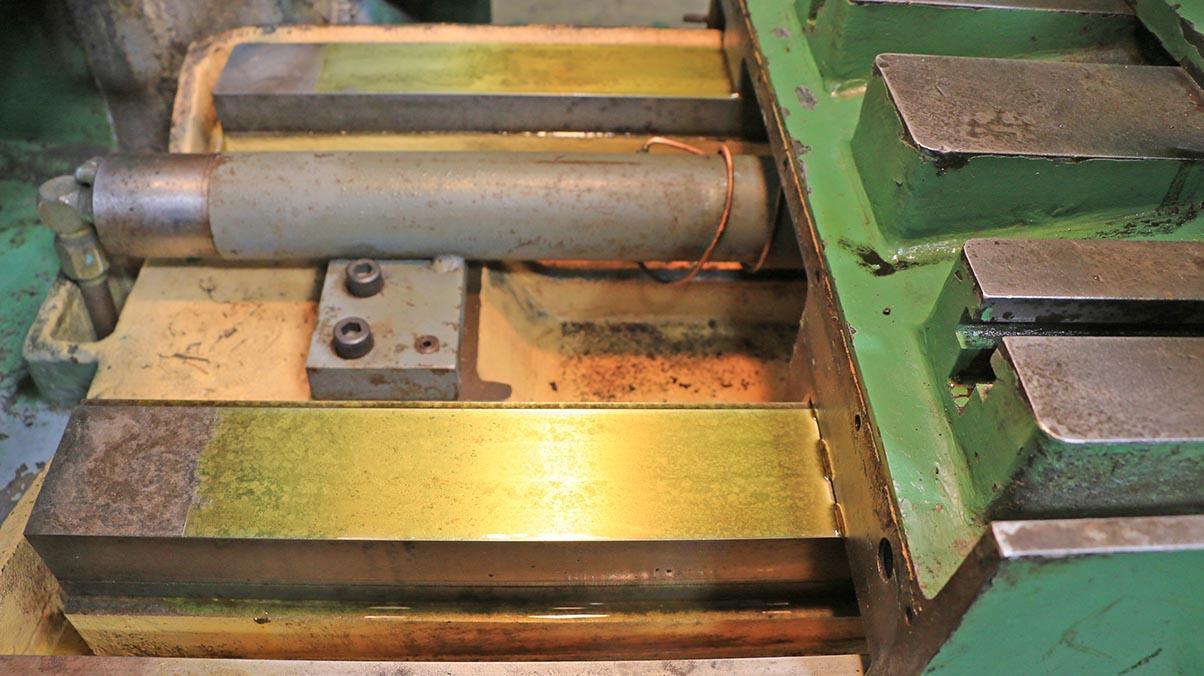

HYDROSTATIC TABLE WAYS

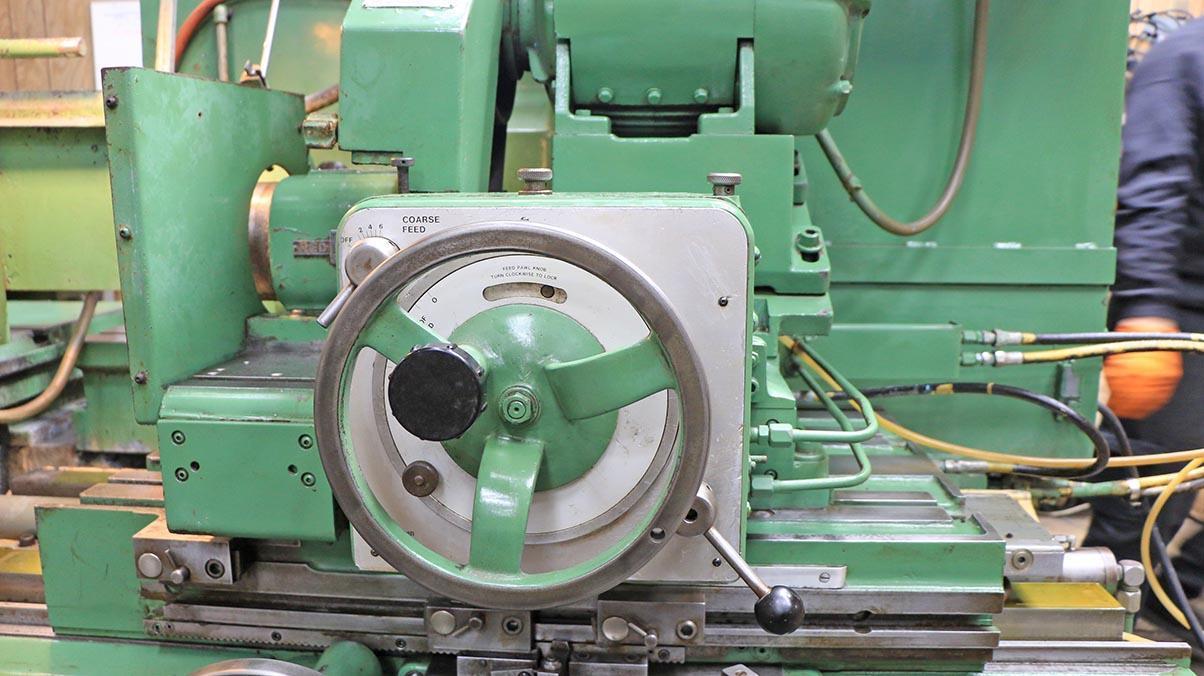

FEED BOX COMBINES AUTOMATIC AND MANUAL CONTROL FOR COARSE AND FINE FEED

5 H.P. WHEELHEAD MOTOR

FACING ATTACHMENT

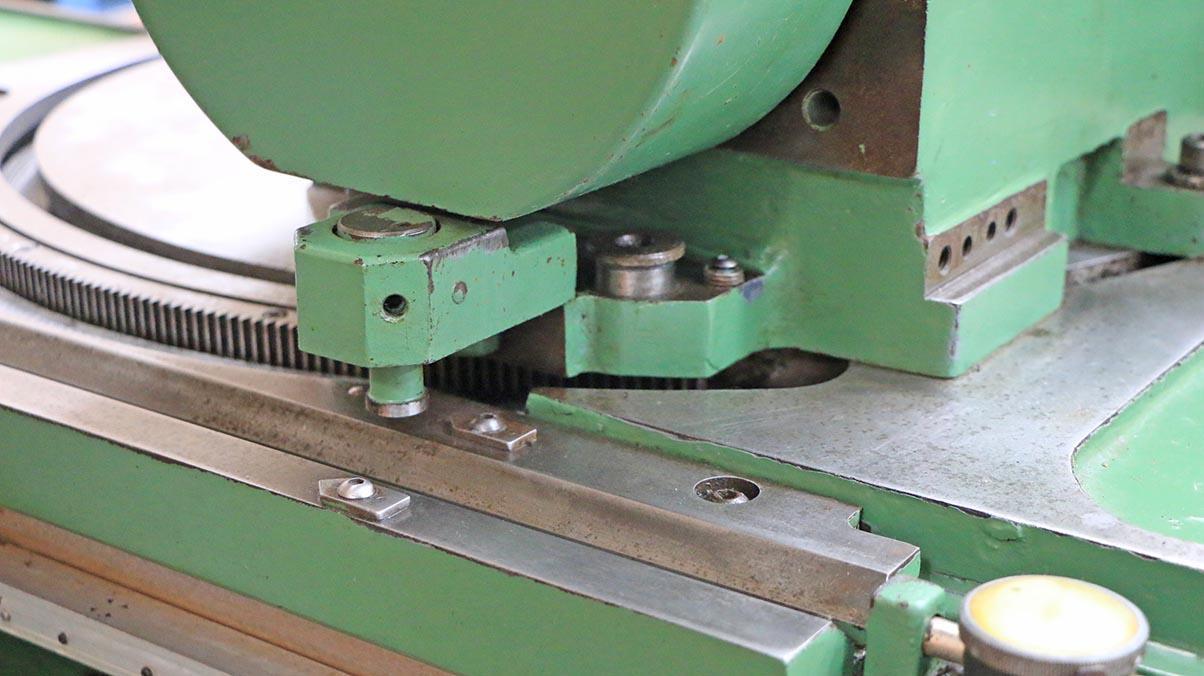

SINE BAR FOR PRECISION SETTING OF WORKHEAD SWIVEL

"SONY" DIGITAL READOUT, FOR THE CROSS SLIDE OF THE WORKHEAD

WHEEL DRESSER, DROP DOWN TYPE

GUARDING & CHUTE FOR COOLANT

COOLANT TANK WITH COOLANT PUMP

SINE BAR FOR ACCURATE WORKHEAD SWIVEL

3/60/230-460 VOLT MOTORS

MACHINE IS PRESENTLY WIRED FOR 230 VOLTS





SPECIAL NOTE:

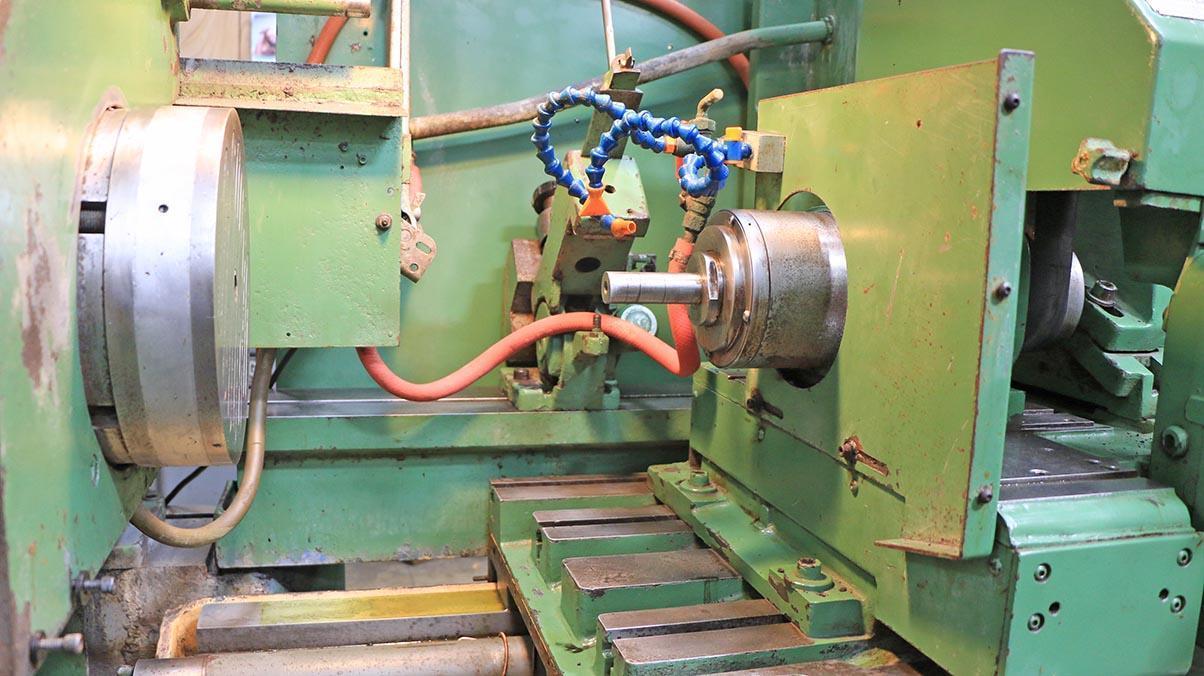

PRESENTLY WITH THE MACHINE IS A "RED HEAD" I.D. SPINDLE,

 UNIT 411-250200-12, S/N: 110312, 15,000 RPM MAX. SPEED.

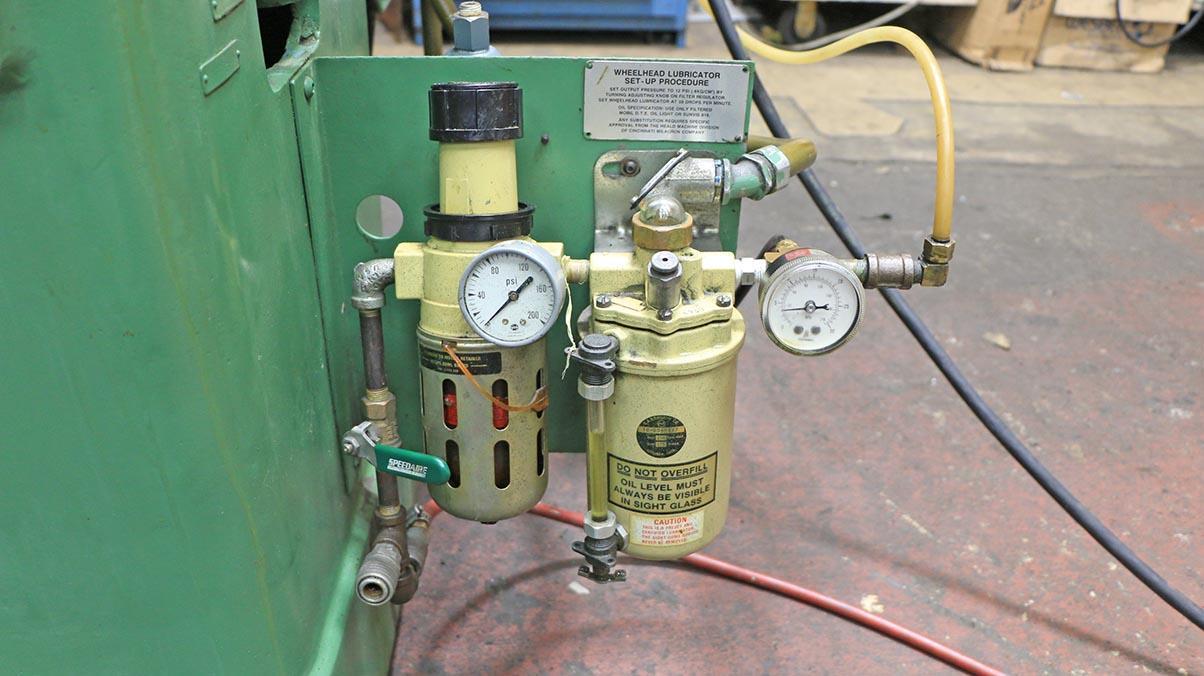

THIS MACHINE IS SET-UP TO USE RED HEAD SPINDLES THAT ARE

 OIL MIST LUBRICATED.

WE HAVE A WIDE SELECTION OF HEALD "RED HEAD" I.D. SPINDLES

 IN STOCK FOR THIS MACHINE, THAT ARE OIL MIST LUBRICATED.

 WE WILL PROVIDE SEVERAL TO GO WITH THIS MACHINE.

 THE BUYER CAN CHOOSE.





* HIGH PRECISION VERSATILE MACHINE FOR GRINDING STRAIGHT

   OR TAPER BORES, STRAIGHT OR TAPER O.D.'S AND FLAT,

   CONVEX OR CONCAVE SURFACES. *
