Year
Not provided
Stock #
17747
Condition
Very Good
Keep Scrolling To Learn More

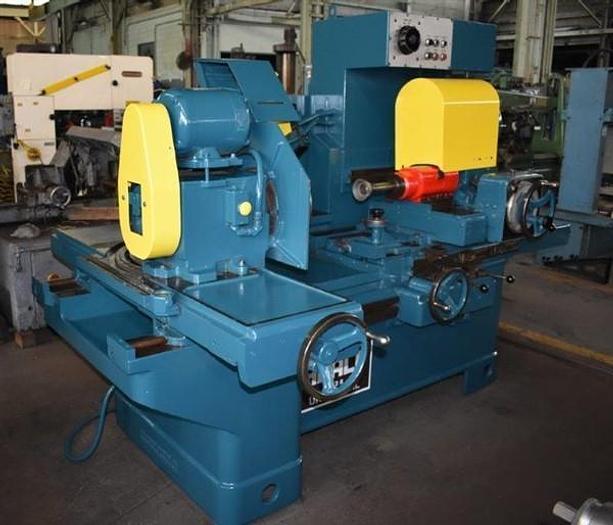

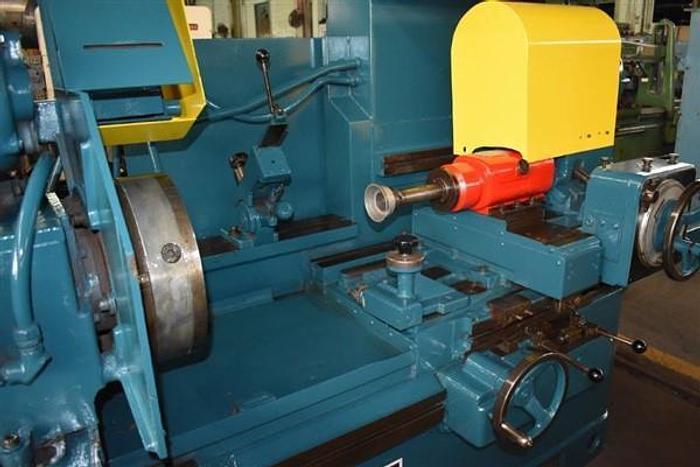

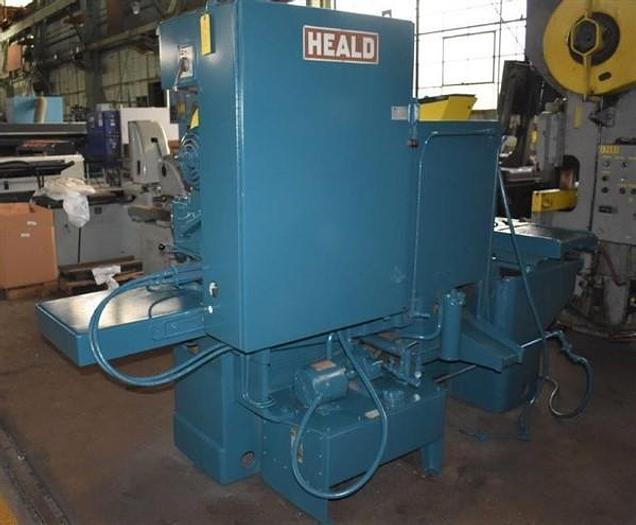

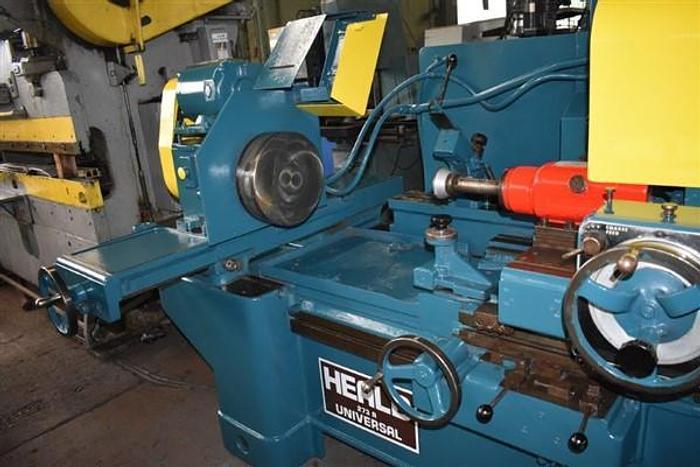

273A HEALD EXTENDED-BASE UNIVERSAL INTERNAL GRINDER
Serial No. 44467.0

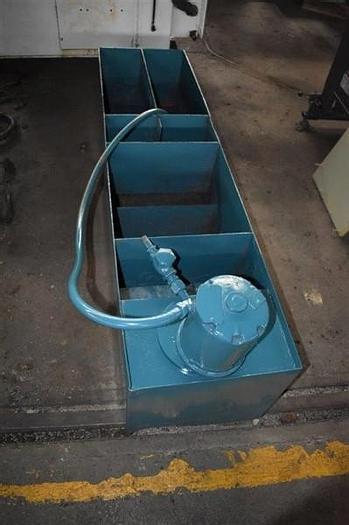

EQUIPPED WITH: 12" MAGNETIC CHUCK 10" 3-JAW CHUCK W/JAWS 10000 RPM HEALD "RED HEAD" GRINDING SPINDLE SWING AWAY WHEEL DRESSER 12" EXTENDED BASE COOLANT SYSTEM (TANK & PUMP)
SPECIFICATIONS:
Swing over table, workhead parallel | 24.5" |
Swing inside coolant splash guard | 20" |
Swing w/workhead @ 90-degrees | 13" |
Workhead flange to wheelslide, range | 0 TO 41.06" |
Bore length ground, maximum | 16" |
Grinding stroke, minimum | .125" |
Grinding stroke, maximum | 16" |
Table longitudinal travel | 20" |
Wheelhead cross-slide travel | 1.5" |
Workhead-slide travel, positioning | 17.5" |
Workhead swivel angle, maximum | 90-DEGREES |
Workhead spindle speeds, range | 0 TO 500 RPM |
Grinding table speeds, infinite | 0 TO 18 FPM |
Power rapid table traverse | 18 FPM |
Grinding spindle motor, horsepower | 5 HP/3500 RPM |
Overall dimensions, w x d | 8'0" X 7'7" |
Weight, approximately | 6200 LBS |
There are no files attached to this listing currently. If you Have any further questions regarding this listing, please contact us for more information.
