Equipped With

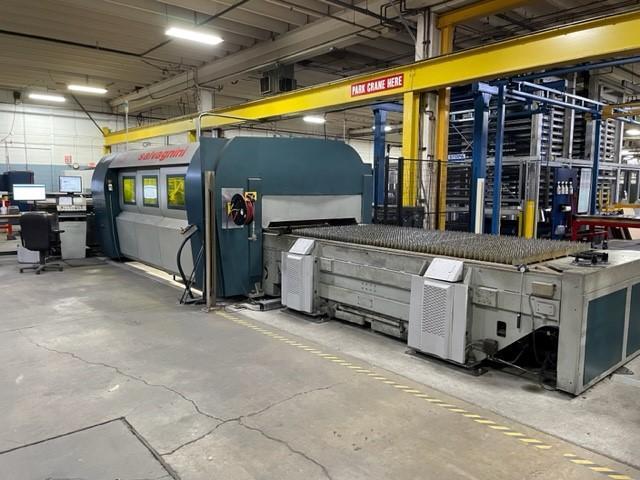

3000 WATT SALVAGNINI L3-30-SYS CNC FIBER LASER CUTTER
New 2011

EQUIPPED WITH
Artificial Vision System
Cutting Head

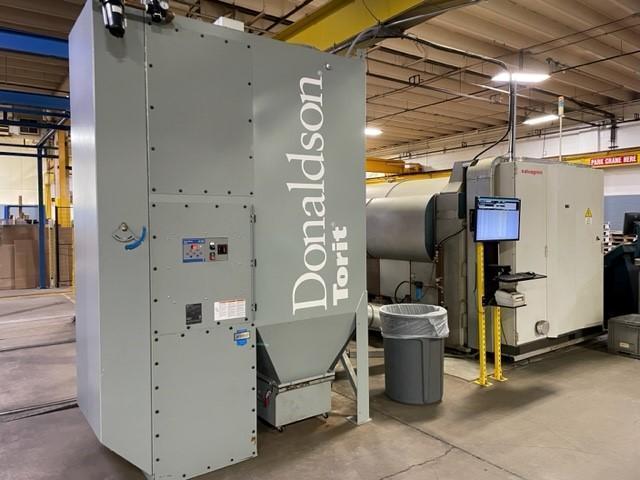

Torit Donaldson Dust Collector

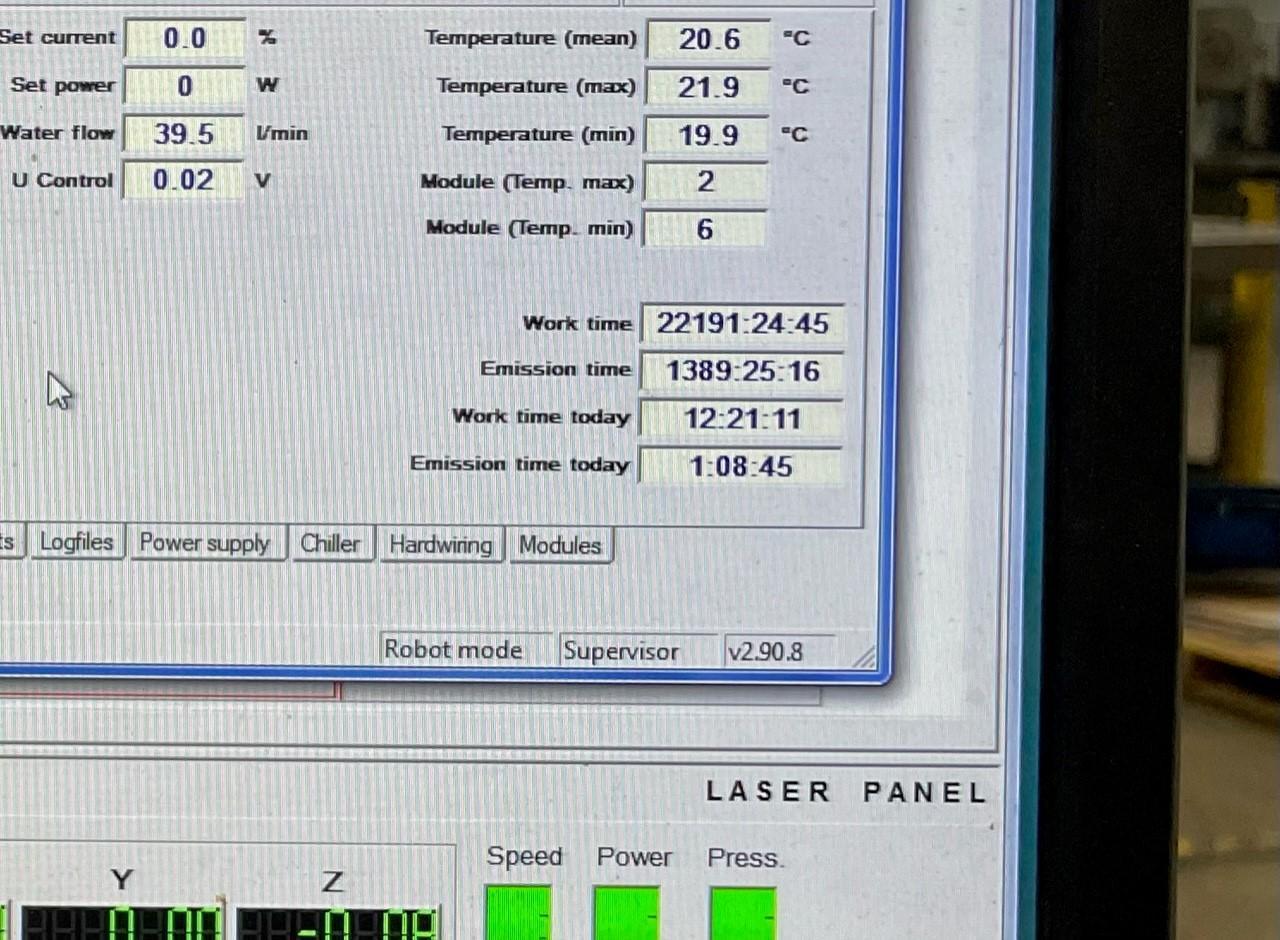

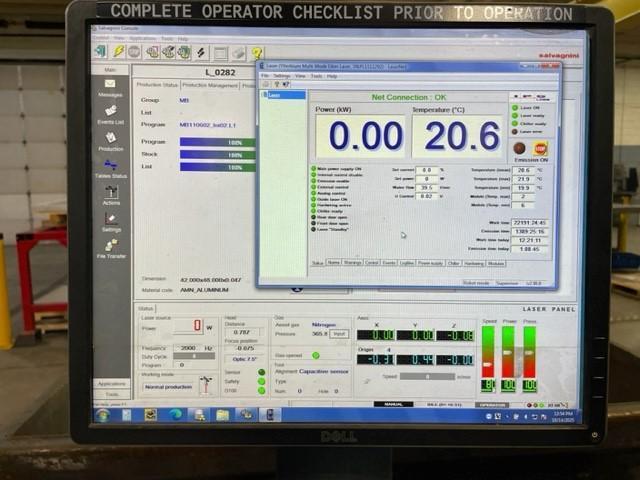

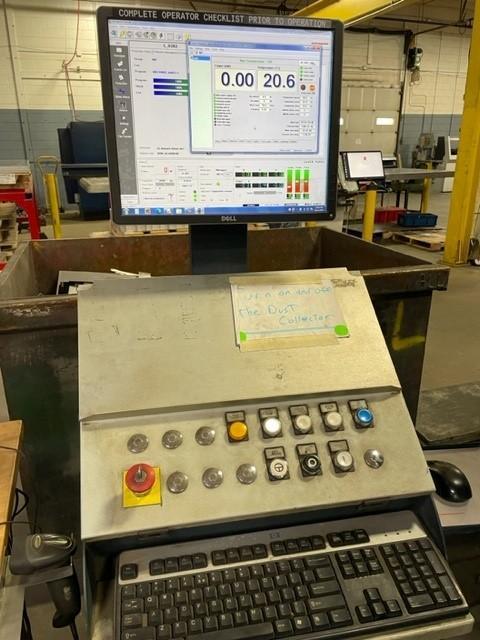

Salvagnini PC Based CNC Controls

Specifications:

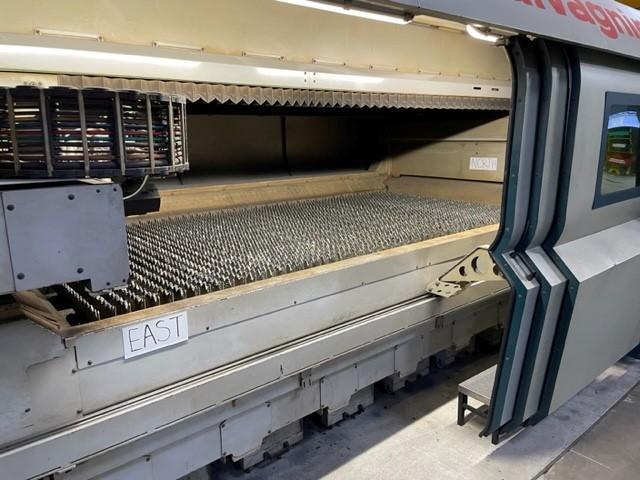

Table Size:                                                        5′ x 10′

Working Range:                                                5′ x 10′

Z Axis Stroke:                                                   3.9″

Maximum Positioning Speed:                           4724 IPM

Positioning Accuracy:                                       .003″

Average Position Range:                                  .001″

Assist Gases:                                                    Nitrogen, Oxygen, Compresser Air

Cutting Capacity (Steel):                                   24 Gauge to 3/4″

Cutting Capacity (Stainless Steel):                   24 Gauge to 7/16″

Cutting Capacity (Aluminum):                           24 Gauge to 3/8″

Cutting Capacity (Copper):                               24 Gauge to 24″ x 5/16″

Cutting Capacity (Brass):                                 24 Gauge to 7/32″
