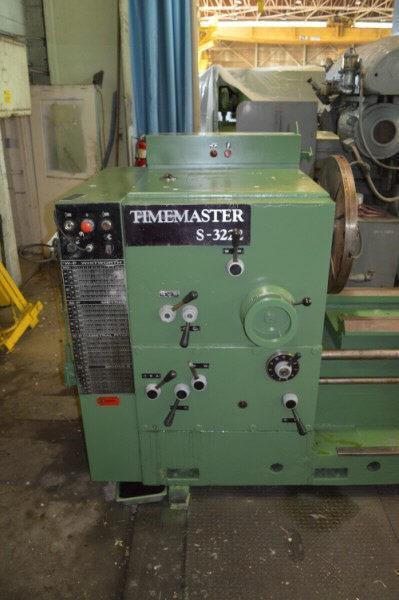

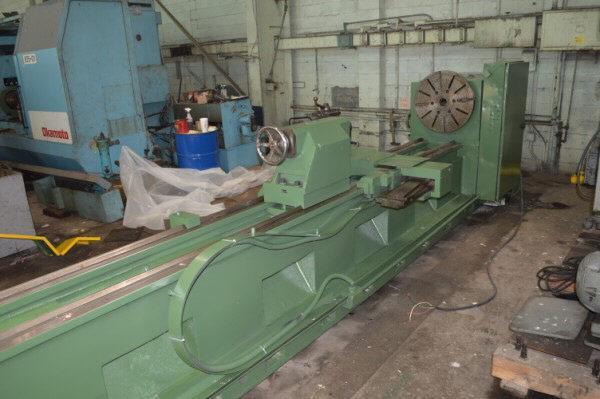

32"/45" X 160" TIMEMASTER MODEL S3222 "HEAVY-DUTY" GAP-TYPE ENGINE LATHE

Manufacturer

Not provided

Model

S3222

Year

Not provided

Stock #

17150

Condition

Used

Request A Quote

Keep Scrolling To Learn More

Specifications

Equipped With

32"/45" X 160" TIMEMASTER MODEL S3222 "HEAVY-DUTY" GAP-TYPE ENGINE LATHE


EQUIPPED WITH:

Taper Attachment

Threading (Inch-Metric) - Threading Dial

25" Faceplate

Hardened & Ground Bed & Cross-Slide Ways

Power Rapid Traverse



CATALOGUE SPECIFICATIONS:

Hole Thru Spindle

5"

Swing Over Bed Ways, Rated

32"

Swing thru Gap

44.78"

Swing Over Cross-Slide

22"

Distance Between Centers

160"

Gap Length

18"

Compound-Rest Travel

12"

Cross-Slide Travel

22"

Tailstock, Quill Diameter

4.75"

Tailstock, Quill Travel

16.5"

Tailstock, Spindle Taper

#6 MT

(24) Spindle Speeds, Range

11 to 800 RPM

(264) Carriage Longitudinal Feeds

.0015 to .205 IPR

(264) Cross Feeds, Range

.0008 to .102 IPR

(66) Thread Changes, Range

27/32 to 52 TPI

(66) Metric Threads, Range

1 to 52 MM

(66) Modular Threads, Range

.25 to 13

(66) Diametral Pitch, Range

3-3/8 to 208

Main Motor, Horsepower

25 HP

Weight, Approximately

16800 LBS
