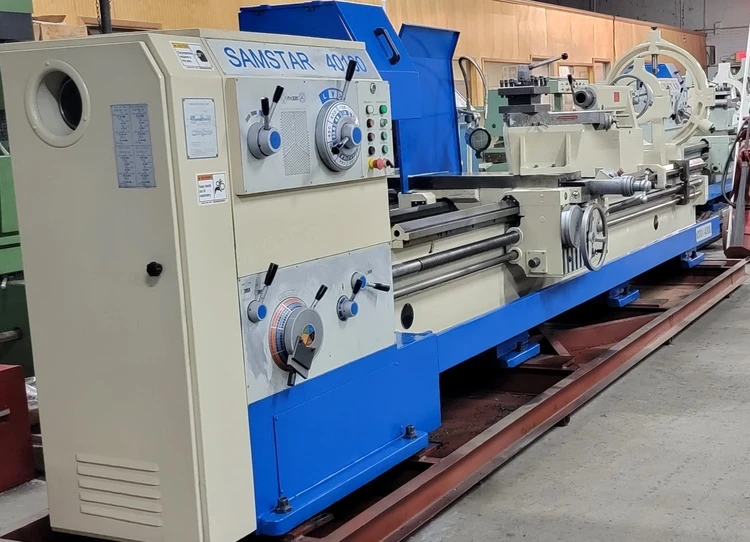

40 x 160 SAMSTAR HEAVY DUTY GAP BED ENGINE LATHE

SPECIFICATIONS:
TURNING DIAMETER OVER BED: 40"
DISTANCE BETWEEN CENTERS: 160"
TURNING DIAMETER OVER CROSS SLIDE: 28 5/16"
TURNING DIAMETER IN GAP: 49 3/16"
BED WIDTH: 21.750"
SPINDLE SPEEDS - FORWARD (18 CHANGES): 6 - 800 RPM

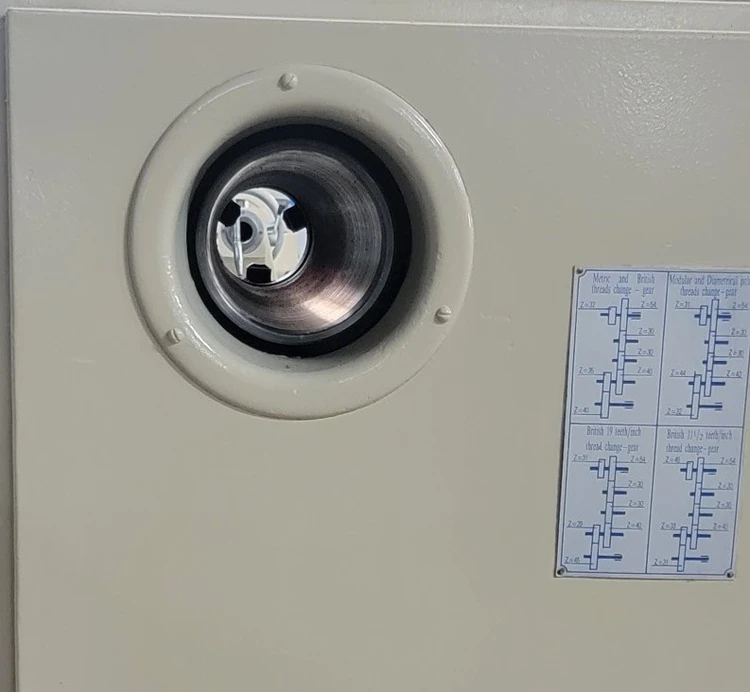

SPINDLE BORE: 5"
SPINDLE MOUNT/TAPER: CAMLOCK D1-11 / MT6
LONGITUDINAL FEEDS (64 CHANGES): .00375 - .928 IPR
CROSS FEEDS (64 CHANGES): .00188 - .464 IPR
RAPID FEED LONGITUDINAL: 106 IPM
RAPID FEED CROSS SLIDE: 53 IPM
MAX CROSS SLIDE TRAVEL: 19.750"
MAX COMPOUND SLIDE TRAVEL: 9 7/16"
INCH THREADING (26 CHANGES): 14 - 1 TPI
METRIC THREADING (50 CHANGES): 1 - 240 MM
DIAMETRIC PITCH THREADING (24 CHANGES): 28 - 1 TPI
MODULE PITCH THREADING (53 CHANGES): .5 - 120 MM
TAILSTOCK TAPER: MT6
TAILSTOCK QUILL STROKE:2 SPEED GEARED 12"
MOTOR RATING: 20 HP
RAPID TRAVERSE 1 1/2 HP
COOLANT PUMP 1/8
OVERALL DIMENSIONS (L x W x H): 242" x 65" x 67"
APPROXIMATE WEIGHT: 14,500 LBS

EQUIPPED WTH
HEAVY DUTY ONE PIECE CONSTRUCTION
HARDENED & GROUND BED WITH GAP
ELECTRO-MAG CLUTCH & BRAKE SYSTEM
HARDENED AND GROUND WAYS

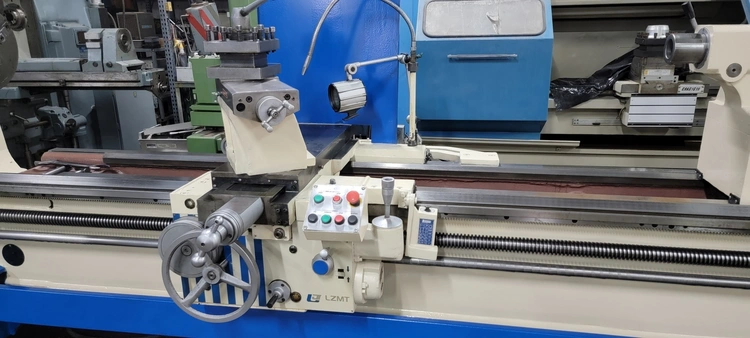

6 WAY RAPID TRAVERSE
4 JAW CHUCK
5" SPINDLE BORE !

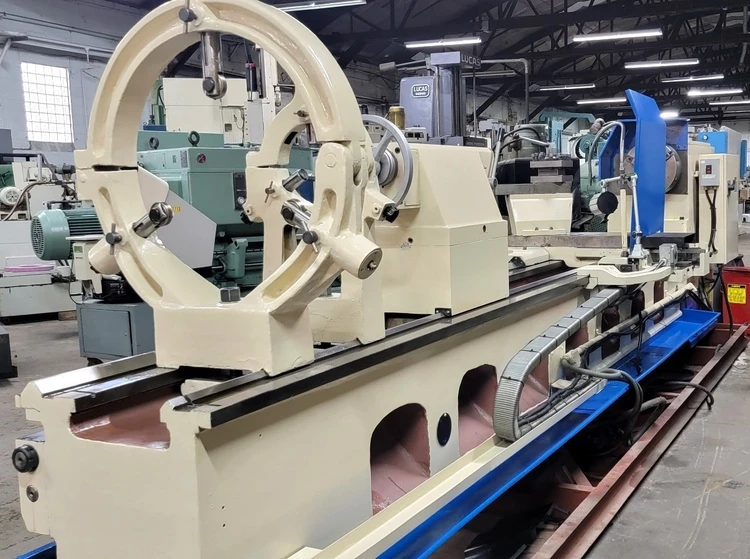

2 STEADY RESTS (1) EXTRA LARGE ROLLER BEARING APPROX 22" CAP ! (1) REG APPROX 7" CAP
TAPER ATTACHMENT !
