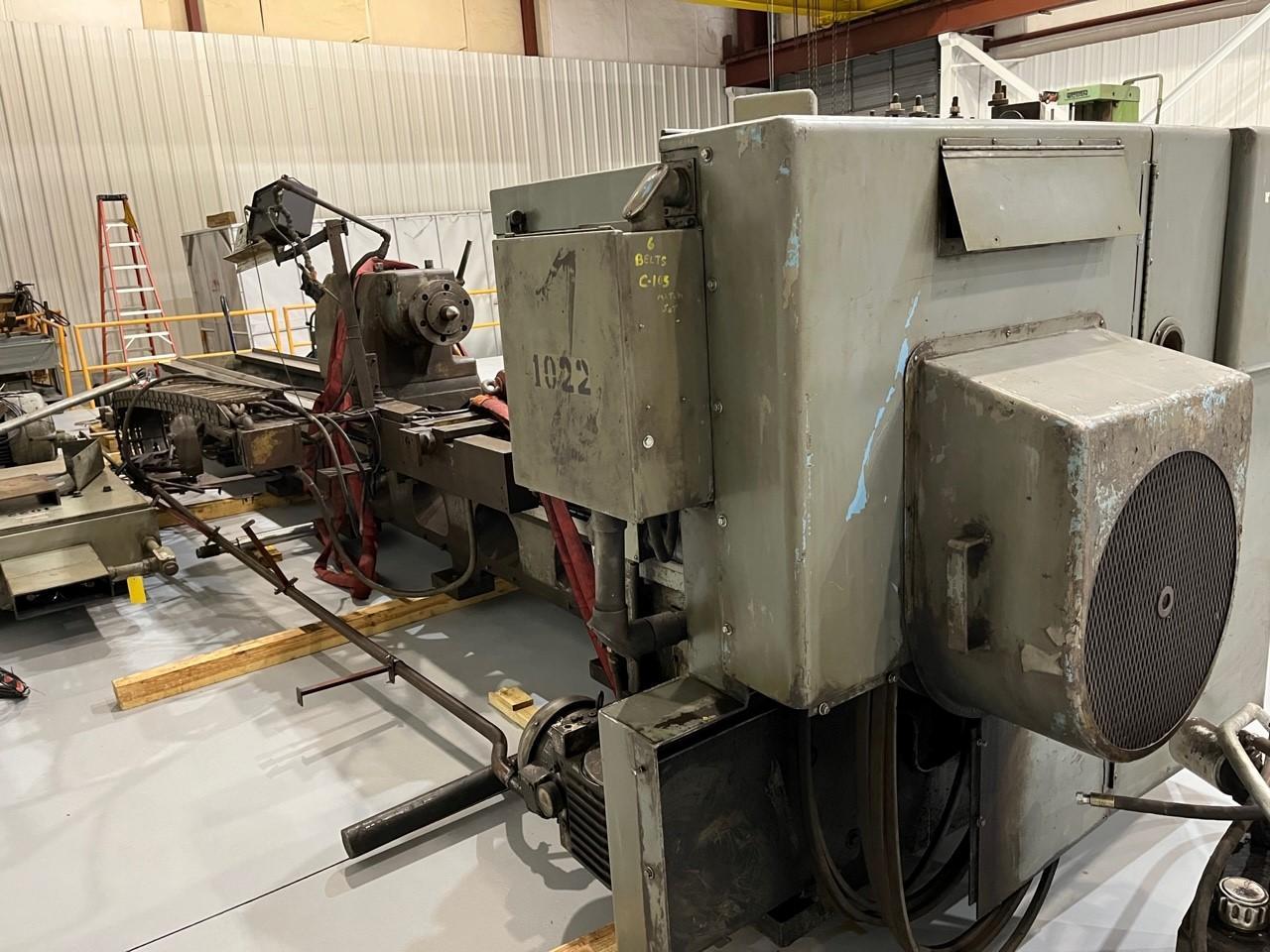

40" x 204" LEBLOND MODEL NK4025 HEAVY DUTY ENGINE LATHE
Year
1969
Stock #
19455
Condition
Used
Keep Scrolling To Learn More
Specifications
Equipped With
40" x 204" LEBLOND MODEL NK4025 HEAVY DUTY ENGINE LATHE
New 1969
Swing over bed ways ......................................................................................... 40"
Swing over cross slide ...................................................................................... 25”
Distance between centers (17’) ......................................................................... 204"
Bed width ........................................................................................................... 34"
Bed depth ........................................................................................................... 26"
Spindle mount ................................................................................................... 11”A1
Spindle center to floor ....................................................................................... 44”
Hole thru spindle ................................................................................................ 3.062"
Spindle RPM (36 speeds) .................................................................................... 5.4 to 600 RPM
Threads per inch ............................................................................................... ¾” to 46 TPI
Feeds ................................................................................................................. .004” to .250” IPR
Tailstock, quill diameter ..................................................................................... 8"
Tailstock, quill taper ........................................................................................... #6
Tailstock, quill travel ........................................................................................... 18"
Tailstock, quill taper ........................................................................................... #6 MT
Tailstock, quill chuck mount ............................................................................... 11” A1
Main motor horsepower ..................................................................................... 75 HP
Electrics – 220/440 ............................................................................................ 440 volt (wired)
Floor space (l x w x h) ........................................................................................ 355’ x 90” x78”
Weight ............................................................................................................... 43,000 lbs.
Equipped with:
Hardened and ground bed ways

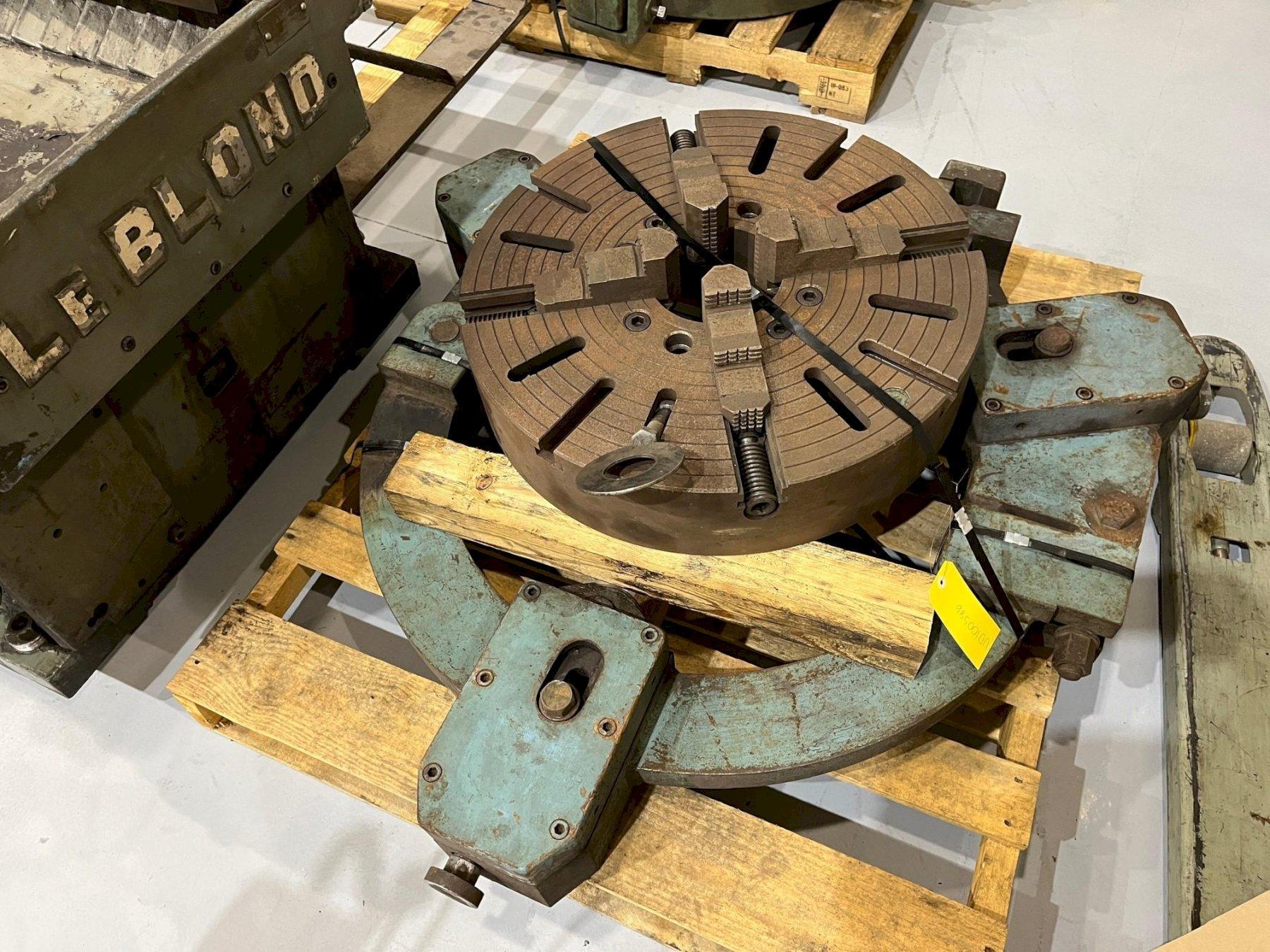

32" chuck, 4-jaw, t-slotted
25" chuck, 4-jaw, t-slotted
Rapid traverse
Threading dial
Micrometer carriage stop
Aloris EA tool post with EA1 holder
(1) steady rest, 24“ capacity
(1) steady rest, 20“ capacity
(1) steady rest, 12“ capacity

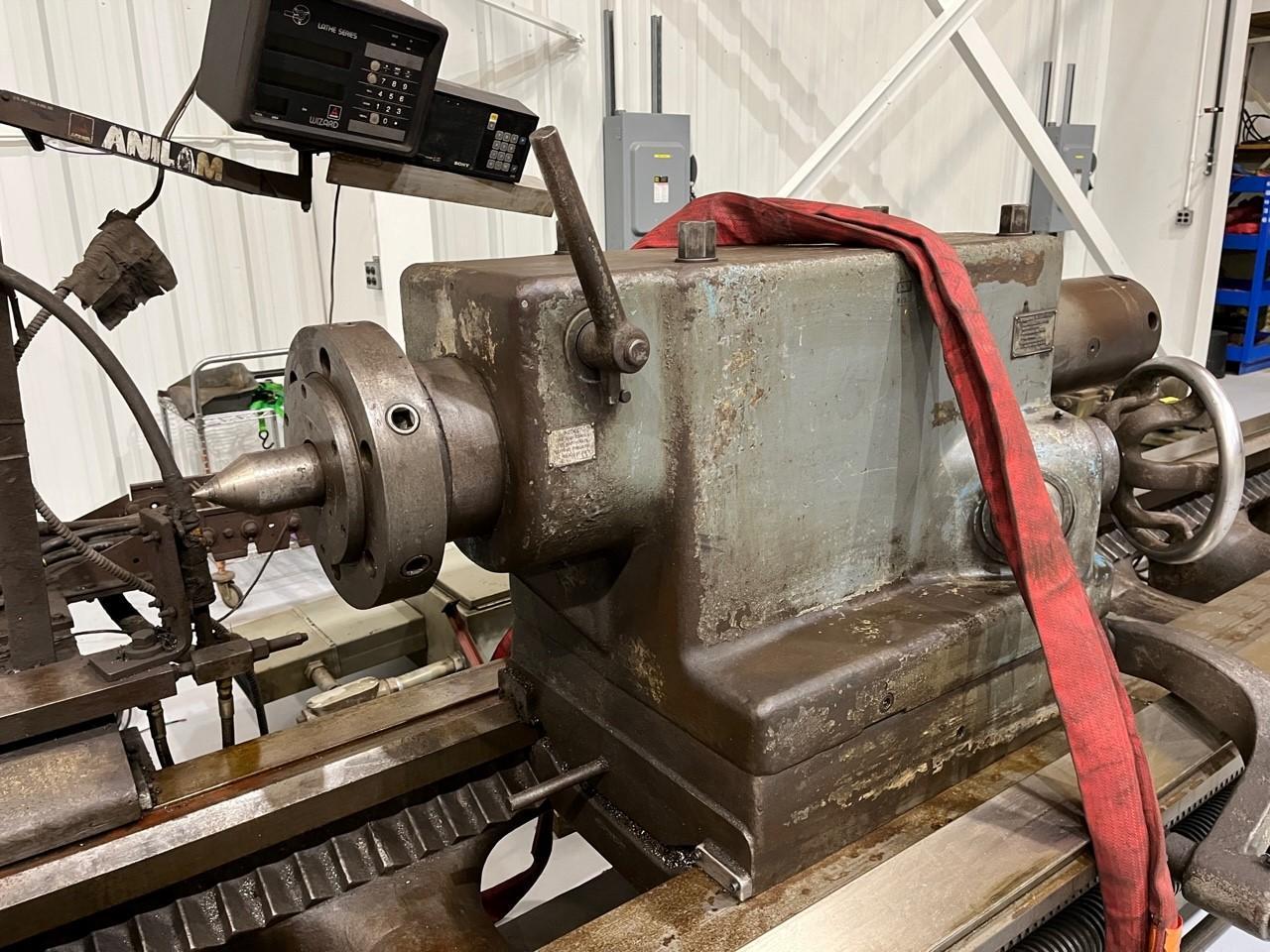

Tailstock live quill, w/ 11”-A1 chuck mount
