Equipped With

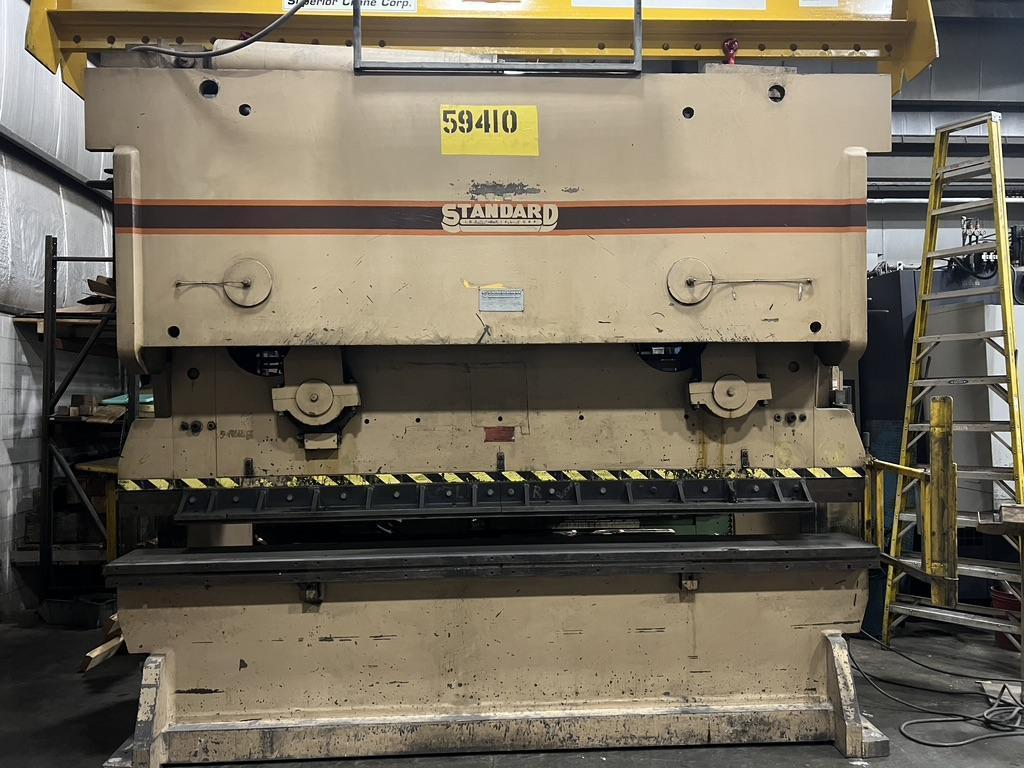

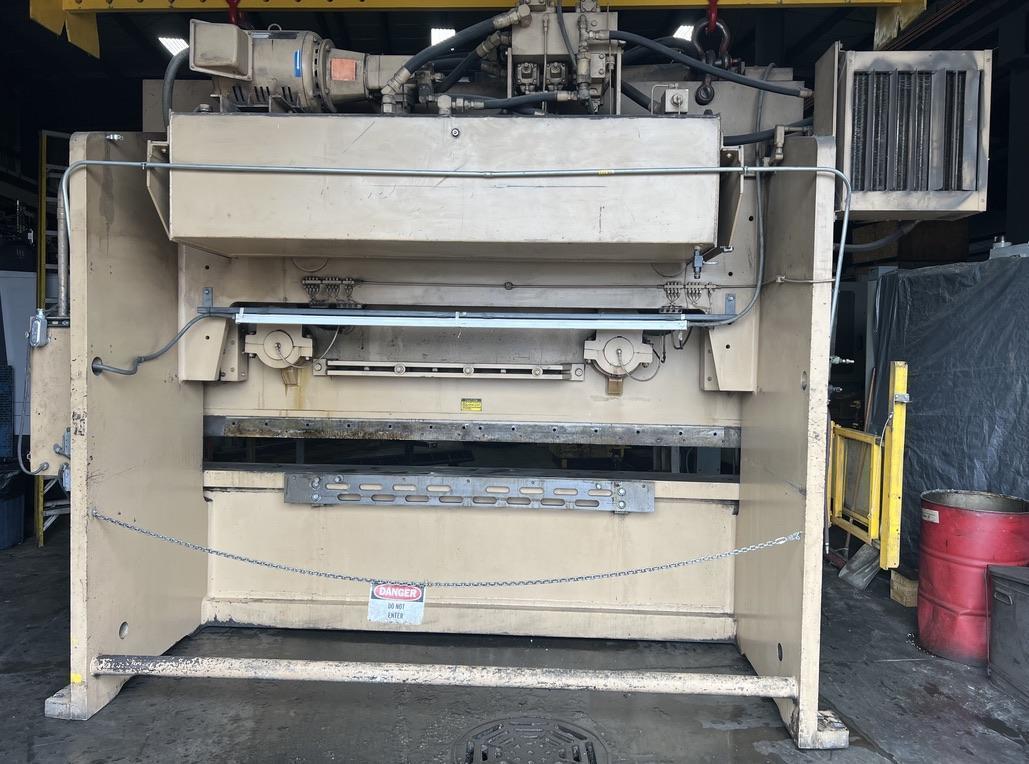

400 TON x 12' STANDARD MODEL AB400-12 HYDRAULIC PRESS BRAKE
New 1998

Standard Features:

Full-tonnage throughout stroke
Solid, non-moveable lower beam substantially more rigid than “bed level” press brakes
Off-center loading capability
The most heavy duty press brake built in the USA
Extremely heavy duty lower beams allowing the least amount of deflection. Less deflection = longer tool life = more profitability
All parts will be readily available for a lifetime from anywhere in the USA
The in-line depth stop ensures no down-time due to computer failure
Dual palm buttons
Flush Floor Mount (No pit required)
Includes 10'  x 13.5"  Face Angle brackets for the Ram

Specifications:

Capacity:

Forming:                                                400 Tons
Punching:                                              265 Tons
Bed/Ram Length:                                  12′
Between Frames:                                  10′ 5″
Open Height:                                         20″
Stroke:                                                   10″
Closed Height:                                      10″
Throat Depth:                                        10″

Mechanical Specifications:

Weight: approx.                                   58,000 lbs.
Shipping Dimensions:                        140" H x 176" L x 72" W
