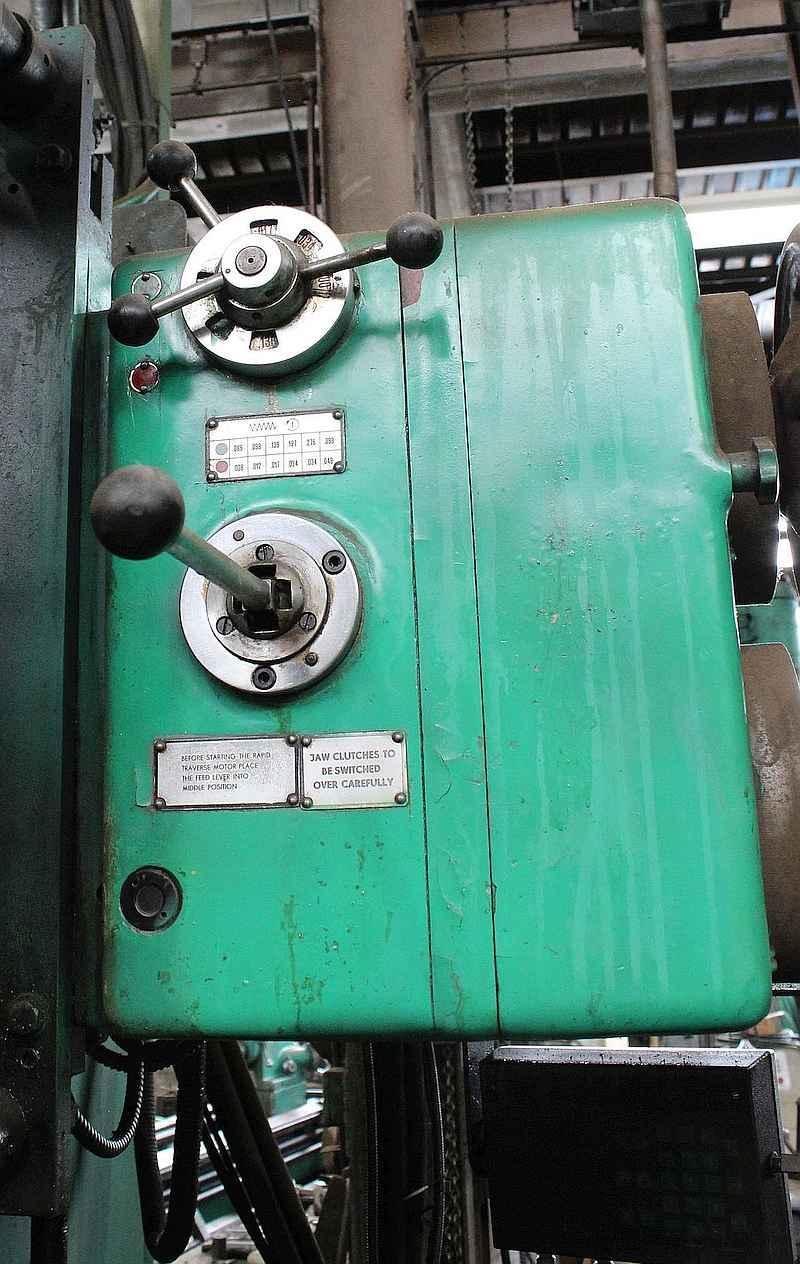

43" DEFUM MODEL: KNA 43/53 VERTICAL TURRET LATHE
New 1976

SPECIFICATIONS:

TABLE DIAMETER................................ 43"

MAX. FACING DIAMETER (SIDE HEAD LOWERED)...... 53"

MAX. TURNING DIAMETER WITH SIDE HEAD.......... 43"

MAX. WORK HEIGHT, TABLE TO TURRET HEAD FACE... 39"

SLIDE TRAVELS:

VERTICAL TRAVEL OF TURRET RAM................. 23 5/8"

BOTTOM OF CROSS RAIL TO TABLE SURFACE......... 7 1/8" - 39"

VERTICAL TRAVEL OF SIDE HEAD.................. 22"

HORIZONTAL TRAVEL OF SIDE HEAD RAM............ 24"

TURRET HEAD SWIVEL............................ +/- 45 DEG.

DIAMETER OF TURRET HEAD BORES................. 2 3/4"

TABLE SPEEDS:

PENDANT SELECTED TABLE SPEEDS (16)............ 6.3 - 200 RPM

MAIN DRIVE TO TABLE........................... 30 HP

FEEDS:

FEEDS TO TURRET AND SIDE HEAD (16)............ 0.008 - 0.393 IPR

RAPID TRAVERSE OF HEADS, PENDANT CONTROLLED... 110 IPM

APPROX. WEIGHT................................ 24,000 LBS

EQUIPPED WITH:

HARDENED CROSS RAIL WAYS

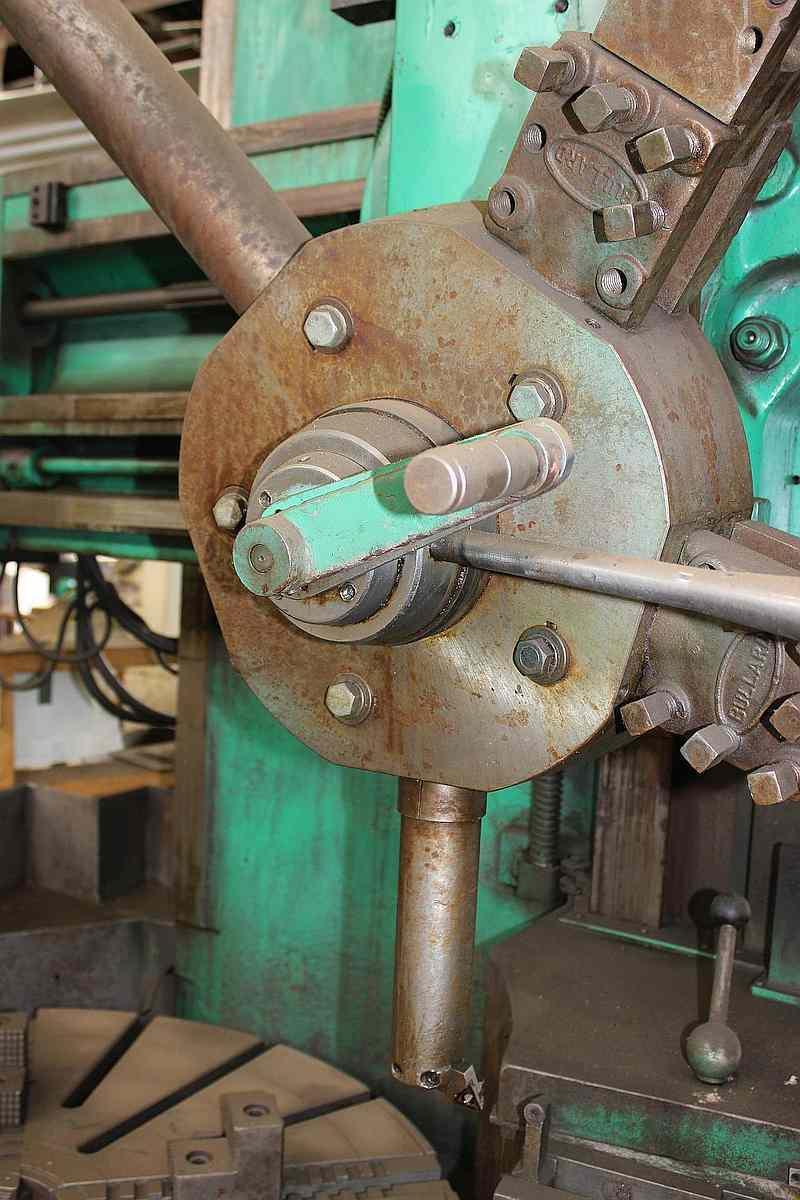

PENTAGON TURRET HEAD

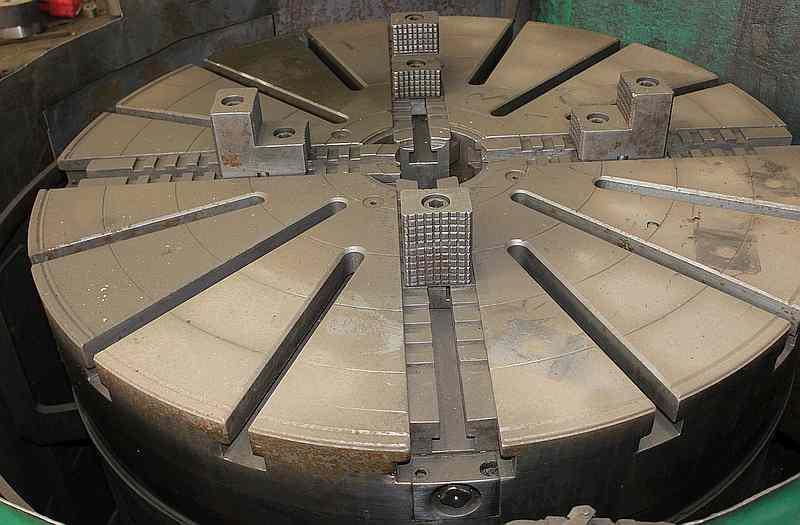

43" 4-JAW CHUCK

COMPLETE SIDE HEAD WITH FOUR-WAY INDEXING TURRET

COOLANT PAN & GUARDING SYSTEM

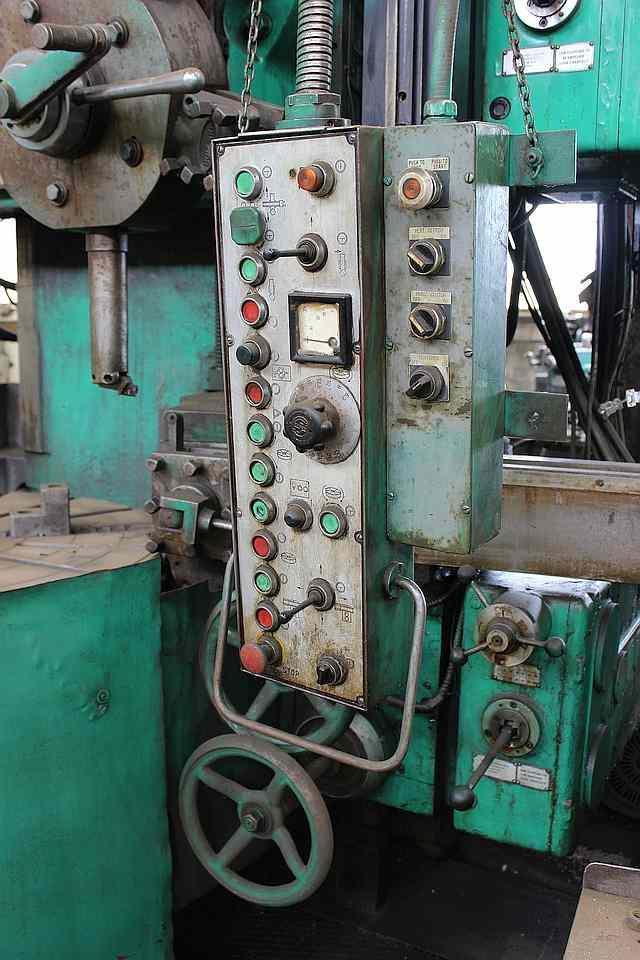

PENDANT CONTROL

MIMIK 180 TRACER ATTACHMENT

THREADING ATTACHMENT

(2) SET OF 4 CHUCK JAWS

(1) LONG BORING BAR

(1) SHORT BORING BAR

(1) LONG FLANGE BOX TYPE TOOL HOLDER

(1) SHORT FLANGE BOX TYPE TOOL HOLDER

COOLANT PAN WITH PUMP & GAURDS
