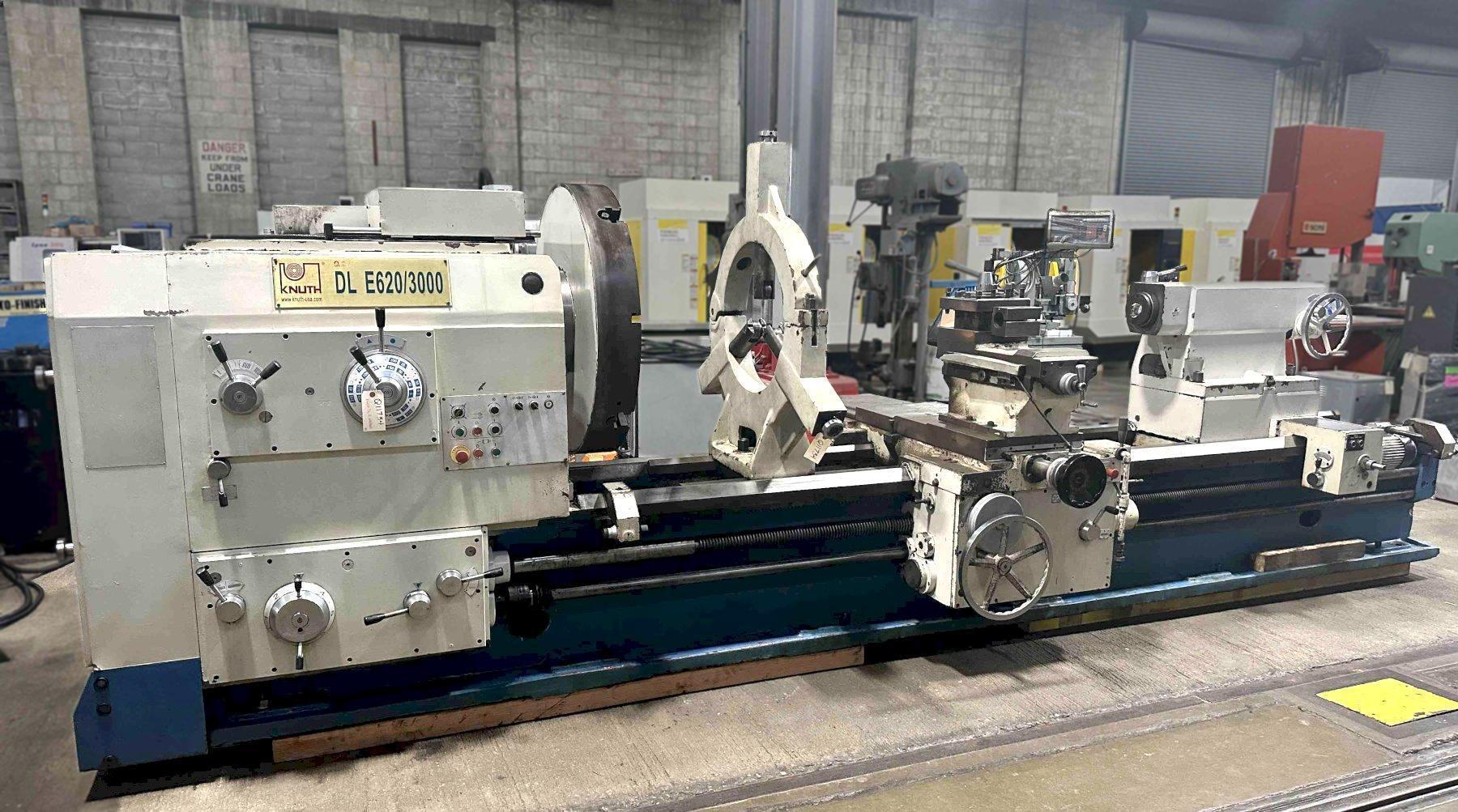

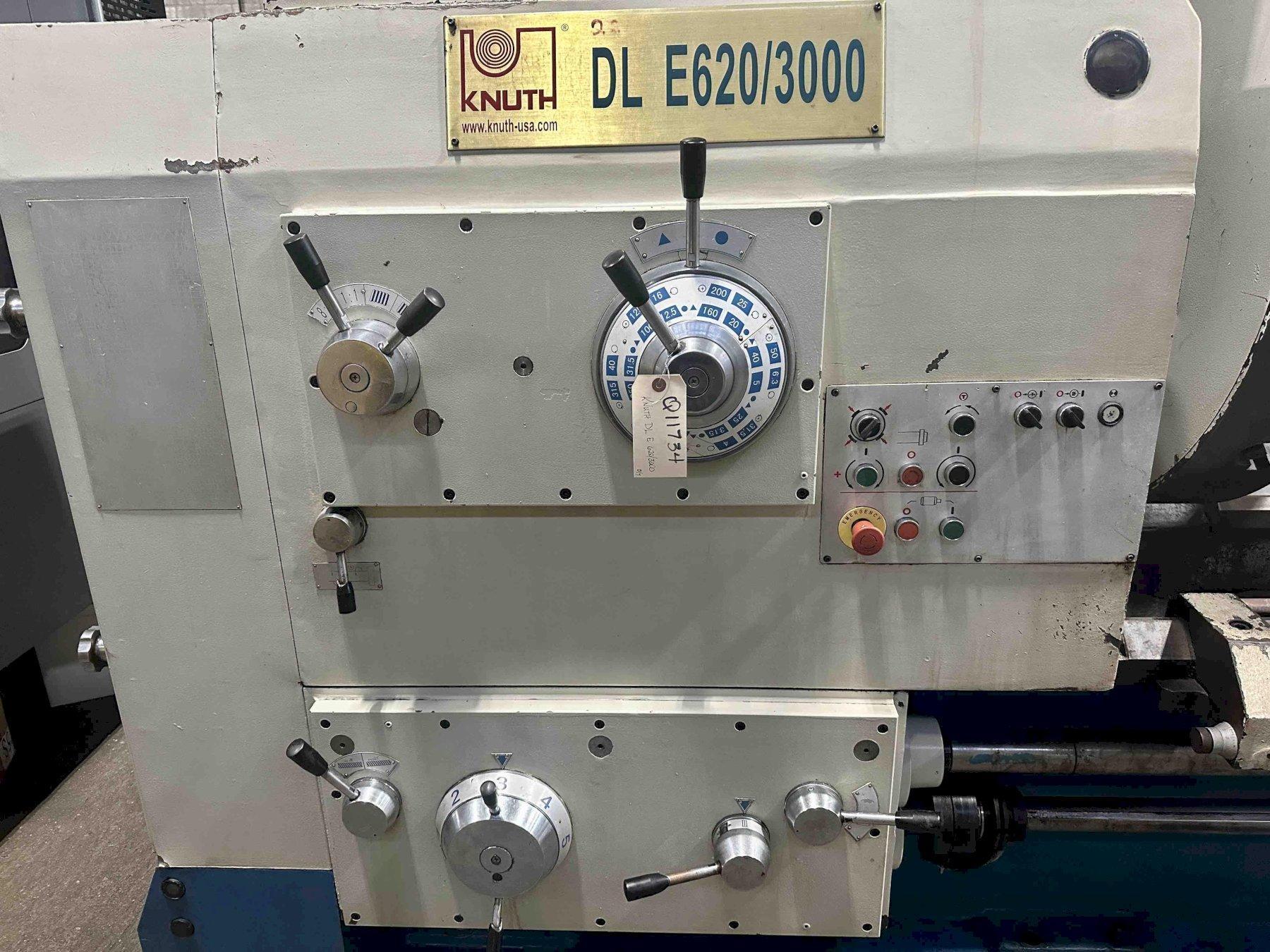

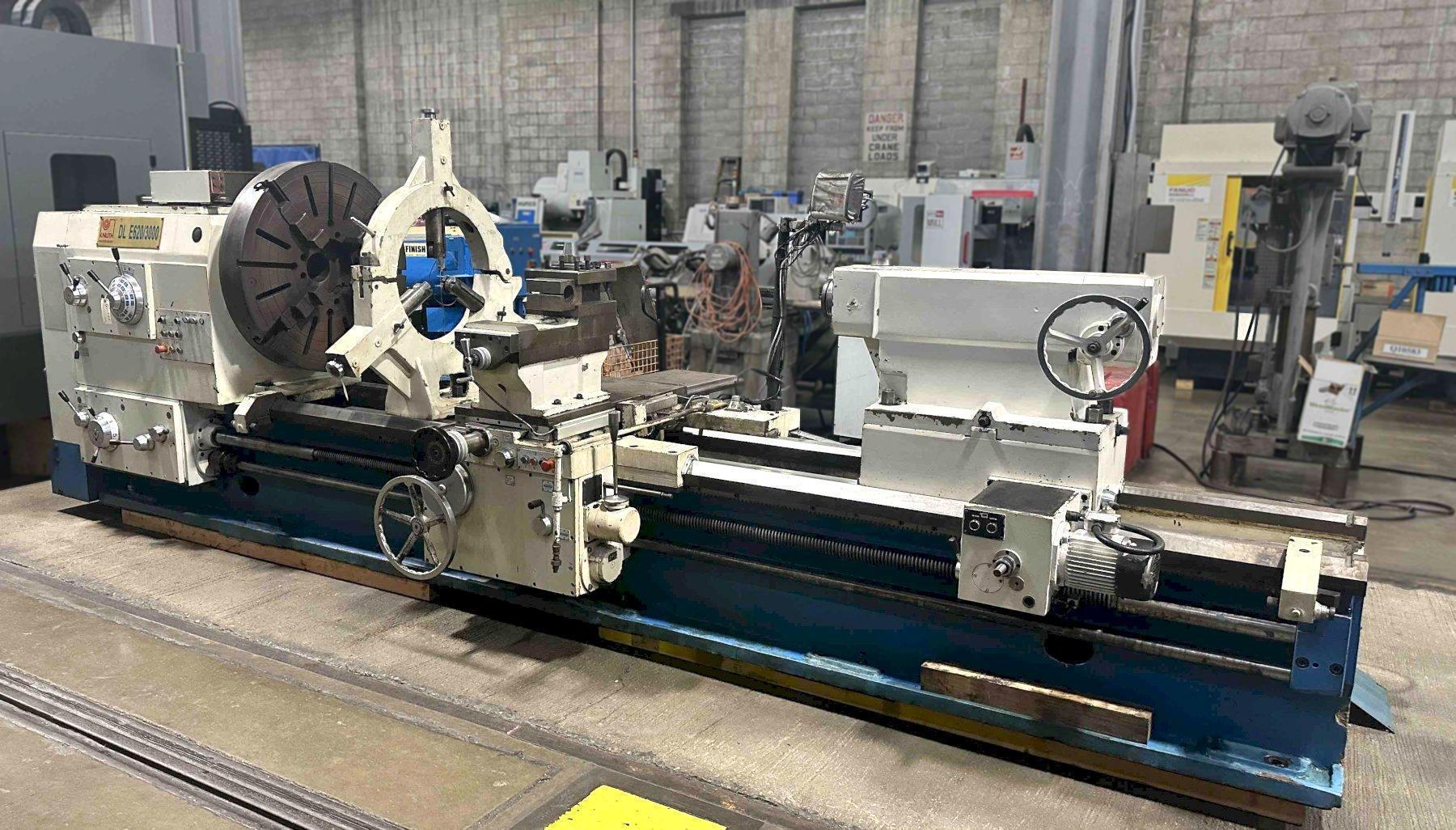

49" X 118" KNUTH DL E 620/3000 ENGINE LATHE

New 2010

EQUIPPED WITH:

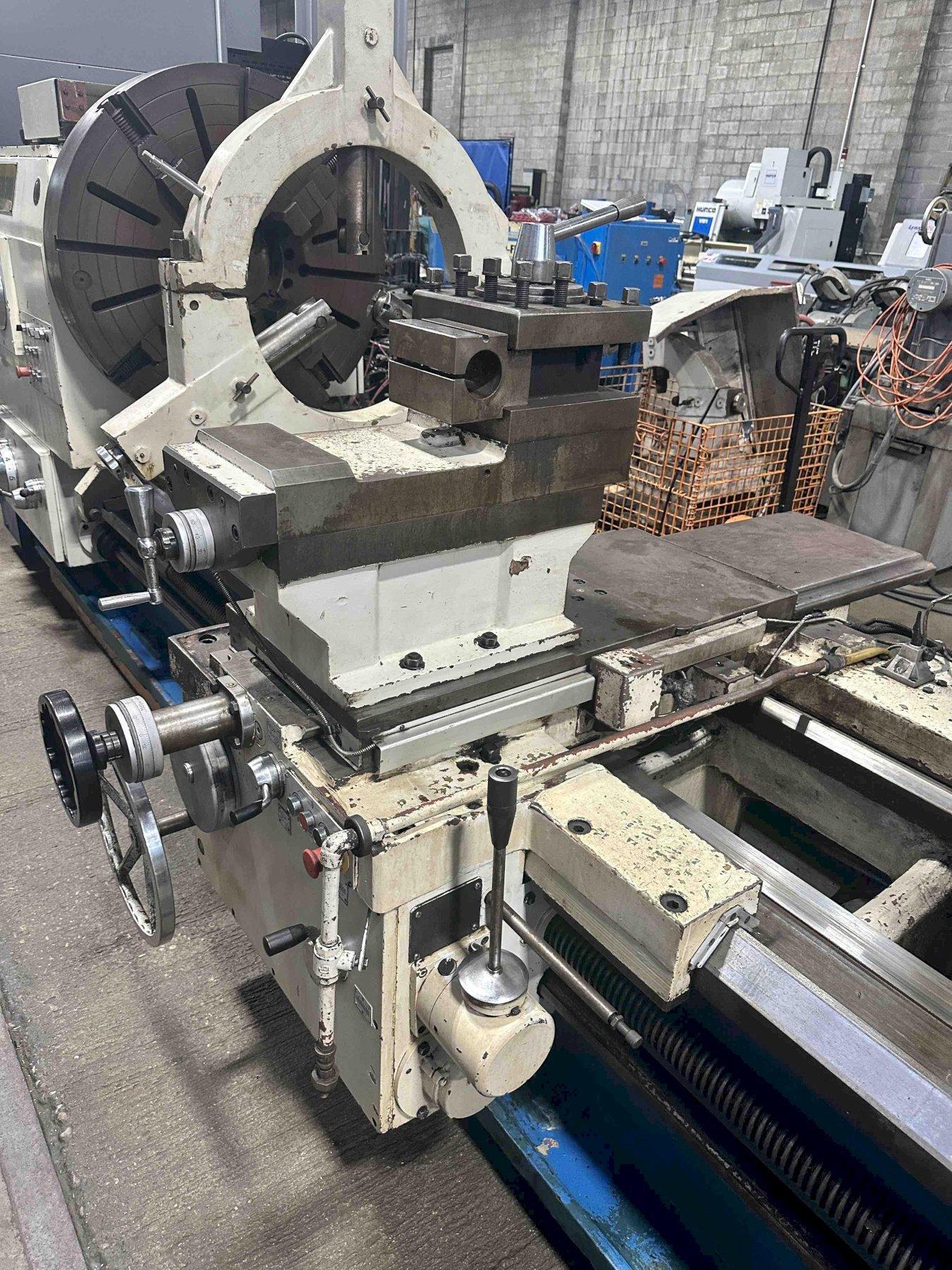

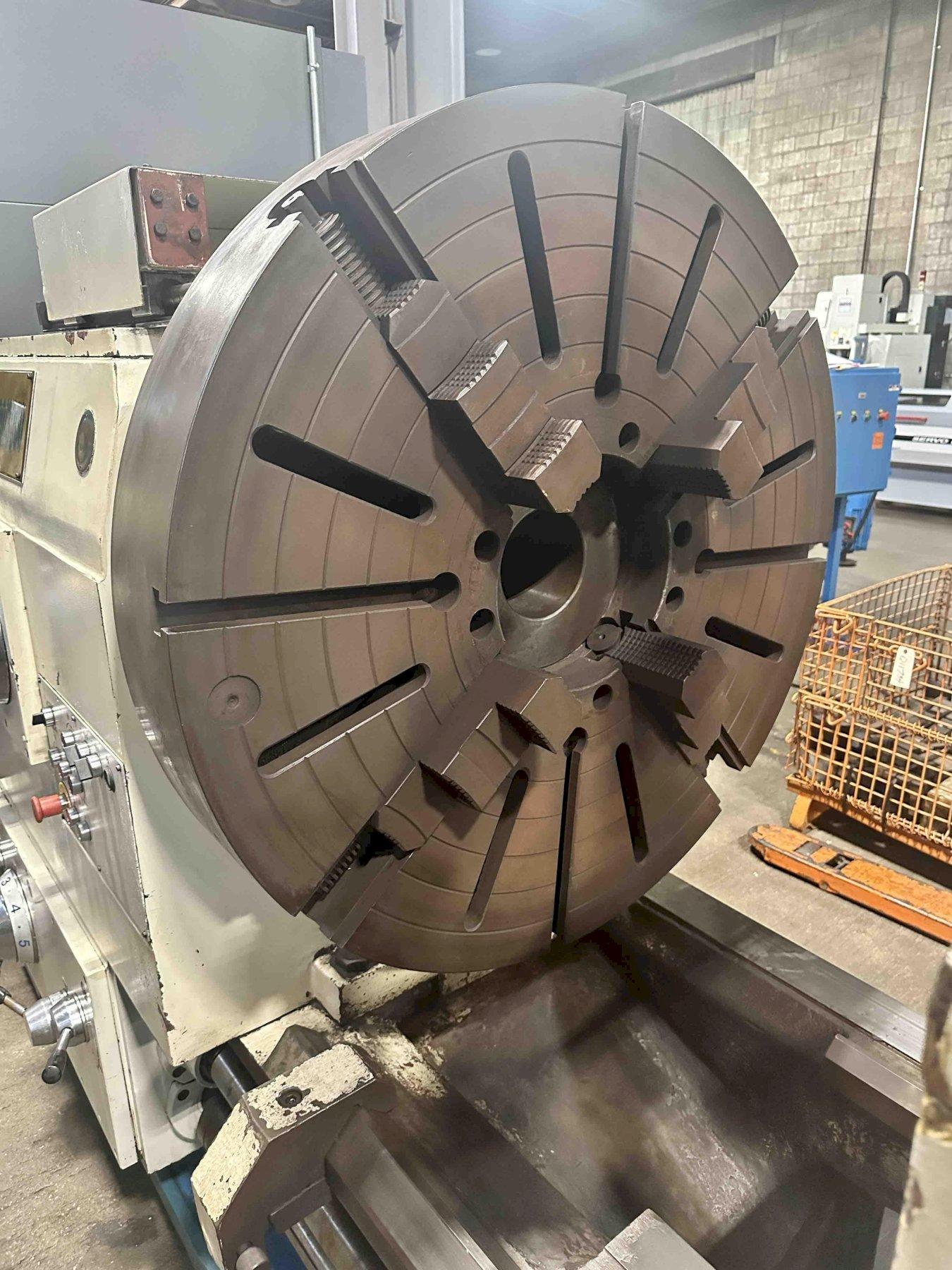

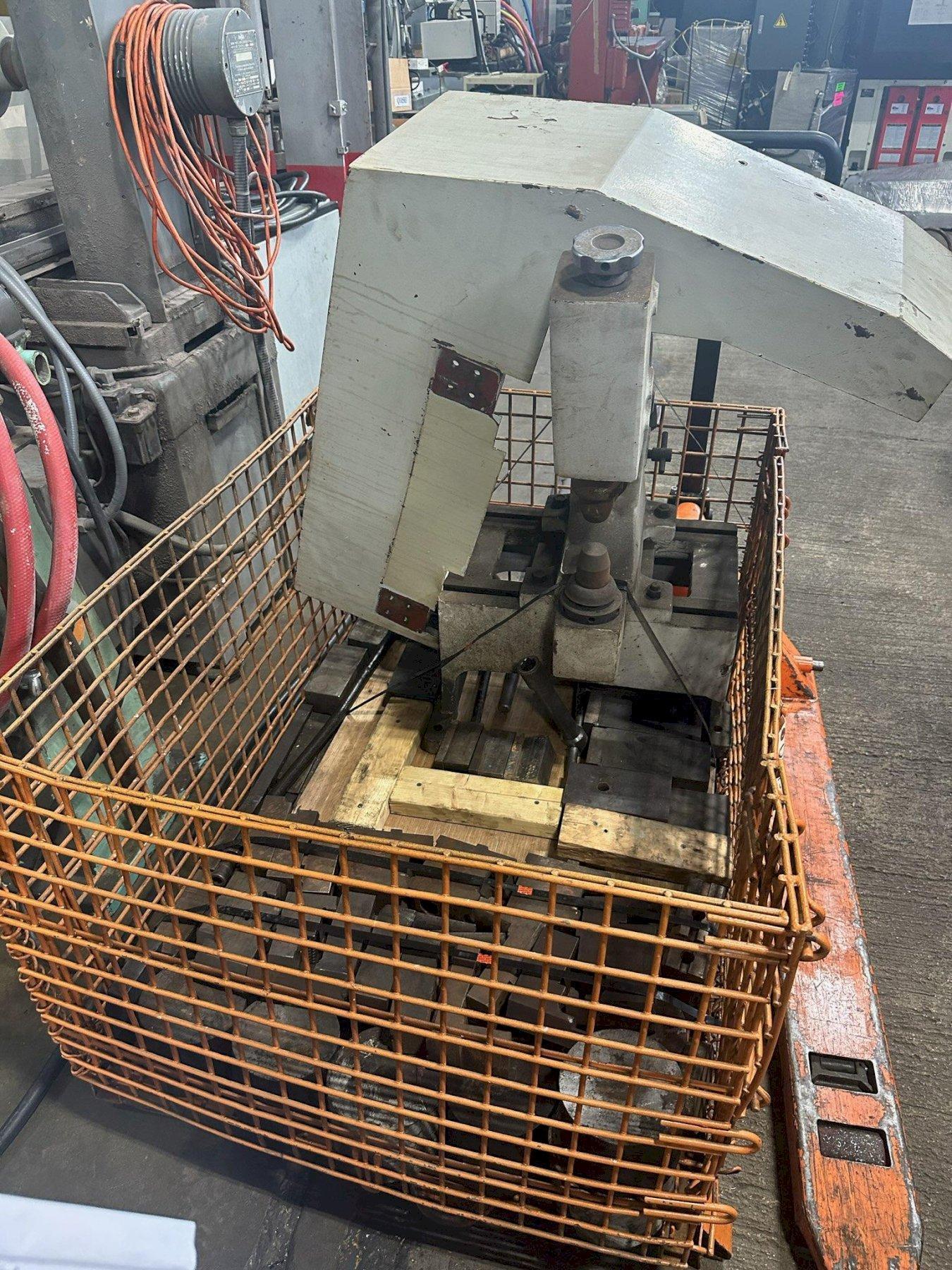

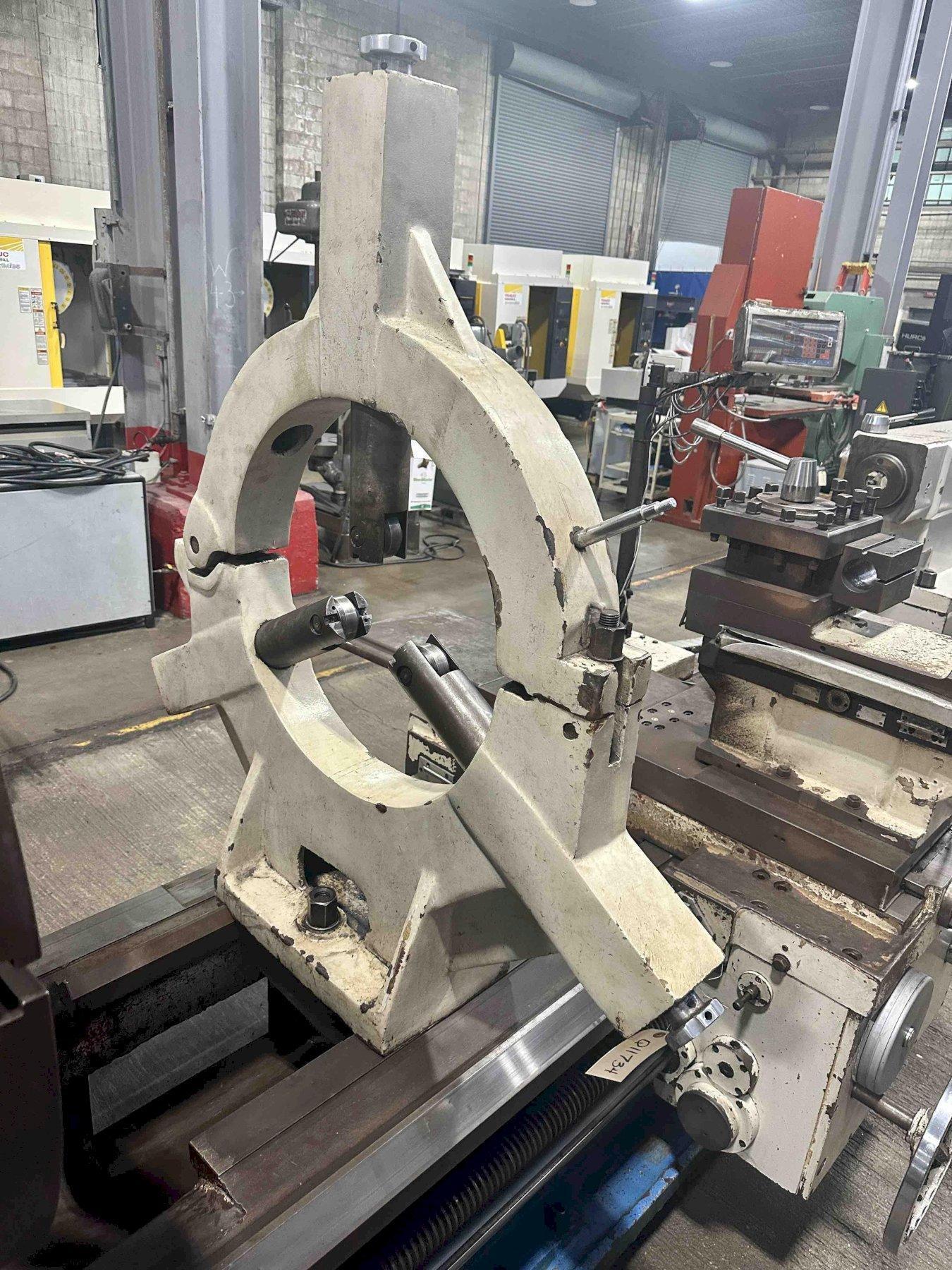

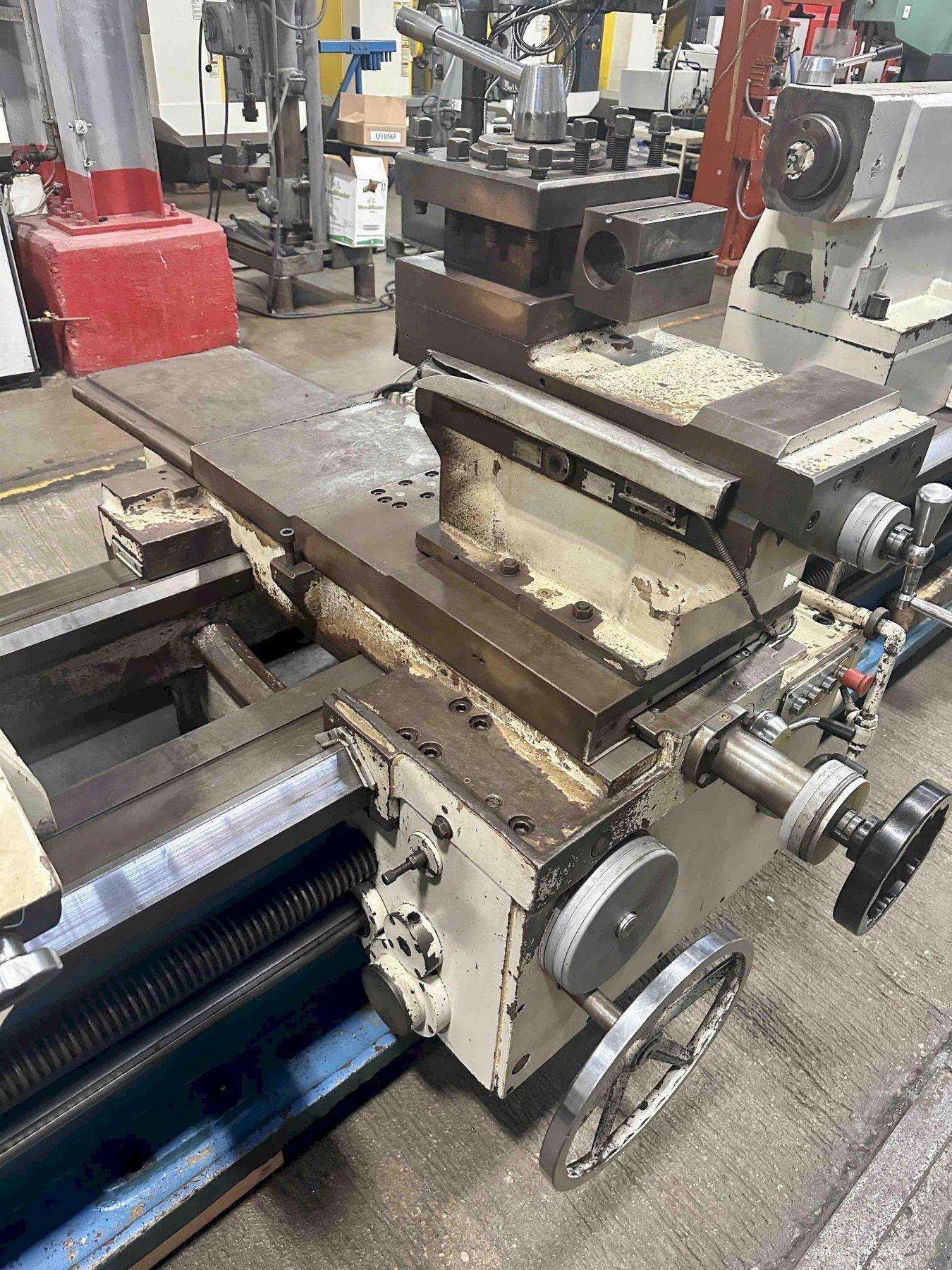

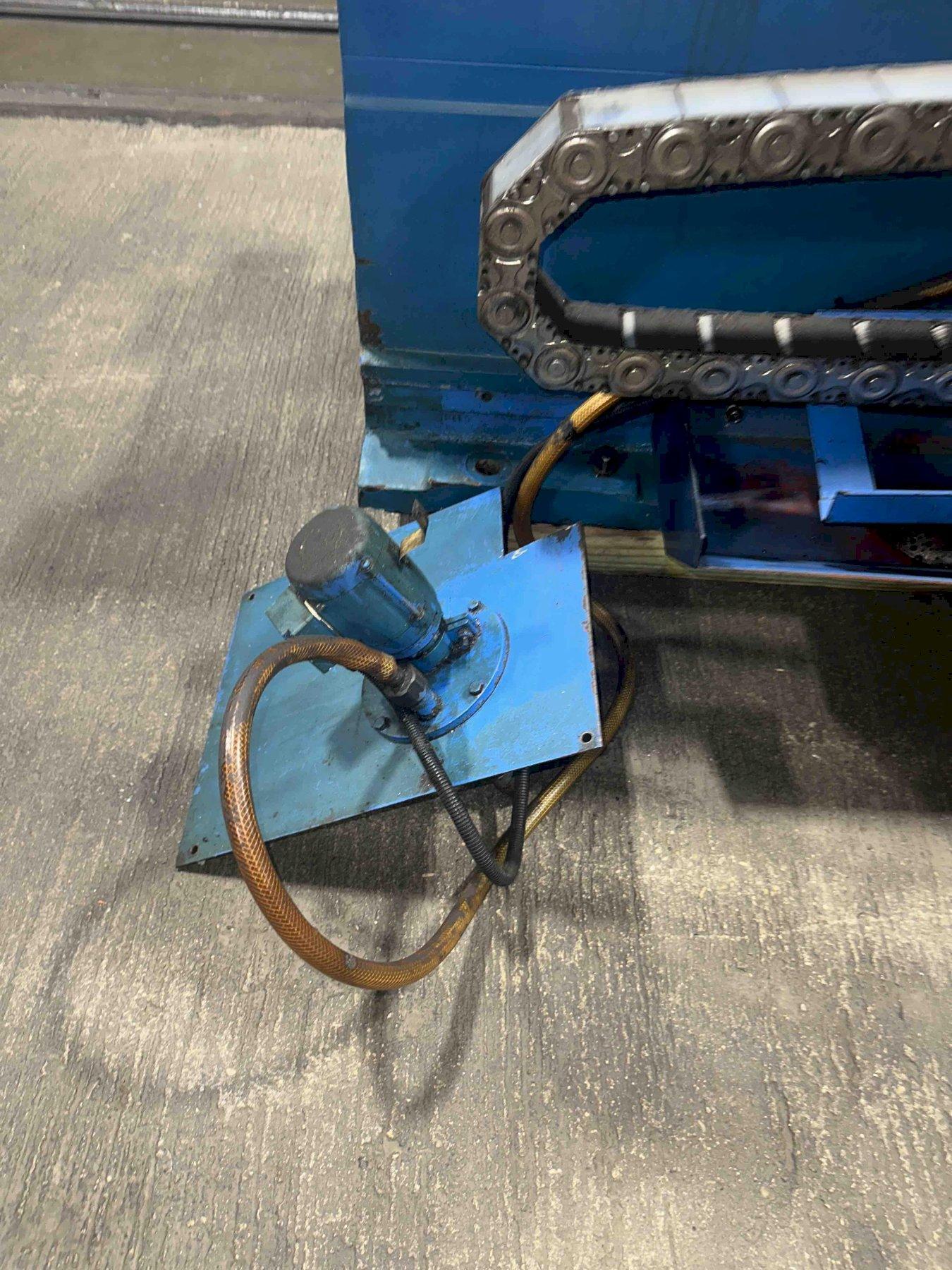

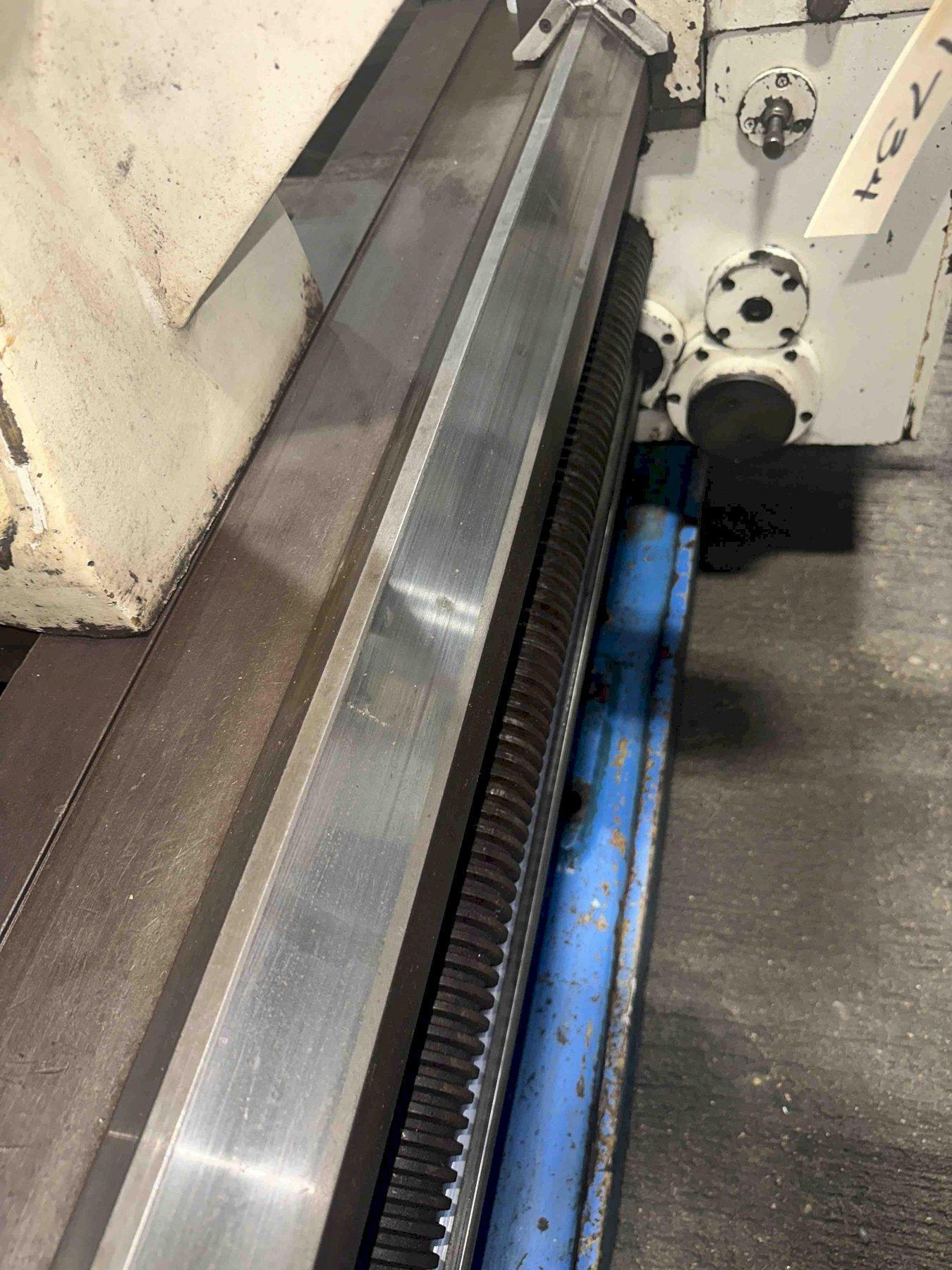

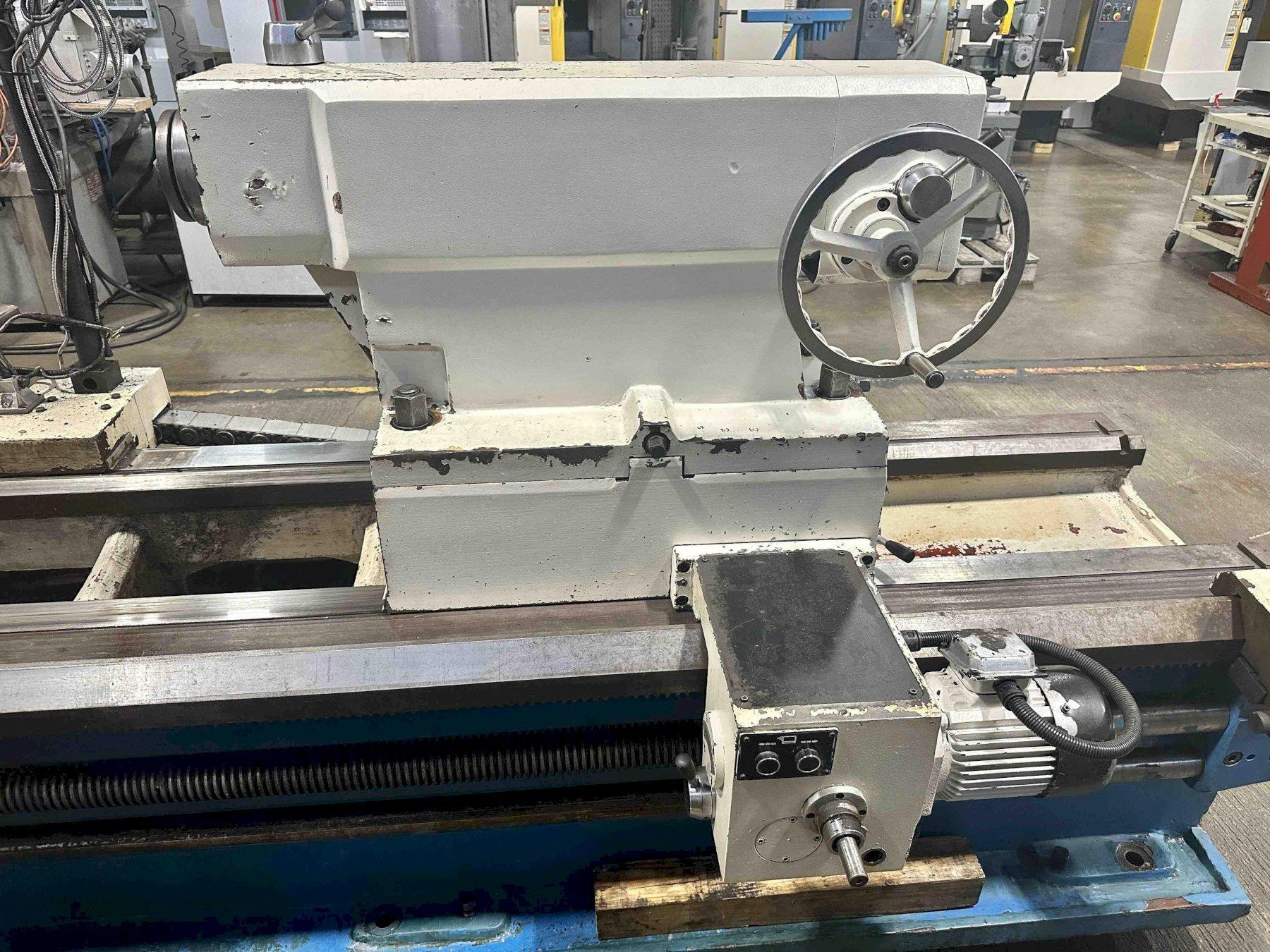

This is the Heavy Duty DL E Series (It's a Beast), Hardened and Ground Ways, Joy Stick Power Rapid Traverse of X & Z Axis, Power Feeds of X and Z Axis, Independent Tailstock Positioning Motor, 4 Sided Tool Post with an Add-On Removable 2-1/4" Boring Bar Holder on One Side, 2"-9" Cap Follow Rest, Optional 2"-23" Steady Rest Included, Inch/ Metric Threading, 3 Axis DRO Position Indicator, 4-Jaw Independent 39.5" Face Plate Chuck with lots of Extra Jaws and Factory Chuck Wrench, Central Lubrication, Coolant System, Chuck Guard and Auxiliary Chip Guards and Pan Behind the Machine, Leveling Pads and Manuals

SPECIFICATIONS:
Max Workpiece Length: 118"
Max Turning Diameter Over Bed: 49"
Max Turning Diameter Over Carriage: 35"
Max Workpiece Weight: 13,200 LBS
Width of Bed: 30"
Max Weight Capacity Between Centers: 13,200 LBS
Max Weight Capacity on Chuck: 3,300 LBS
Chuck Size: 39.5"
X-Axis Travel: 24.8"
Z-Axis Travel: 110"
Z1-Axis Travel: 12"
Swing Range of Top Slide: ± 180°
X-Axis Rapid Traverse Rate: 73.62 IPM
Z-Axis Rapid Traverse Rate: 147.24 IPM
Spindle Nose: A2-15
Spindle Bore: 5.1"
# Spindle Speeds (Right): 21
Spindle Speed Range (Right): 3.15 to 315 RPM
# Spindle Speeds (Left): 12
Spindle Speed Range (Left): 4 to 315 RPM
# of Threads - Inch: 48
Inch Threads: 5 to 60 TPI
# of Threads - Metric: 45
Metric Threads: 1 to 120 mm
# of Feeds: 3
X-Axis Feed Rates: 0.00252 - 0.47244 IPR
Z-Axis Feed Rates: 0.00126 - 0.23622 IPR
Z1-Axis Feed Rates: 0 - 0.12 IPR
Tailstock Quill Diameter: 6"
Tailstock Quill Taper: metric 80
Tailstock Quill Stroke: 12"
Tailstock Traverse Adjustment: ± 0.1"
Main Motor: 29.5 HP (22 KW)
Electrics: 440/3/60
Approximate Machine Dimensions: 241" x 76"
Approximate Machine Height: 76"
Approximate Machine Weight: 28,000 LBS
