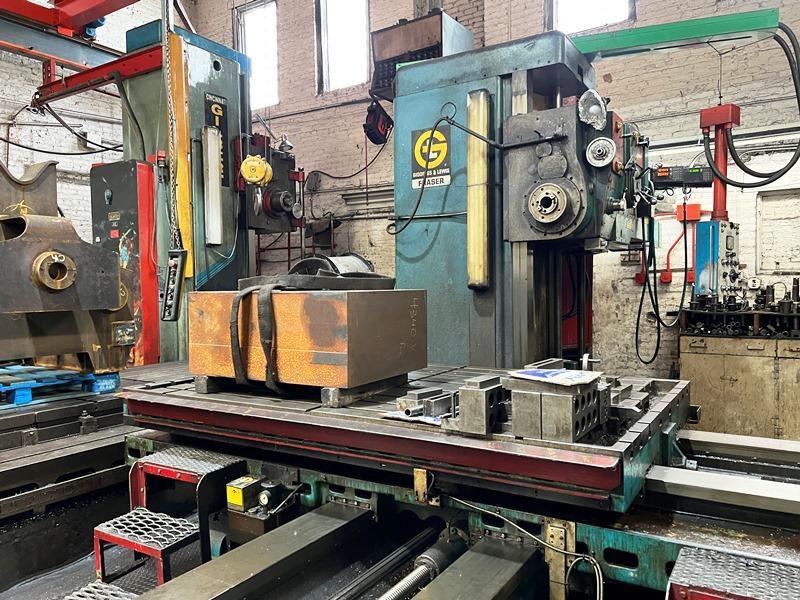

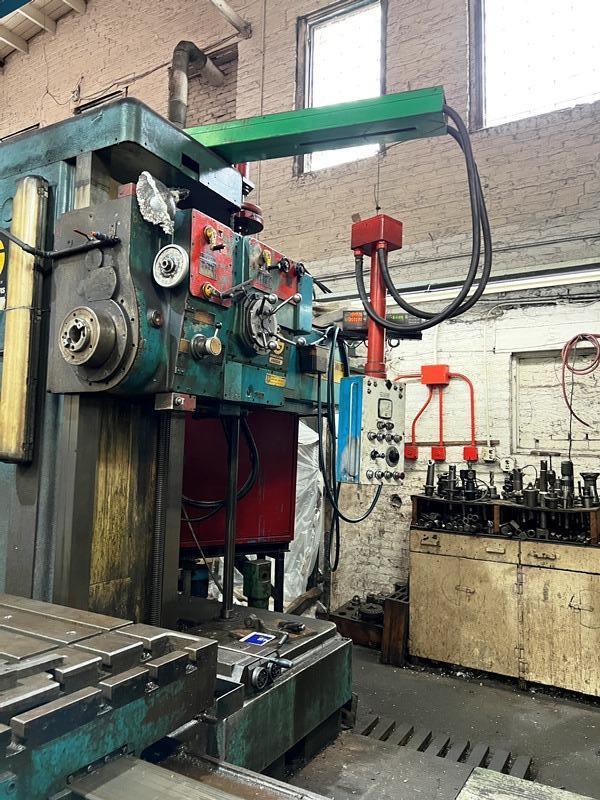

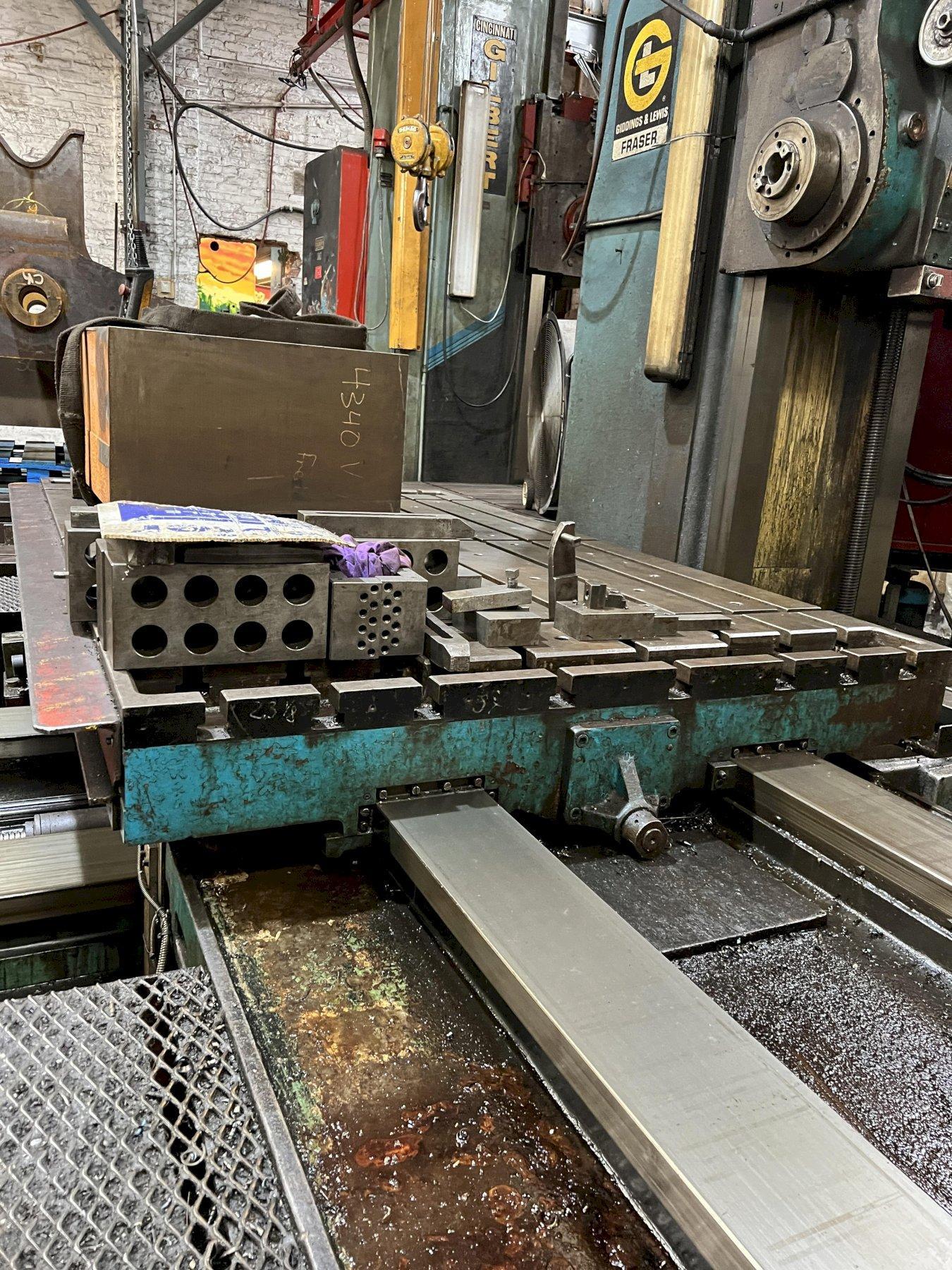

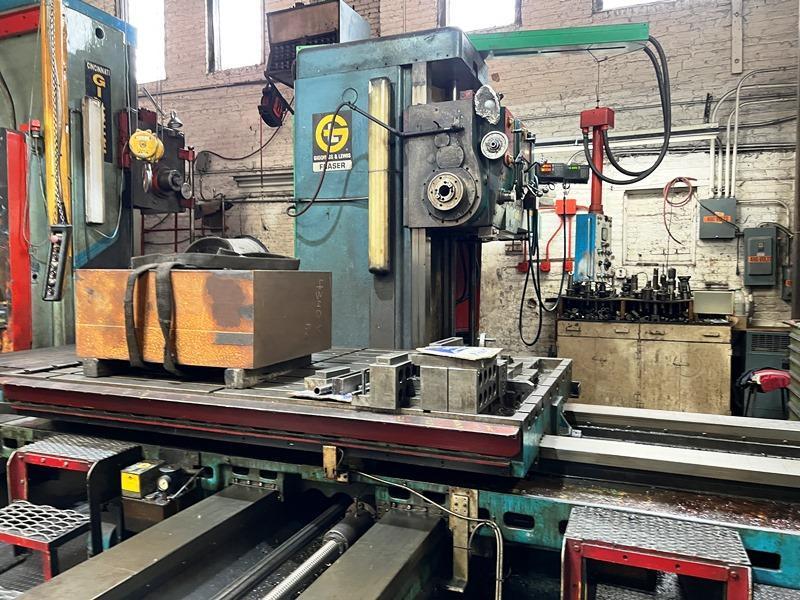

5" GIDDINGS & LEWIS MODEL 70A-DP5-T FRASER TABLE TYPE HORIZONTAL BORING MILL
Year
1967
Stock #
19334
Condition
Good
Keep Scrolling To Learn More
Specifications
Equipped With
5" GIDDINGS & LEWIS MODEL 70A-DP5-T FRASER TABLE TYPE HORIZONTAL BORING MILL
New 1967

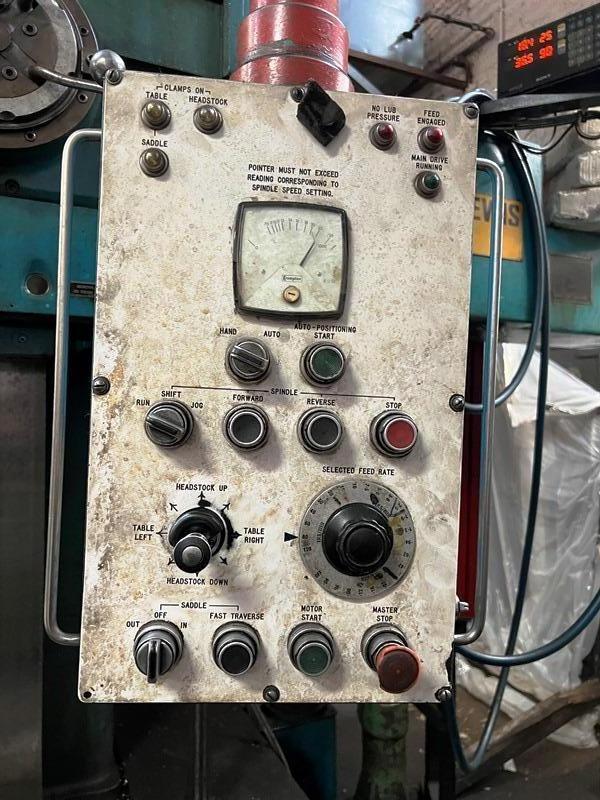

EQUIPPED WITH: Digital Readout, Pendant Control, Power Draw Bolt
SPECIFICATIONS:
Spindle Diameter 5"
Table Size 60" x 98"
Table Travel 86"
Saddle Travel 60"
Head Vertical Travel 60"
Spindle Travel 33-1/2"
Standard Spindle Speeds (36) 7.5 to 467 RPM
High Speed Spindle Speeds (7) 480 to 975 RPM
Spindle Taper 50 National Standard
