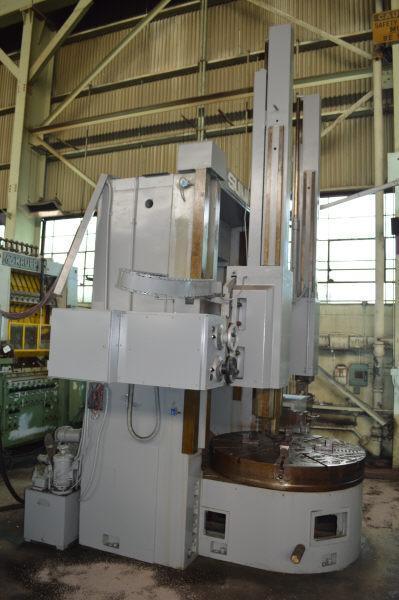

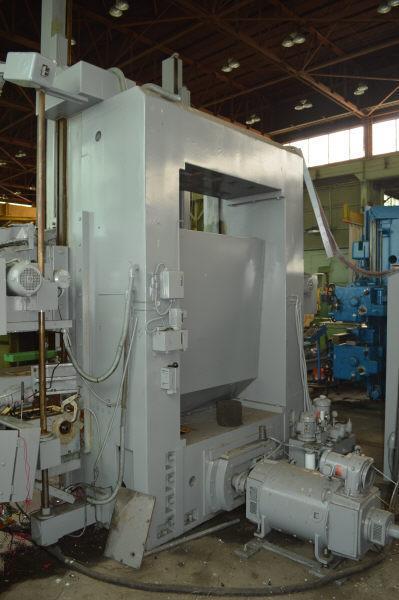

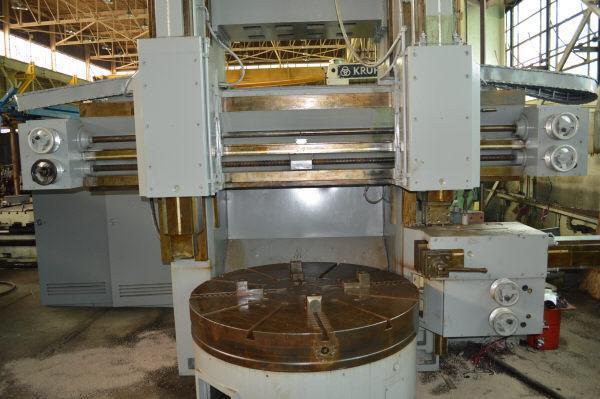

59" SUMMIT VERTICAL BORING MILL

Manufacturer

Not provided

Model

Not provided

Year

1975

Stock #

17079

Condition

Very Good

Request A Quote

Keep Scrolling To Learn More

Specifications

Equipped With

59" SUMMIT VERTICAL BORING MILL

NEW 1975

EQUIPPED WITH:

59" 4-Jaw Faceplate w/12 Radial Slots

(2) Ram-Heads (Swivelling-Type)

Pendant Control



SPECIFICATIONS:

Table Diameter

59"

Swing Maximum, w/o Side Head

70"

Swing Maximum, w/Side Head

65"

Height Under Cross-Rail, Maximum

47.25"

Cross-Rail Travel, Vertical

39"

Ram-Heads Travel, Vertical

33.5"

Ram-Heads Swivel, Degrees

35-DEGREES

Side-Head Travel, Vertical

45"

Side-Head Travel, Horizontal

26.5"

(18) Table Speeds, Range

4 to 165 RPM

Feeds, Range

.05 to .50 IPR

Cross-Rail Speed

14 IPM

Rapid Traverse Rate

98 IPM

Main Motor, Horsepower

40 HP

Cross-Rail Motor, Horsepower

5.5 HP

Side-Head Rapid Motor, Horsepower

3 HP



NOTE: This Machine Appears To Be In Very Good

  Condition. However The Side Head Is Inoperable.
