Year
1958
Stock #
17685
Condition
Very Good
Keep Scrolling To Learn More

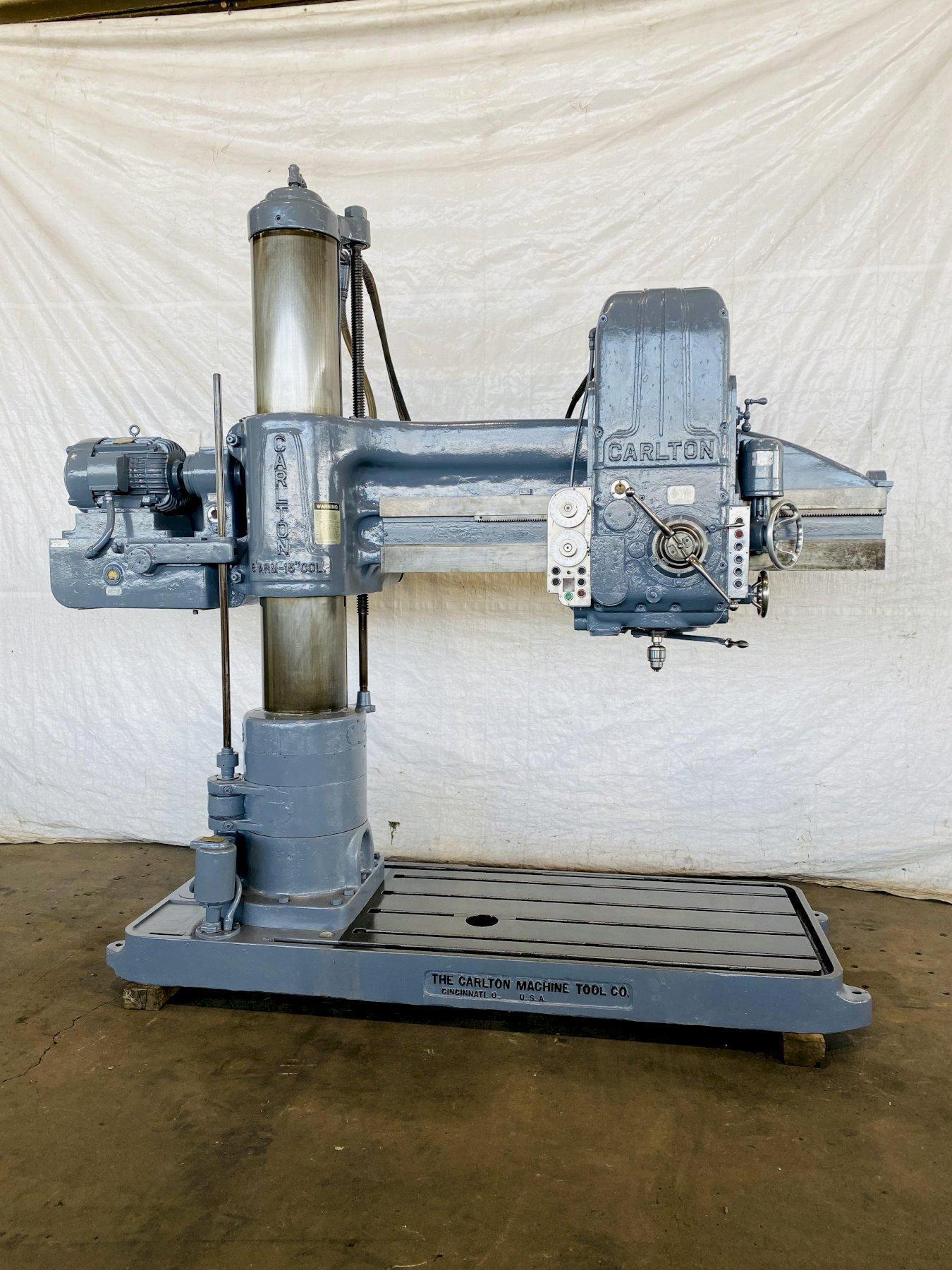

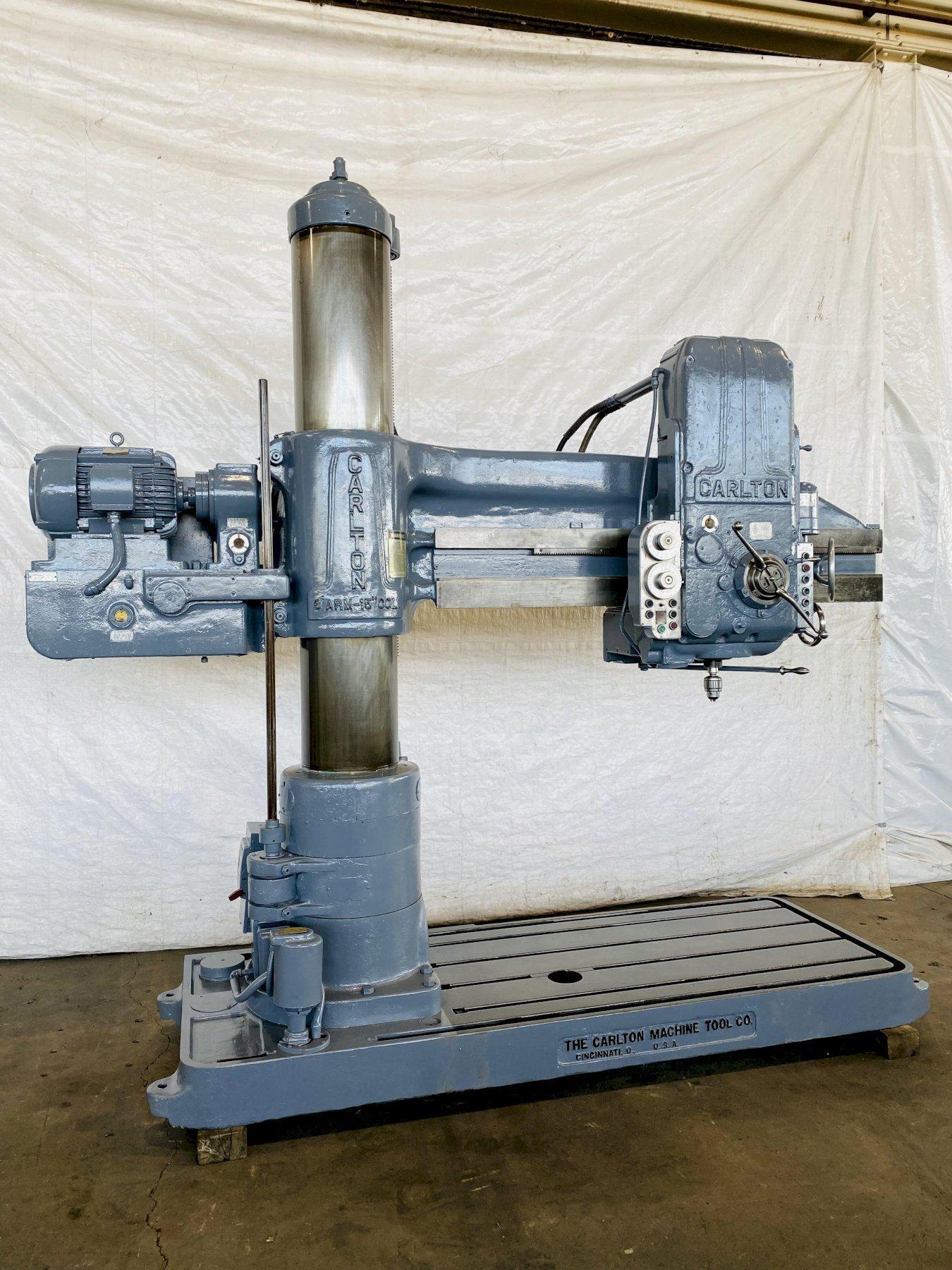

6' X 15" CARLTON 3A RADIAL ARM DRILL
NEW 1958
AREA OF BASE.................... 72" X 42"
SPINDLE SPEEDS.................. (36) 15 TO 1500 RPM
FEEDS........................... (18) .004 TO .125 IPR
THREADS......................... 8,11-1/2, 14, 18, TPI
DIAMETER OF SPINDLE............. 3-3/16"
TAPER IN SPINDLE................ 5 MT
SPINDLE TRAVEL.................. 18"
DISTANCE SPINDLE TO COLUMN...... 15" MIN. TO 72" MAXIMUM
DISTANCE SPINDLE TO BASE........ 10-1/2" MIN. TO 66" MAXIMUM
TRAVEL OF ARM ON COLUMN......... 37-1/2"
TRAVEL OF HEAD ON ARM........... 57"
POWER HEAD TRAVEL............... YES
POWER ARM CLAMPING.............. YES
POWER ARM ELEVATION..............YES
COOLANT ........................ YESThere are no files attached to this listing currently. If you Have any further questions regarding this listing, please contact us for more information.
