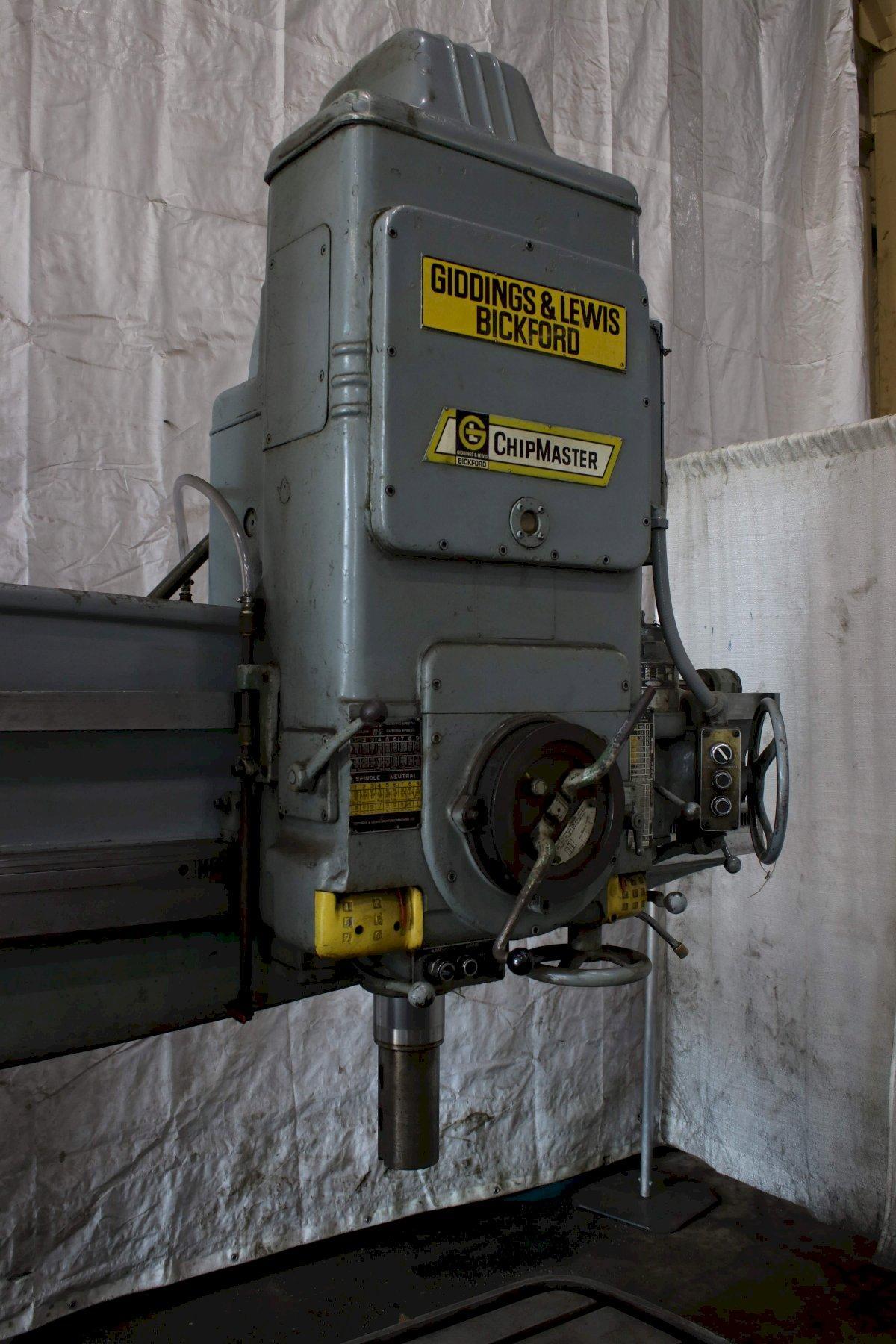

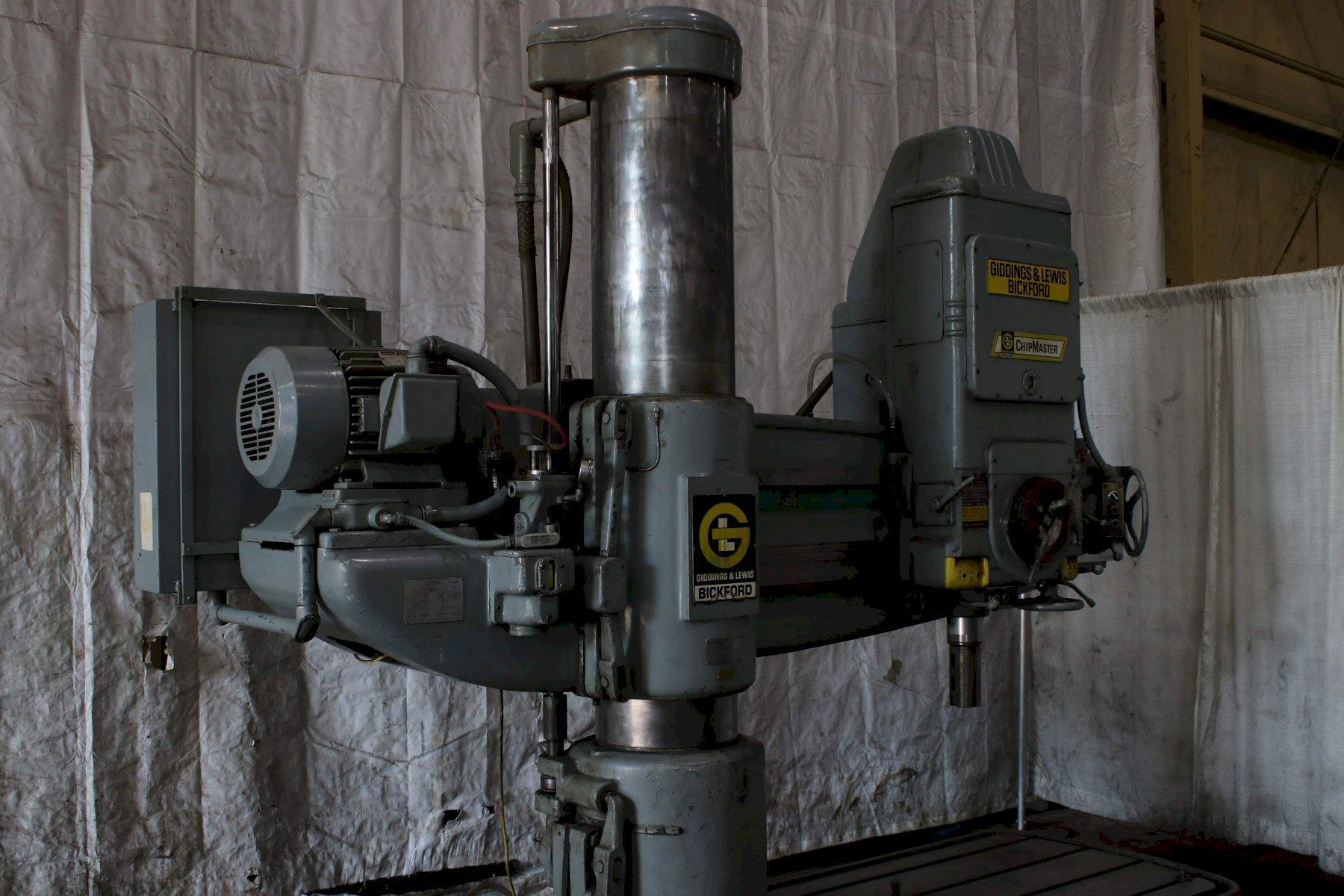

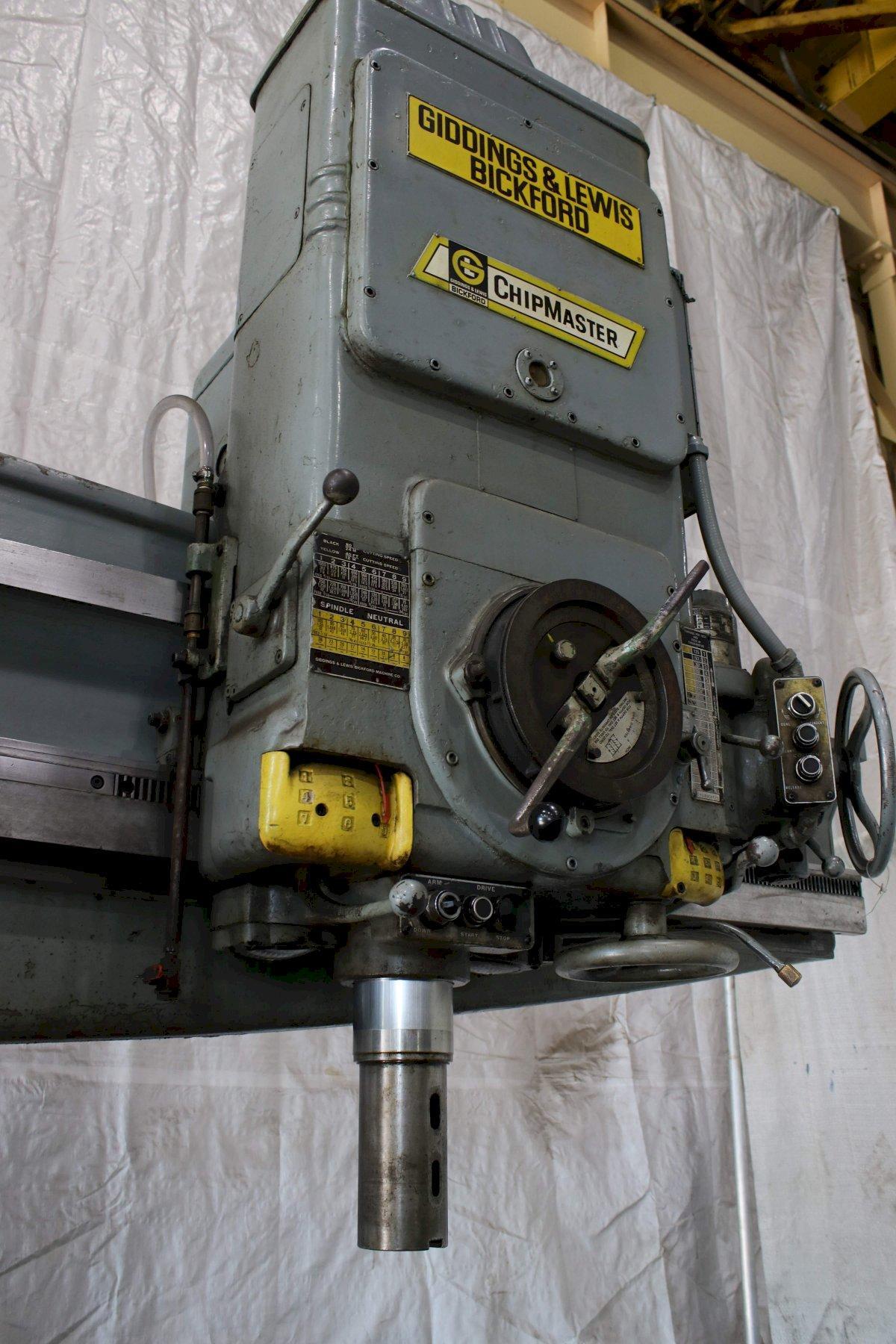

6' X 15" GIDDINGS & LEWIS RADIAL DRILL

NEW 1975

SPECIFICATIONS:

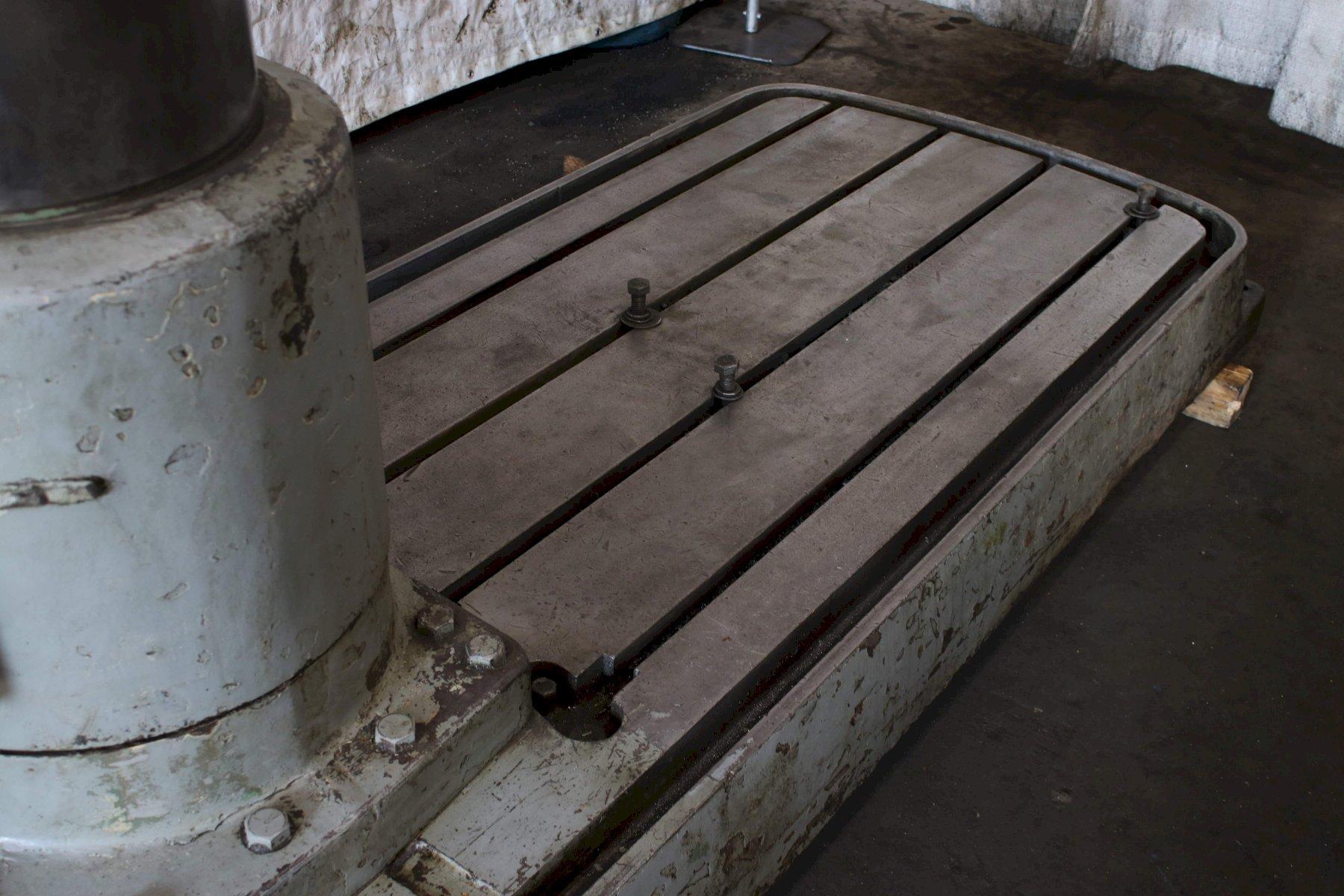

AREA OF BASE ........................ 83" X 39"

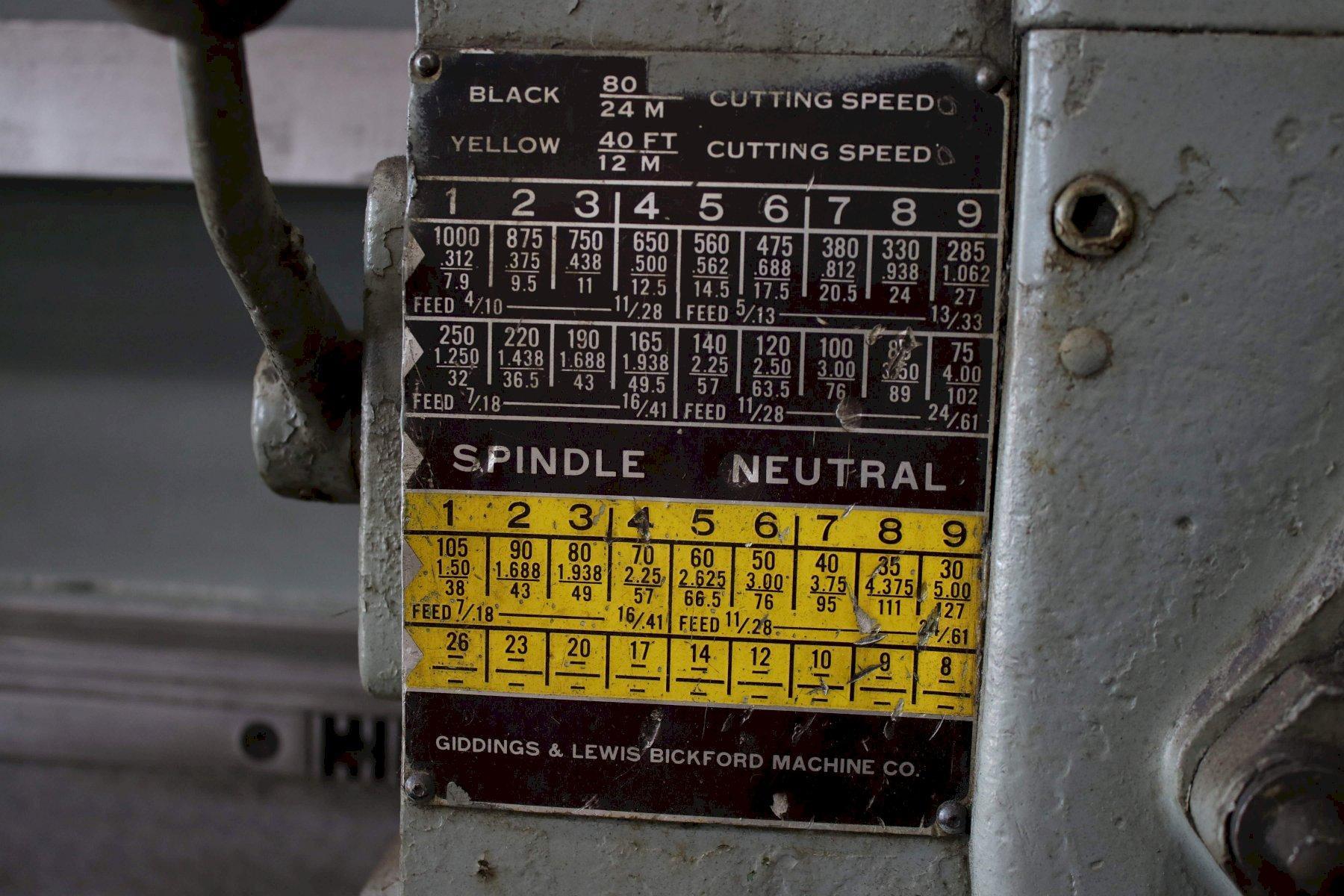

SPINDLE SPEEDS ...................... (36) 8 TO 1000 RPM
FEEDS ............................... (18) .004 TO .125 IPR
SPINDLE TRAVEL ...................... 20"
DIAMETER OF SPINDLE ................. 3-15/16"
TAPER IN SPINDLE..................... #5 MT
DISTANCE SPINDLE TO BASE ............ 10-1/2" MINIMUM, 66" MAXIMUM
DISTANCE SPINDLE TO COLUMN .......... 15-5/8" MINIMUM
TRAVEL OF HEAD ON ARM ............... 56-3/8"
TRAVEL OF ARM ON COLUMN ............. 35-1/2"

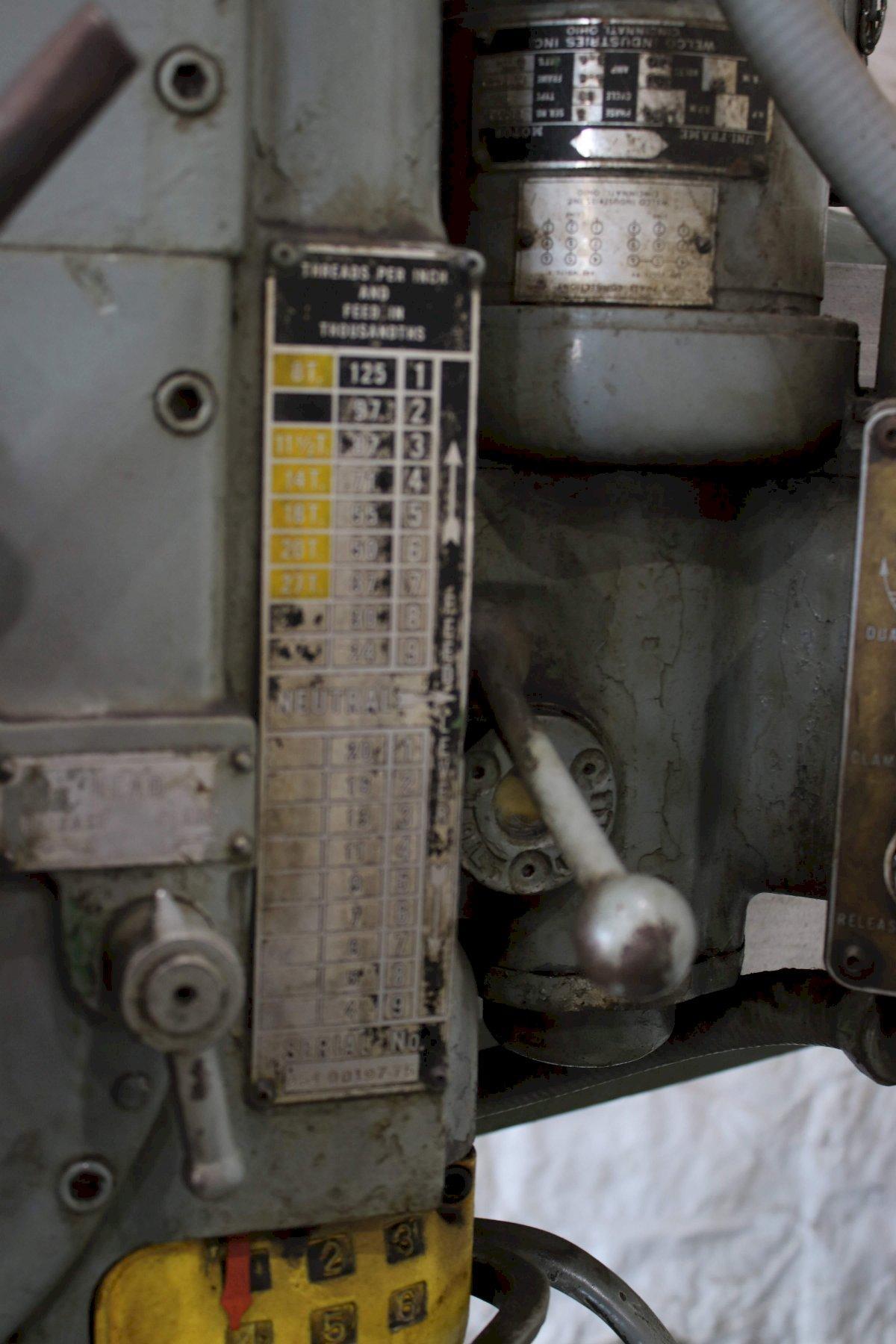

TAP LEADS ........................... 8, 11-1/2, 14. 18. 20. 27 TPI
POWER ARM ELEVATION ................. YES
POWER CLAMPING ...................... HEAD, ARM AND COLUMN
POWER HEAD TRAVERSE ................. YES
COOLANT ............................. YES
MOTOR, HORSEPOWER ................... 20
