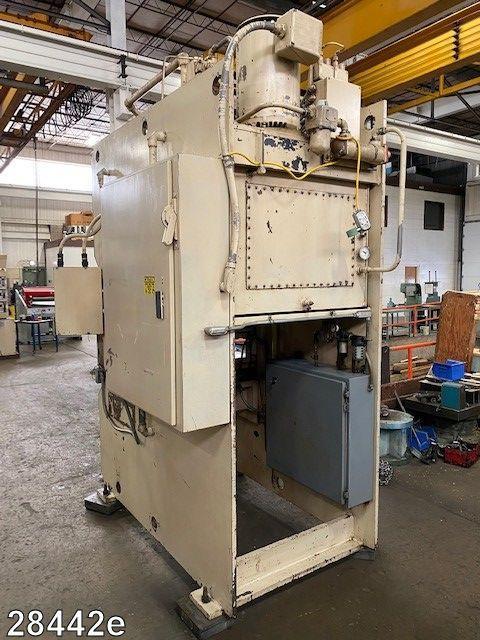

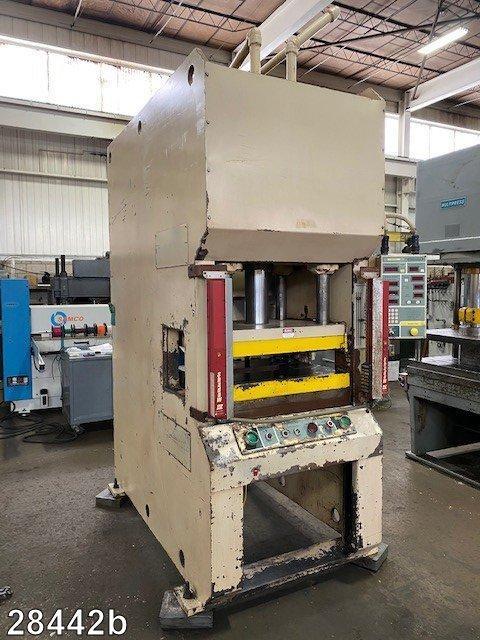

65 TON GREENERD HCT-65 HYDRAULIC PRESS

Manufacturer

Not provided

Model

HCT-65

Year

Not provided

Stock #

17350

Condition

Very Good

Request A Quote

Keep Scrolling To Learn More

Specifications

Equipped With

65 TON GREENERD HCT-65 HYDRAULIC PRESS

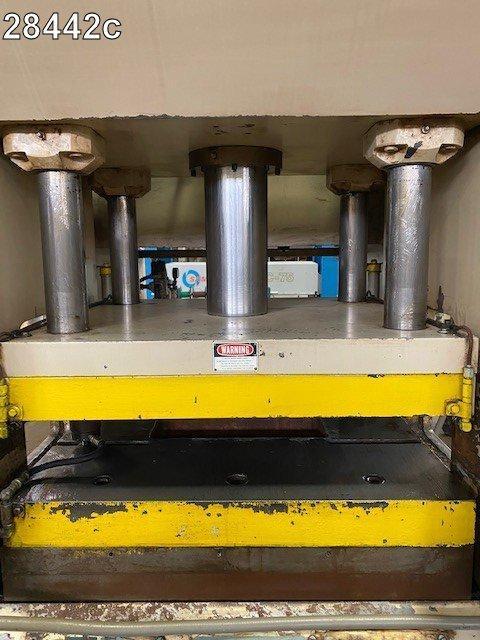

With 4-post guided slide

Straight side; downstroke type; floor standing

Distance between side housings:    34" L-R

Area of bed (nominal):             32" L-R x 28" F-B (T-slotted)

Area of slide (nominal):           32" L-R x 27" F-B (T-slotted)

Windows:                           14" L-R

Stroke of 4 post guided slide:     0-10" maximum

Daylight opening (total) approx.:  14.5" maximum

Main ram diameter:                 8"/5.5" @ 2588 PSI - 65 tons

Floor to top of bed:               43"

Power unit (top of press):         Submerged hydraulic pump, driven by

                                   30 HP 1760 RPM 230/460/3/60 motor

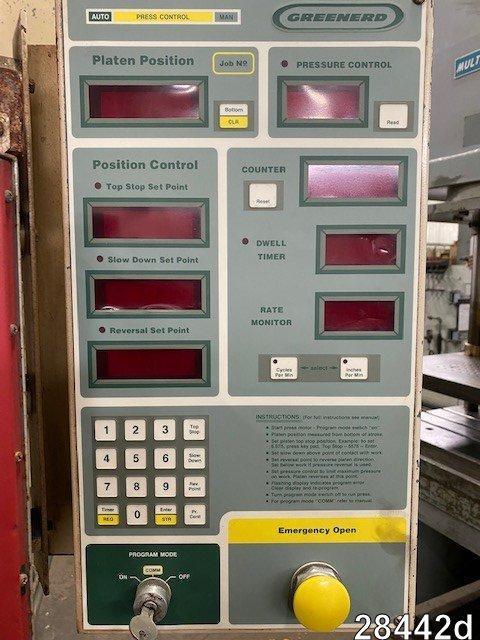

Controls:                          Pushbutton operation with stroke &

                                     pressure control

                                   Dual palm buttons

                                   Selector switch for manual or

                                     semi-automatic operation

                                   Dwell timer

                                   Pressure gauge

                                   Press controlled via PLC

Weight approx. 17,000 lbs.

Overall dimensions approx. 60" L-R x 88" F-B x 124" H
