Year
1948
Stock #
19331
Condition
Very Good
Keep Scrolling To Learn More

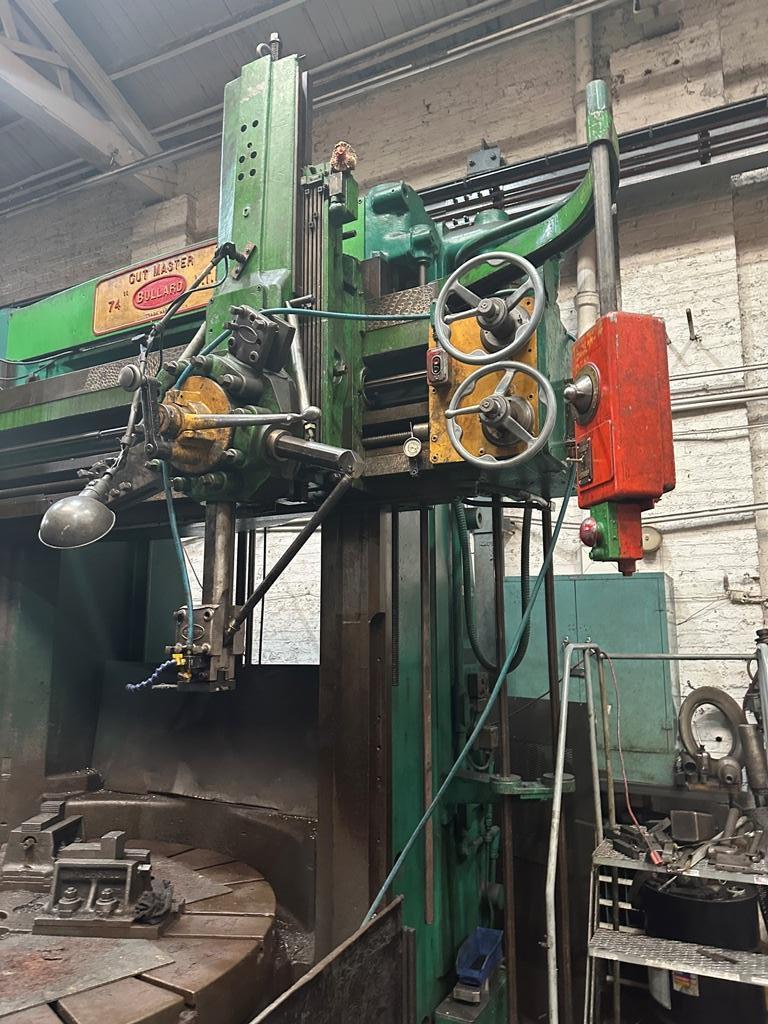

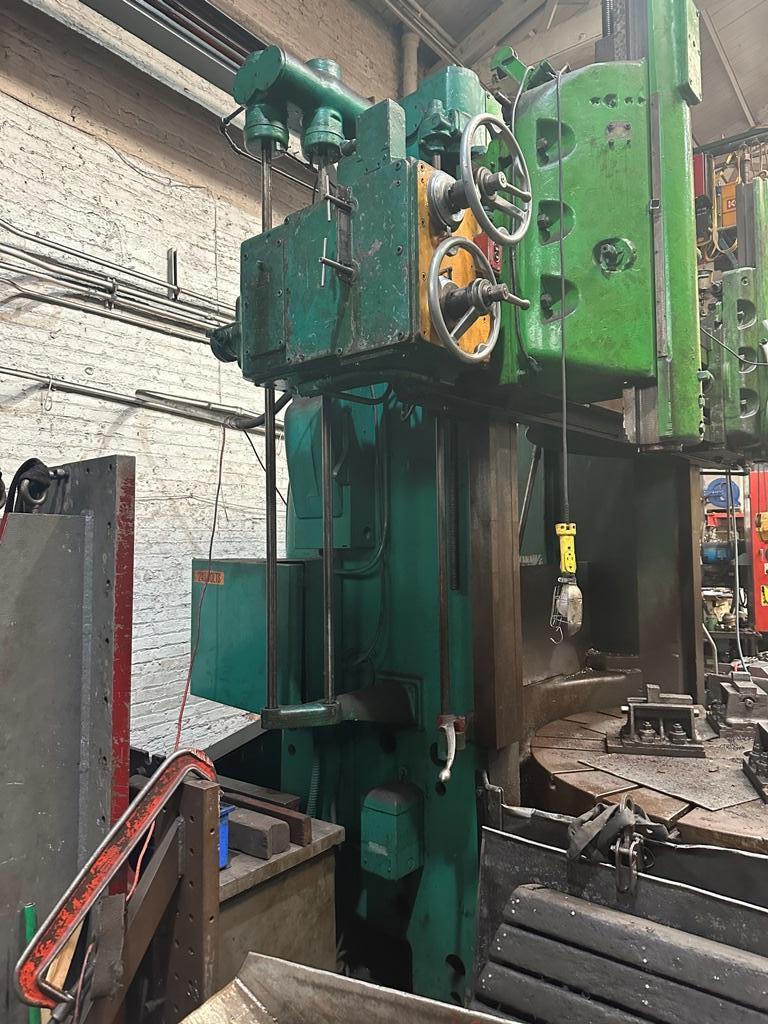

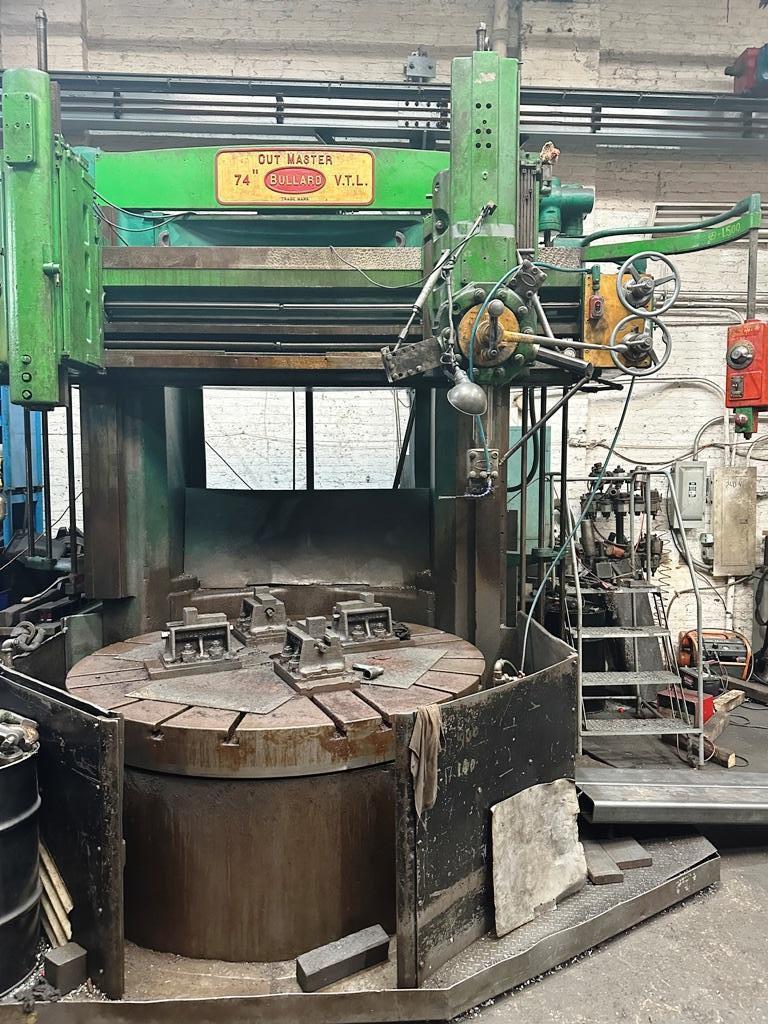

74" BULLARD CUTMASTER VERTICAL BORING MILL
New 1948
Motor Driven with 40 HP, 3-Phase, 60 Cycle, AC Motor & Controls

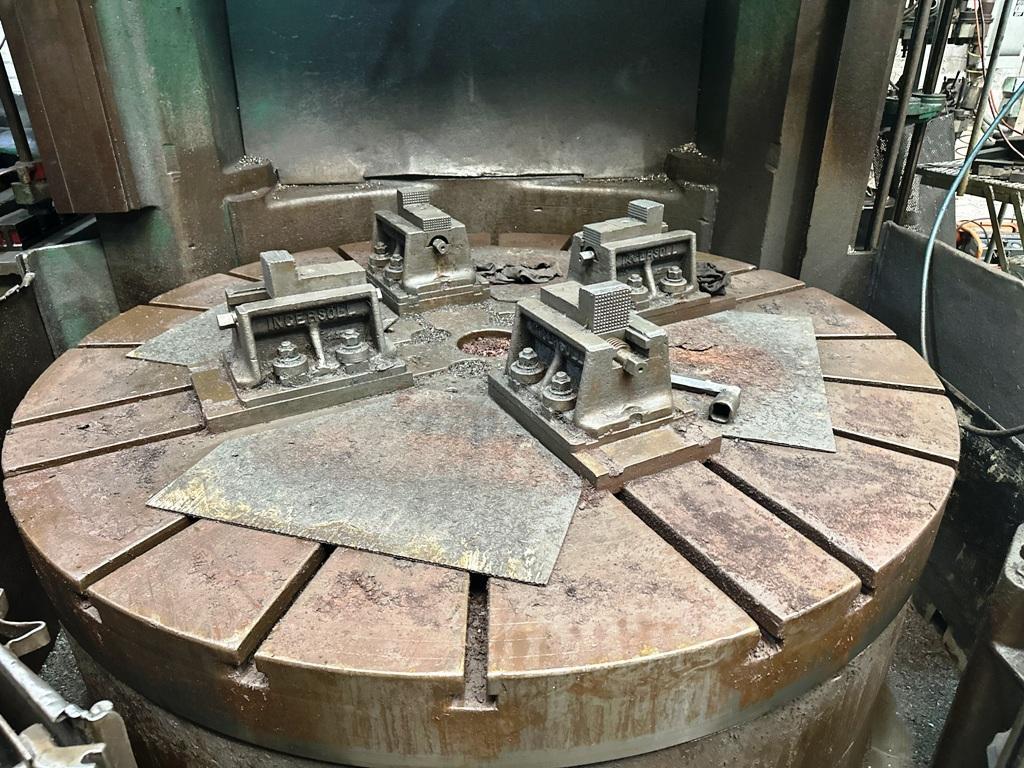

EQUIPPED WITH: Ram Head, 5-Position Turret Head, 74" 4-Jaw Face Plate, Long Cylinder Ram Head with 41" Stroke
SPECIFICATIONS:
Diameter of Table 74"
Max. Swing 82"
Height Under Rail 62"
Cross Rail Vertical Travel 48"
Turret Head Vertical Travel 30-3/8"
Turret Head Tool Post Holes 2-3/4"
Table Speeds 2 to 120 RPM
Approximate Dimensions 176" x 136" x 145" High
Approximate Weight 70,400 Lbs.
