Equipped With

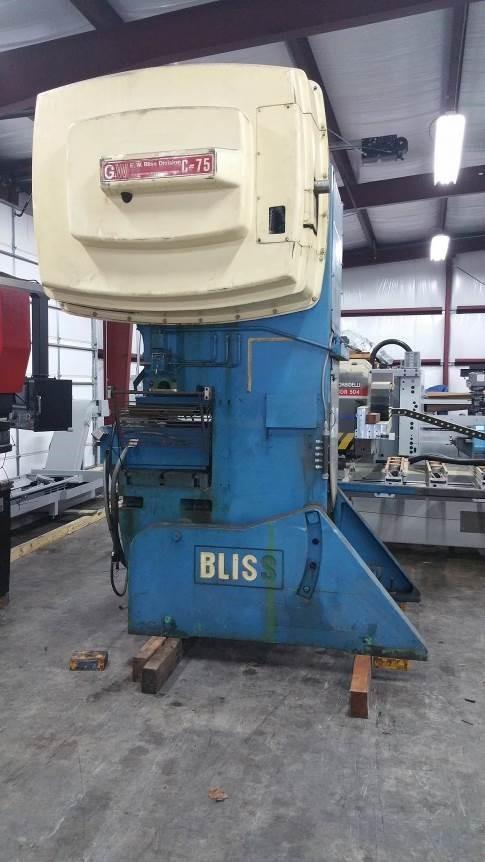

75 TON BLISS C-75 GAP FRAME PRESS

New 1983

Specifications:

Capacity                                                                      75 Tons/.06

Crankshaft Diameter                                                  4.5/6.75

Stroke per Minute Constant                                       110

Motor Required                                                          15HP

Stroke of Slide Standard                                             4

Shut Height SDAU                                                     15

Adjustment of Slide                                                    3.5

Bed Area L-R/ F-B                                                     36 x 24

Bed Opening L-R/F-B                                                 18 x 14

Depth of Throat                                                          13

Width of Opening Back                                             19

 Floor Space                                                                 71.5 x 94.25

Weight                                                                        20,500 Lbs
