Equipped With

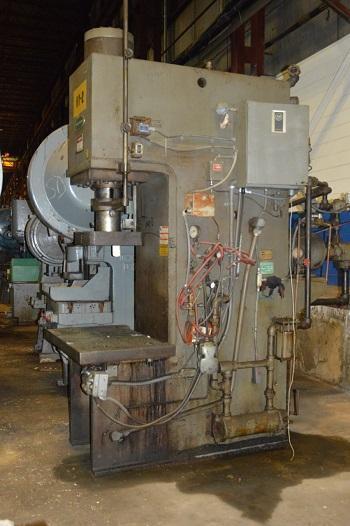

75 TON GREENERD MODEL #H-75-42R17 HYDRAULIC PRESS

NEW 1977

CAPACITY.............................. 75 TON
STROKE................................ 24"
SHUT HT............................... 30"
THROAT................................ 13"
BED AREA.............................. 28" LR X 19"FB
RAM AREA.............................. 19-1/2 LR X 15-1/2 FB
BOLSTER............................... 40-3/16" LR X 26-1/8" FB X 3" THICK

RAM SPEEDS:
CLOSING............................. 360 IPM
PRESSING............................ 44 IPM
RETURN.............................. 346 IPM

4" DRAW............................... 9 SPM
10" DRAW.............................. 5 SPM
RESERVOIR CAPACITY.................... 122 GAL

MOTOR:
30 HP, 230/460 V, 3/60/1165 RPM W/CONTROLS

EQUIPPED WITH:
PALM BUTTONS AND FOOT PEDAL

WEIGHT ....................... 12,000 Lbs.
O.A. DIMENSIONS .............. 3'6" LR x 8'8" FB x 9'4" H PLUS 4X4 SKID
