Equipped With

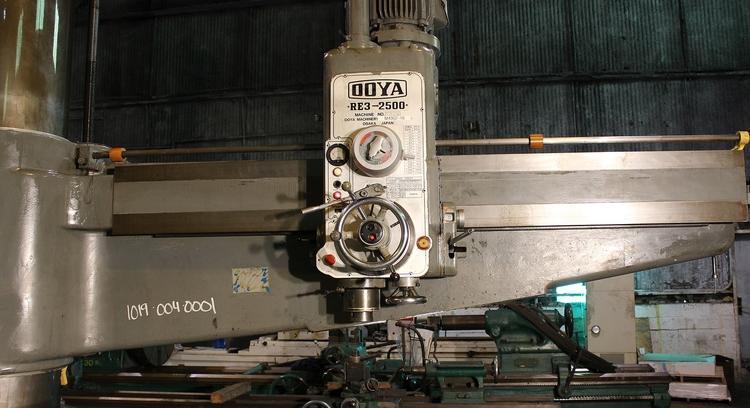

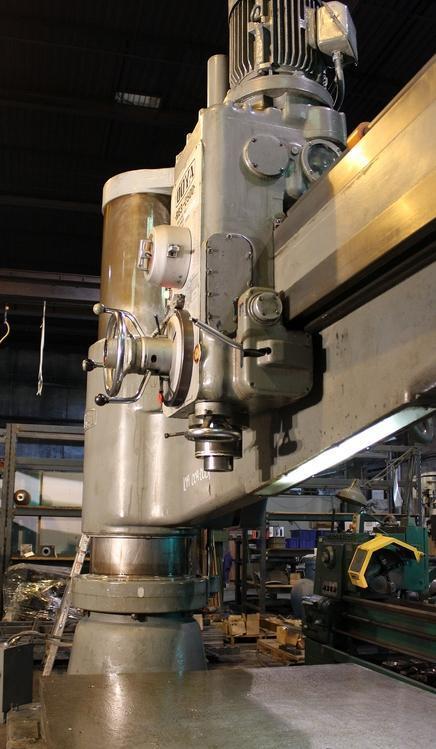

8' X 19" OOYA RE3-2500 RADIAL ARM DRILL

NEW 1979

SPECIFICATIONS:
DRILLING CAPACITY ------ ( STEEL ) -------- 3"
DRILLING CAPACITY ------ ( CAST IRON ) ---- 3-5/8"

SPINDLE TAPER------------------------------ #5 M.T.
MAXIMUM DISTANCE COLUMN TO SPINDLE CENTER - 99-1/4"
COLUMN DIAMETER---------------------------- 19"
MINIMUM DISTANCE COLUMN TO SPINDLE CENTER - 16-1/2"
MAXIMUM DISTANCE BASE TO SPINDLE ---------- 70-7/8"
MINIMUM DISTANCE BASE TO SPINDLE ---------- 22-1/4"
SPEEDS ------------------ ( 16 ) ---------- 20 to 2180 RPM
FEEDS ---------------- ( 18 )_ ---------- .0015 to .125
MAIN DRIVE MOTOR -------------------------- 10 HP
APPROXIMATE MACHINE WEIGHT ---------------- 20,000 LBS
APPROXIMATE MACHINE DIMENSIONS ------------ 140"(lr) x 52"(fb) x 130"(h)

EQUIPPED WITH:
DRILL/TAP
CLAMPING TO HEAD/COLUMN AND ARM
AUTO LUBRICATION
T-SLOTTED BASE
COOLANT
