9" x 42" SHARP MODEL LMV/MP-2 2-AXIS CNC KNEE MILL
Year
Not provided
Stock #
14556
Condition
Used
Keep Scrolling To Learn More
Specifications
Equipped With
NEW 9" x 42" SHARP MODEL LMV/MP-2 2-AXIS CNC KNEE MILL
- Vertical Knee Mill with MILLPWR-G2 2 axes (table, and saddle) CNC system by ACU-RITE.
- Digital Servo drive systems for X ,Y and Z axes travel.
- Able to perform 3-D contour work.
- Precision-ground ball screws with preloaded ball nut assemblies.
- 3 axis (table, saddle, quill) digital readout system.
- Automatic lubrication system.
- Safety hand wheels.
- Machine construction features same as SHARP Models LMV, LMV-50
MILLPWR-G2 CNC SYSTEM FEATURES
HARDWARE
- 12.1” flat-panel high resolution display with 3 D graphics, color keypad
- Simplified navigation that eliminates multiple menu screens
- RS-232 port, USB (2), Ethernet
- 1.4 GHz processor, 2.5 GB Flash internal storage
- Programmable speed (with optional DVS head)
SOFTWARE
- User friendly conversational programming format. No prior programming experience is necessary.
- Standardized menus make it easy to program common features like lines, arcs, pockets, bolt hole patterns, islands, spirals and ellipses. To add a feature to the program, simply press a function key and then follow the prompts.
- Perform complex calculations to solve geometry and trigonometry problems.
- Edit individual steps or merge whole or partial programs already created by using functions such as:
- Mirror/repeat/rotate, Explode, Reverse step, Reverse path, Change steps, Delete steps, Copy/move steps.
- Import geometry directly from a CAD file using the MILLPWR’s DXF file input-for faster programming and fewer errors.
- Preview each step with immediate-part- view graphics – the console automatically shows a graphic representation of each step once it is created in a program.
- Program to mill at or to a specified depth automatically.
- Able to import and run G-code files from CAD/CAM programs to machine full 3-D contoured parts.
- Automatically control spindle’s speed and/or direction of the machine (machine has to be equipped with the DVS head-an optional item, plus the programmable speed option).

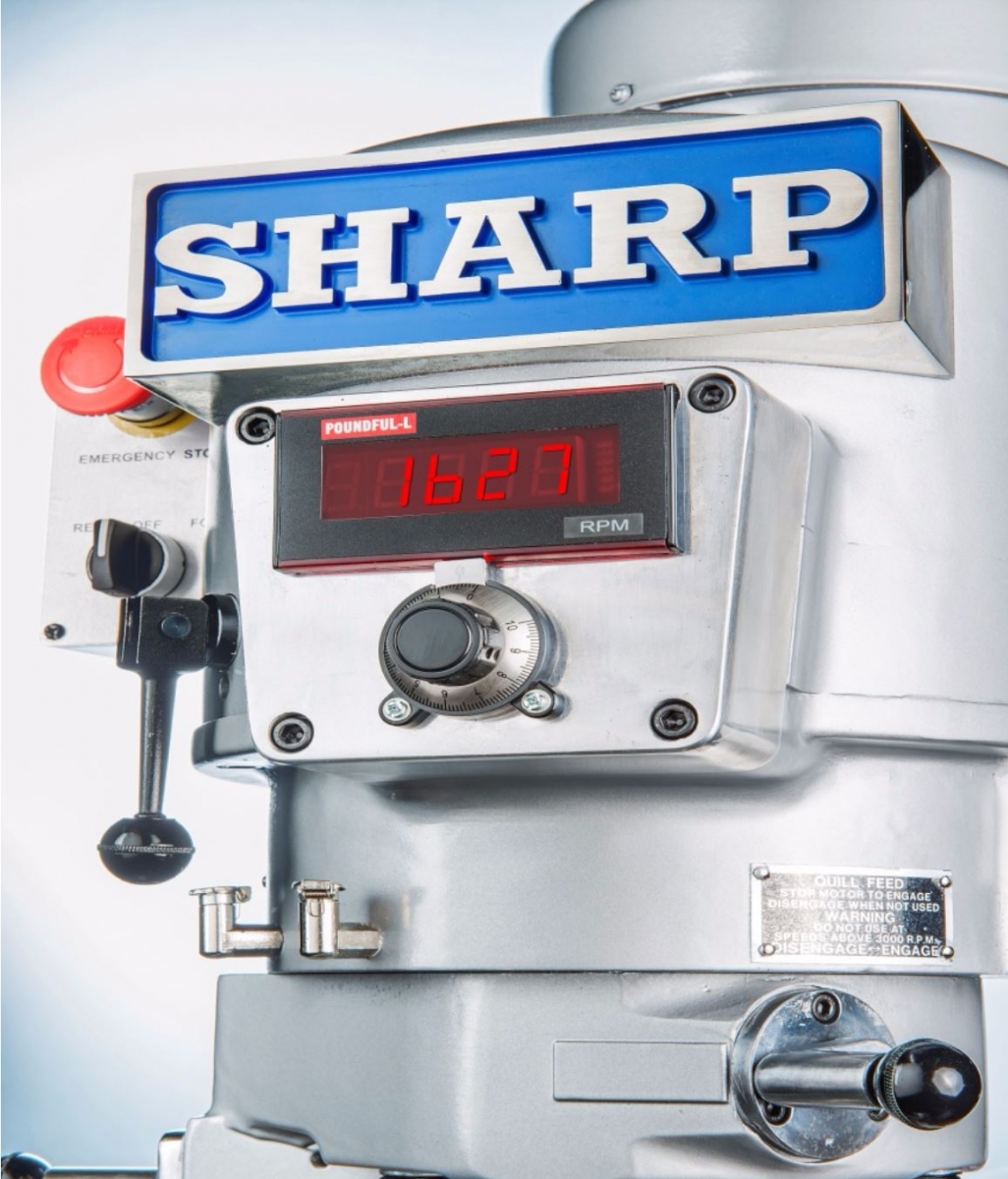

Why DVS (Digital Variable Speed) head ? (Optional)
- High reliability with fewer moving parts than regular variable speed head
- Programmable speed (must include MILLPWR-G2 programmable speed option)
- Dynamic brake, Low voltage control, Large Digital rpm display
- Dependable Inverter Drive System
- Machine can run on single phase or 3 phase electricity
- Safety device prevents machine from self starting after power failure or after emergency stop being pushed
<td u1:num="3200.0" style="border-right: 1px solid #999999; border-bottom: 1px solid #999999; border-top-style: solid; border-left-style: solid; border-image: initial; padding: 3px;">3,200
| Working surface | 9”x 42” |
| T-slot number, size | 3, 5/8” |
| Capacity | |
| Table travel | 11”x 25” |
| Ram travel | 12” |
| Quill travel; z-axis | 5” |
| Knee travel | 16” |
| Spindle to column | 6-3/4"- 18-1/2" |
| Spindle to nose to table | 2- 1/8”-18” |
| Spindle | |
| Motor | 3 HP |
| Wiring voltage | 220/440V, 3 phase, 60 H |
| Taper | R-8 |
| Speed (vari speed) | 60-4,500 RPM |
| Quill feed (IPR) | 0.0015, 0.003, 0.006” |
| Accuracy | |
| Head swivel | 360° |
| Head tilt; left-to-right | 45° |
| Head tilt; up-and-down | 45° |
| Dimensions and Weight | |
| Floor area | 7" x 6.5" |
| Net weight (lbs) | |
| Total Power Consumptions | |
| 220V | 3KVA/15 amps |
| 440V | 3KVA/7.5 amps |
STANDARD ACCESSORIES:
- Hard-chrome ways
- Front and rear way covers
- Automatic Lube System
- Tool Kit includes: Machine manual, Half nut wrench, Wrench 17m, 19m, Set of 6 Allen wrenches, Phillip screw driver, Flat head screw driver, Oil can, Grease Gun, Rear way cover bracket, Pin for indicator, Can of paint
<td u1:num="3200.0" style="border-right: 1px solid #999999; border-bottom: 1px solid #999999; border-top-style: solid; border-left-style: solid; border-image: initial; padding: 3px;">3,200
<td u1:num="3650.0" style="border-right: 1px solid #999999; border-bottom: 1px solid #999999; border-top-style: solid; border-left-style: solid; border-image: initial; padding: 3px;">3,700
| LMV/MP-2 | TMV/MP-2 | |
| Table | ||
| Working surface | 9”x 42” | 10”x 50” |
| T-slot number, size | 3, 5/8” | 3, 5/8” |
| Capacity | ||
| Table travel | 11”x 25” | 15.5” x28” |
| Ram travel | 12” | 18.5” |
| Quill travel; z-axis | 5” | 5” |
| Knee travel | 16” | 15.3” |
| Spindle to column | 6-3/4"- 18-1/2" | 9.8”-28.3” |
| Spindle to nose to table | 2- 1/8”-18” | "1.6-16.9" |
| Spindle | ||
| Motor | 3 HP | 3 HP |
| Wiring voltage | 220/440V, 3 phase, 60 H | 220/440V, 3 phase, 60 H |
| Taper | R-8 | R-8 |
| Speed (vari speed) | 60-4,500 RPM | 60-4,500 RPM |
| Quill feed (IPR) | 0.0015, 0.003, 0.006” | 0.0015, 0.003, 0.006” |
| Accuracy | 0.0002" TIR | |
| Head swivel | 360° | |
| Head tilt; left-to-right | 45° | 90° |
| Head tilt; up-and-down | 45° | 45° |
| Dimensions and Weight | ||
| Floor area | 7" x 6.5" | 70" x 75" x 88" |
| Net weight (lbs) | ||
| Total Power Consumptions | ||
| 220V | 3KVA/15 amps | 3KVA/15 amps |
| 440V | 3KVA/7.5 amps | 3KVA/7.5 amps |
<td u1:num="3200.0" style="border-right: 1px solid #999999; border-bottom: 1px solid #999999; border-top-style: solid; border-left-style: solid; border-image: initial; padding: 3px;">3,200
<td u1:num="3650.0" style="border-right: 1px solid #999999; border-bottom: 1px solid #999999; border-top-style: solid; border-left-style: solid; border-image: initial; padding: 3px;">3,700
| LMV/MP-2 | TMV/MP-2 | |
| Table | ||
| Working surface | 9”x 42” | 10”x 50” |
| T-slot number, size | 3, 5/8” | 3, 5/8” |
| Capacity | ||
| Table travel | 11”x 25” | 15.5” x28” |
| Ram travel | 12” | 18.5” |
| Quill travel; z-axis | 5” | 5” |
| Knee travel | 16” | 15.3” |
| Spindle to column | 6-3/4"- 18-1/2" | 9.8”-28.3” |
| Spindle to nose to table | 2- 1/8”-18” | "1.6-16.9" |
| Spindle | ||
| Motor | 3 HP | 3 HP |
| Wiring voltage | 220/440V, 3 phase, 60 H | 220/440V, 3 phase, 60 H |
| Taper | R-8 | R-8 |
| Speed (vari speed) | 60-4,500 RPM | 60-4,500 RPM |
| Quill feed (IPR) | 0.0015, 0.003, 0.006” | 0.0015, 0.003, 0.006” |
| Accuracy | 0.0002" TIR | |
| Head swivel | 360° | |
| Head tilt; left-to-right | 45° | 90° |
| Head tilt; up-and-down | 45° | 45° |
| Dimensions and Weight | ||
| Floor area | 7" x 6.5" | 70" x 75" x 88" |
| Net weight (lbs) | ||
| Total Power Consumptions | ||
| 220V | 3KVA/15 amps | 3KVA/15 amps |
| 440V | 3KVA/7.5 amps | 3KVA/7.5 amps |
<td u1:num="3200.0" style="border-right: 1px solid #999999; border-bottom: 1px solid #999999; border-top-style: solid; border-left-style: solid; border-image: initial; padding: 3px;">3,200
<td u1:num="3650.0" style="border-right: 1px solid #999999; border-bottom: 1px solid #999999; border-top-style: solid; border-left-style: solid; border-image: initial; padding: 3px;">3,700
| LMV/MP-2 | TMV/MP-2 | |
| Table | ||
| Working surface | 9”x 42” | 10”x 50” |
| T-slot number, size | 3, 5/8” | 3, 5/8” |
| Capacity | ||
| Table travel | 11”x 25” | 15.5” x28” |
| Ram travel | 12” | 18.5” |
| Quill travel; z-axis | 5” | 5” |
| Knee travel | 16” | 15.3” |
| Spindle to column | 6-3/4"- 18-1/2" | 9.8”-28.3” |
| Spindle to nose to table | 2- 1/8”-18” | "1.6-16.9" |
| Spindle | ||
| Motor | 3 HP | 3 HP |
| Wiring voltage | 220/440V, 3 phase, 60 H | 220/440V, 3 phase, 60 H |
| Taper | R-8 | R-8 |
| Speed (vari speed) | 60-4,500 RPM | 60-4,500 RPM |
| Quill feed (IPR) | 0.0015, 0.003, 0.006” | 0.0015, 0.003, 0.006” |
| Accuracy | 0.0002" TIR | |
| Head swivel | 360° | |
| Head tilt; left-to-right | 45° | 90° |
| Head tilt; up-and-down | 45° |
