NEW 9" x 50" SHARP MODEL LMV-50/MP-3 3-AXIS CNC KNEE MILL
- Vertical knee Mill with MILLPWR-G2 3 axes (table, saddle and quill) CNC system by ACU-RITE
- Digital Servo drive systems for X ,Y and Z axes travel.
- Able to perform 3-D contour work.
- Precision-ground ball screws with preloaded ball nut assemblies.
- 3 axis (table, saddle, quill) digital readout system.
- Automatic lubrication system.
- Safety hand wheels.
- Machine construction features same as SHARP Models LMV, LMV-50
MILLPWR-G2 CNC SYSTEM FEATURES
HARDWARE
- 12.1” flat-panel high resolution display with 3 D graphics, color keypad
- Simplified navigation that eliminates multiple menu screens
- RS-232 port, USB (2), Ethernet
- 1.4 GHz processor, 2.5 GB Flash internal storage
- Programmable speed (with optional DVS head)
SOFTWARE
- User friendly conversational programming format. No prior programming experience is necessary.
- Standardized menus make it easy to program common features like lines, arcs, pockets, bolt hole patterns, islands, spirals and ellipses. To add a feature to the program, simply press a function key and then follow the prompts.
- Perform complex calculations to solve geometry and trigonometry problems.
- Edit individual steps or merge whole or partial programs already created by using functions such as:
- Mirror/repeat/rotate, Explode, Reverse step, Reverse path, Change steps, Delete steps, Copy/move steps.
- Import geometry directly from a CAD file using the MILLPWR’s DXF file input-for faster programming and fewer errors.
- Preview each step with immediate-part- view graphics – the console automatically shows a graphic representation of each step once it is created in a program.
- Program to mill at or to a specified depth automatically.
- Able to import and run G-code files from CAD/CAM programs to machine full 3-D contoured parts.
- Automatically control spindle’s speed and/or direction of the machine (machine has to be equipped with the DVS head-an optional item, plus the programmable speed option).

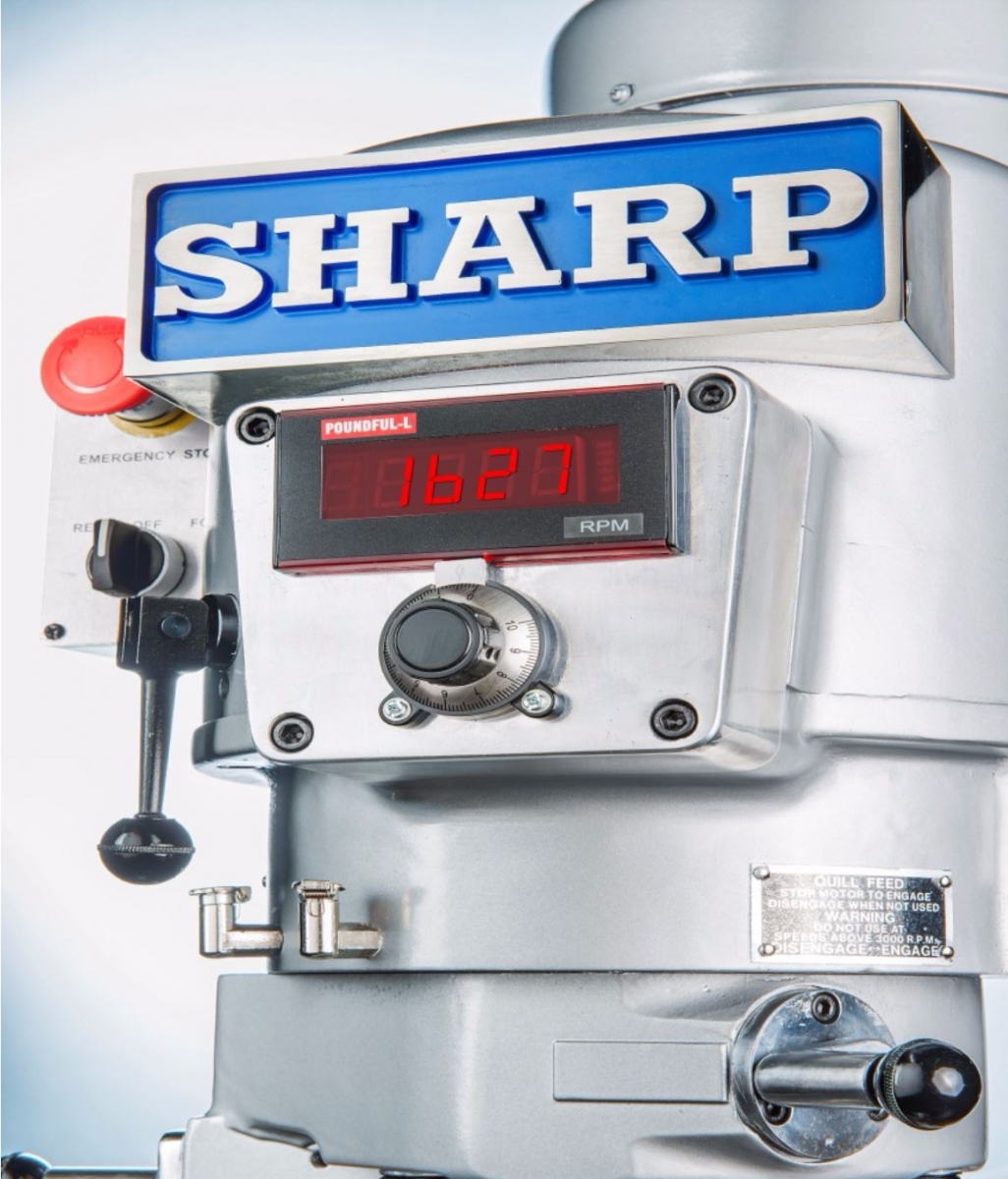

Why DVS (Digital Variable Speed) head ? (Optional)
- High reliability with fewer moving parts than regular variable speed head
- Programmable speed (must include MILLPWR-G2 programmable speed option)
- Dynamic brake, Low voltage control, Large Digital rpm display
- Dependable Inverter Drive System
- Machine can run on single phase or 3 phase electricity
- Safety device prevents machine from self starting after power failure or after emergency stop being pushed
<td x:num="3250.0" style="border-right: 1px solid #999999; border-bottom: 1px solid #999999; border-top-style: solid; border-left-style: solid; border-image: initial; padding: 3px; width: 30%;">3250
| Working surface |
9”x 50” |
| T-slot number, size |
3, 5/8” |
| Capacity |
|
| Table travel |
11”x 32” |
| Ram travel |
12” |
| Quill travel; z-axis |
5” |
| Knee travel |
16” |
| Spindle to column |
6-3/4"- 18-1/2" |
| Spindle to nose to table |
2- 1/8”-18” |
| Spindle |
|
| Motor |
3 HP |
| Wiring voltage |
220/440V, 3 phase, 60 H |
| Taper |
R-8 |
| Speed (vari speed) |
60-4,500 RPM |
| Quill feed (IPR) |
0.0015, 0.003, 0.006” |
| Head swivel |
360° |
| Head tilt; left-to-right |
45° |
| Head tilt; up-and-down |
45° |
| Dimensions and Weight |
| Floor area |
101x64x84 |
| Net weight (lbs) |
STANDARD ACCESSORIES:
- Hard-chrome ways (LMV/MP-3, LMV-50/MP-3)
- Hardened and ground box ways (TMV/MP-3)
- Front and rear way covers
- Automatic lube system
- Tool Kit
OPTIONAL ACCESSORIES:
- DVS Head wired 220V
- 440V Transformer - 3HP
- 6” “Kurt” Vise with Swivel Base
- R-8 collet set.
- Clamping kit.
- Right angle milling attachment.
- Riser block. Power drawbar.
- Coolant System with Chip Pan At Base
- Power Draw Bar
- Halogen Work light
