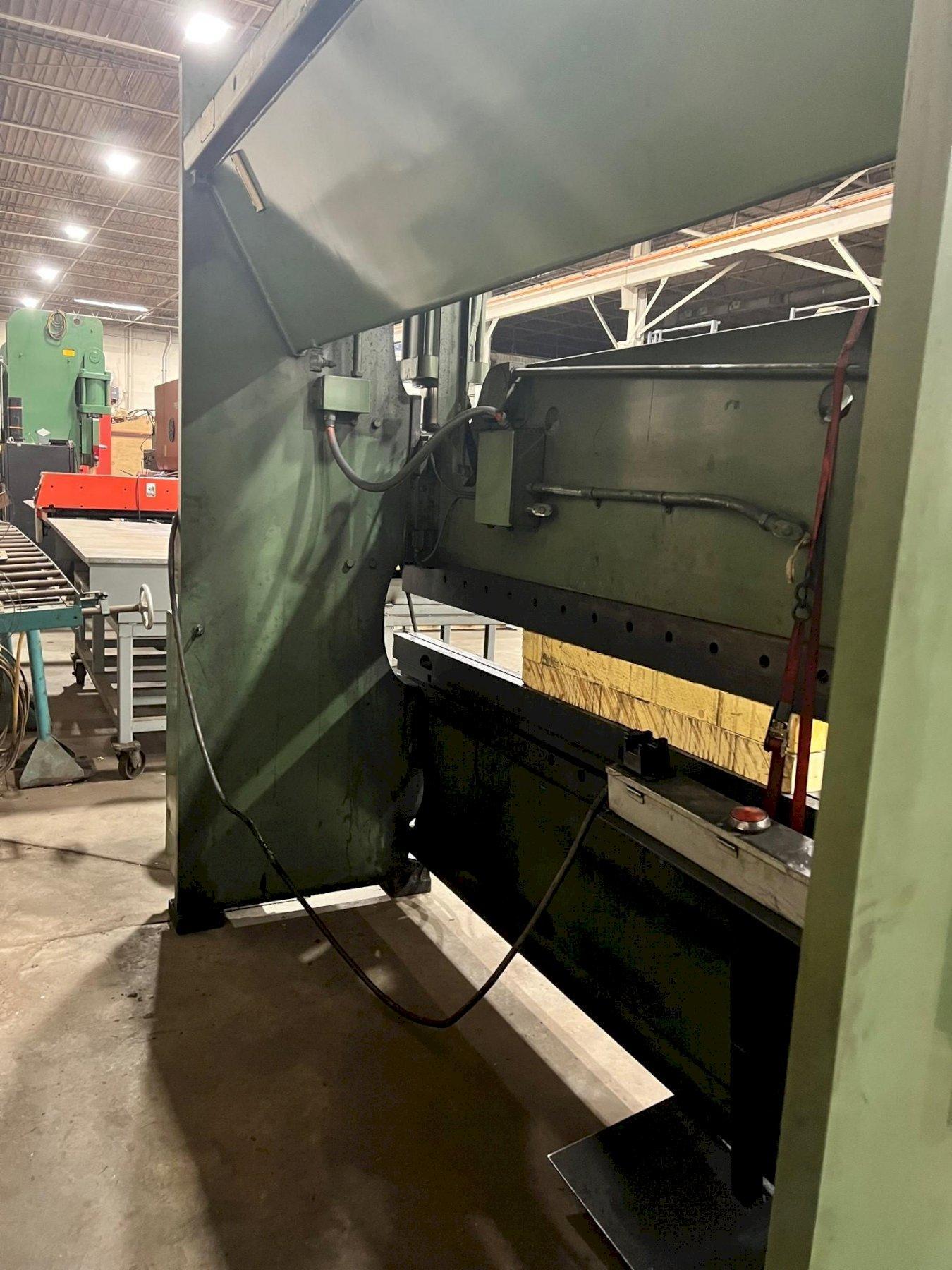

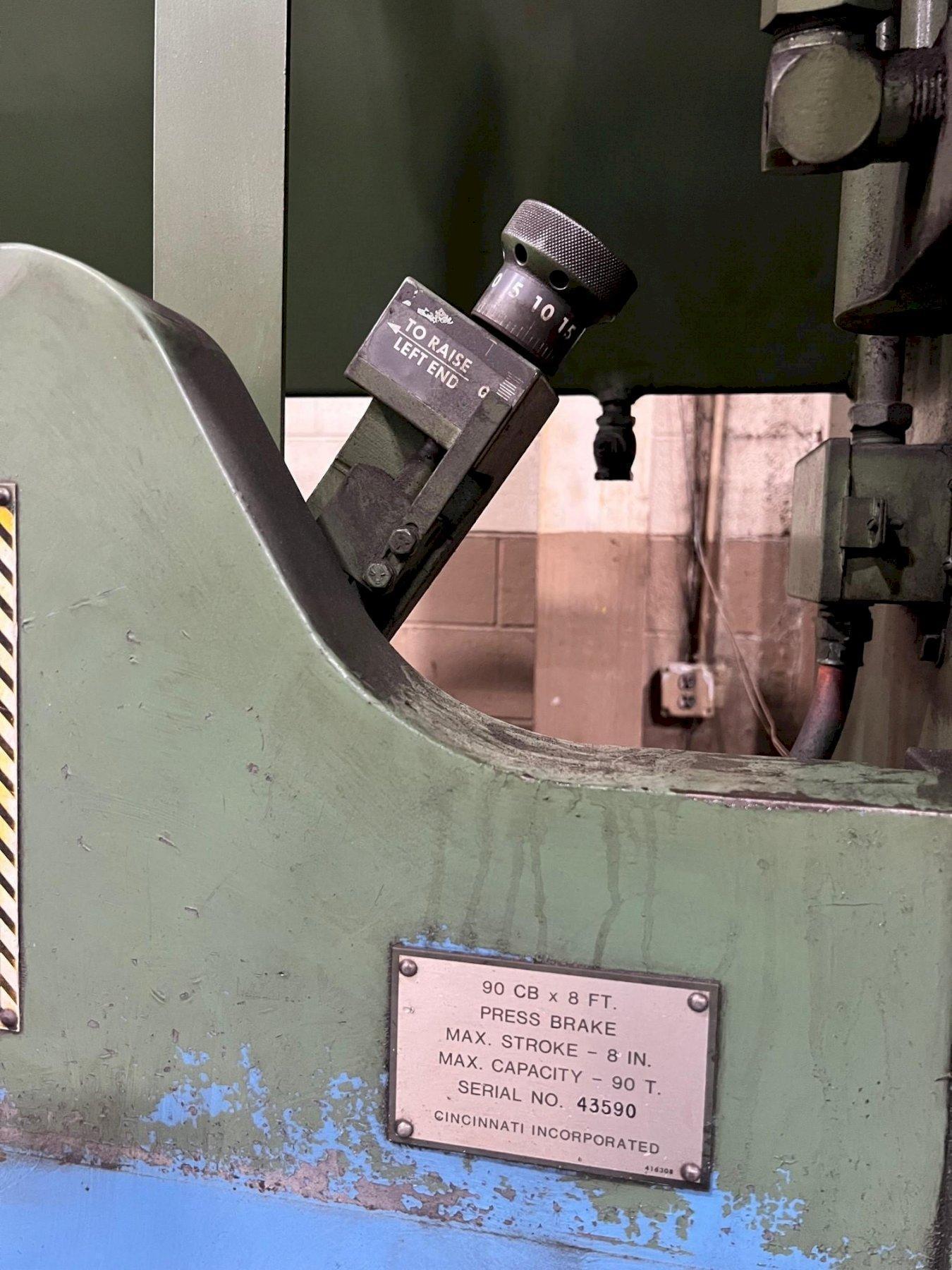

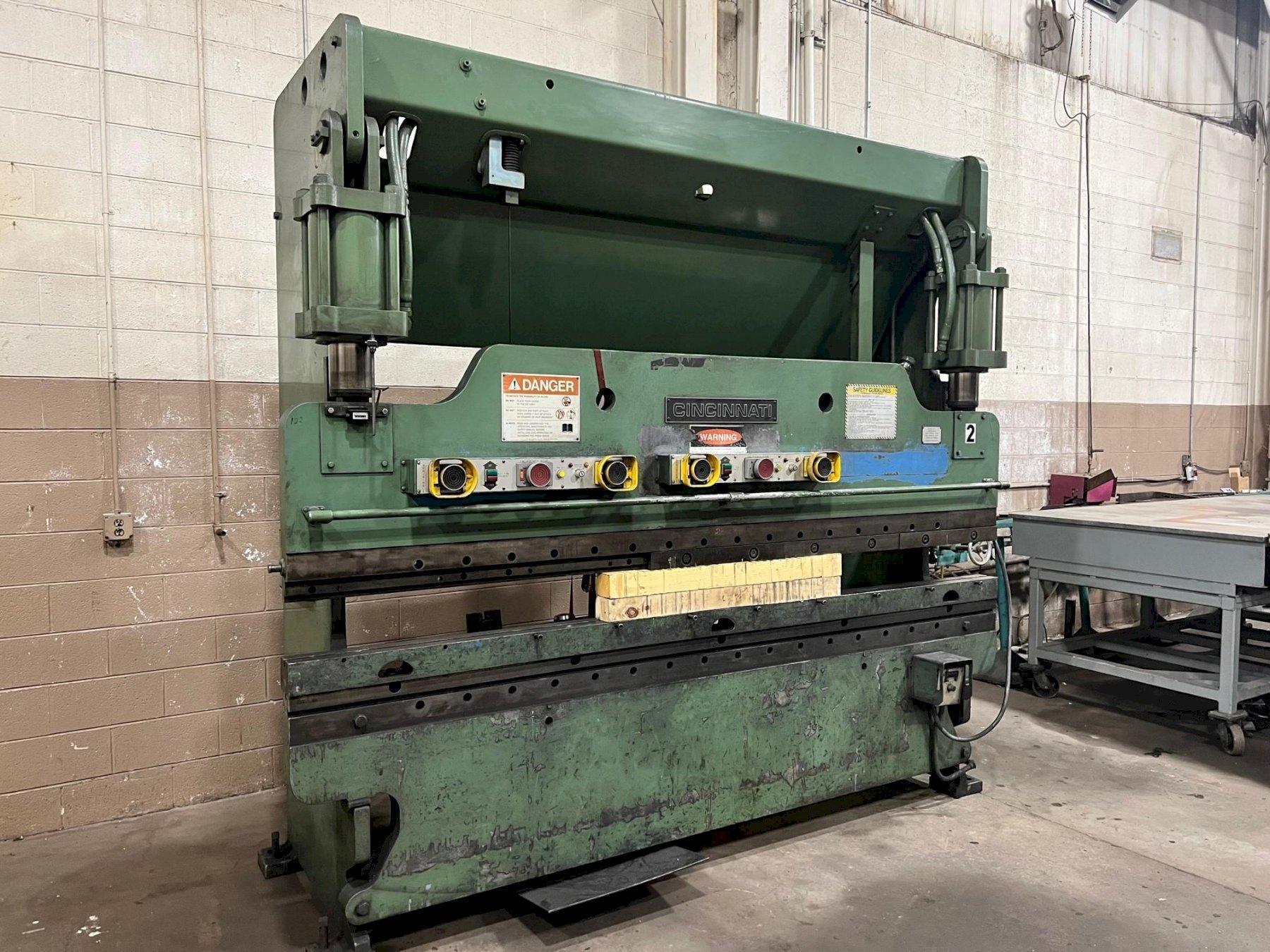

90 TON X 10 CINCINNATI MODEL 90CBX8 HYDRAULIC PRESS BRAKE
New 1983

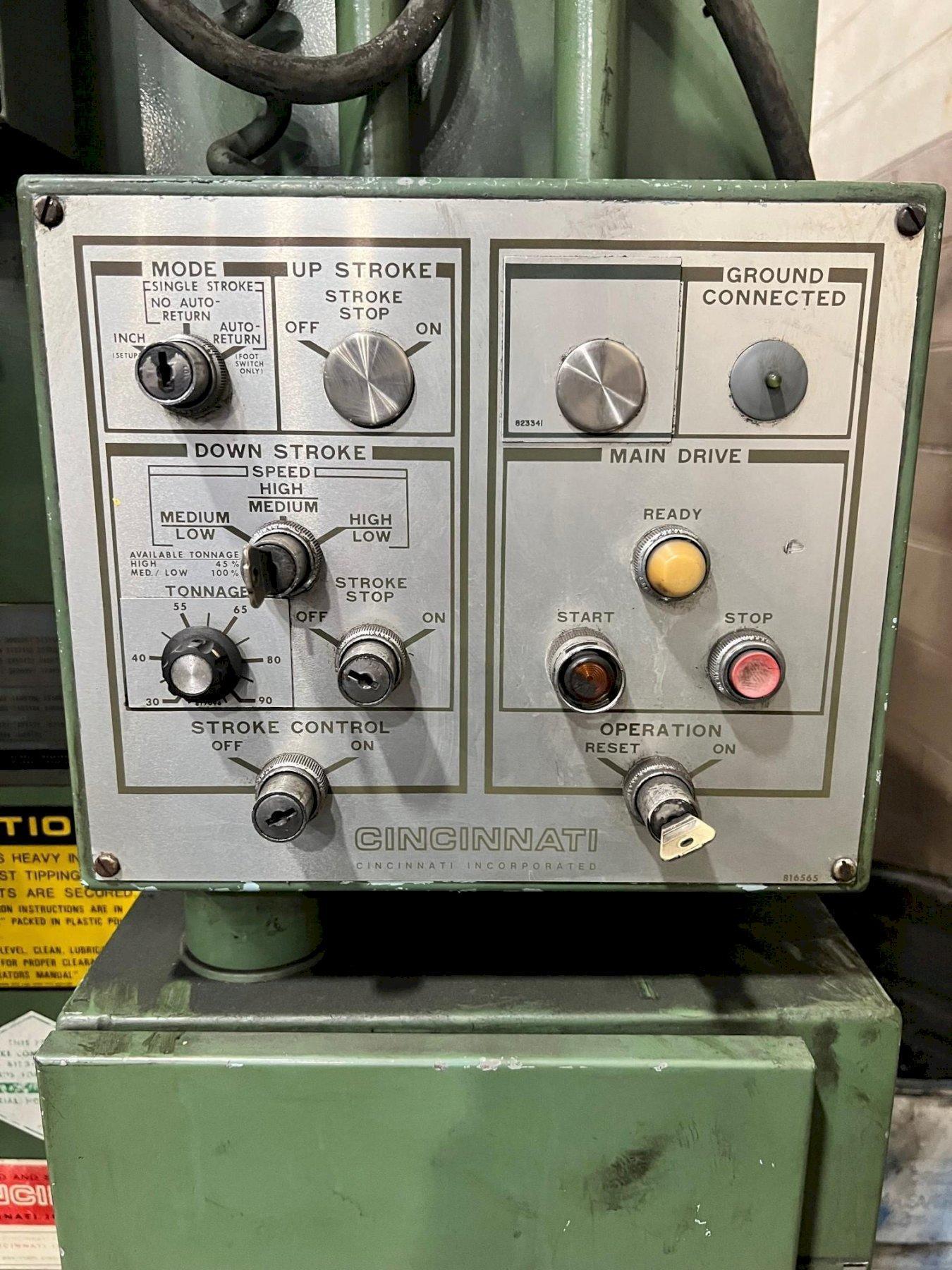

Equipped with:
Fast set up* ram stroke control
Inch, single, auto stroke settings
Full length die holder
Sectionalized ram clamps
Power ram tilt
Tonnage control
Low, medium, high ram speeds
Palm buttons mounted to ram


Specifications:
Tonnage: 90 tons
Length of bed: 10'
Distance between housings: 8' 6-1/4"
Stroke length: 8"
Open height: 15"
Closed height: 7"
Throat: 7"
Ram high speed: 150 IPM
Ram medium speed: 71 IPM
Ram low speed: 21 IPM
Ram return speed: 136 IPM
Main motor: 15 H.P.
Voltage: 220 / 440 volt 3 phase (currently wired 440 volt)
Dimensions: 120" x 40" x 117"
Weight: 14,500 Lbs.
