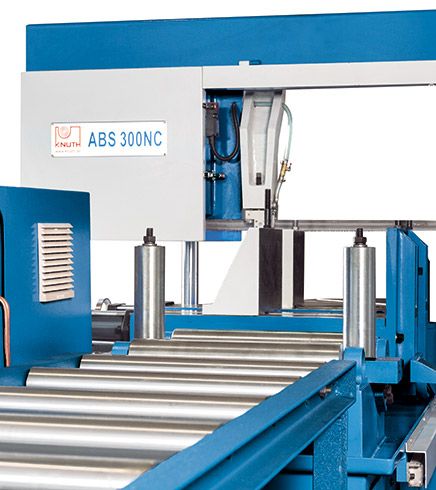

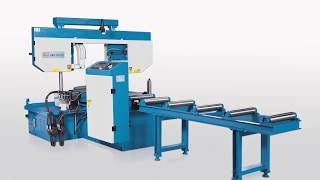

KNUTH MODEL ABS 300 NC FULLY AUTOMATIC HORIZONTAL BAND SAW
Year
Not provided
Stock #
16322
Condition
New
Keep Scrolling To Learn More
Specifications
Equipped With
| Feed per scale division X-axis | 15.75 in |
| Cutting speed | 65.4 - 294.3 fpm |
| Cutting capacity 0¡ (round) | 12 in |
| Cutting capacity 0¡ (flat) | 14x12 in |
| Cutting capacity 0¡ (square) | 12 in |
| Cutting capacity 30¡ (round) | 12 in |
| Cutting capacity 30¡ (flat) | 12x12 in |
| Cutting capacity 30¡ (square) | 12 in |
| Cutting capacity 45¡ - flat | 9x12 in |
| Cutting capacity 45¡ - round | 9 in |
| Cutting capacity 45¡ - square | 9 in |
| Motor rating main drive | 4 Hp |
| Motor rating hydraulic pump | 1 Hp |
| Motor rating coolant pump | 0.1 Hp |
| Blade dimensions | 174.41x1.34x0.04 in |
| Overall dimensions (length x width x height) | 87x79x67 in |
| Weight | 4,180 lbs |
| Part No. | 152880 |
- Cutting angle settings 0¡ - 45¡
- Robust touch screen control panel
- Automatic workpiece feed
- Torsion-resistant dual-column construction
- Hydraulic saw frame feed via chrome-plated column guide
- Slightly inclined saw frame improves cutting performance and increases the service-life
- Dual hydraulic workpiece clamping
- Infinitely variable cutting speed
- Programmable automatic angle positioner can be set in 1¡ increments from 0¡ to 45¡
- Hydraulic bundle vise for both vises included with standard equipment
- Precise and stable saw band guides ensure high angular accuracy
- Automatic band breakage control
- Infinitely variable saw blade speed with settings shown on the display
Reliable Siemens SIMATIC S7-200 SMART PLC with rugged touchscreen input panel
In Manual Mode, all machine functions can be selected and adjusted via touchscreen
In Auto Mode, feed distance, cut angle, and number of cuts can be programmed within the respective configurations
Up to 5 different angle and distance settings can be linked within one automatic program cycle
The programmable automatic angle positioner can be set in 1¡ increments from 0¡- 45¡
Infinitely adjustable saw blade speed with settings shown on the display
Individual lengths and miter angles, and the number of required steps can be entered for each cut
Cut widths can be compensation centrally without considering the programmed workpiece lengths
All machine parameters can be checked by the operator via user-friendly menus
Quick fault diagnostics with clear fault description on the display
- siemens PLC control
- autom. cleaning brush
- feed roller table (6.5 feet)
- 1 saw blade
- touch screen monitor
- central lubrication
- automatic parts counter
- bundle vise
- chip conveyor
- coolant system
- operating tools
- operator manual
